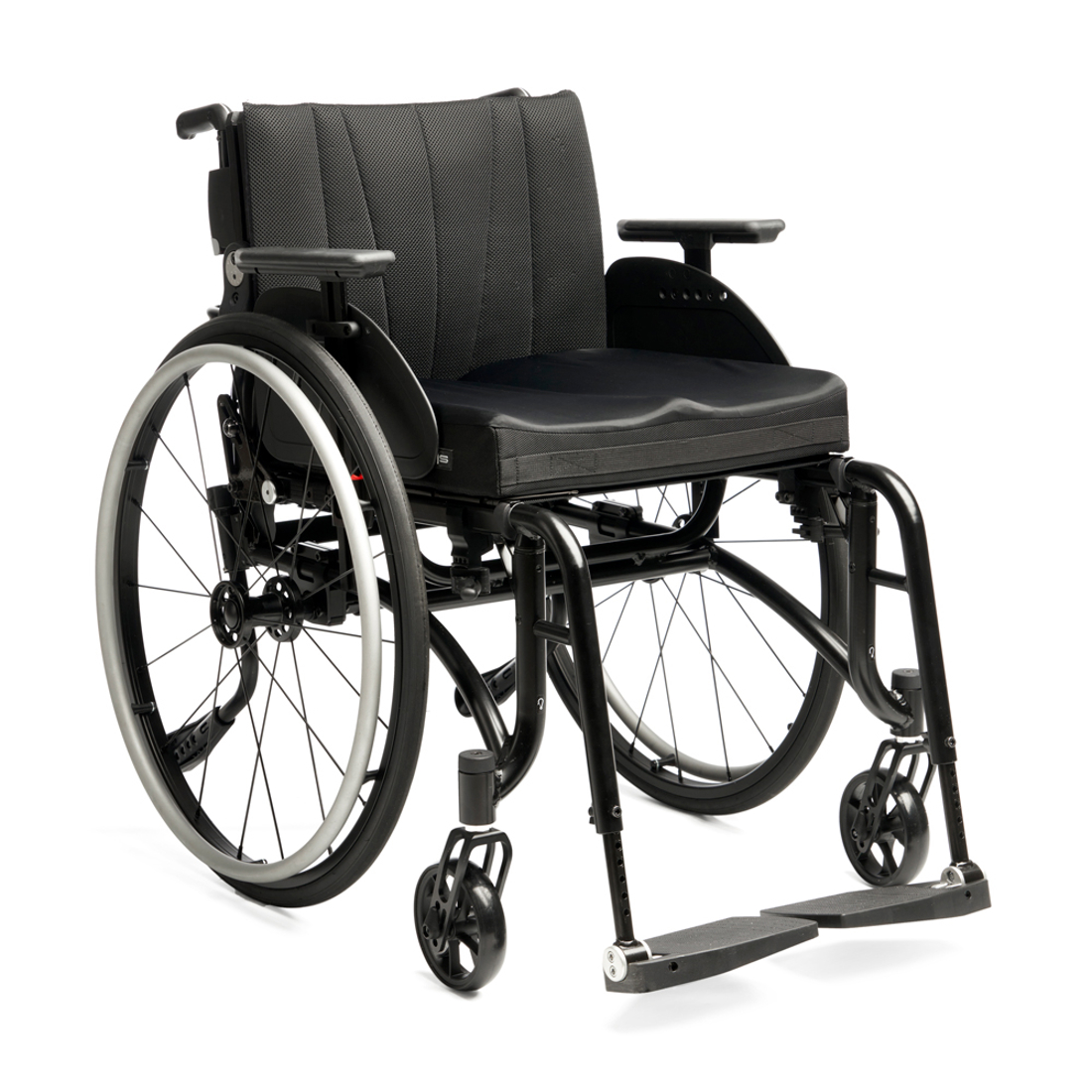

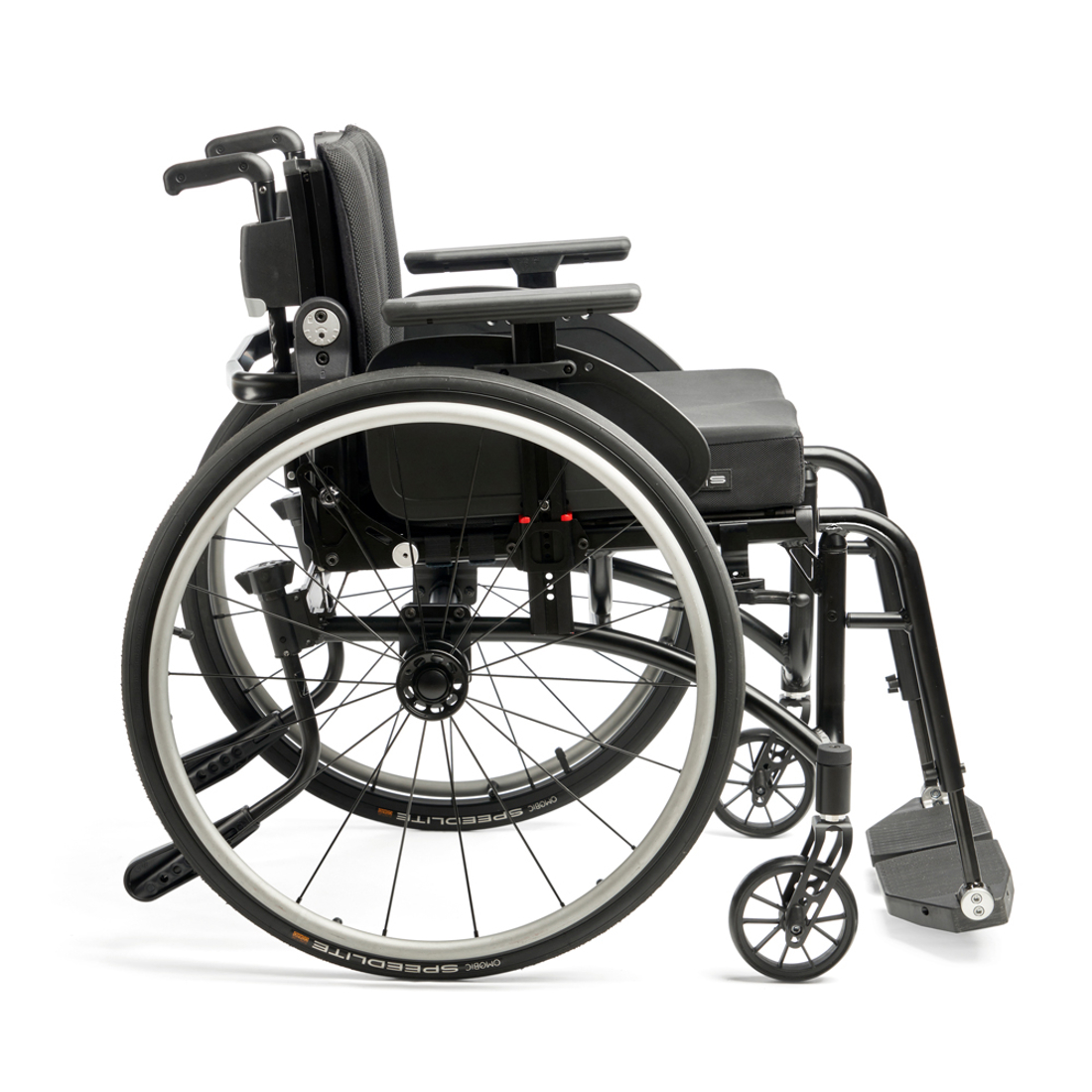

Etac Xact

Xact is built for everybody who wants to live their lives to the fullest by enjoying an active, lightweight, rigid wheelchair with swing-away leg supports. For young adults to seniors. For everybody putting their feet on the ground when transferring. For “every body’s” individual shape and need for stability. Xact is built for an active lifestyle.

One-of-a-kind with integrated seating adjustment
Xact is, by the 3A back system, the only lightweight wheelchair with integrated adjustments for postural control. A rigid frame with swing-away leg supports in which seating adjustment, lightness and propulsion efficiency emerge into a new era.

A wheelchair with 200 settings, add-ons and extras enabling a more active life – whilst enhancing your individual abilities.

Built for an active lifestyle

Xact is built for an active life and for “every body’s” individual shape and needs for stability. Developed for the end-users who want to live their lives to the fullest and need a wheelchair that enhances their abilities in everyday activities.

Reasons for choosing Xact

The possibility to adjust and fine-tune Xact to suit the individual´s needs and enhance abilities creates the potential for the user to live life to the fullest.

Xact is the wheelchair with premium settings, add-ons and extras enabling a more active life – whilst enhancing your individual abilities.

Guide for changing seat height on Xact

Etac Xact offers nine different seat heights to optimize the user's access to the rear wheels and provide the appropriate seat height for transfers. Rear wheels, rear wheel attachments, front forks, castors, and anti-tips can be changed depending on the seat height needed.

Features

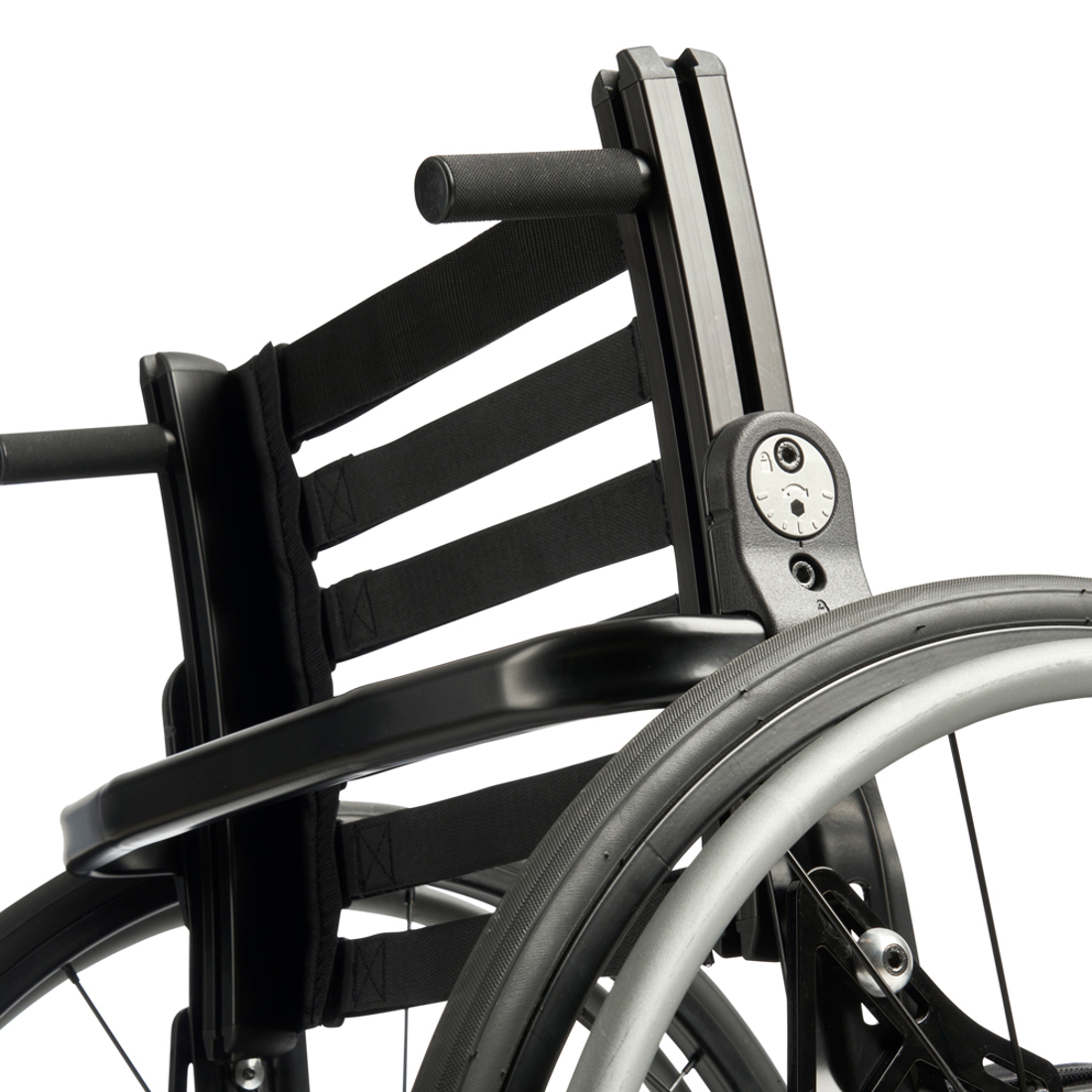

Back-to-seat angle - Altus

With the 3A back system, the back-to-seat angle can be adjusted according to the most corrected posture of the pelvis and to accommodate for a short or long seat depth (adjustable 8 cm). Adjustable -14° to +11°.

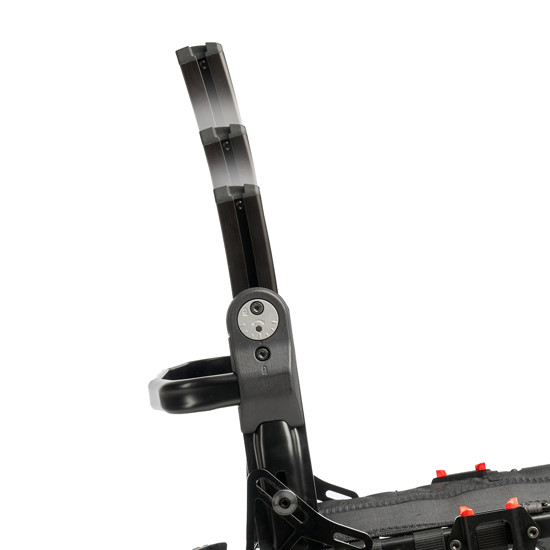

Back height - Altitudo

The 3A back system allows for stepless adjustment of back height to secure the right setting based on the ability of the individual user. Adjustable 32 to 45 cm (with back extension to 51 cm).

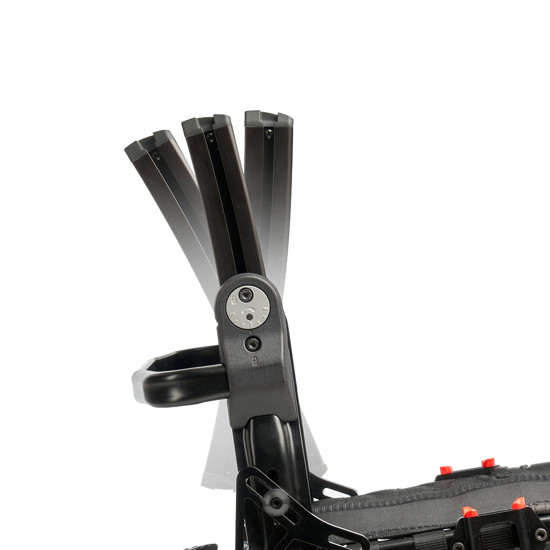

Lumbar angle - Angulus

The adjustability of the lumbar angle is unique to the 3A back system. Follow the curvature of the spine and bring support to the pelvis and upper back. Adjustable +/- 16°.

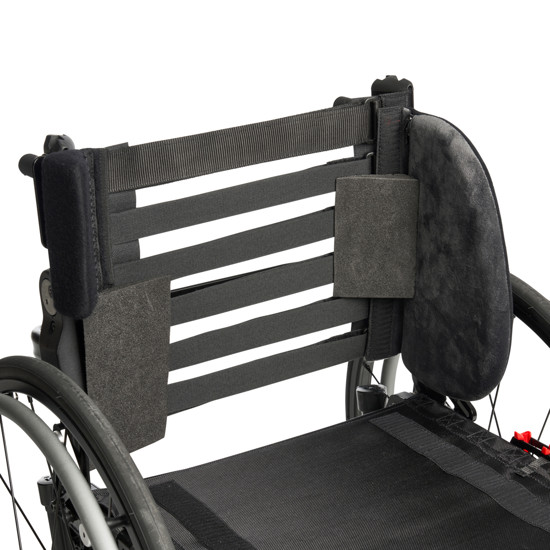

Always-fit solutions

The curved shape of the 3A back profile in combination with the tension adjustable strap back and always-fit accessories such as side cushions, wedges and back widening, etc. lets you create the shape and support needed.

Variants

	Item number	Maximum user weight (kg)	Seat depth (mm)	Seat width (mm)	Total weight (kg)	Total width (mm)	Transport weight (kg)
Standard 35 cm	13250101	100	380-460	350	9.8	550	5.4
Short 35 cm	13250102	100	350-430	350	9.8	550	5.4
Standard 37.5 cm	13250103	100	380-460	375	9.9	575	5.5
Short 37.5 cm	13250104	100	350-430	375	9.9	575	5.5
Standard 40 cm	13250105	100	380-460	400	10	600	5.6
Short 40 cm	13250106	100	350-430	400	10	600	5.6
Standard 42.5 cm	13250107	100	380-460	425	10.1	625	5.7
Short 42.5 cm	13250108	100	350-430	425	10.1	625	5.7
Short 45 cm	13250110	135	350-430	450	10.3	650	5.8
Standard 47.5 cm	13250111	135	380-460	475	10.4	675	5.9
Short 47.5 cm	13250112	135	350-430	475	10.4	675	5.9
Standard 50 cm	13250113	135	380-460	500	10.4	700	6
Short 50 cm	13250114	135	350-430	500	10.4	700	6

Weights and dimensions given are for a wheelchair with 3A back system, 24” Maxx wheels with high pressure tyres and hard aluminium handrims, scissor brakes, Front forks Alu S with 5” 125x28 castors, Active leg supports, and foot supports with short attachment tube. Transport weight as above excl. rear wheels and leg-/foot supports. The measurements given may vary by ± 2%.
Front seat height: 40 - 50,5 cm
Rear seat height: 37,5 - 47,5 cm
Back support height: 32 - 45 cm std, Including the back extension 6 cm for up to 51 cm
Transport width/lenght: Seat width + 18 cm/69 cm
Total lenght: 83 - 93 cm

Options

Rear wheels

In the manual for Xact, you´ll find information on rear wheel size in relation to seat height.

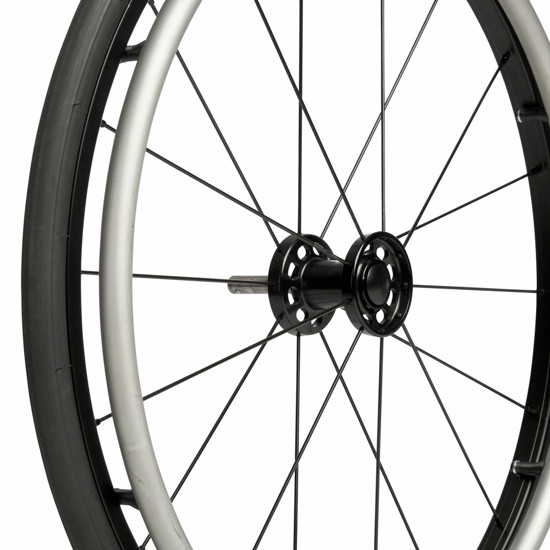

Maxx - 22", 24", 25"

The Maxx Spoke design and high-quality material construction provide increased rigidity and responsiveness.

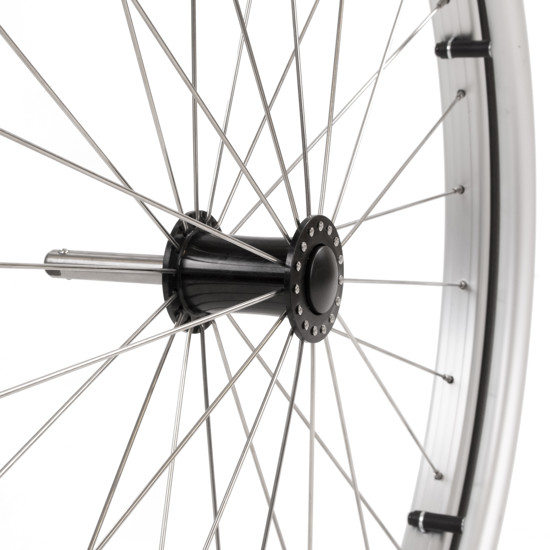

C6 - 20"

The C6 rear wheel with stainless spokes is a durable choice that also provides efficient propulsion.

Rear wheel attachment

In the manual for Xact, you´ll find information on rear wheel attachment and position in relation to seat height.

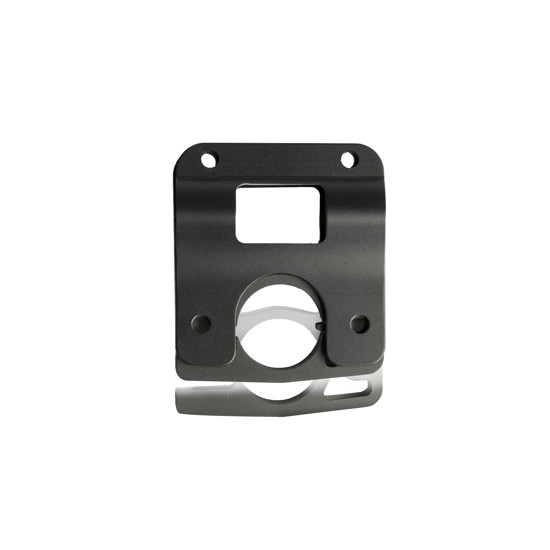

Rear wheel attachment Std

Use the Standard attachment for wheel positions D and E in the seat height table. (See manual for Xact)

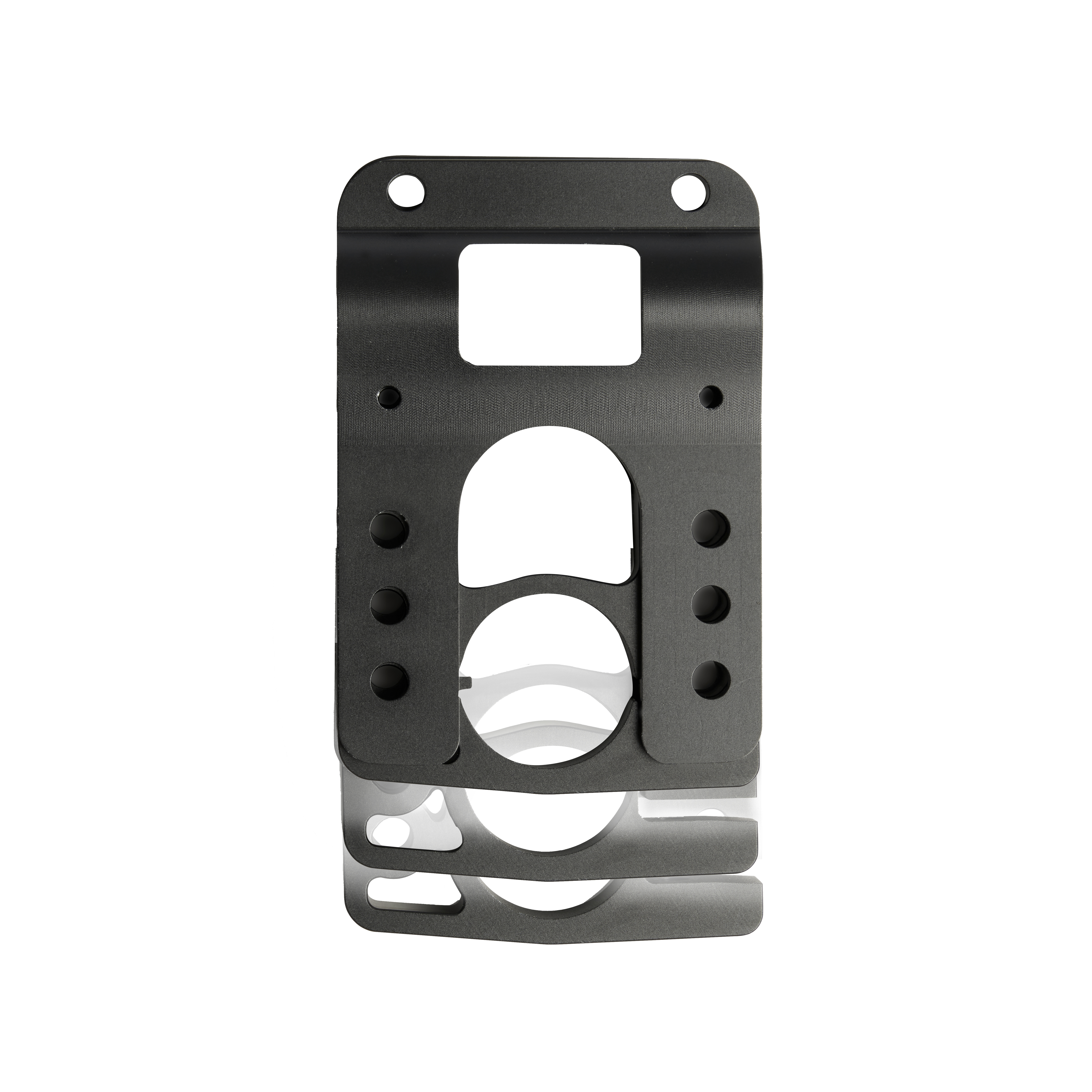

Rear wheel attachment High

Use the High attachment for wheel positions A, B and C in the seat height table. (See manual for Xact)

Tires

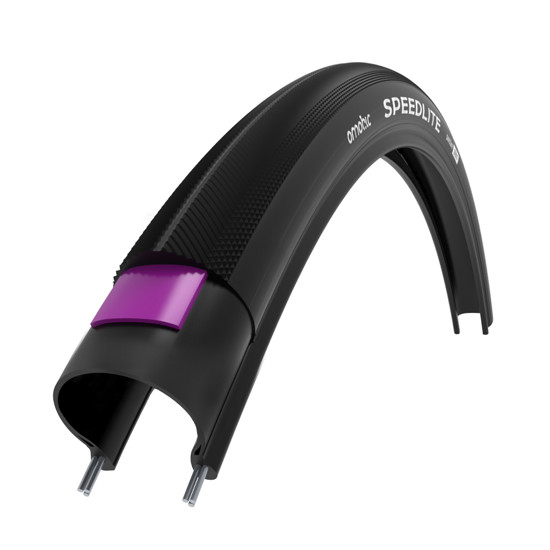

Speedlite High-pressure tire - 22", 24"

Speedlite, high-pressure tire with puncture resistance protection belt, provides low rolling resistance.

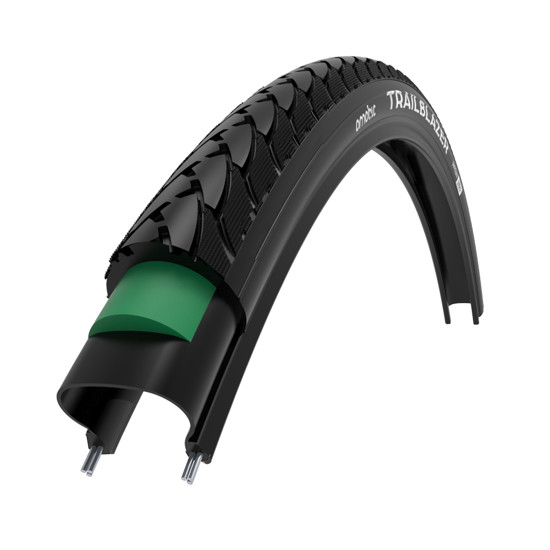

Trailblazer High-pressure tire - 22", 24", 25"

Trailblazer, high-pressure tire with exceptional puncture resistance protection belt that provides a flatless ride.

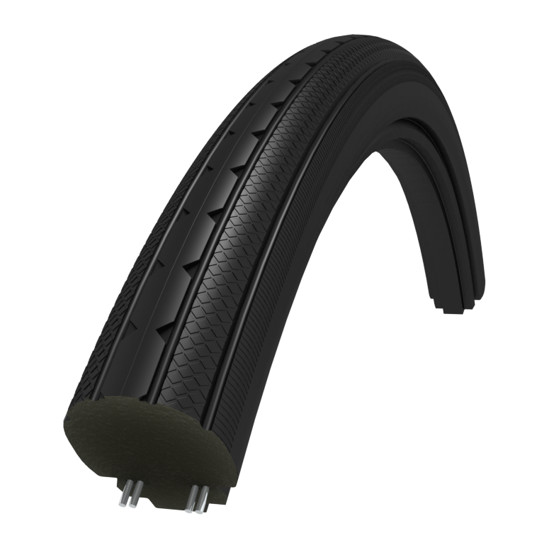

Solid tire - 20"

Solid tire for a flatless ride.

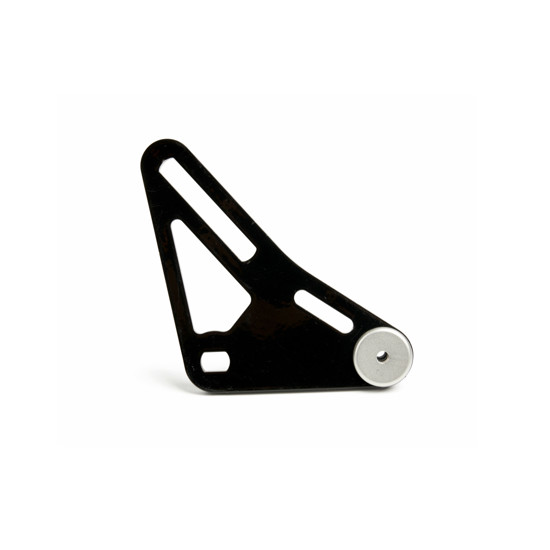

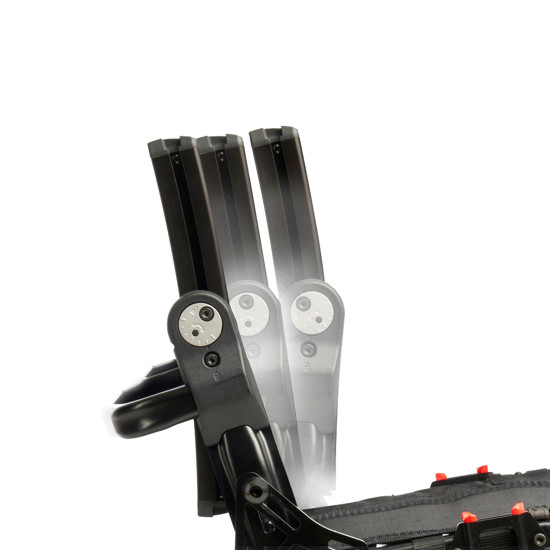

Seat depth

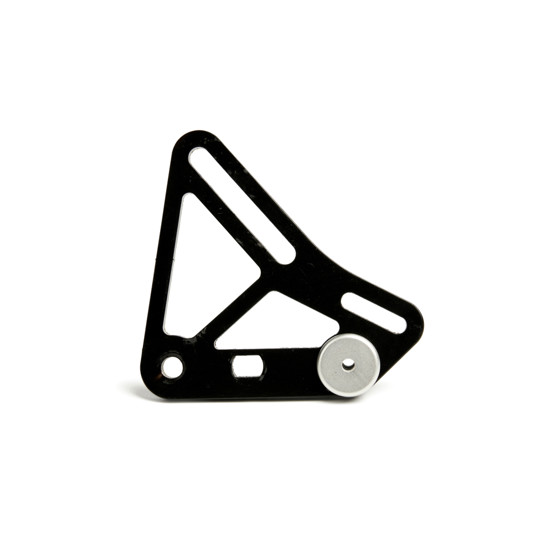

Xact is offered in two seat depth ranges based on the same chassi with different hinges for back support mounting. Stepless adjustment of depth is made by 3A back-to-seat angle.

Seat depth 35 - 43 cm

Seat depth 38 - 46 cm

Handrims

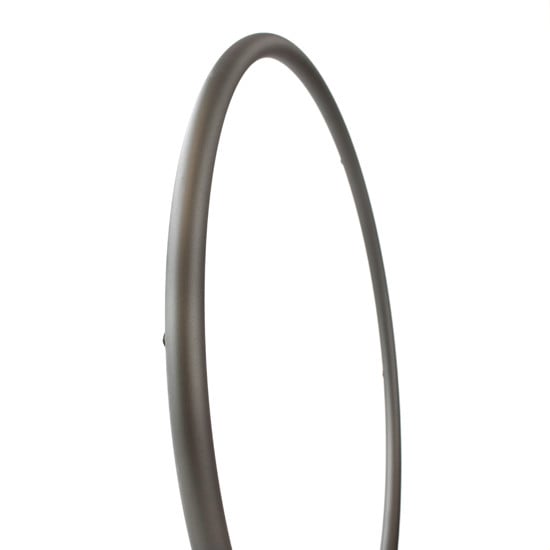

Hard anodized aluminium handrim - 22", 24", 25"

A lightweight handrim in hard anodized aluminium provides greater wear resistance as well as a smoother and harder finish.

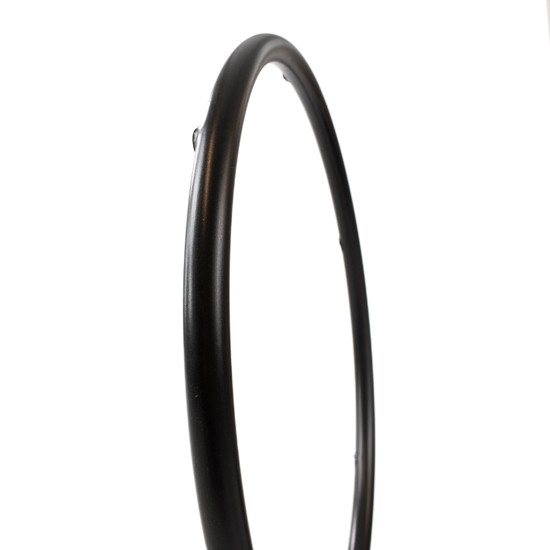

Plastic handrim - 20", 22", 24", 25"

Plastic coated aluminium handrim for greater grip.

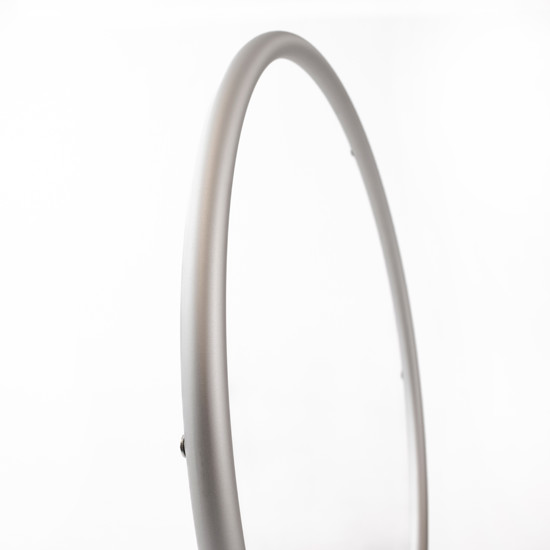

Aluminium handrim - 20"

Lightweight aluminium handrim.

Castors

In the manual for Xact, you´ll find information on castor size in relation to seat height.

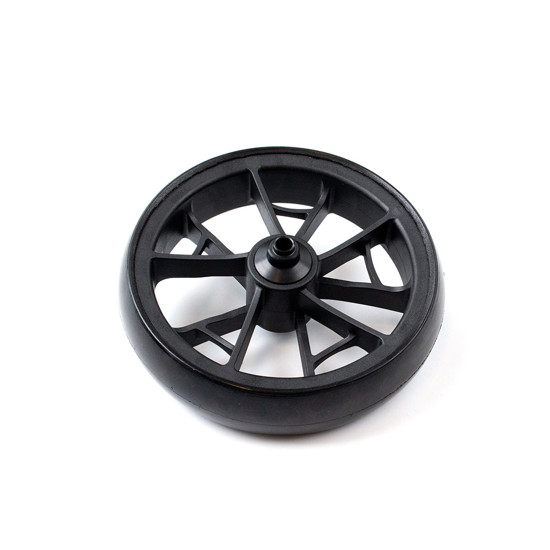

Castor active - 5"

A new lightweight castor with a unique bearing protection design, width 28 mm, only 180 g.

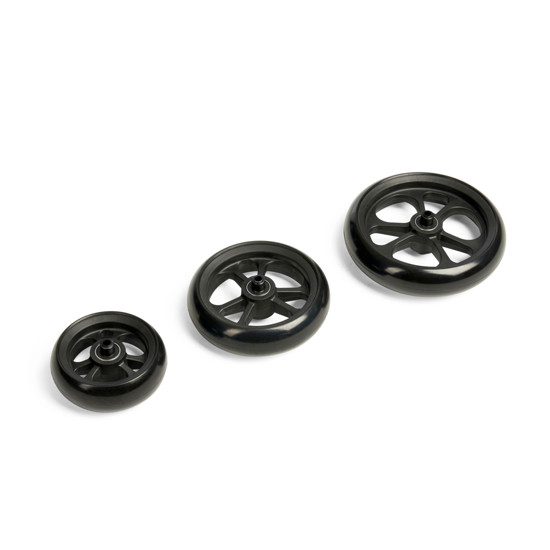

Castor - 4", 5", 6"

Castors with 34 mm width, available in 3 sizes for adjustable seat height.

Front forks

In the manual for Xact, you´ll find information on front forks in relation to seat height.

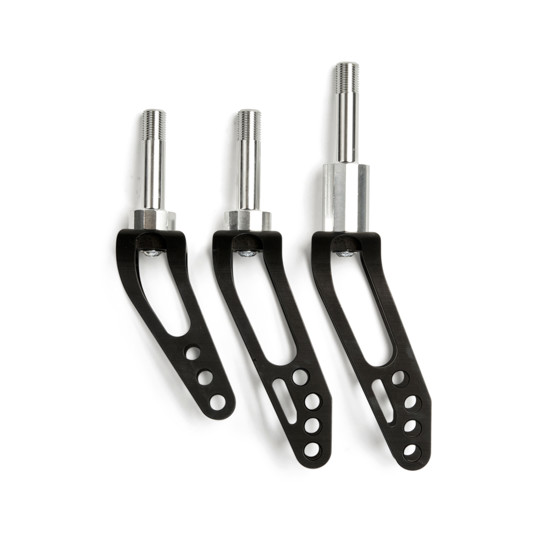

Aluminium - XS, S, S+25

Lightweight front forks complete with axle, specially designed for Xact. Available in three sizes for adjustable seat height.

Brakes

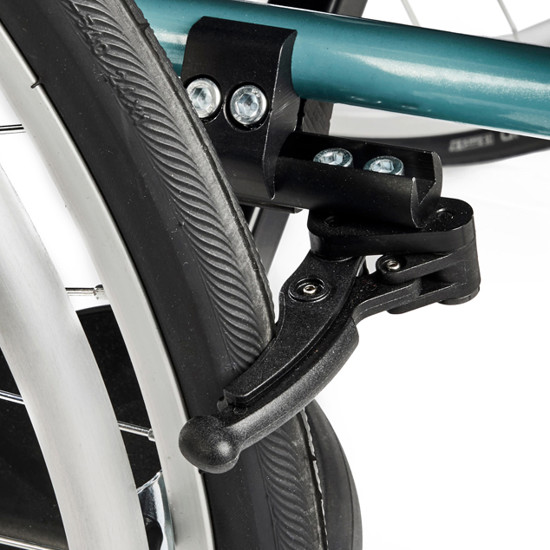

Scissor brake

Discrete-designed brake that does not interfere when transferring.

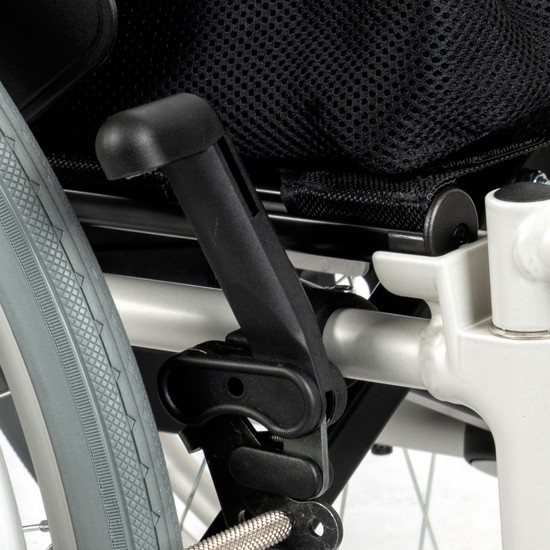

Knee lever brake

Brake with an angled handle that provides a larger gripping surface. Available in colour black or red.

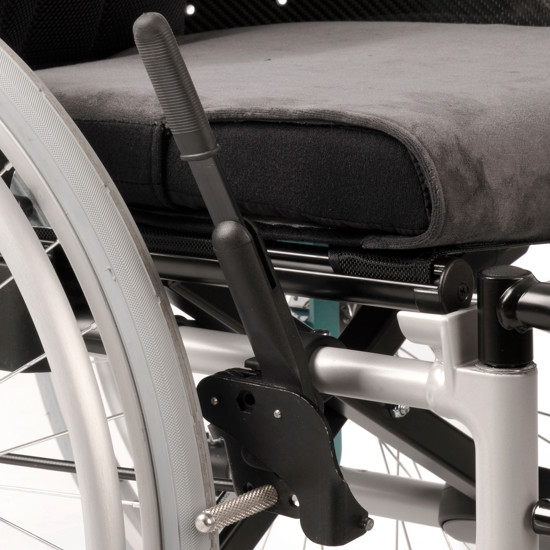

One hand brake

One-hand brake with both extended and angled handle included for individual choice.

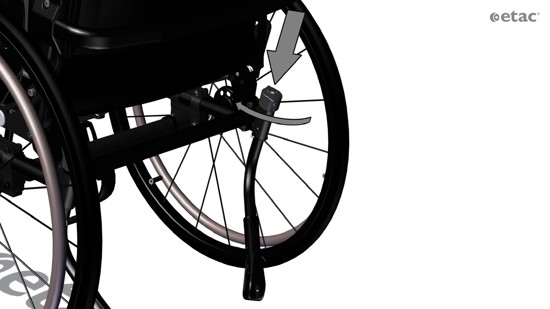

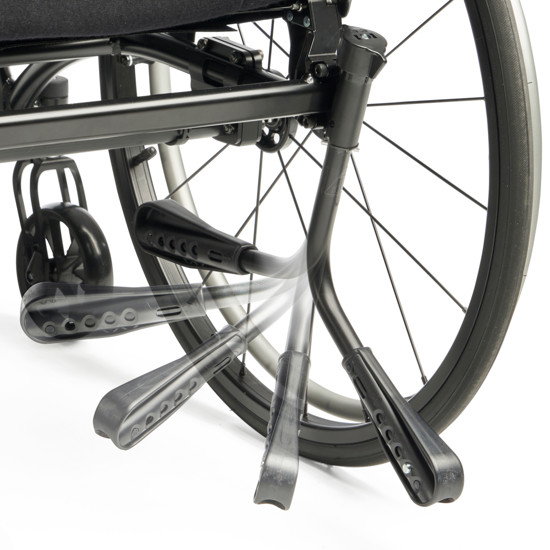

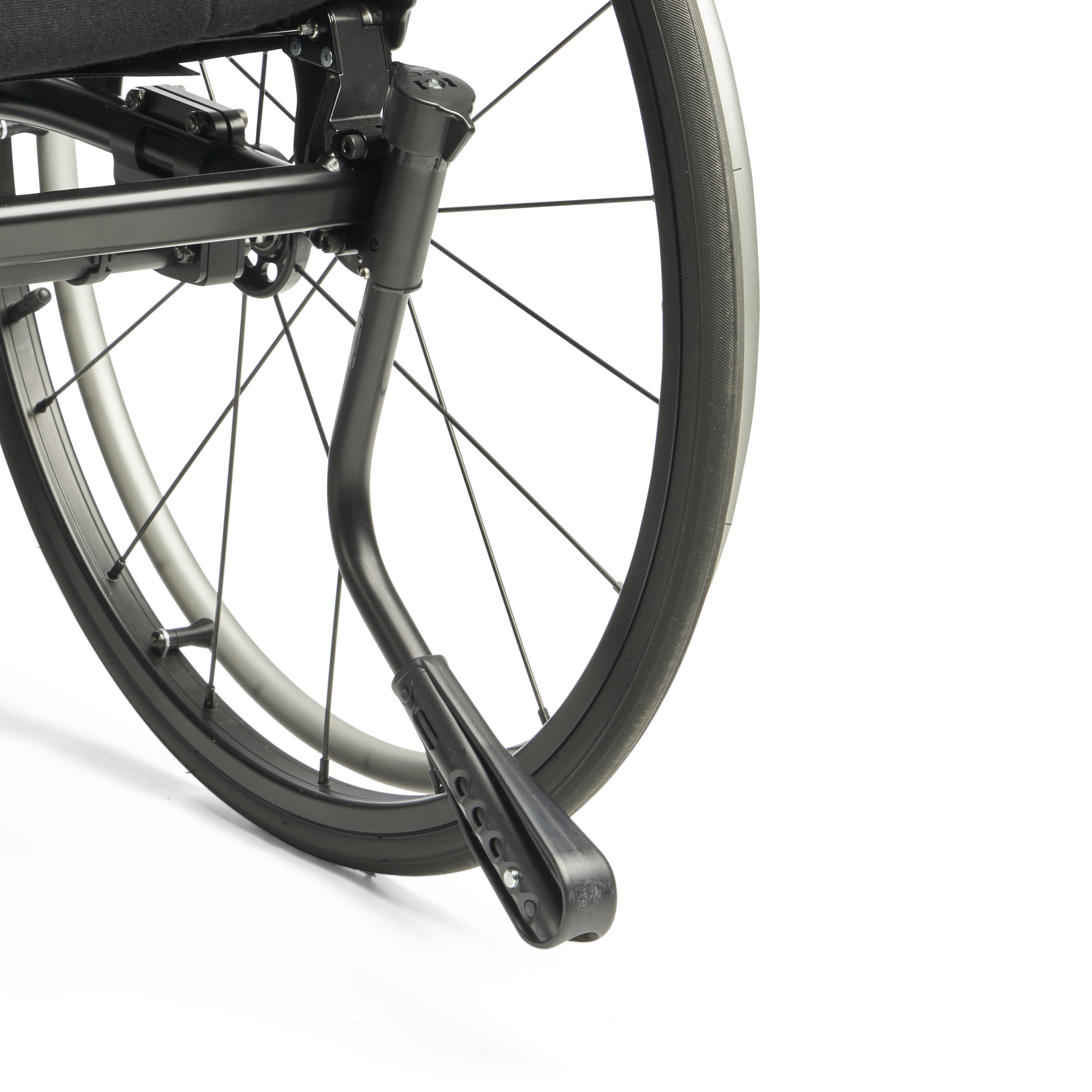

Anti-tippers

The swing-away anti-tippers can easily be activated or deactivated by the user sitting in the wheelchair.

Push handles

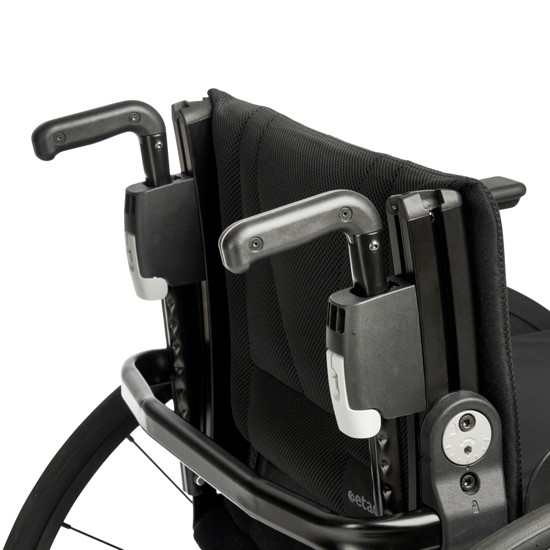

Push handles Active

Height adjustable 15 cm with a short grip of 7,5 cm.

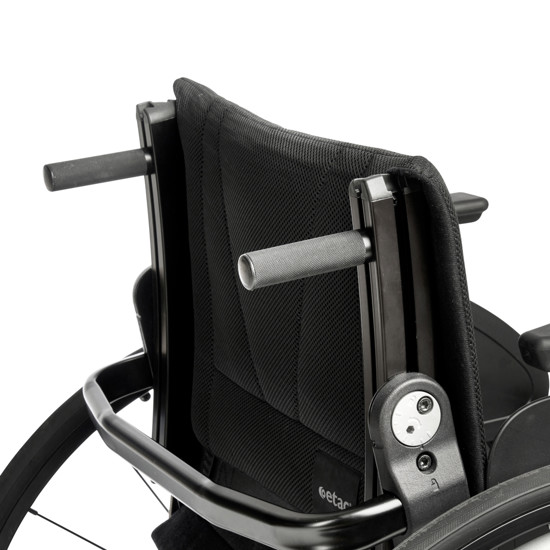

Push handles Fixed

Fixed push handles mounted in the 3A back support profile, with a short grip of 7,5 cm.

Leg supports

The lightweight leg support is standard for Xact. Find more models of leg supports under Accessories.

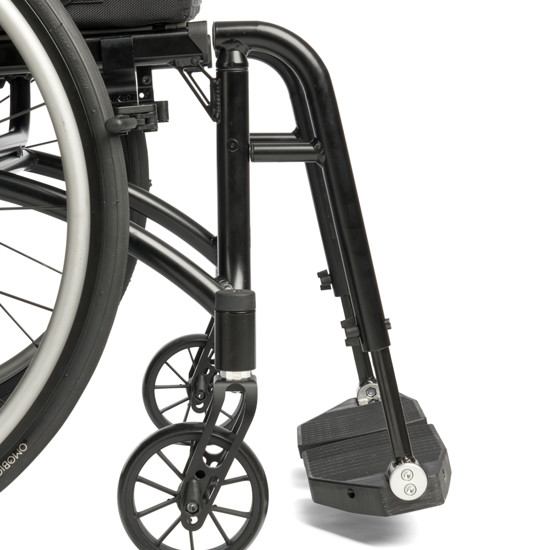

Leg support Active

Swing-Away lightweight narrow leg supports with a reduced weight of 200 g compared to our Leg support narrow. Swing away or detach for standing transfers or to get closer to the transfer surface. Easy access to the leg support with foot plate as it can be left standing upright on levelled surface.

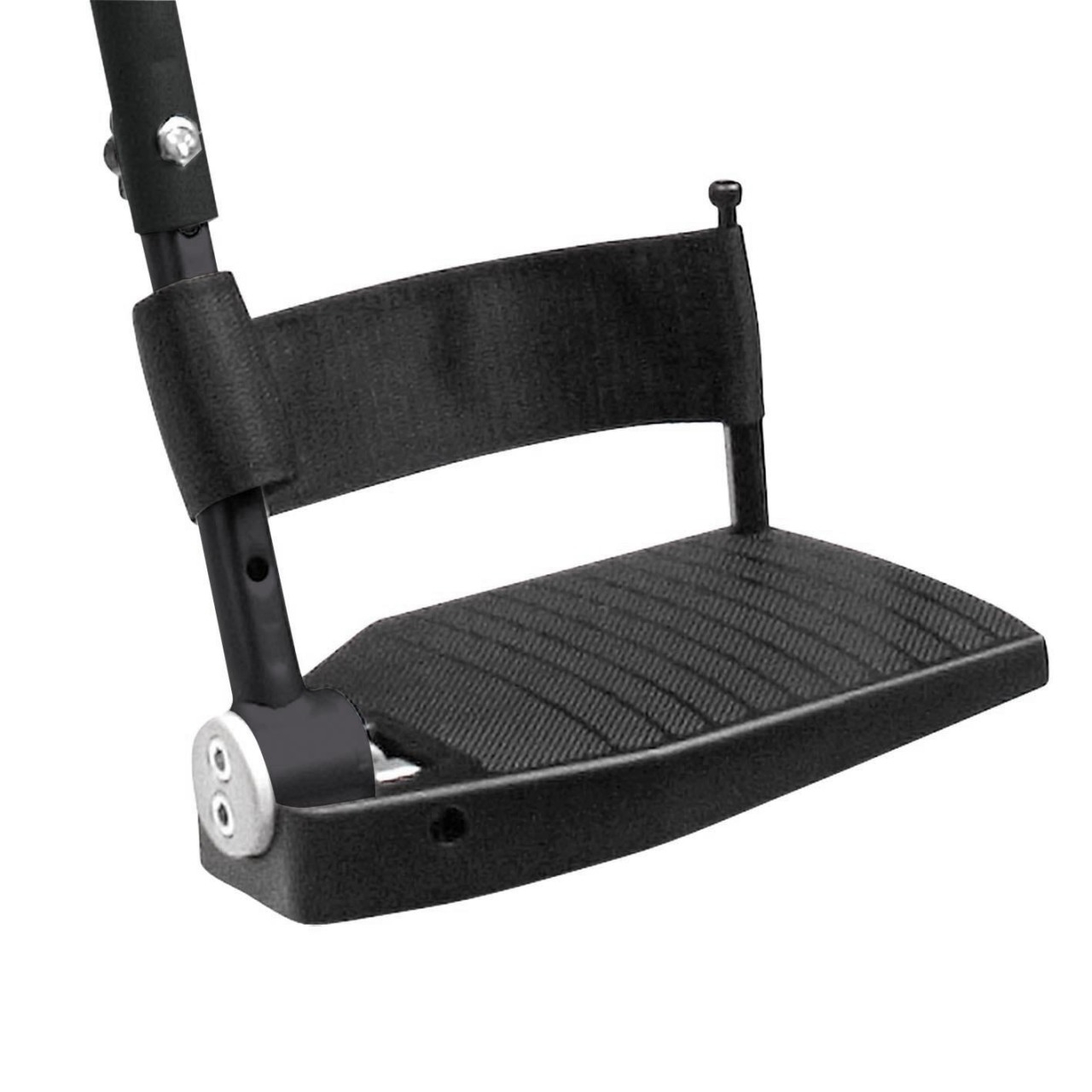

Foot support

The foldable and adjustable foot supports are standard for Xact. Find more models of foot supports under Accessories.

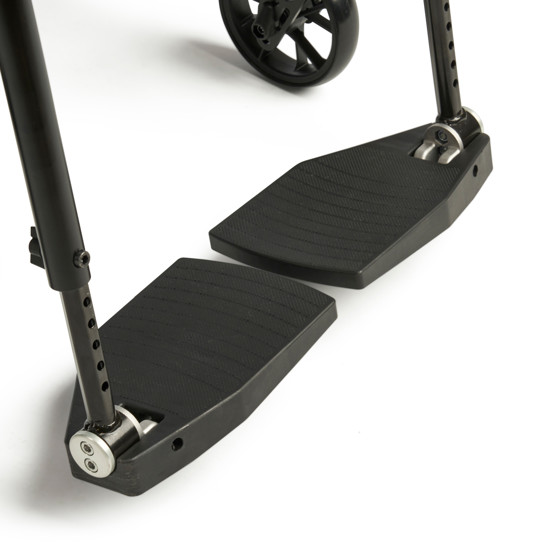

Foot support, foldable and adjustable

Foldable and adjustable foot supports in height, depth and angle. Available with short and medium attachment tubes.

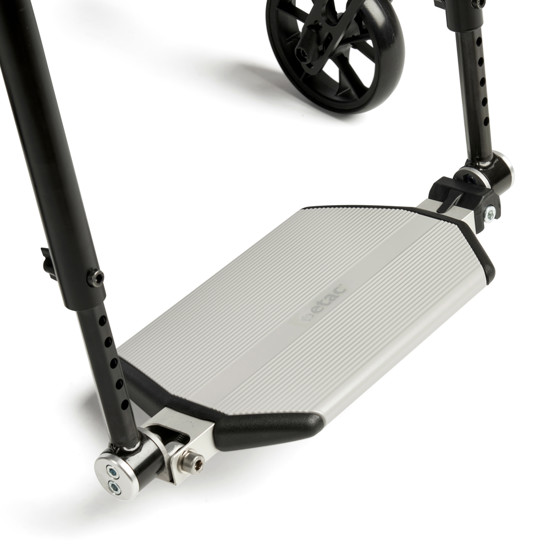

Foot support One-piece

Foldable and adjustable one-piece foot support in height, depth and angle.

Arm supports

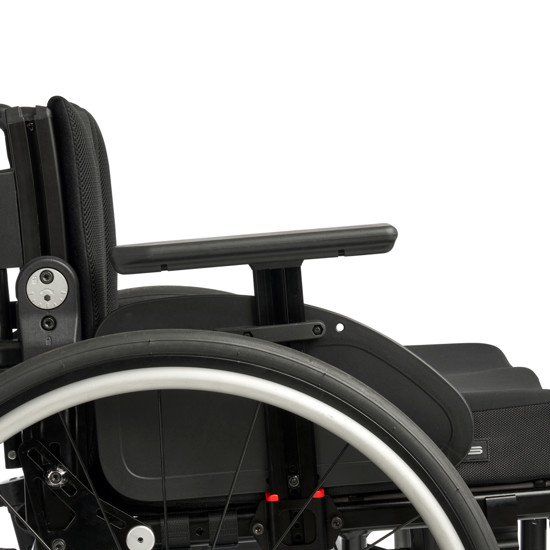

Arm support Active, short

Arm support with solid short 25 cm pad. Detachable and height adjustable 23-29 cm from the seat frame.

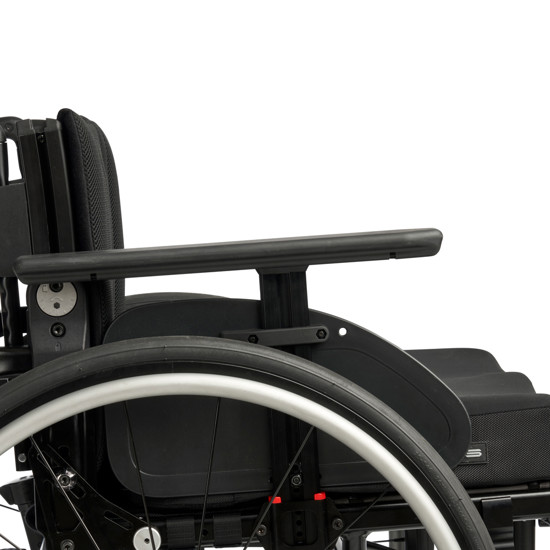

Arm support Active, long

Arm support with solid long 38 cm pad. Detachable and height adjustable 23-29 cm from the seat frame.

Accessories

64 results found

Leg and foot supports

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
