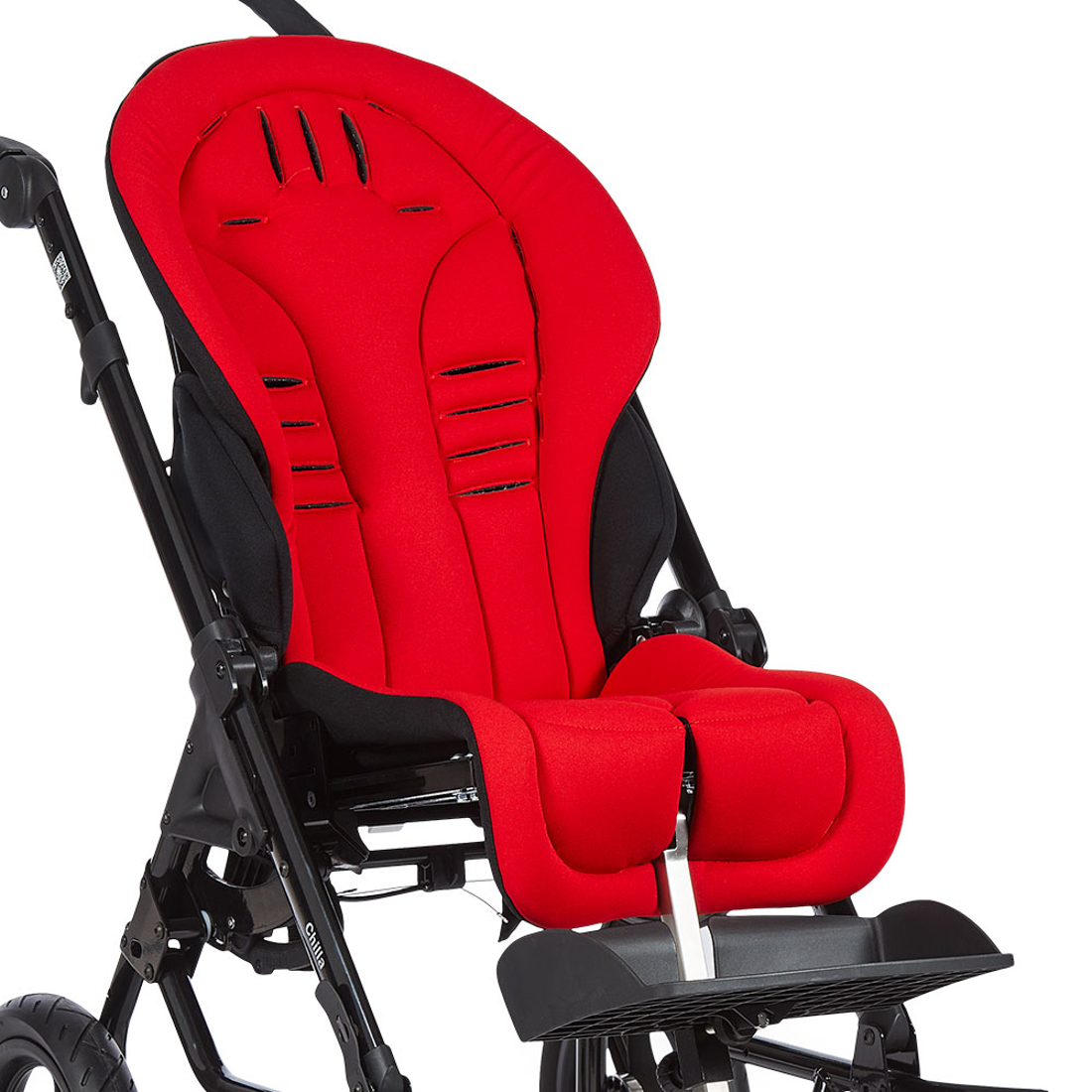

Chilla seat
The Chilla seat is a comfortable and supportive seat which comes in 2 sizes. It is possible to mount a large range of accessories to the seat, creating a tailored fit and a stable seat from where the child can interact and participate with their surroundings. The Chilla seat is designed with the possibility to adjust the seat depth, and back height. By using accessories, it´s also possible to change seat width and back width. Adapting the seat to the child makes it possible to assure a tailored fit with a high level of comfort.
Variants
| Seat size 1 | Seat size 2 | |
|---|---|---|
| Item number | 881012 | 881022 |
| Back width, top of backrest (with side supports) (mm) | 150-225 | 170-260 |
| Back width, top of backrest (without side supports) (mm) | 315 | 365 |
| Backrest height with head support plate (mm) | 505-665 | 620-810 |
| Backrest height without head support plate (mm) | 365-525 | 420-610 |
| Backrest recline angle (°) | 80-160 | 80-160 |
| Effective seat depth (mm) | 180-340 | 240-420 |
| Effective seat width (without hip support) (mm) | 330 | 380 |
| Effective seat width minimum/maximum (with hip supports) (mm) | 180-260 | 230-310 |
| Folded height (mm) | 275 | 295 |
| Folded length (mm) | 535 | 635 |
| Folded width (mm) | 380 | 430 |
| Foot support to seat (mm) | 130-260 | 185-420 |
| Mass device (kg) | 5.3 | 6.3 |
| Maximum rated load (kg) | 42.3 | 58.3 |
| Maximum user mass (kg) | 35 | 50 |
| Maximum user mass in transportation (kg) | 35 | 50 |
| Minimum user mass in transportation (kg) | 22 | 22 |
| Seat recline angle | (-5)-(40) | (-5)-(40) |
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
