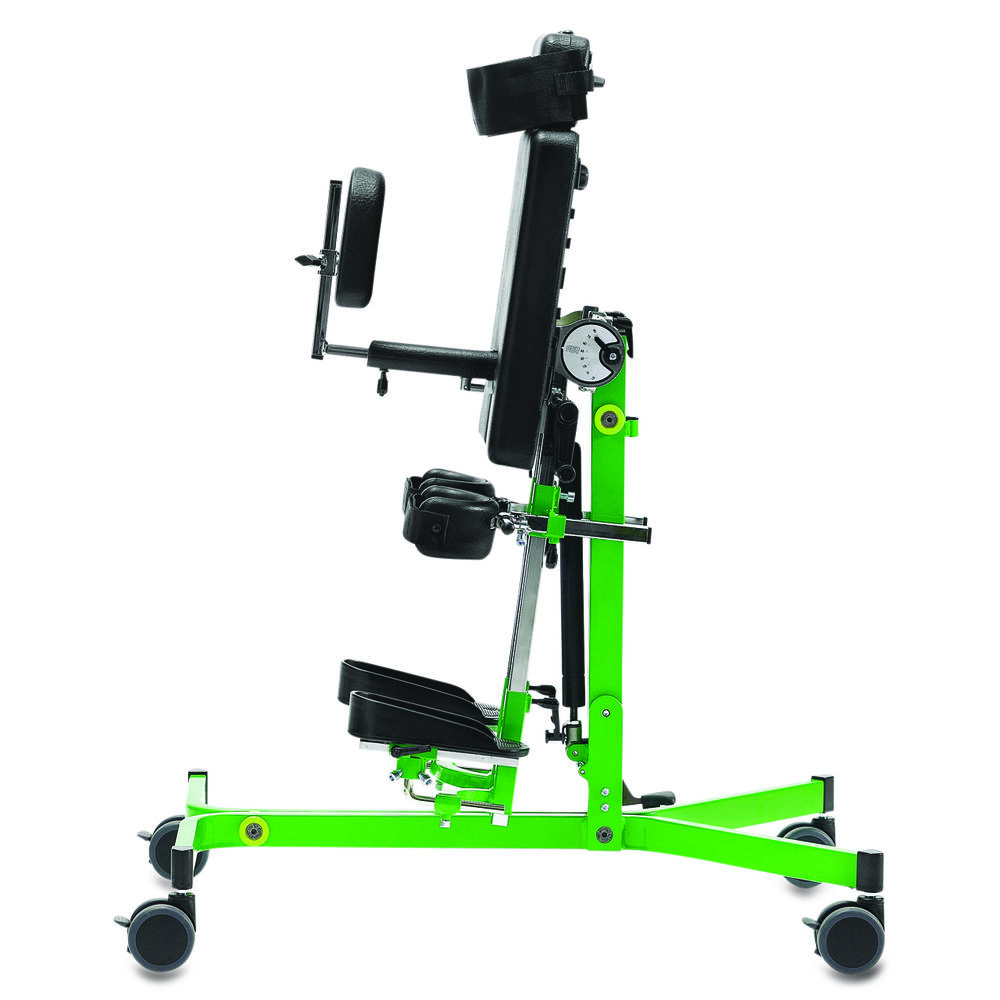

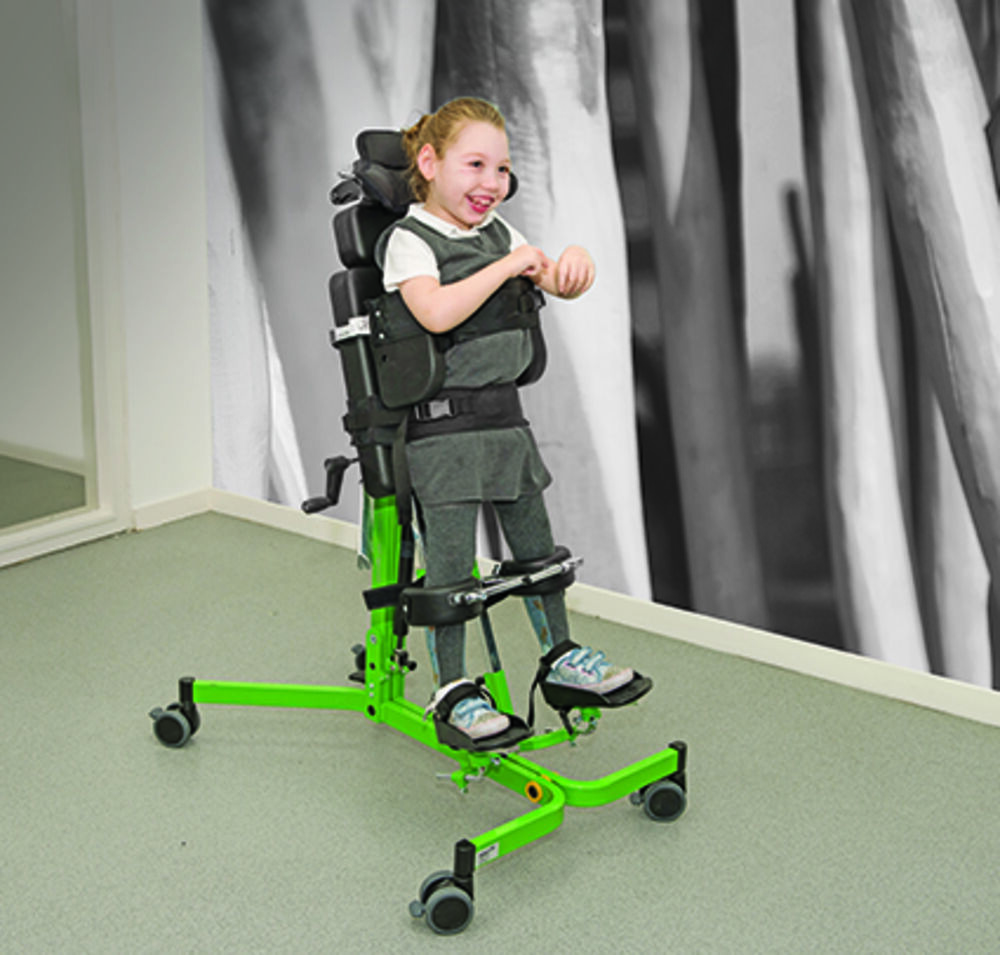

Gazelle PS

The R82 Gazelle PS is an advanced standing frame for children, meticulously crafted to suit a broad spectrum of needs. This standing frame supports prone, upright, or supine positions, offering flexibility tailored to each child's unique needs.

One of the attributes of this standing frame is its ability to provide up to 30 degrees of hip abduction in each leg. Beyond its design ingenuity, research indicates that this specific feature can play role in hip development , potentially mitigating hip migration in children with cerebral palsy. Constructed with exceptional care, the R82 Gazelle PS standing frame is available in three sizes, accommodating children from heights of 700 mm (27 1/2") to 1650 mm (65"). Its durability is further emphasized by a maximum user mass of 80 kg (176 lb). During daily activities, the R82 Gazelle PS standing frame offers dependable support for children. With a focus on adaptability, its features are tailored to meet specific user needs. In summary, the R82 Gazelle PS is a comprehensive solution for children requiring standing assistance. By accommodating diverse postures, potentially facilitating hip health , and ensuring durability, it responds effectively to various needs. Tailored for different sizes and designed for daily reliability, this standing encapsulates thoughtful engineering with a keen focus on the well-being of its users.

Features

Gazelle PS

Tilt vertical-horizontal

The Gazelle PS tilts from vertical to 15° past horizontal. This is an excellent position for respiratory therapy and postural drainage.
Gazelle PS

Foldable

From the upright position the Gazelle PS is easily folded. By loosening only one screw, abducting the legs and by lifting it slightly, the Gazelle PS is folded for storage or transportation.
Gazelle PS

Manual leg abduction

The Manual leg abduction moves in an anatomically motion to help seat the head of the femur into the acetabulum. You can adjust either one or both legs to the optimal angle.
Gazelle PS

Multi-adjustable foot supports

Ball joints in foot plates allow for positioning and support for almost any ankle/foot placement.

Standard specifications

Size 1, 17,5 cm foot plates
Size 2
Size 3
Item number 88010-1 88010-2 88010-3
Length (inch) 30 31.5 35.5
Length, foot-axila (inch) 18-37 24-41 28-49
Mass device (lbs) 44 48 53
Maximum rated load (lbs) 136.6 185.1 233.6
Maximum user mass (lbs) 88 132.3 176.4
Maximum user weight (lbs) 88 - -
Overall height, horizontal (inch) 30 31.5 35
Overall width (inch) 19 23 26
User height: floor to axil (inch) 18-37 24-41 28-49

Options

Delivered in different colors for size 1, 2 and 3.

Yellow for size 1

Yellow for size 1

Green for size 2

Green for size 2

Blue for size 3

Blue for size 3

The tilt angle can vary from child to child. Tilt angle from 90° to -15°.

Tilt 0°

Tilt 0°

Tilt 45°

Tilt 45°

Tilt 90°

Tilt 90°

Keep track of the tilt angle with the protractor

Keep track of the tilt angle with the protractor
