Etac Cross 5XL

Combines maximum comfort with optimum functionality.

The best seating and propulsion
The combination of an adequate seat width and the unique 3A back support adjustments enable a voluminous user sufficient space for the trunk.

Powerful and elegant

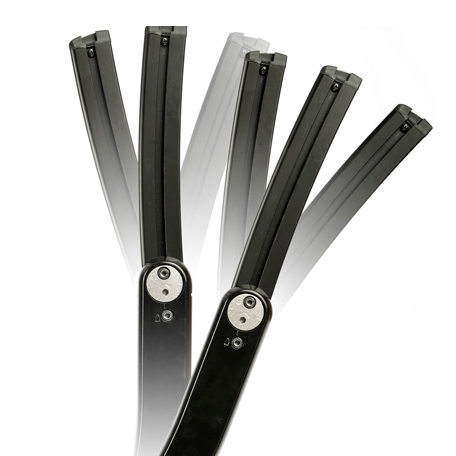

Cross 5 XL wheelchair has the same conditions for seat comfort and mobility as Cross 5. The multi adjustable 3A back support can be set to provide extra space at rear and enabling perfect trunk balance. The shape is fine-tuned with the tension adjustable back straps. Also Cross 5 XL responds rapidly while propelling and turning thanks to the chassis' unique stability.

Features

Etac Cross 5XL

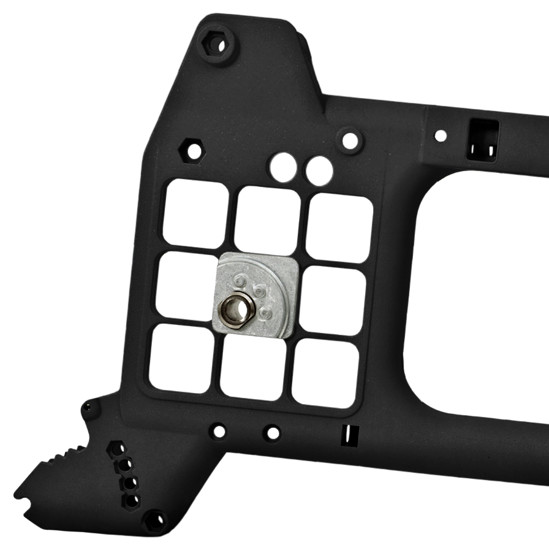

36 + 2 rear wheel positions

The rear wheels can be fitted in four positions in each hole. More settings both horizontally and vertically, ensures the perfect seat height and balance.
Etac Cross 5XL

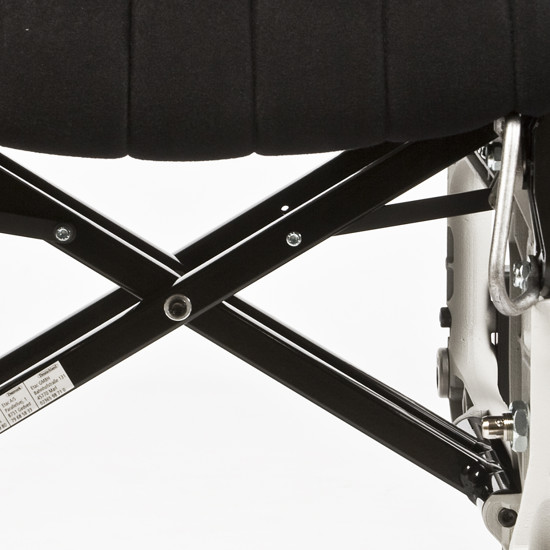

Double cross brace

Cross 5 has a very durable cross folding frame design with the stability of a rigid frame which ensures a long product life span and the best propulsion properties.
Etac Cross 5XL

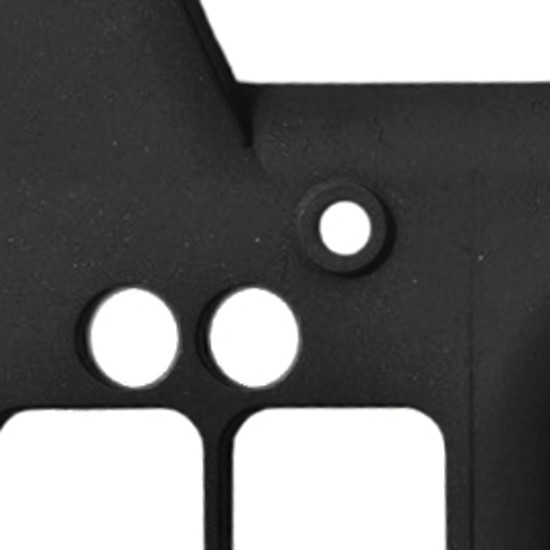

Extra low seat height

Fitting a 20" rear wheel in the upper row, gives a seat height of 34 cm (13½").

Variants

Item number
Seat depth (mm)
Seat width (mm)
Total width (mm)
Transport weight (kg)
Weight (kg)
Weight with attendant brakes (kg)
Width with attendant brakes (mm)
47.5 cm standard 13123111 360-420 +70* 475 685 11.4 19 21 695
47.5 cm long 13123112 420-480 +70* 475 685 11.6 19.2 21.2 695
50 cm standard 13123113 360-420 +70* 500 710 11.6 19.2 21.2 720
50 cm long 13123114 420-480 +70* 500 710 11.8 19.4 21.4 720
52.5 cm standard 13123115 360-420 +70* 525 735 11.7 19.3 21.3 745
52.5 cm long 13123116 420-480 +70* 525 735 11.9 19.5 21.5 745
55 cm standard 13123117 360-420 +70* 550 760 11.8 19.4 21.4 770
55 cm long 13123118 420-480 +70* 550 760 12 19.6 21.6 770
57.5 cm standard 13123119 360-420 +70* 575 785 12 19.6 21.6 795
57.5 cm long 13123120 420-480 +70* 575 785 12.2 19.8 21.8 795
60 cm standard 13123121 360-420 +70* 600 810 12.1 19.7 21.7 820
60 cm long 13123122 420-480 +70* 600 810 12.3 19.9 21.9 820

Front seat height: 34-56.5 cm
Rear seat height: 34-53 cm
Back support height: 32–45 cm with standard back support 3A. Back support 3A high: 38—51 cm.
Transport width: 32 cm
Seat depth: *Measured with 3A triangular back
Weight: With solid tires and stainless handrim +1.3 kg.
Max user weight Cross 5 XL: 160 kg
Weights and dimensions given are for a chair with 24" rear wheels with quick-release hubs, massive tire, stainless handrims, leg supports, foot supports, heel straps, cross brace, brakes, arm supports, 6½" castors with medium forks. The measurements given may vary by +- 2%.

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
