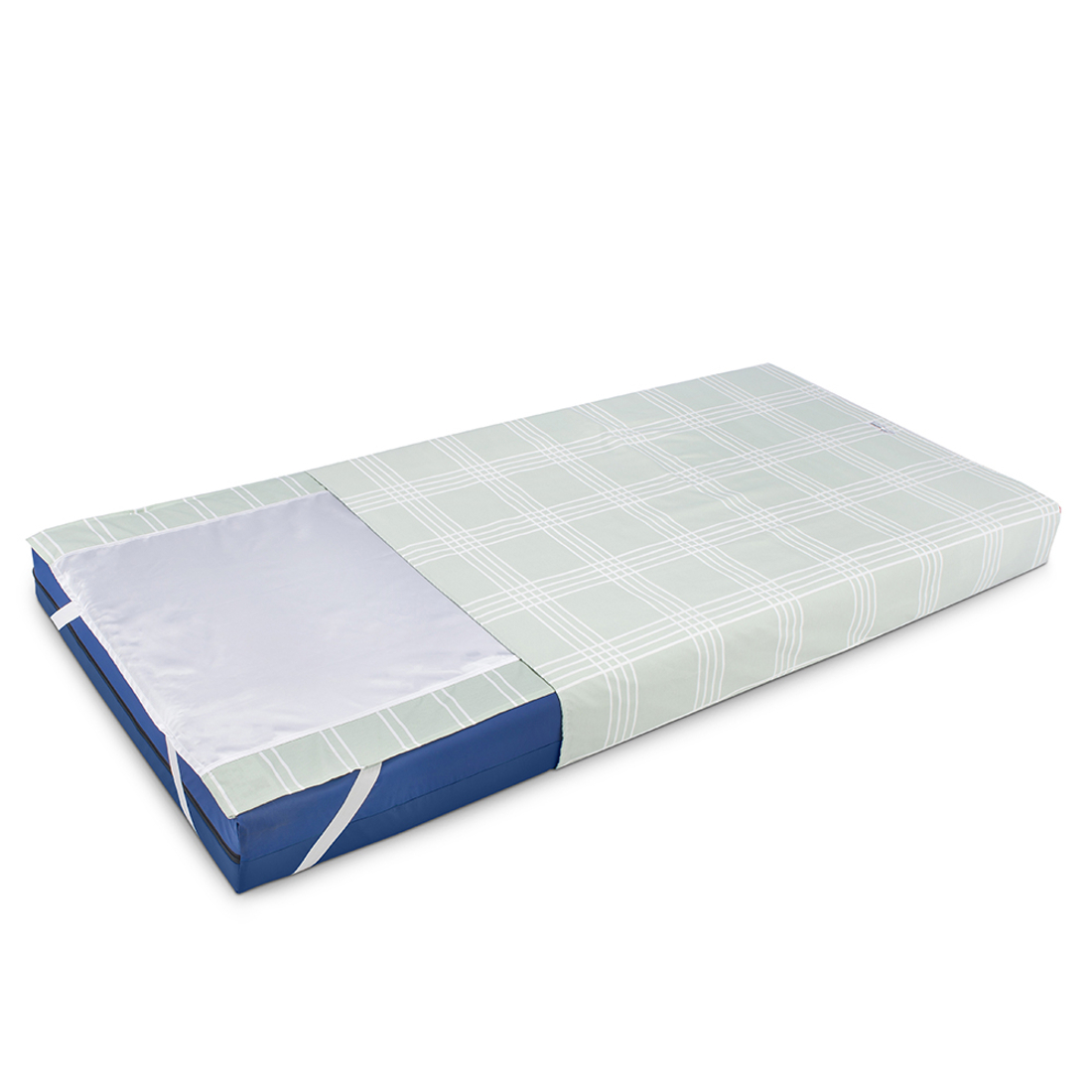

Immedia IM4115SH SatinSheet 4Direction w/handles Midi IM4107S BaseSheet

Immedia SatinSheet DrawSheet 4Direction handles

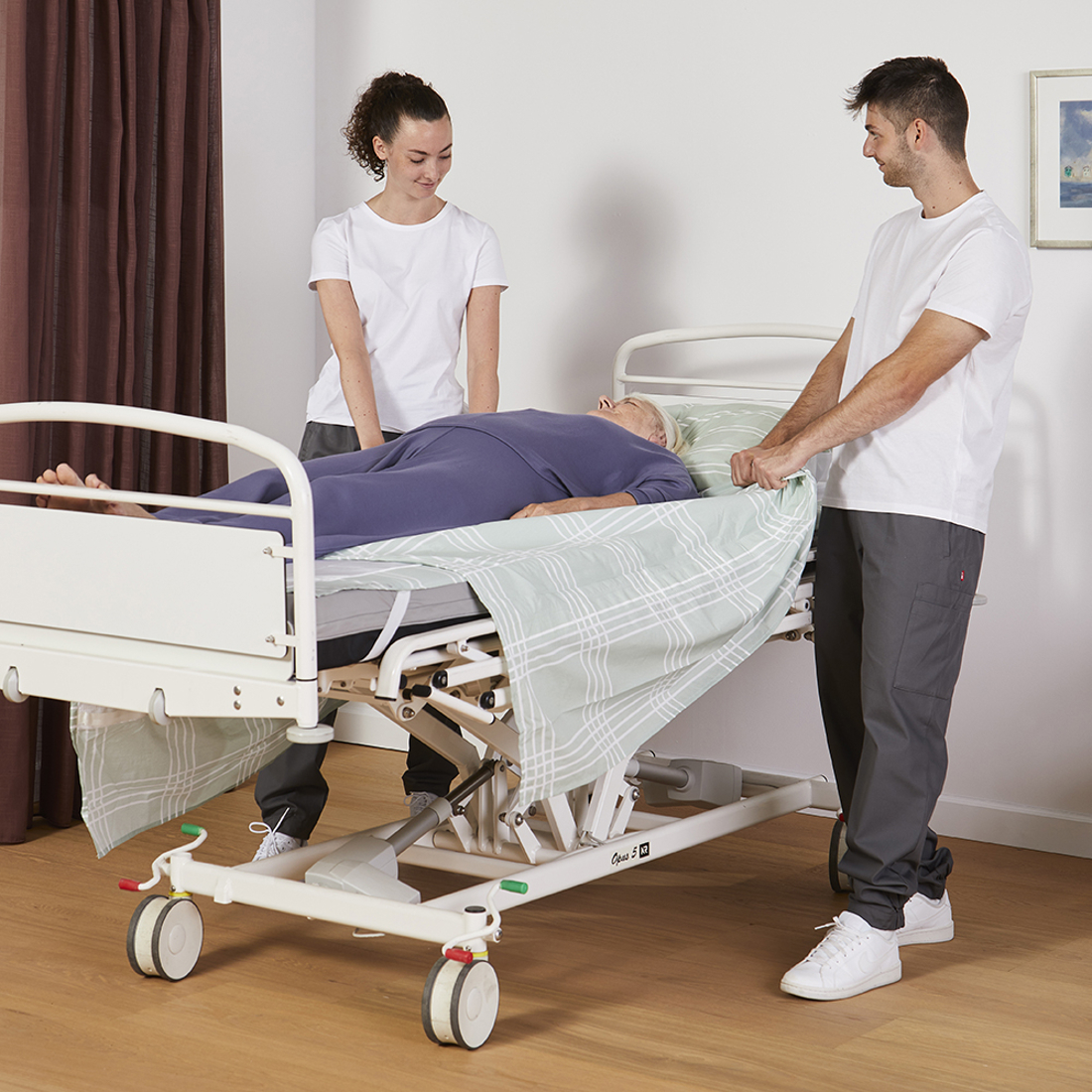

Immedia SatinSheet 4Direction with user in bed and 2 carers

Immedia SatinSheet 4Direction DrawSheet

For dependent users - combined with SatinSheet 2Direction BaseSheet

When the need is increased, the SatinSheet BaseSheet can be combined with alternative DrawSheets. The SatinSheet 4Direction DrawSheet reduces friction in all four directions. The dependent user needs help with all repositioning in bed. The SatinSheet 4Direction system is used to reduce the workload on the caregiver.

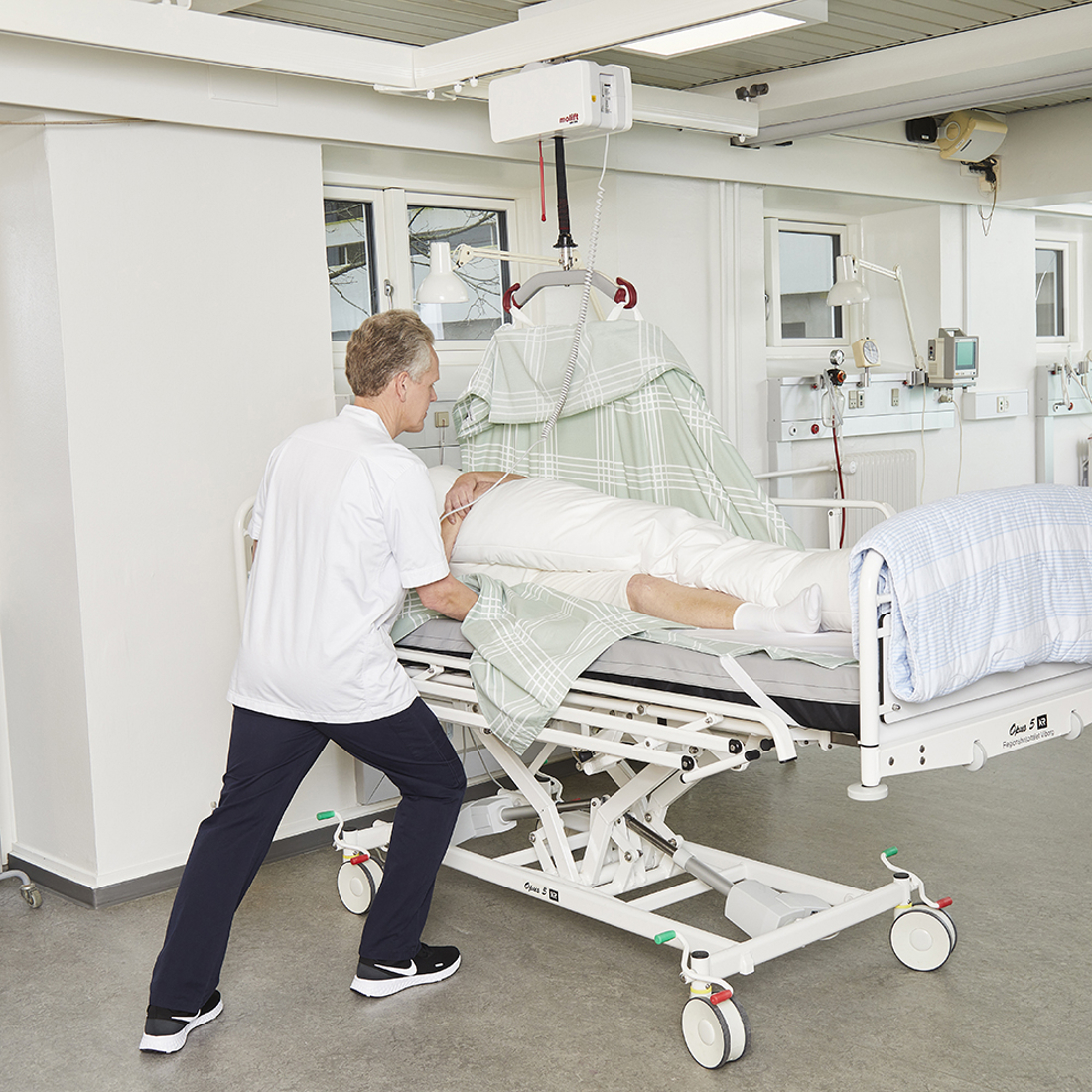

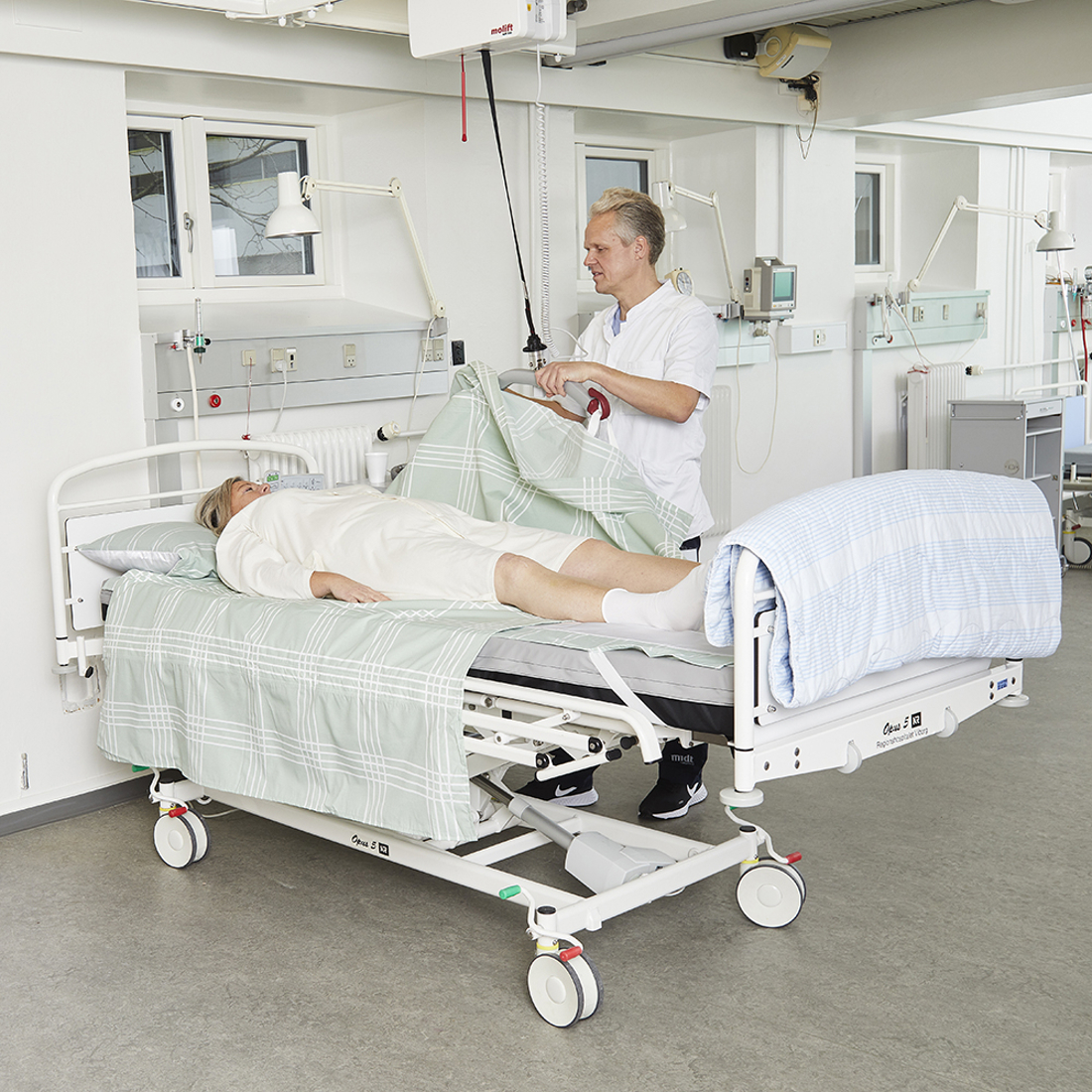

The SatinSheet 4Direction DrawSheets with handles are suitable for single-handed care, as they can be combined with a hoist for turning. This is a cotton/polyester sheet with a satin underside, which stays on the BaseSheet and allows movement up and down and side to side.

Discover

Immedia SatinSheet System

Immedia SatinSheet System in-bed system make moving a user in bed easier, whatever their ability. SatinSheet helps reduce strain for the carer and prevents work-related injuries. Moreover, it helps to save time and may reduce the number of carers needed.

Pressure mapping

Immedia in-bed systems improve the working environment for caregivers and minimize shearing for bedridden people. But is the function of a pressure-relieving mattress affected by the in-bed system? Why do pressure mapping and how is it performed?

Learn more about pressure mapping

Are you moving the weight of an elephant?

We have measured how much force it takes to position a person sideways. We used the Immedia SatinSheet System and compared it to using cotton sheets with traditional draw sheets.
You will probably be surprised how much force the carers must use. Every day.

See the result here

Features

DrawSheet 4Direction

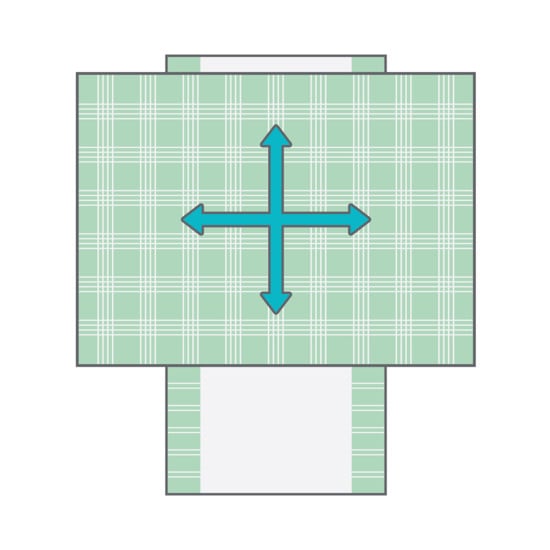

Add the 4Direction DrawSheet for a dependent user who needs assistance moving in all directions. The DrawSheets are designed to be used on top of the BaseSheet. They do not work on their own.

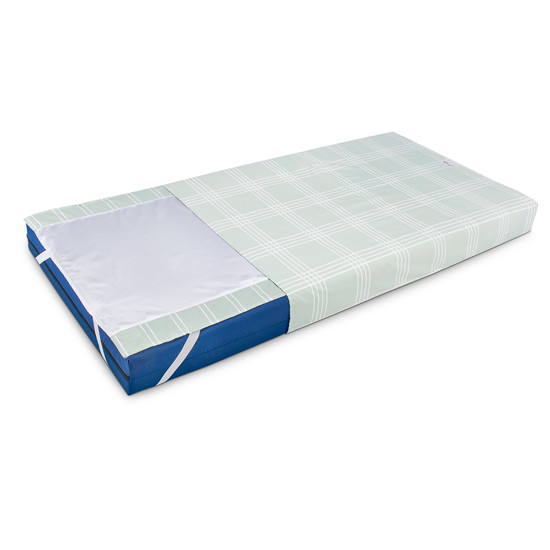

Mini/Midi

Can be used for partly dependent users that can use one or both legs to either reposition themselves or with help from a carer. Typically placed from head to knee.

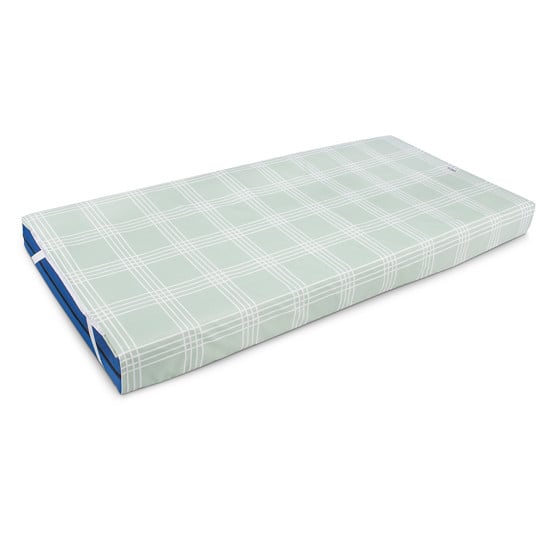

Maxi

The Maxi covers the full length of the bed and is used for users that can’t use their legs for repositioning.

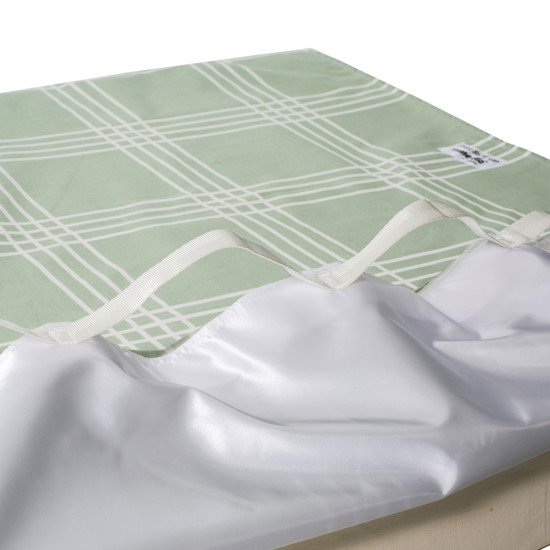

Handles & Wings

The models with handles are suitable for single handed care as the handles can be combined with a hoist for turning. Available in two sizes.

Variants

Specifications
Material	Fabric: 55% cotton /45% polyester. Satin: 100 % polyester	Maximum user weight (kg)	200

	Item number	Length (mm)	Length satin (mm)	Width (mm)	Width satin (mm)
SatinSheet 4Direction - midi	IM4115S	1400	1400	2000	1470
SatinSheet 4Direction w/handles - midi	IM4115SH	1400	1400	2000	1470
SatinSheet 4Direction - maxi	IM4121S	2000	2000	2000	1470
SatinSheet 4Direction w/handles - maxi	IM4121SH	2000	2000	2000	1470
SatinSheet 4Direction w/handles maxi - wide	IM4131SH	2000	2000	3000	2000

Do not use fabric softener or bleach
