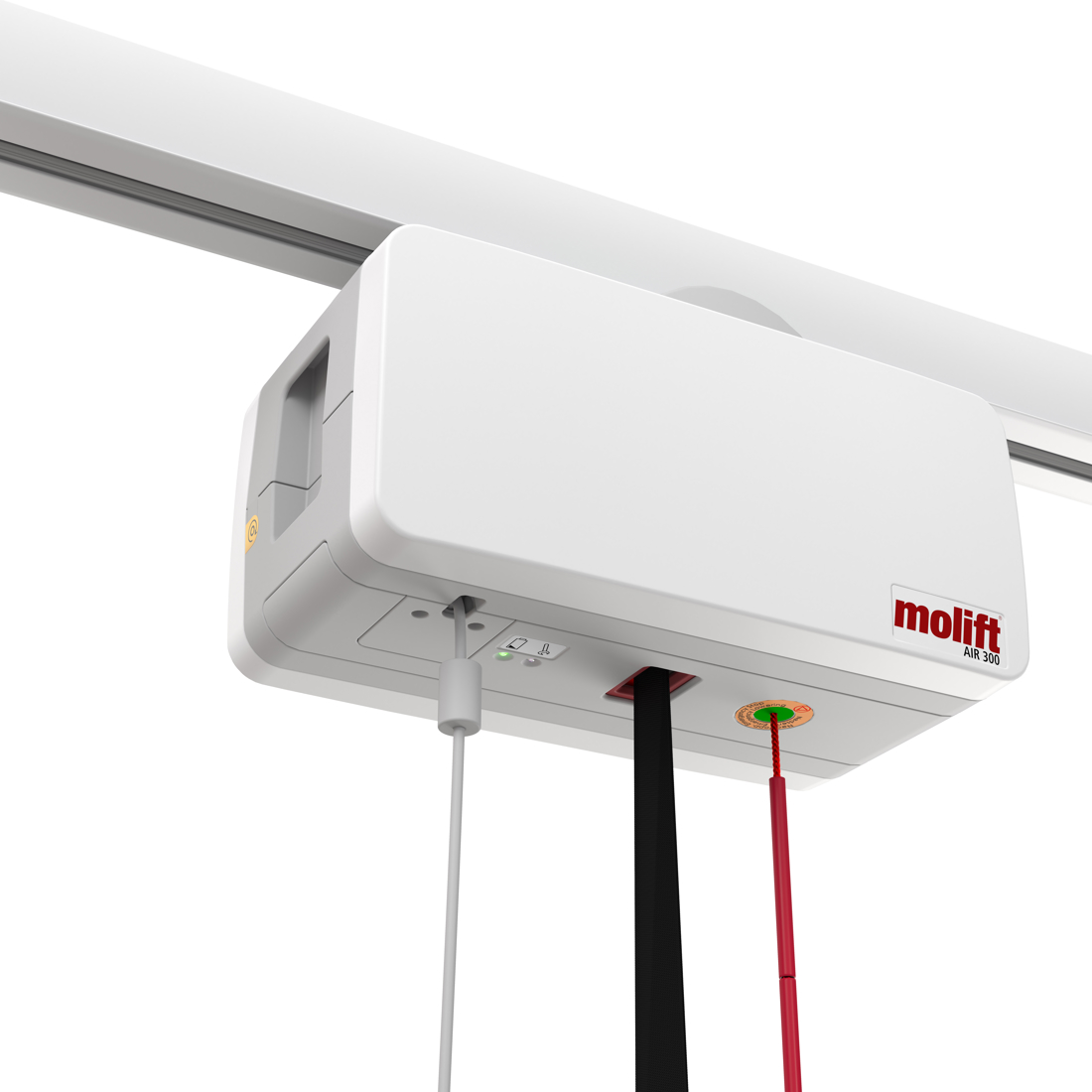

Molift Air 300

Small, compact and easy to install (SWL 300 kg)

Functional and well designed
Molift Air 300 is an innovative, functional and well-designed hoisting aid for disabled users. Combined with the Molift Rail System (MRS), Molift Air 300 solves most hoisting situations in health care and other patient handling environments.

Light and flexible
Molift Air 300 is suitable for sitting and horizontal transfers as well as standing and gait training situations, together with the comprehensive accessory program from Molift. It is used with fixed ceiling rails, but can also be used for portable freestanding systems.

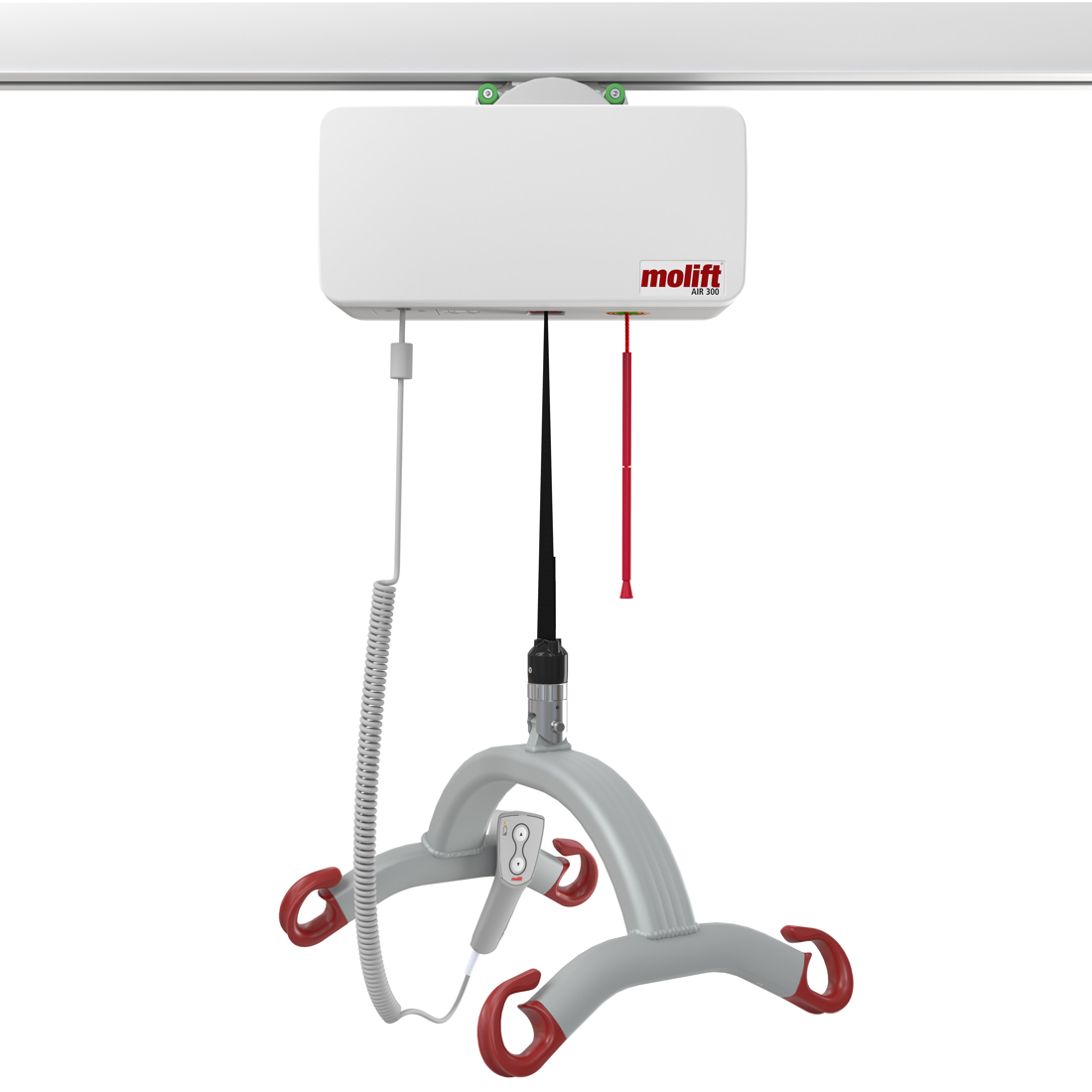

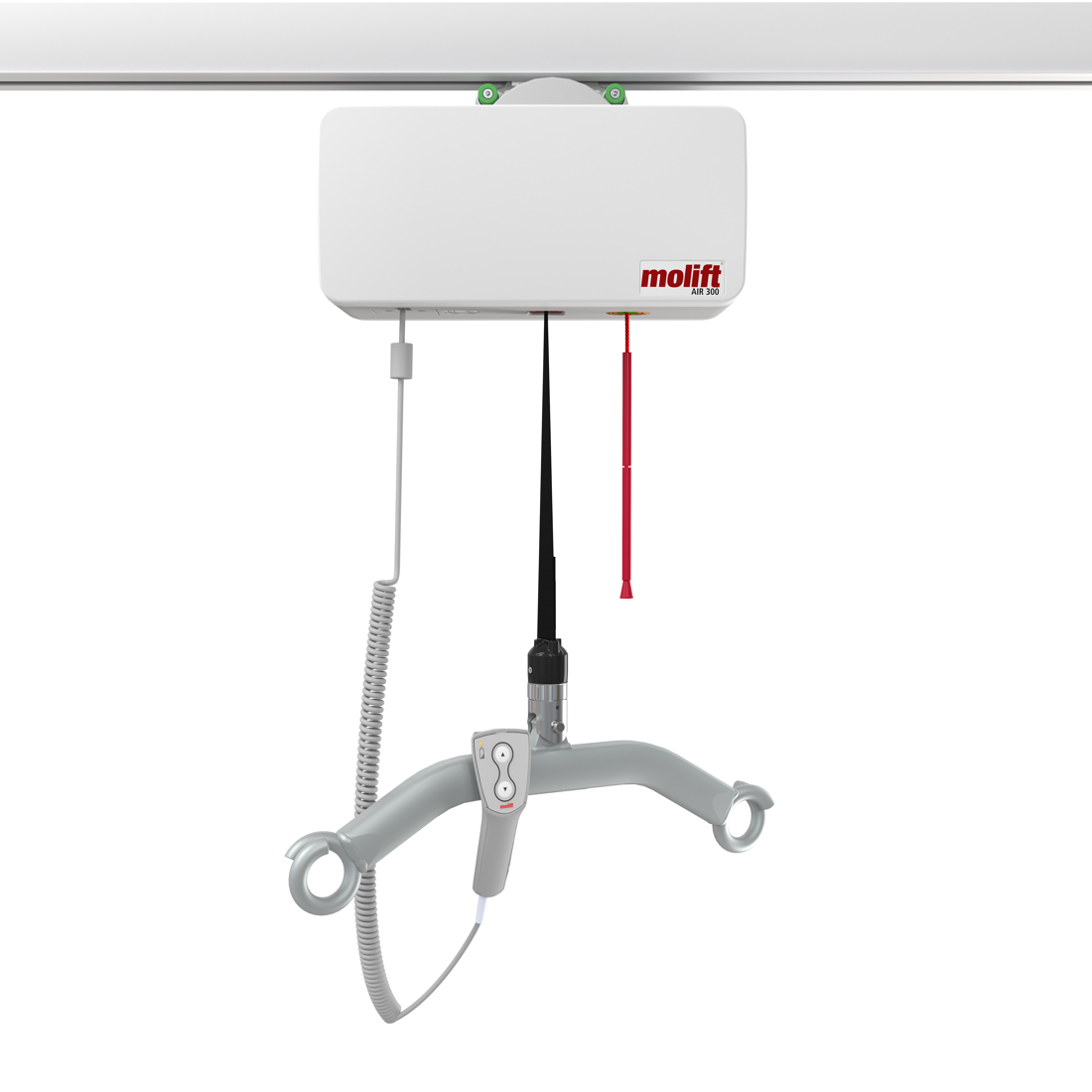

Molift Air 300 is easy to handle during installation and servicing, due to its low weight and clever quick-release function. Molift Air 300 offers flexible solutions such as IRC, propulsion and possibilities for room-to-room transfer. Add to this the safety features, the large hoisting interval and the multiple ranges of sling bars. It is the complete solution for all healthcare segments.

Molift Rail System

The Molift Rail System enables dignified care for patients and a healthy and efficient work environment for healthcare staff in hospitals, institutions and home care. Read about a versatile, cost-effective and efficient ceiling hoist solution.

Transfer users seamlessly between rooms

Since intruding into the doorframe's physical structure is not always possible, room-to-room functionality is ideal when users must be transferred between two rail systems in adjoining rooms.

Molift Service Tool on laptop_800x450.jpg

Molift Service Tool - an intelligent software

All Molift hoists are supplied with the Molift Service Tool – an intelligent software that interacts with the hoist, ensures correct service and maintenance and enables analysis of the lift's use.

Features

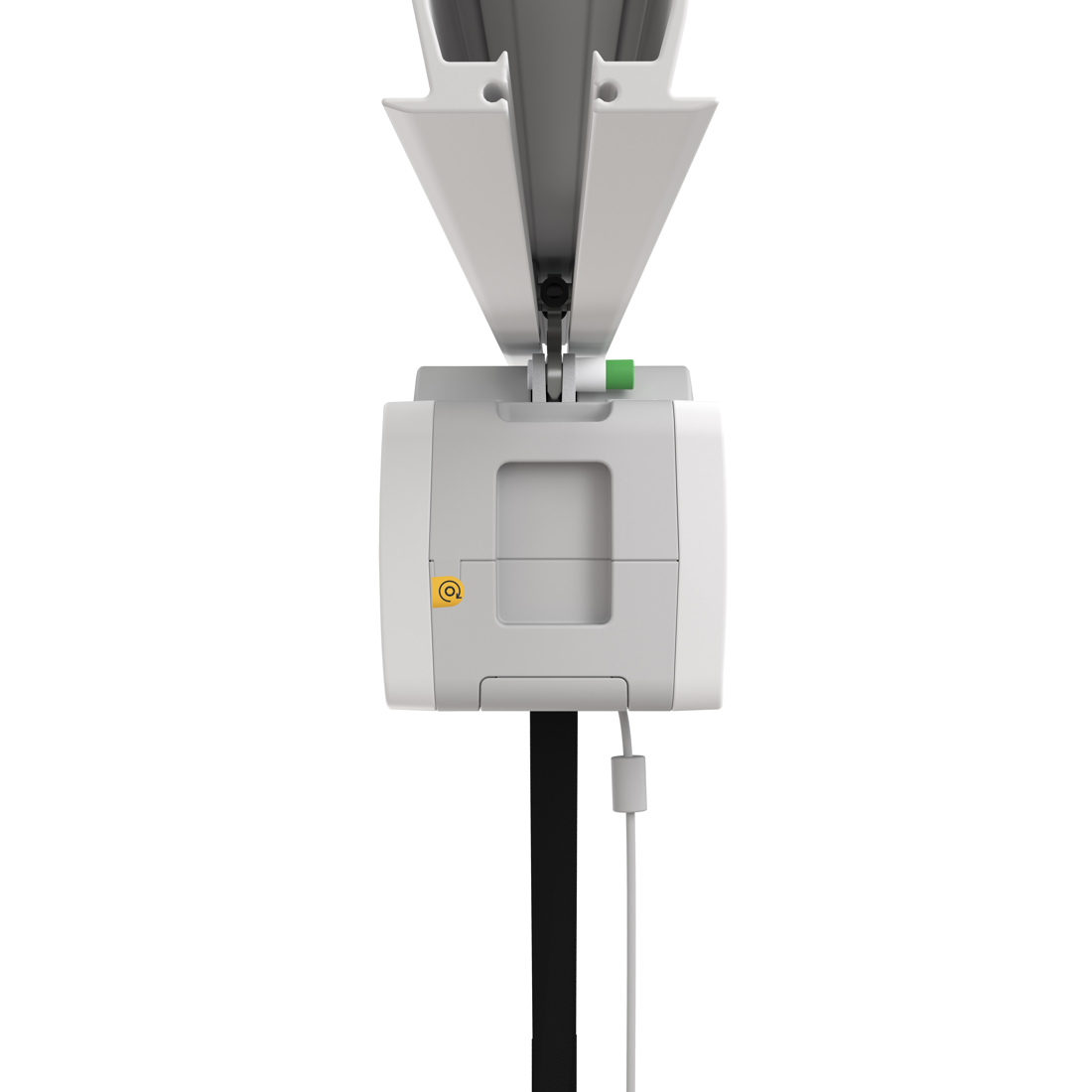

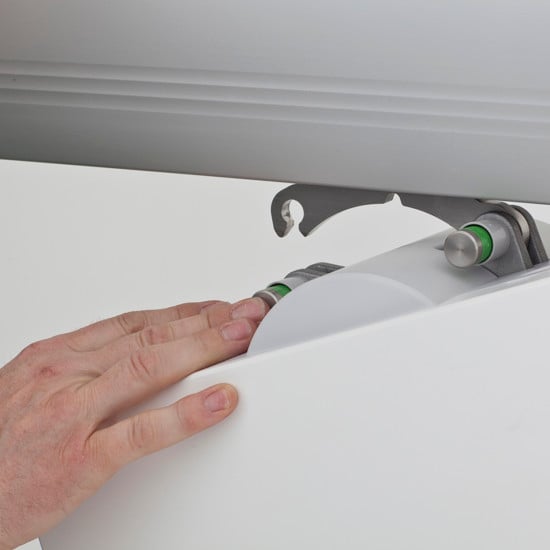

Easy to install

Service and maintenance are easy due to the innovative quick release function.

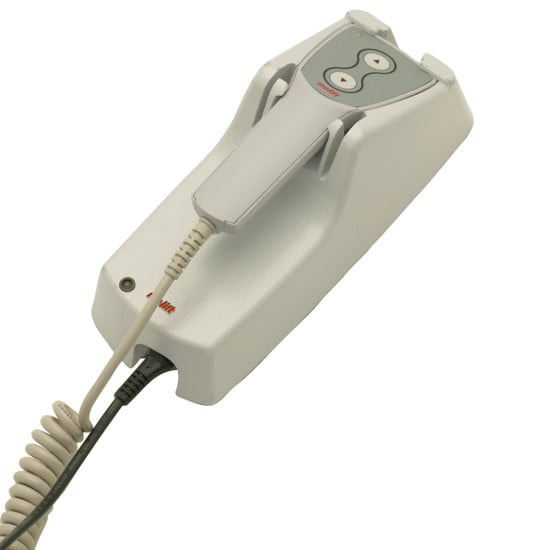

Battery Charger

Wall mounted charger or In-Rail-Charging (IRC).

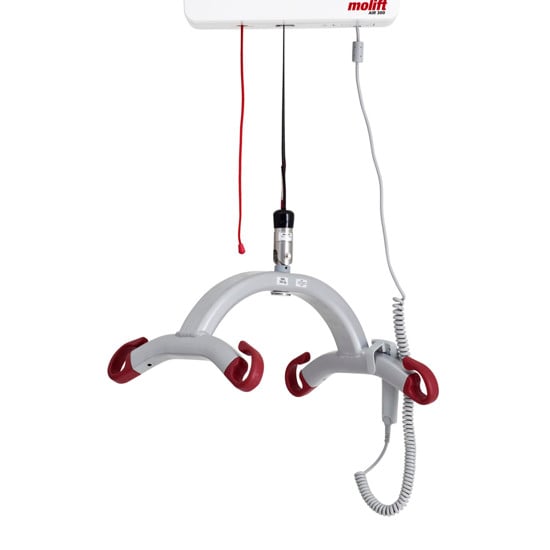

A large hoisting interval

With its standard 3 meters lifting strap Molift Air has one of the largest standard hoisting intervals on the market.

Silent and soft operation

Molift Air works very quietly and has a soft start and stop operation. This results in a comfortable and safe feeling for the user during the transfer situation.

Variants

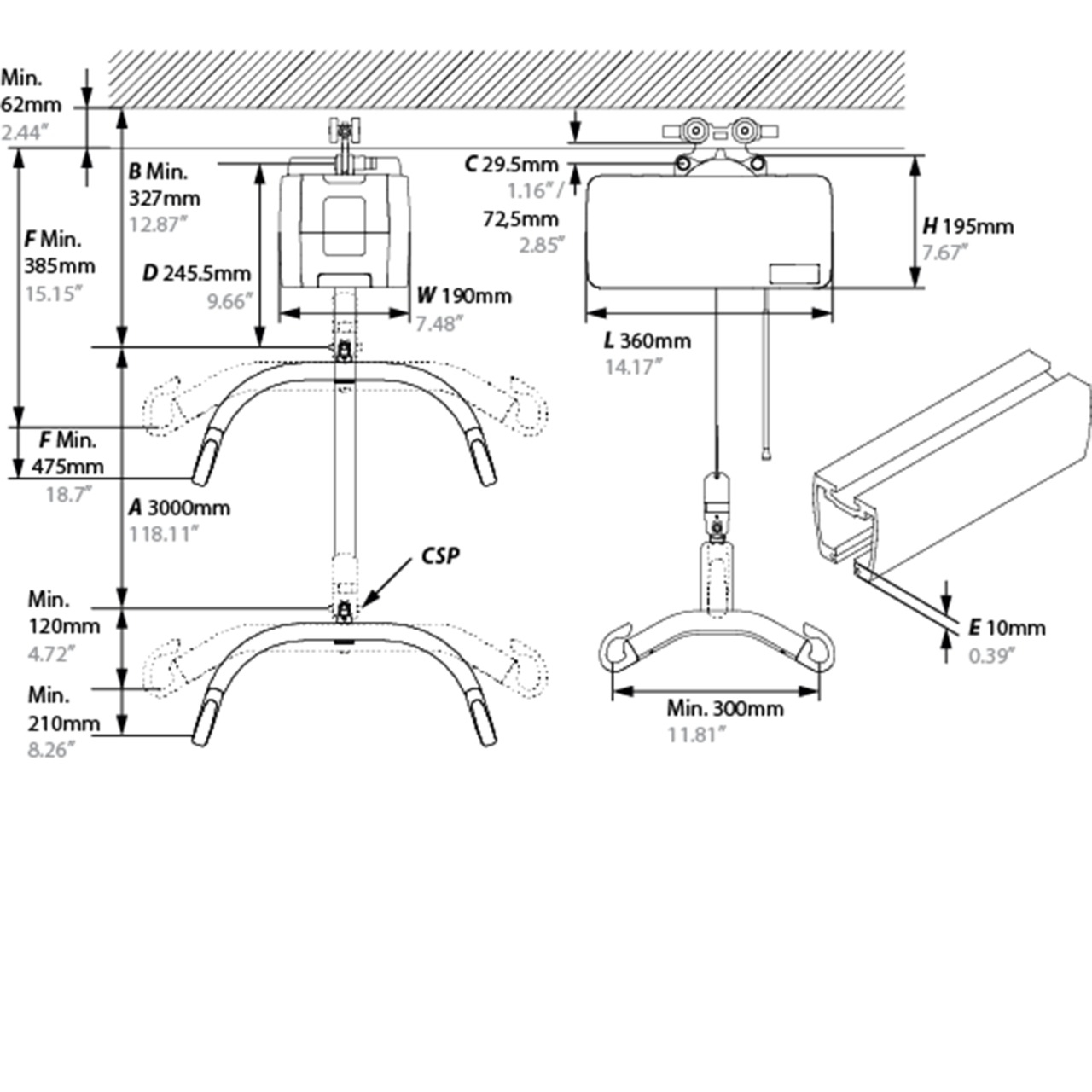

Specifications
Battery	26,4 V NiMh 2,2 Ah	Length (mm)	360
Battery charge time (hours)	6	Material	Aluminium, Plastic
Battery charger	100–240 V AC, 40–60 Hz	Protection class	IPX4
Expected lifetime	30 000 hoisting cycles (SWH)/10 years	Safe working load (SWL) (kg)	300
Height (mm)	195	Service software	Molift Service Tool
Hoisting interval (mm)	3000	Weight (kg)	8,56
Hoisting speed 75 kg (mm/sec)	60	Width (mm)	190

	300	300 Propulsion	300 IRC	300 IRC Propulsion
Item number	M25300	M26300	M27300	M28300
Rated performance	50 hoists at 75 kg	50 hoists at 75 kg	50 hoists at 75 kg	50 hoists at 75 kg

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
