Molift Air 205

When IRC and /or propulsion is required (SWL 205 kg)

Functional and well designed

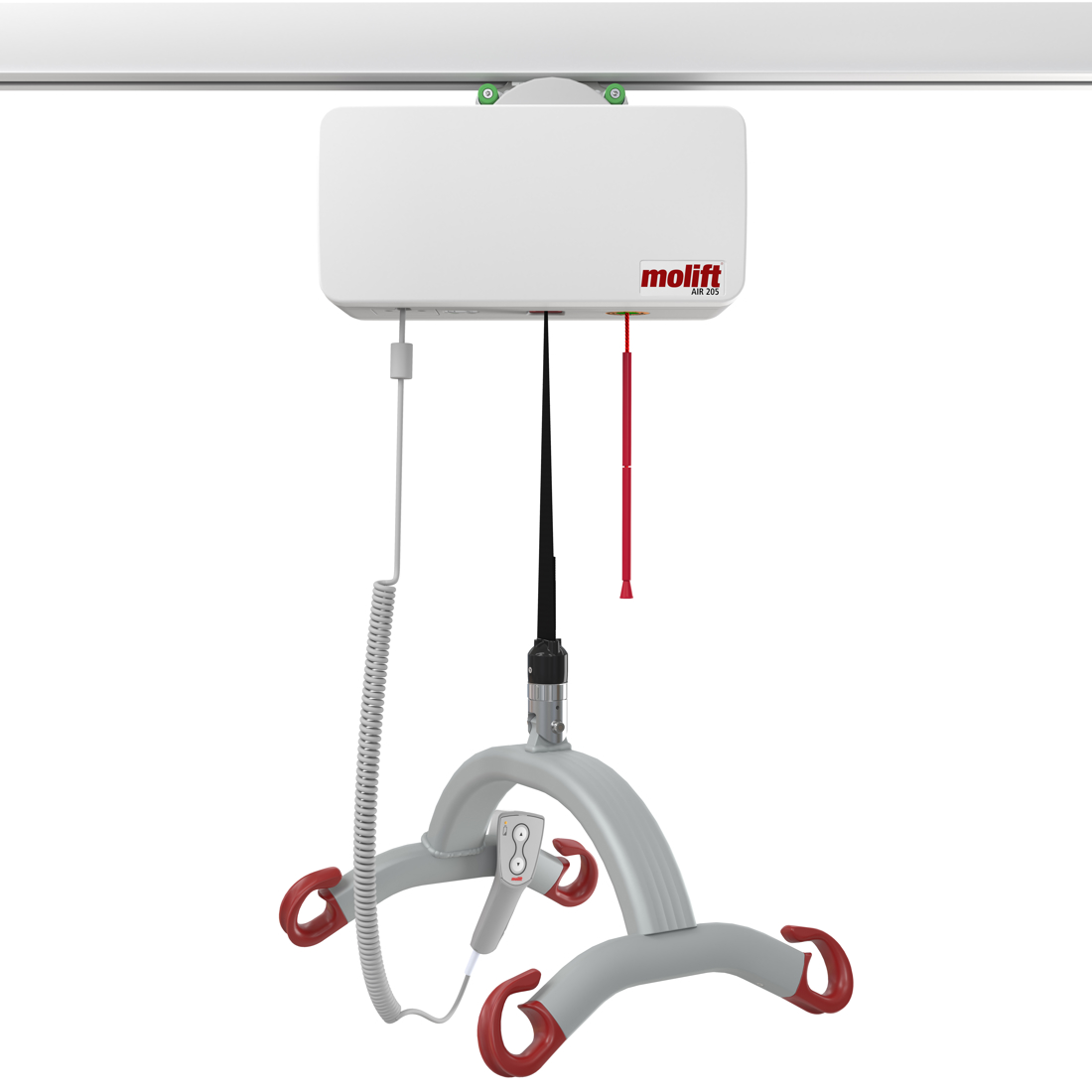

Molift Air 205 is an innovative, functional and well-designed hoisting aid for disabled users. Combined with the Molift Rail System (MRS), Molift Air 205 solves hoisting situations in healthcare and other patient handling environments.

Light and flexible
Molift Air 205 is suitable for sitting and horizontal transfers, standing and gait training situations, and the comprehensive accessory program from Molift. It is used with fixed ceiling rails, but can also be used for portable freestanding systems. Molift Air 205 is easy to handle during installation and servicing, due to its low weight and clever quick-release function.

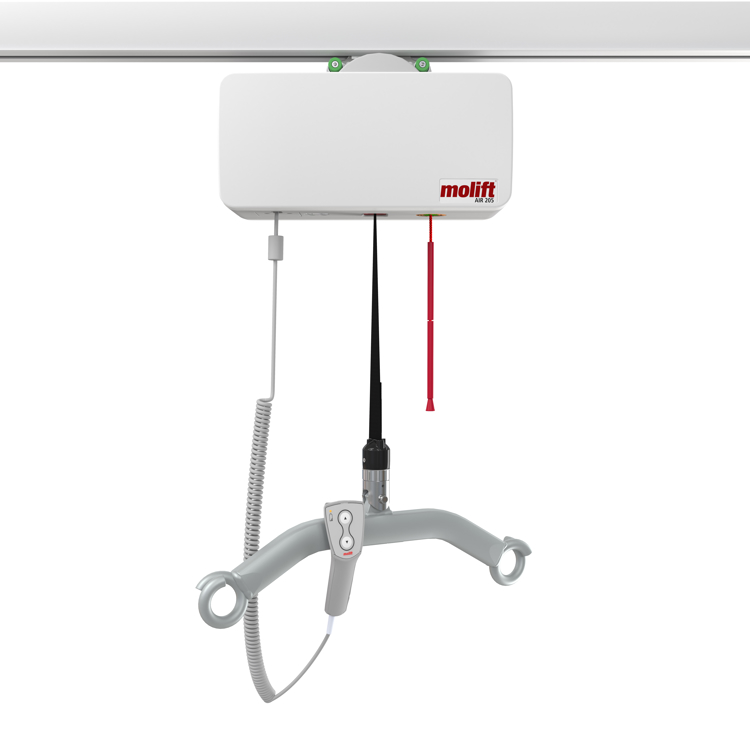

Molift Air 205 offers flexible solutions such as IRC, Propulsion and possibilities for room-to-room transfer. Add to this the safety features, the large hoisting interval and the multiple range of sling bars. It is the complete solution in all healthcare environments.

Molift Rail System

The Molift Rail System enables dignified care for patients and a healthy and efficient work environment for healthcare staff in hospitals, institutions and home care. Read about a versatile, cost-effective and efficient ceiling hoist solution.

Transfer users seamlessly between rooms

Since intruding into the doorframe's physical structure is not always possible, room-to-room functionality is ideal when users must be transferred between two rail systems in adjoining rooms.

Molift Service Tool on laptop_800x450.jpg

Molift Service Tool - an intelligent software

All Molift hoists are supplied with the Molift Service Tool – an intelligent software that interacts with the hoist, ensures correct service and maintenance and enables analysis of the lift's use.

Features

Easy to install

Service and maintenance are easy due to the innovative quick release function.

Battery Charger

Wall mounted charger or In-Rail-Charging (IRC).

A large hoisting interval

With its standard 3 meters lifting strap Molift Air has one of the largest standard hoisting intervals on the market.

Variants

Specifications
Battery	26,4 V NiMh 2,2 Ah	Material	Aluminium, plastic
Battery charge time (hours)	6	Protection class	IPX4
Battery charger	100–240 V AC, 40–60 Hz	Rated performance	50 hoists at 75 kg
Height (mm)	195	Safe working load (SWL) (kg)	205
Hoisting interval (mm)	3000	Weight (kg)	8.6
Hoisting speed 75 kg (mm/sec)	60	Width (mm)	190
Length (mm)	360

	Item number
Molift Air 205	M25205
Molift Air 205 Propulsion	M26205
Molift Air 205 IRC	M27205
Molift Air 205 IRC Propulsion	M28205

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
