Evacuation HoverJack® Device

Designed for challenging evacuation through stairwells

Designed for stairwell

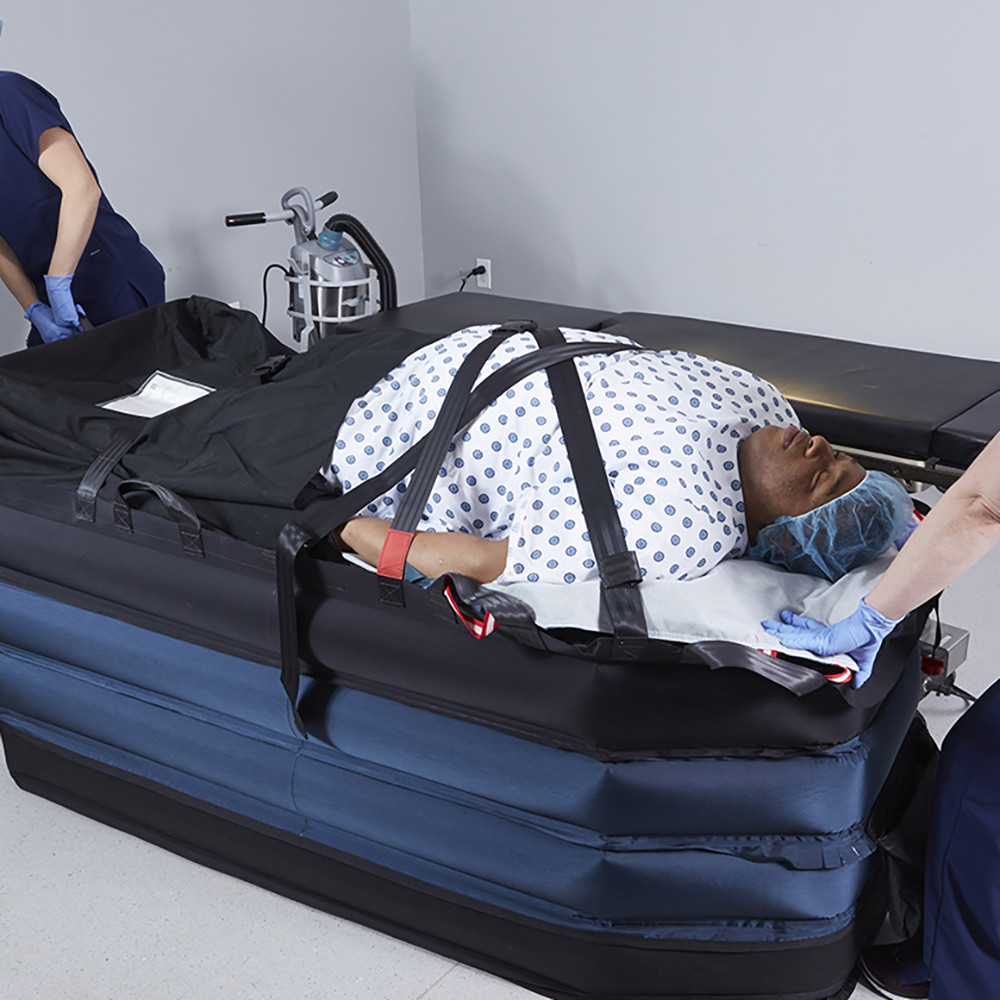

The Evacuation HoverJack allows caregivers to perform safe and efficient stairwell evacuations while keeping the patient in a supine position. Adjustable air chambers inflate to provide a stable and comfortable surface for patients, while easily navigating doorways and narrow spaces.

In case of evacuation
Evacuation HoverJack is inflated to bed or stretcher height so that the patient can be laterally transferred onto it. The safety straps and foot-end pouch hold the patient securely, while the Teflon-coated bottom allows for easy transport to the nearest stairwell. The top two chambers are deflated for the descent so that the caregivers can slide the patient to safety.

Features

Easy to manoeuvre

Easy to manoeuvre

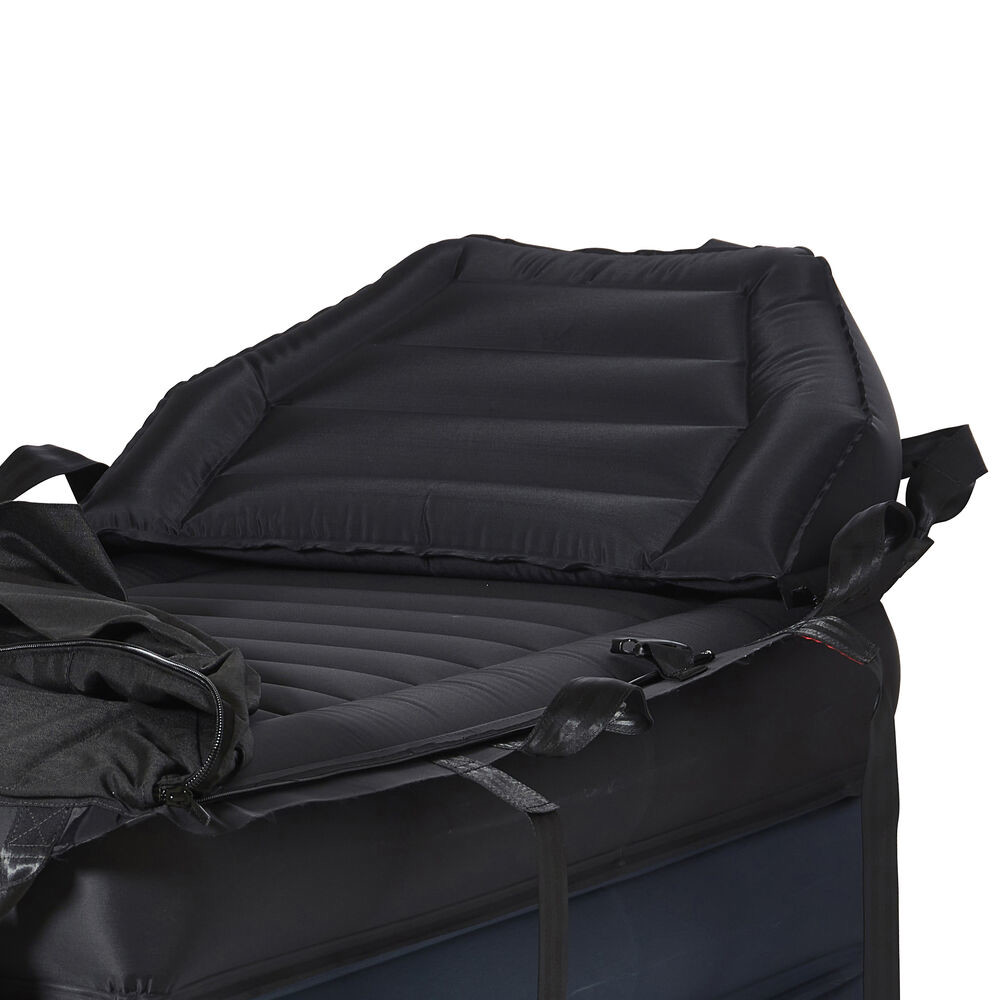

The tapered head end makes it easier to manoeuvre when evacuating around corners and down stairwells.
Improved patient comfort

Improved patient comfort

To facilitate the patient's breathing and comfort, the positioning can be adjusted through the inflatable wedge at the head end.
EMS Evacuation HoverJack in Stairwell

Dual purposes

The device can be used for both stairwell evacuations and for vertical lifts.

Variants

Item number
Height (mm)
Length (mm)
Material
Maximum user weight, stairwell evacuation (kg)
Maximum user weight, vertical lift (kg)
Pieces per pack
Width (mm)
Evacuation HoverJack 32" HJ32EV 760 1830 Top: Nylon. Bottom: Teflon infused polyester 544 318 1 810

In between patient use, the Evacuation HoverJack should be wiped down with a cleaning solution used by your hospital for medical equipment disinfection. A 10:1 bleach solution (10 parts water: one part bleach) or disinfectant wipes can also be used. NOTE: Cleaning with a bleach solution may discolour fabric.

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.

Videos
