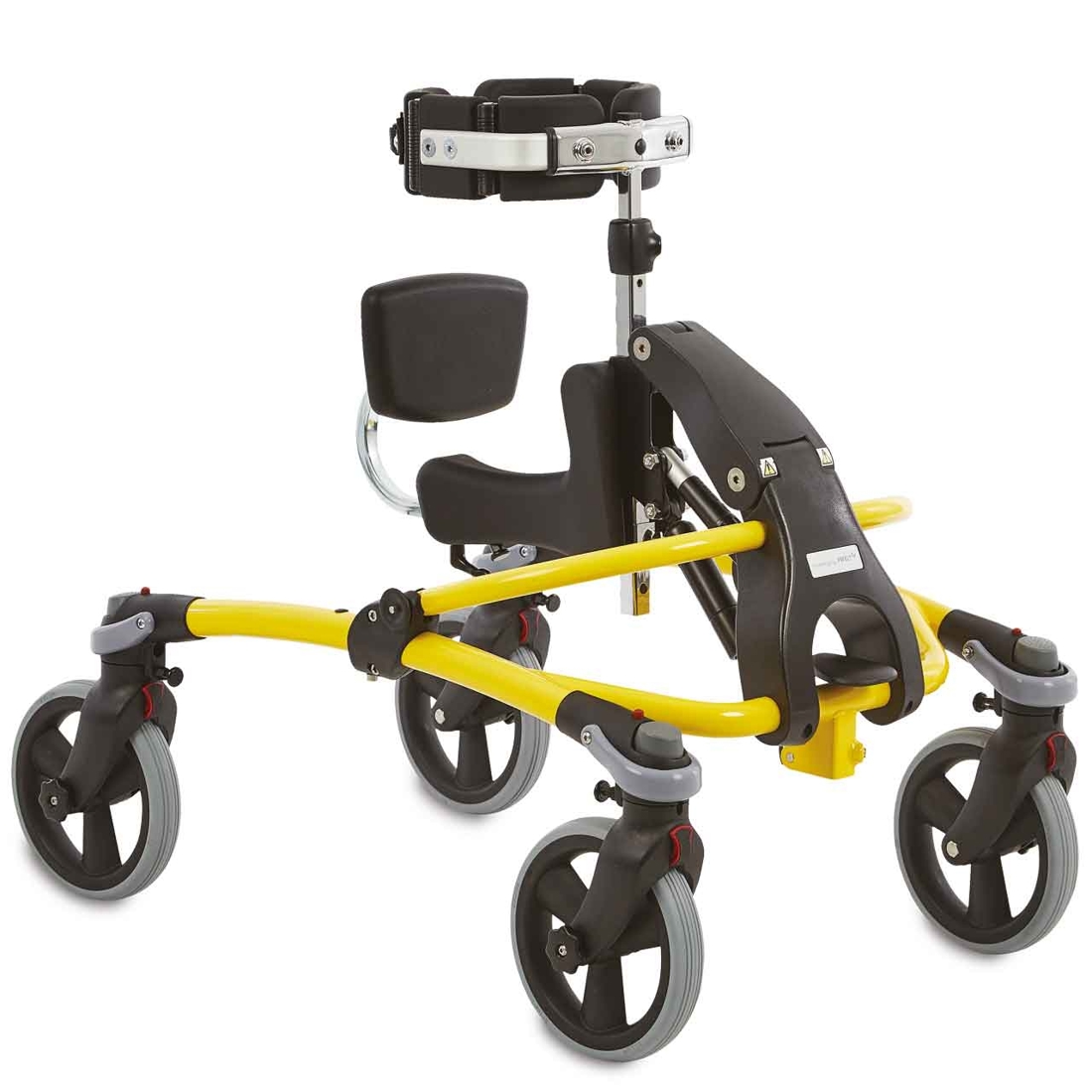

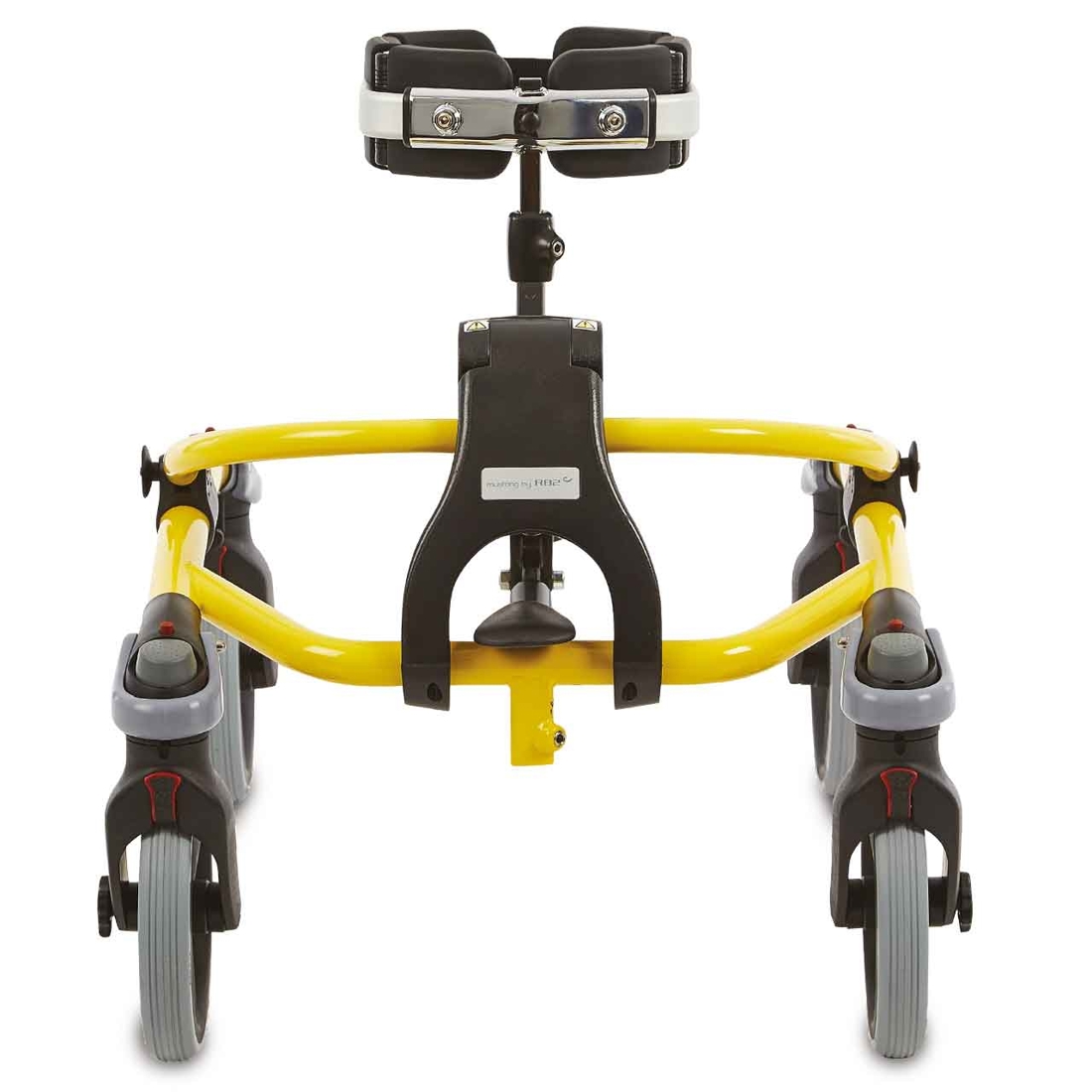

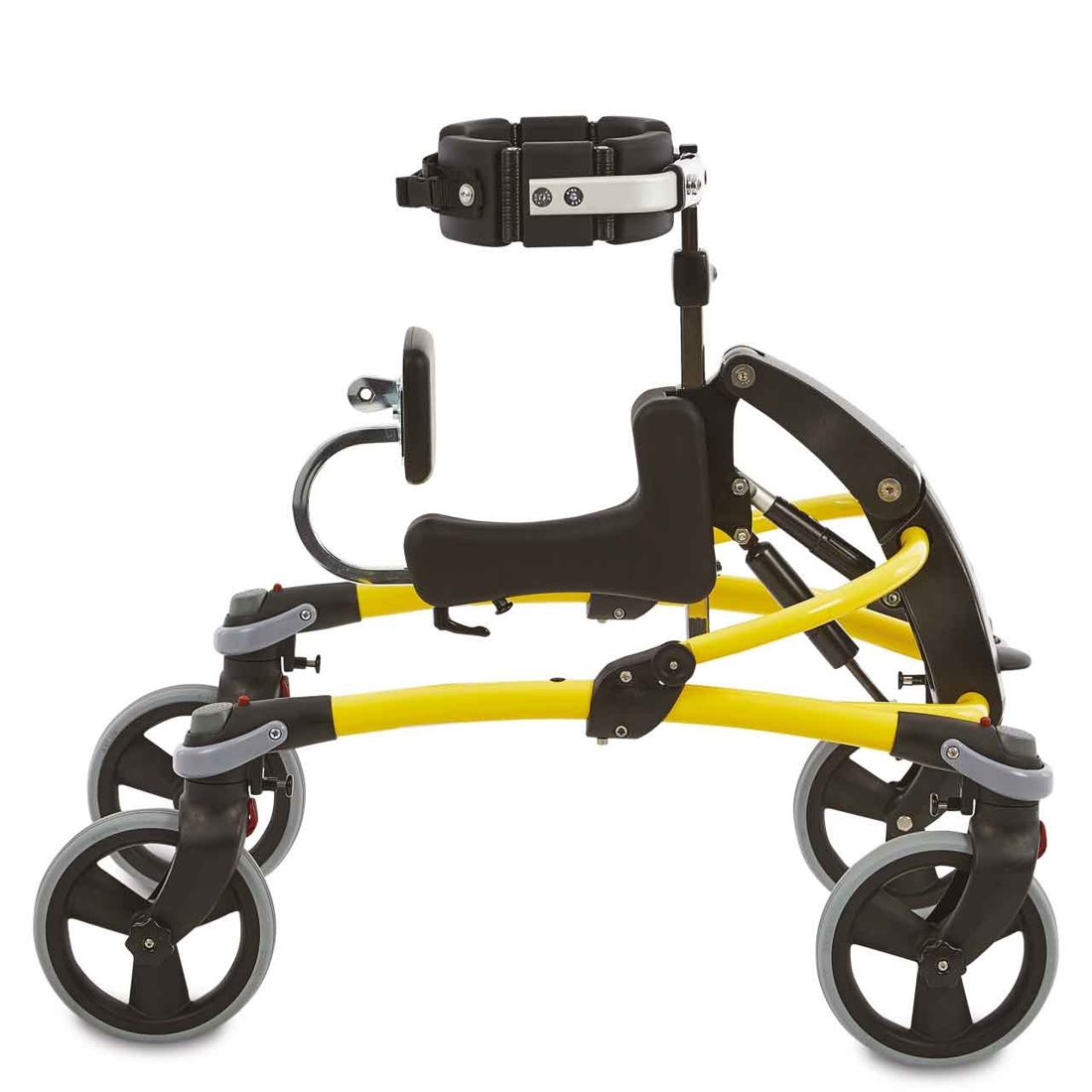

R82 Mustang
The R82 Mustang offers a unique solution in children's walking aids and is thoughtfully designed to potentially enhance mobility for children with a range of needs. Its design emphasizes not only function but also aesthetics. This children's walking frame is designed to help children with cerebral palsy and other children with impairments of their motor function.
Serving as more than just a child walker for disabled youngsters, the R82 Mustang may act as a catalyst for exploration and self-reliance. It aims to encourage active participation, possibly aiding in sensory development and fostering autonomy.
Specifically, the R82 Mustang is available in four sizes, accommodating children from approximately 450 mm to 1300 mm in height. With a design that supports a maximum user mass of 80 kg, it indicates durability and adaptability, making it a valuable tool in both therapeutic and home settings.
Its adaptability might make the R82 Mustang a preferred choice among parents and therapists. By catering to different walking and standing needs, coupled with a user-friendly design, it suggests that the R82 Mustang is an effective children's walking frame.
In summary, the R82 Mustang potentially stands out as an essential aid among children's walking aids. Its support for upright posture or daily walking assistance, combined with its range of sizes and weight capacity, marks it as a versatile and safe choice for meeting the developmental needs of young users.
Features
Motivating the child to walk
Natural walking pattern
Easy to access
Easy changeable accessories
Variants
| Size 1 | Size 2 | Size 3 | Size 4 | |
|---|---|---|---|---|
| Item number | 869011 | 869024 | 869033 | 869042 |
| Angle, center bar (°) | 30 | 30 | 25 | 25 |
| Height with 4" wheels (mm) | 400-650 | 600-850 | - | - |
| Height with 8" wheels (mm) | 510-650 | 600-850 | 700-1050 | 1030-1250 |
| Inside width (mm) | 380 | 450 | 500 | 560 |
| Length with 4" wheels (mm) | 750 | 830 | - | - |
| Length with 8 " Wheels (mm) | 820 | 900 | 1000 | 1100 |
| Mass device with 4" wheels (kg) | 10 | 11 | - | - |
| Mass device with 8" wheels (kg) | 13 | 14 | 18 | 19 |
| Maximum rated load (kg) | 45 | 56 | 80 | 101 |
| Maximum user mass (kg) | 30 | 40 | 60 | 80 |
| Minimum turning radius (mm) | 360 | 550 | 600 | 650 |
| Overall width with 4" or 8" wheels (mm) | 520 | 580 | 650 | 700 |
| Seat height with 4" wheels (Comfort seat) (mm) | 170-430 | 240-490 | - | - |
| Seat height with 4" wheels (PU seat) (mm) | 170-350 | 240-410 | - | - |
| Seat height with 8" wheels (Comfort seat) (mm) | 260-520 | 330-580 | 450-760 | 620-920 |
| Seat height with 8" wheels (PU seat) (mm) | 260-440 | 330-500 | 450-680 | 620-840 |
| Static stability downhill (°) | 7 | 7 | 7 | 7 |
| Static stability sideways (°) | 4.5 | 4.5 | 4.5 | 4.5 |
| Static stability uphill (°) | 15 | 15 | 15 | 15 |
| User height: floor to axil (mm) | 400-650 | 600-850 | 700-1050 | 870-1300 |
| Width between handles (mm) | 165-320 | 165-320 | 140-400 | 140-400 |
Washing instructions
Options
Frame colour
Available in 4 colours.
Yellow for size 1
White for size 2
Red for size 3
Anthracite grey for size 4
Castors and wheels
The Mustang is delivered as standard with various wheel options. Choose between the below options.
4" castor for size 1 and 2
8" wheel
8" slimline wheel
Wheel features
Unique features and adjustment possibilities.
Directional stabilizer
Tension adjustable wheels
Brake on all 4 wheels
Anti-reverse wheel stop - release
Anti-reverse wheel stop - lock
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to mount the sacrum support
How to change to slimline wheels
