Stingray Swing-out
The car seat with optimum support and function – it tilts, it swivels and it slides.
The new Stingray swing-out car seat, makes it easy to get a child in and out of the car and offers safe, comfortable support during transportation.
It comes with a range of accessories such as side supports, which can be adjusted without the need for tools. It has width adjustable pelvic supports, foot plate and offers adjustment in seat depth and back height to suit the needs of the child.
The Stingray swing-out is available in 4 sizes and suitable for children weighing between 9 and 36 kgs. With its adjustment for growth, it will meet the needs of a growing child for longer.
The seat has tilt in space with a range between 10 and 30 degrees to ensure an ideal sitting position and maximum comfort.
This product is only available in certain markets. Please contact your local R82 contact person or distributor for more information.
The Stingray swing-out car seat is available in 5 fun colours - blue, red, green, pink and grey.
Features
Swing-out function
EasyFit System
Tilt Adjustment
Tested and approved to ECE 4404
Variants
| Size 1, right | Size 1, left | Size 2, right | Size 2, left | Size 3, right | Size 3, left | Size 4, right | Size 4, left | |
|---|---|---|---|---|---|---|---|---|
| Item number | 90002-R | 90002-L | 92001-R | 92001-L | 92003-R | 92003-L | 92004-R | 92004-L |
| Back height (mm) | 490 | 490 | 510 | 510 | 550 | 550 | 600 | 600 |
| Effective seat depth (mm) | 170-240 | 170-240 | 210-280 | 210-280 | 270-340 | 270-340 | 290-360 | 290-360 |
| Effective seat width (mm) | 200-280 | 200-280 | 200-280 | 200-280 | 260-380 | 260-380 | 260-380 | 260-380 |
| Head support Height Range Max (mm) | 440 | 440 | 460 | 460 | 500 | 500 | 560 | 560 |
| Head support Height Range Min (mm) | 320 | 320 | 340 | 340 | 380 | 380 | 440 | 440 |
| Height of shoulder strap slots (mm) | 300/350 | 300/350 | 320/370 | 320/370 | 365/420 | 365/420 | 410/470 | 410/470 |
| Maximum user mass (kg) | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 |
| Minimum user weight (kg) | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Overall width (mm) | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Rear seat height (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Seat plane angle (°) | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 |
| Total weight (kg) | 21 | 21 | 22 | 22 | 23 | 23 | 24 | 24 |
Washing instructions
Options
Cushion colours
Available in 5 different colours.

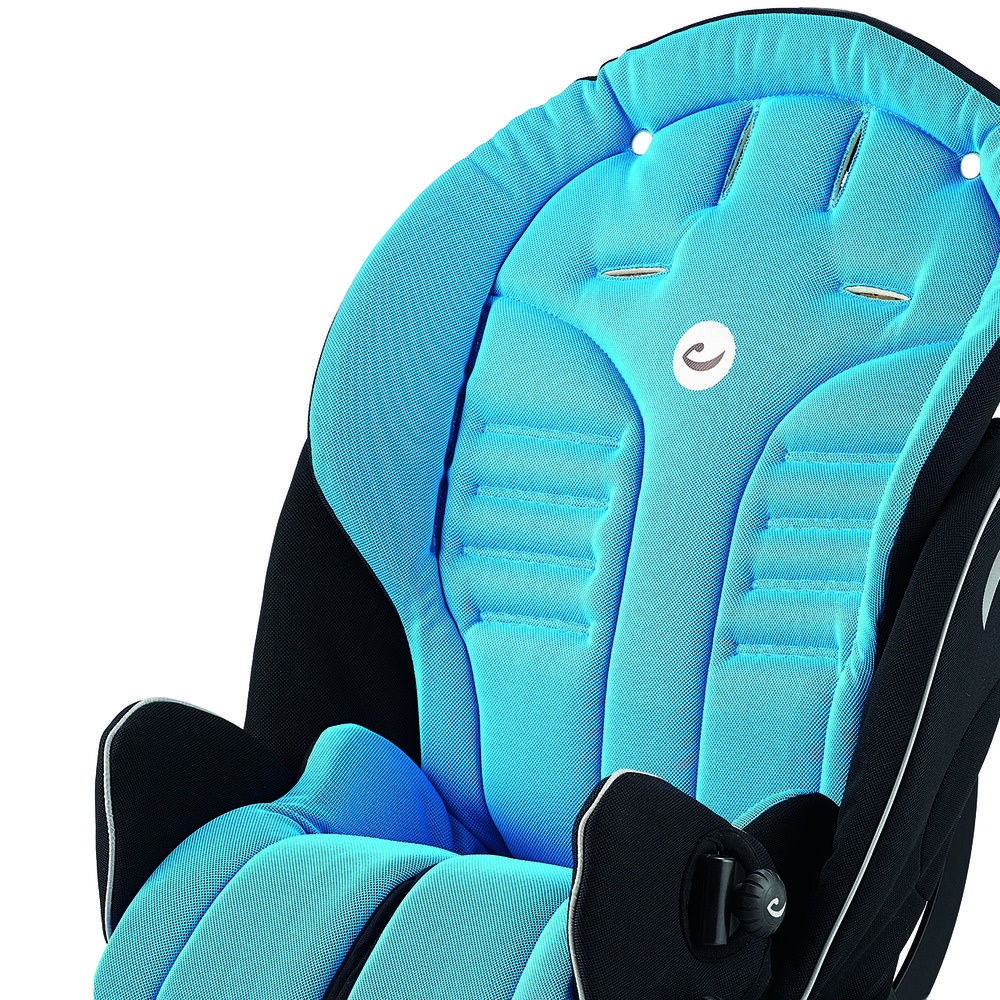

Blue

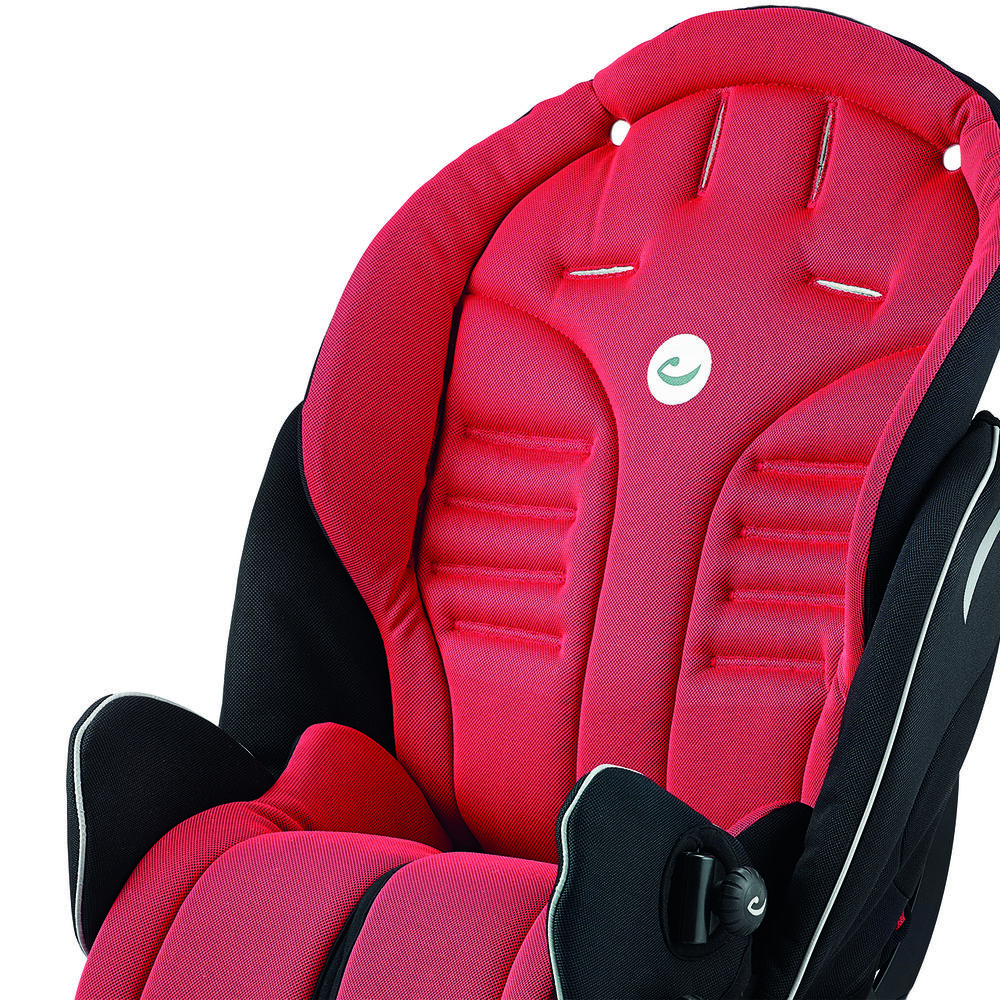

Red

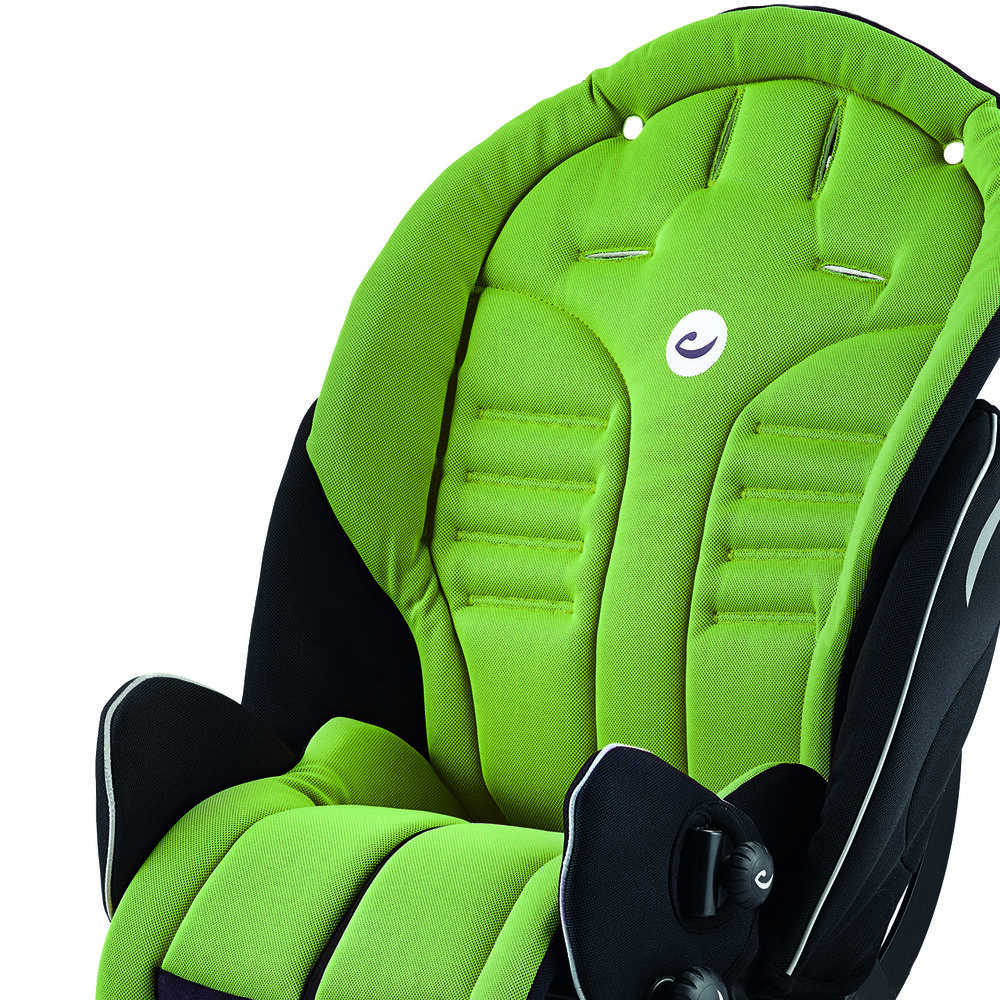

Green

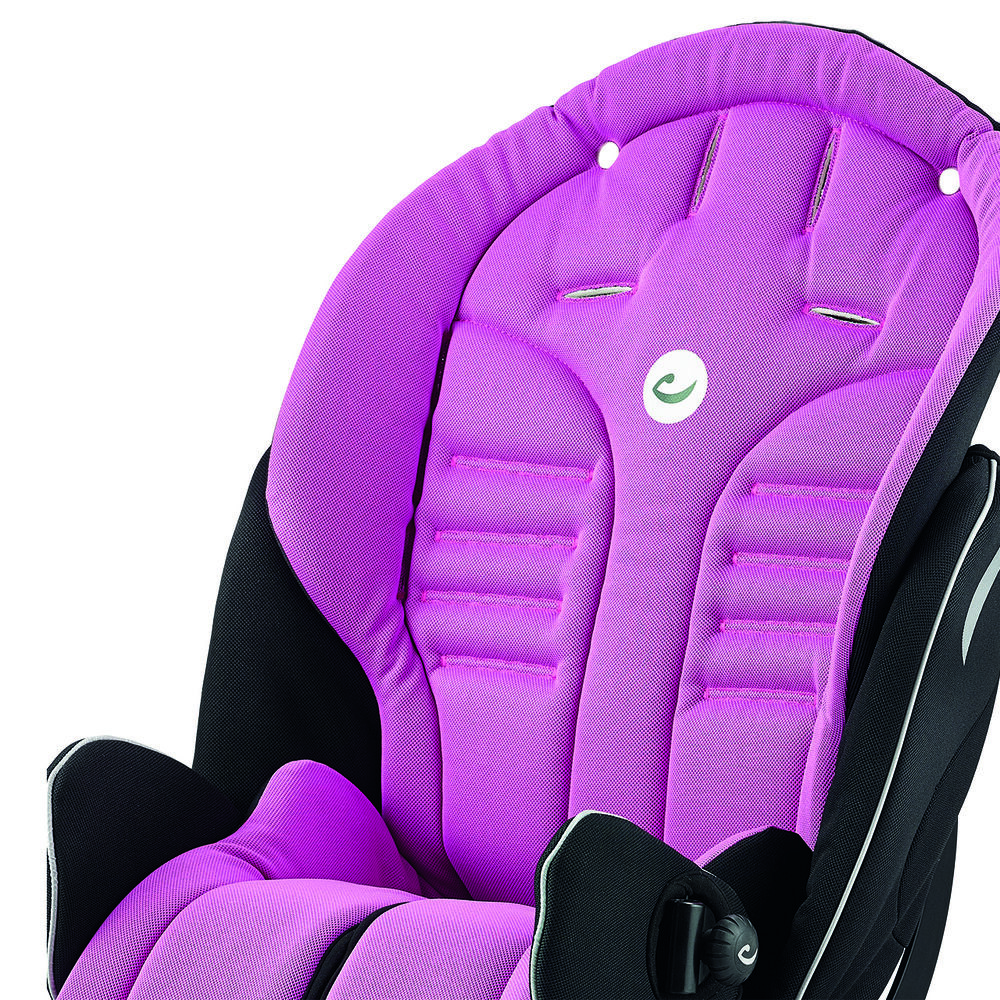

Pink

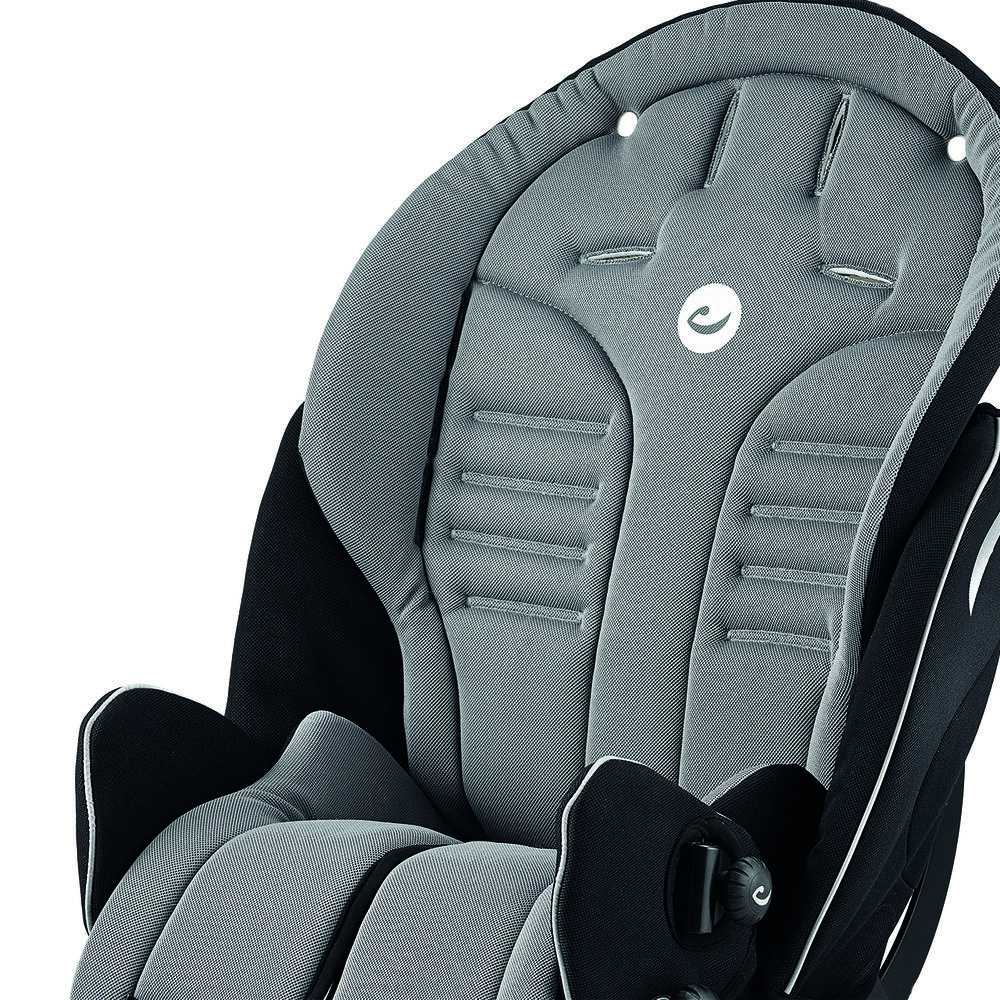

Grey
Adjustability
Height adjustable headrest
Height adjustable belt guide for proper positioning of the seat belt
