R82 Swan Curo
The R82 Swan Curo is a toilet and bath chair developed for children and youngsters with special needs.

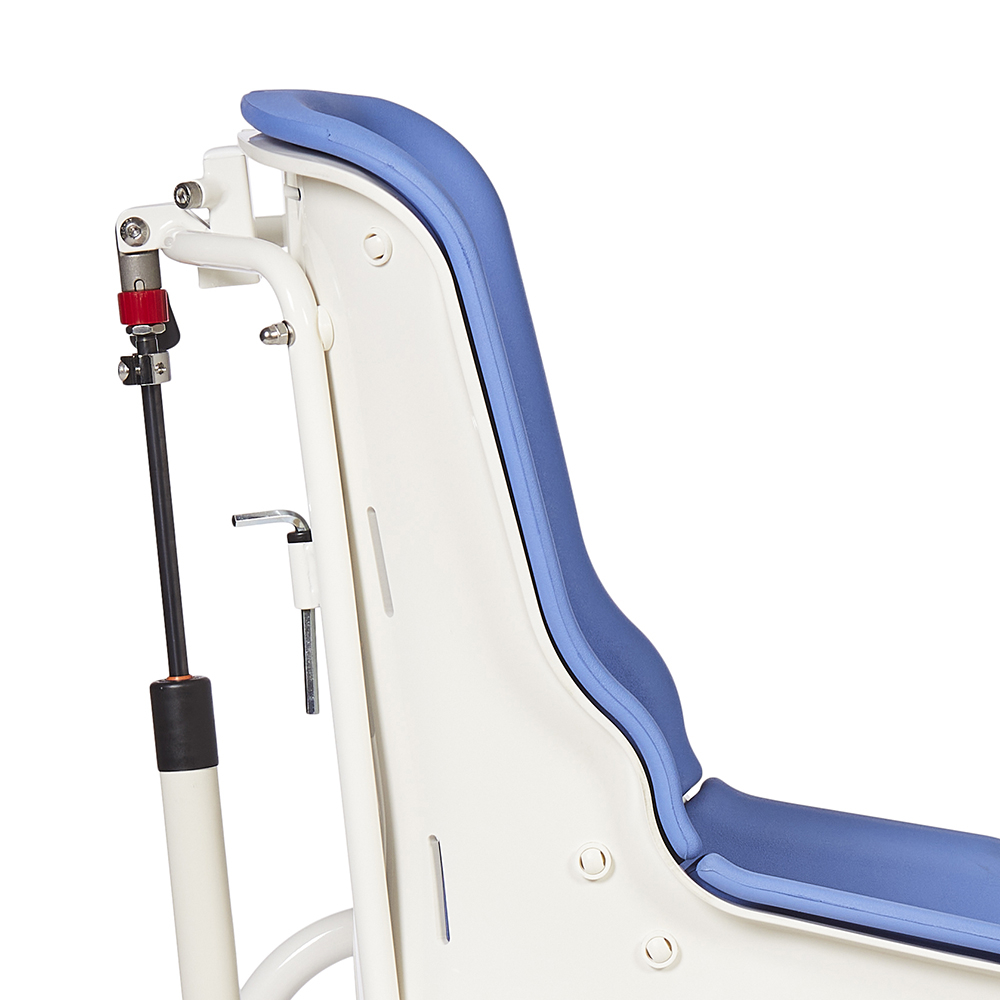

The Swan Curo toilet and bath chair has a minimalistic design and a small footprint, making it suitable for various bathrooms and homes. The shell is perfectly shaped for high comfort and with smooth surfaces for easy cleaning. The PU inlay is soft and ensures optimal seating comfort for the user and is easy to attach and detach. The gas spring-supported tilt mechanism comes as standard and makes the chair easy to adjust during use. The frame is height-adjustable to accommodate a wide range of toilets.
The Swan Curo is available in 4 different sizes. Size 1 is available with and without castors. Size 2-4 comes with castors.
Discover
Features
![R82 Swan Curo](/globalassets/inriver/resources/image/feature/r82-swan-curo-olivia-81302.jpg?cache=638479352330000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Versatile functionality
![R82 Swan Curo](/globalassets/inriver/resources/image/feature/r82-swan-curo-olivia-8241.jpg?cache=638479352990000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Everyday convenience
![R82 Swan Curo](/globalassets/inriver/resources/image/feature/r82-swan-curo-olivia-8155.jpg?cache=638479353140000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Comfort & support
![R82 Swan Curo](/globalassets/inriver/resources/image/feature/swan-curo-acc-01.jpg?cache=638479353360000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Individual adjustment
Variants
Size 1 without castors | Size 1 | Size 2 | Size 3 | Size 4 | |
---|---|---|---|---|---|
Item number | 87060 | 87061 | 87062 | 87063 | 87064 |
Aperture W x D (mm) | 125x185 | 125x185 | 150x220 | 180x280 | 180x330 |
Aperture with inlay W x D (mm) | 100x175 | 100x175 | 125x210 | 155x270 | 155x320 |
Back width, bottom of backrest (mm) | 210 | 210 | 250 | 315 | 400 |
Back width, top of backrest (mm) | 270 | 270 | 350 | 425 | 490 |
Backrest height (mm) | 380 | 380 | 470 | 525 | 600 |
Effective seat depth (mm) | 265 | 265 | 310 | 400 | 450 |
Effective seat width (mm) | 220 | 220 | 260 | 320 | 410 |
Length, with castors outside (low/high) at 0° tilt (mm) | - | 495/555 | 625/645 | 680/715 | 680/715 |
Length, without castors outside (low/high) at 0° tilt (mm) | 400/425 | - | - | - | - |
Mass device, with castors (kg) | - | 8.5 | 10.5 | 11.75 | 12.75 |
Mass device, without castors (kg) | 7.5 | - | - | - | - |
Maximum rated load with castors (kg) | - | 46 | 73 | 99 | 125 |
Maximum rated load without castors (kg) | 45 | - | - | - | - |
Maximum user mass (kg) | 35 | 35 | 60 | 85 | 110 |
Minimum distance for turning 180° allowing for reversing movement (mm) | 705 | 705 | 820 | 895 | 945 |
Minimum distance for turning 180° forward in movement (mm) | 1205 | 1205 | 1350 | 1475 | 1600 |
Minimum turning diameter (mm) | 1410 | 1410 | 1640 | 1790 | 1890 |
Overall height with castors (mm) | - | 760-920 | 960-1120 | 990-1150 | 1060-1220 |
Overall height without castors (mm) | 670-830 | - | - | - | - |
Overall width with castors (mm) | - | 500 | 530 | 580 | 655 |
Overall width without castors (mm) | 460 | - | - | - | - |
Pelvis width (mm) | 240 | 240 | 275 | 340 | 420 |
Seat plane angle (°) | 0°- 20° | 0°-20° | 0°-20° | 0°- 20° | 0°- 18,5° |
Seat surface height at front edge, with castors (mm) | - | 380-540 | 480-640 | 470-630 | 465-625 |
Seat surface height at front edge, without castors (mm) | 290-450 | - | - | - | - |
Seat width front (mm) | 320 | 320 | 355 | 425 | 475 |
Cleaning instructions: The product can be washed at 60 °C / 140 °F for 10 minutes and at 85 °C / 185 °F for 3 minutes in a washing machine for medical devices. Disinfect with a 70% disinfectant IPA solution. Use warm water and mild detergent without chlorine for cleaning.
Options

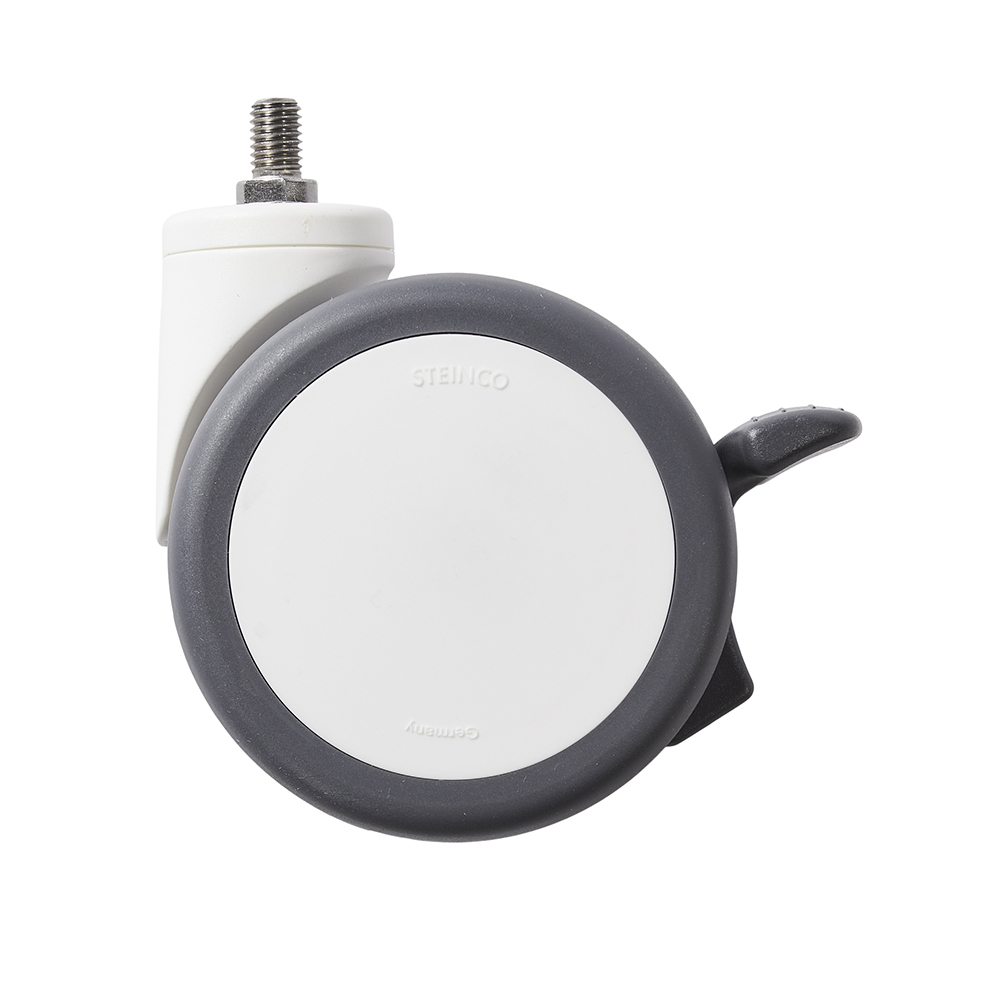

Castors
Size 1 is available with and without castors. Size 2-4 comes with castors.
![Without castors (only for size 1)](/globalassets/inriver/resources/image/option/50723-swan-without-castors.jpg?cache=638462173690000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Without castors (only for size 1)
![With castors](/globalassets/03-sales--customer-service-employee-blocks/etac-staff-images/etac-international-team/missing_image_camera.png?cache=637489815960000000&width=550&height=550&Quality=90&rmode=max&scale=down)
With castors
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos

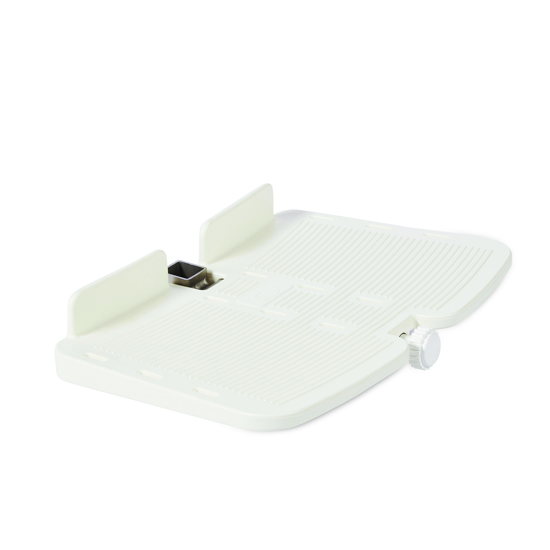

![How to mount rod for foot support & footplate](/globalassets/inriver/resources/video/youtubevideo/peed6kmoqfy.jpg?width=550&Quality=90&scale=down)
How to mount rod for foot support & footplate

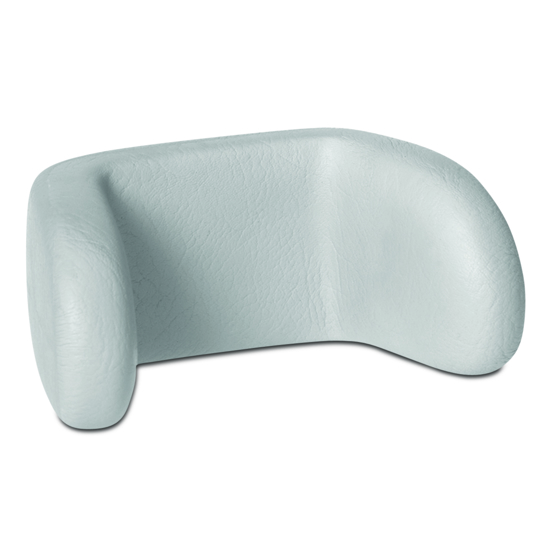

![How to mount head support](/globalassets/inriver/resources/video/youtubevideo/ubfjrsktxhi2.jpg?width=550&Quality=90&scale=down)

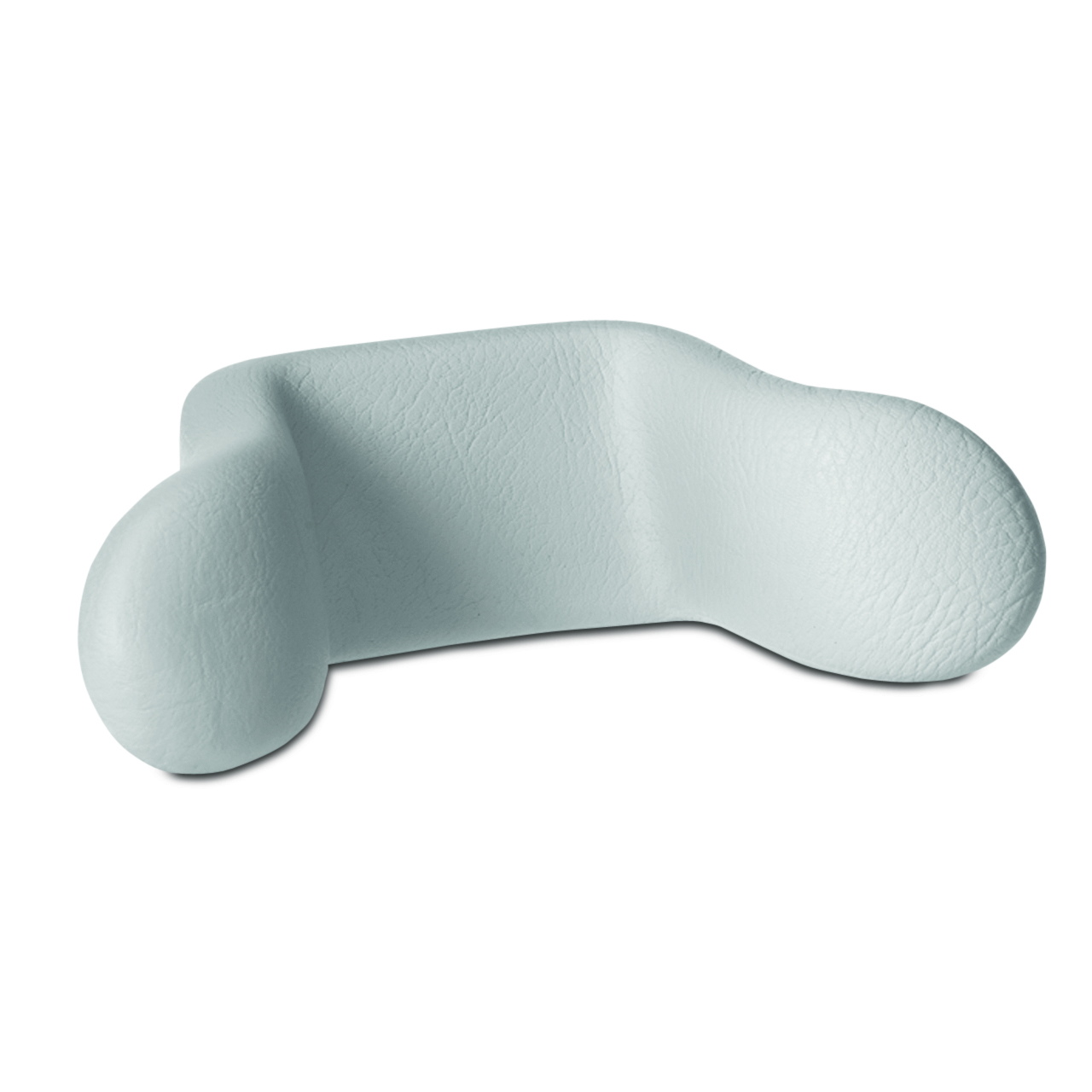

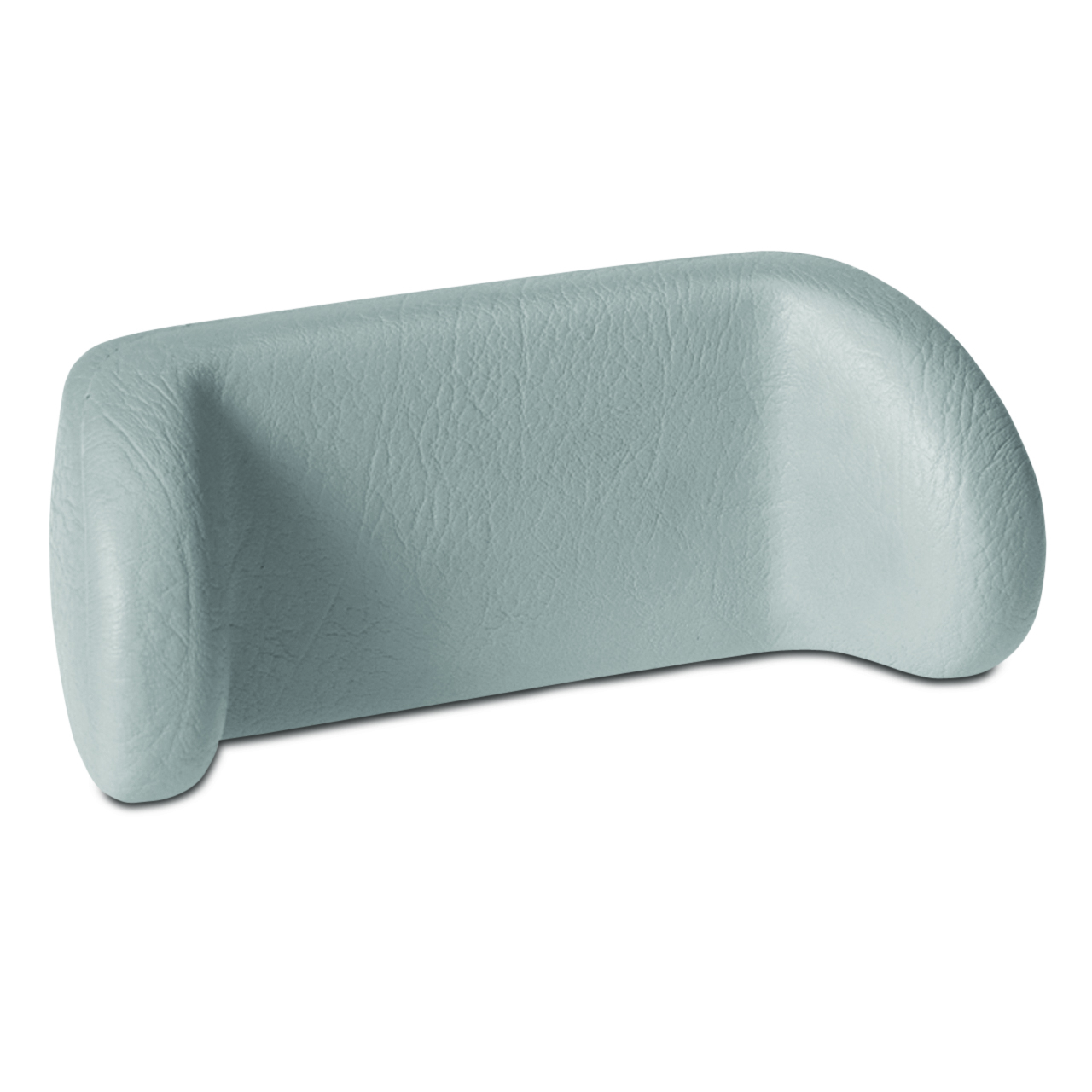

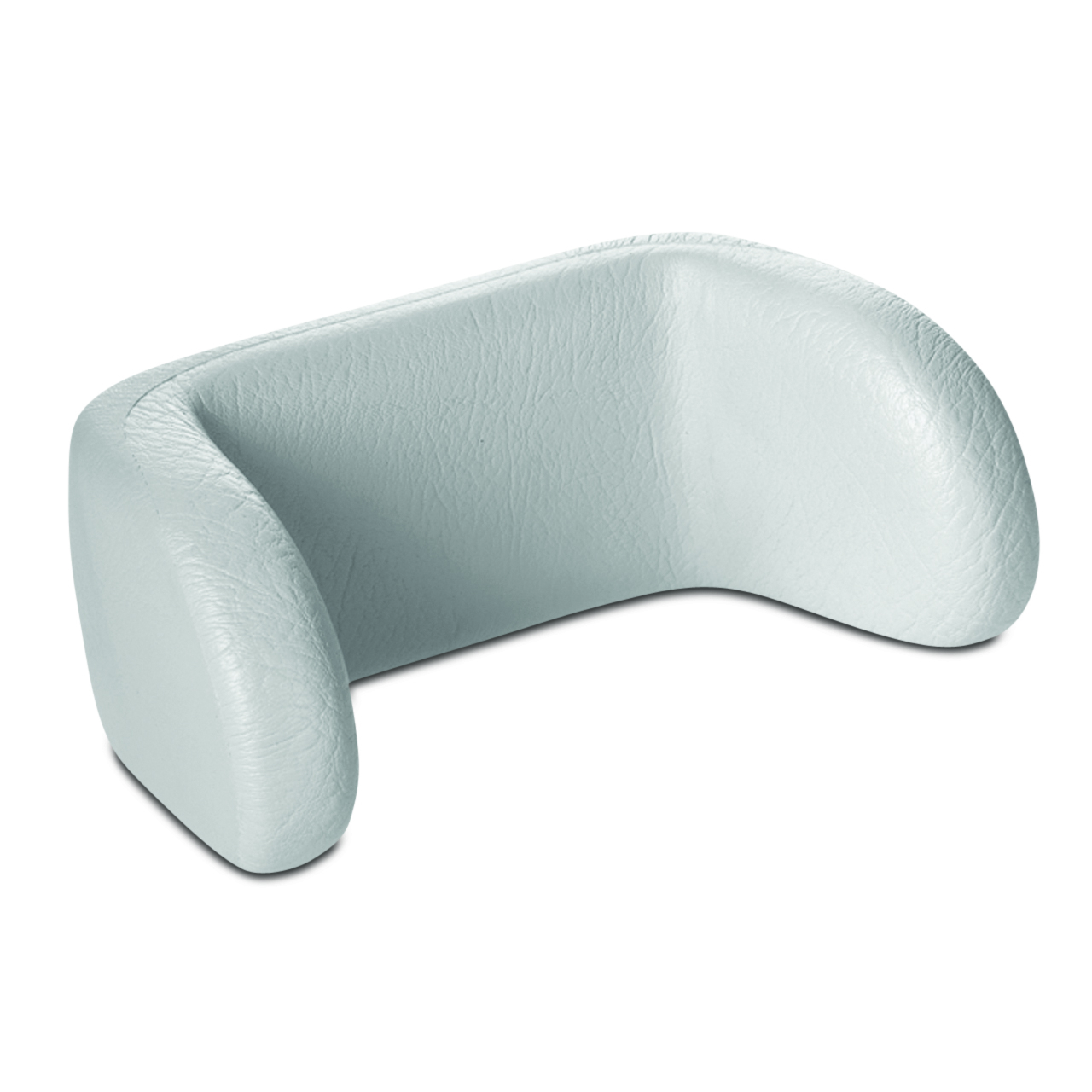

How to mount head support
![How to mount push brace & head support](/globalassets/inriver/resources/video/youtubevideo/s67dvewlnxi2.jpg?width=550&Quality=90&scale=down)
How to mount push brace & head support
![How to mount castors](/globalassets/inriver/resources/video/youtubevideo/a0hgik53wue2.jpg?width=550&Quality=90&scale=down)
How to mount castors

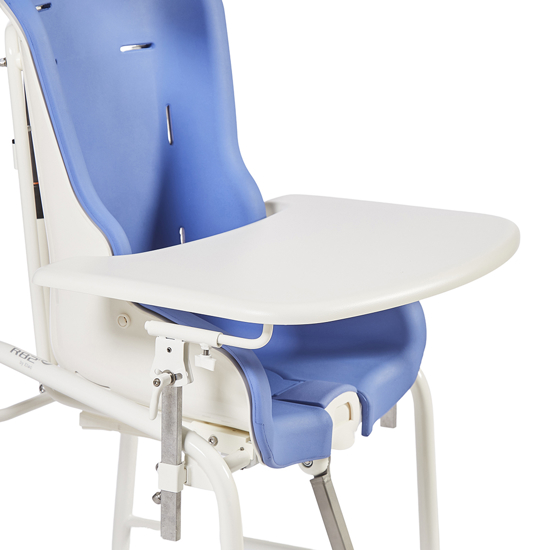

![How to mount tray](/globalassets/inriver/resources/video/youtubevideo/_i7lra-4ffw2.jpg?width=550&Quality=90&scale=down)
How to mount tray
![How to adjust tilt](/globalassets/inriver/resources/video/youtubevideo/dscqydbfrdw2.jpg?width=550&Quality=90&scale=down)
How to adjust tilt
![How to mount swing-away armrest](/globalassets/inriver/resources/video/youtubevideo/yvioe5cqfng2.jpg?width=550&Quality=90&scale=down)
How to mount swing-away armrest
![How to adjust height](/globalassets/inriver/resources/video/youtubevideo/_4le_ocqdvo2.jpg?width=550&Quality=90&scale=down)
How to adjust height
![How to mount vests](/globalassets/inriver/resources/video/youtubevideo/v0w5n7rtruw2.jpg?width=550&Quality=90&scale=down)
How to mount vests

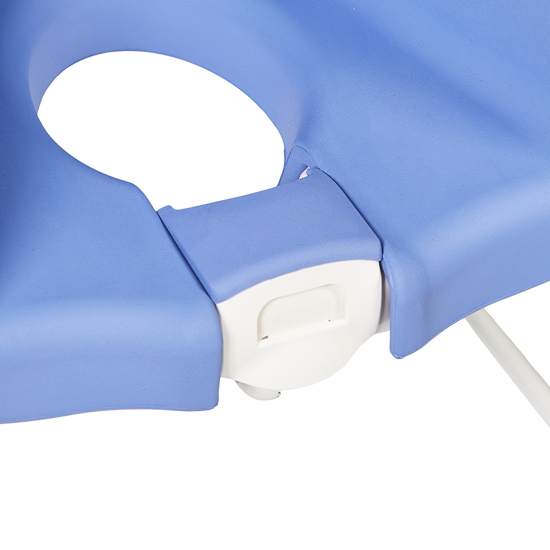

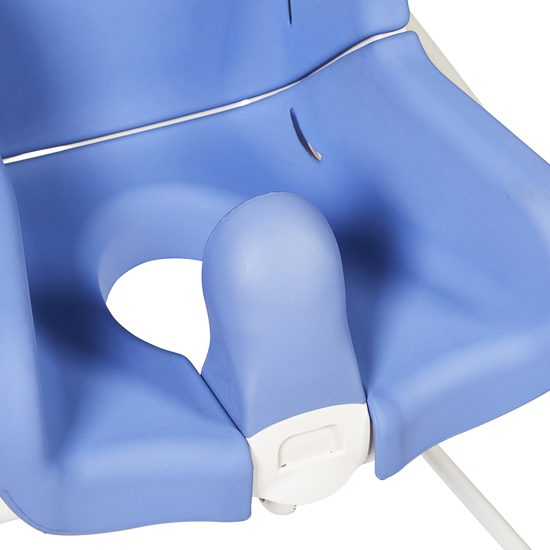

![How to mount splash guards](/globalassets/inriver/resources/video/youtubevideo/xuceyvh4jb02.jpg?width=550&Quality=90&scale=down)
How to mount splash guards
![How to mount seat infill](/globalassets/inriver/resources/video/youtubevideo/fbvrhgt2c9s2.jpg?width=550&Quality=90&scale=down)
How to mount seat infill

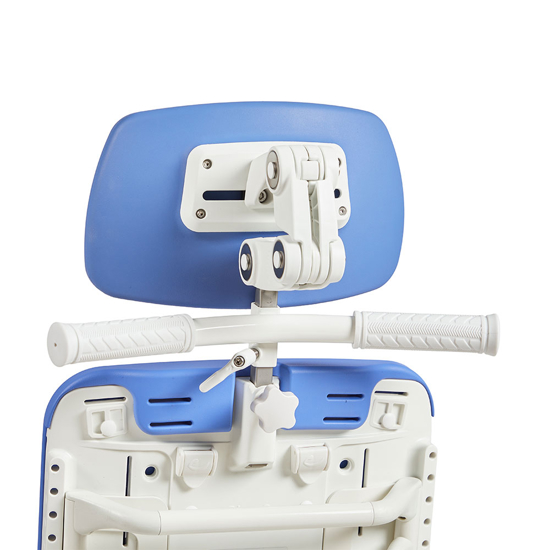

![How to mount push brace](/globalassets/inriver/resources/video/youtubevideo/plj6e1ztt9u2.jpg?width=550&Quality=90&scale=down)
How to mount push brace
![How to mount PU inlay](/globalassets/inriver/resources/video/youtubevideo/klhnvlfc-v42.jpg?width=550&Quality=90&scale=down)
How to mount PU inlay

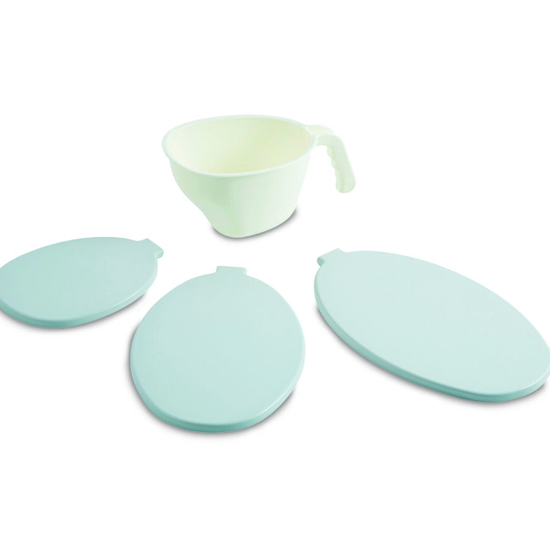

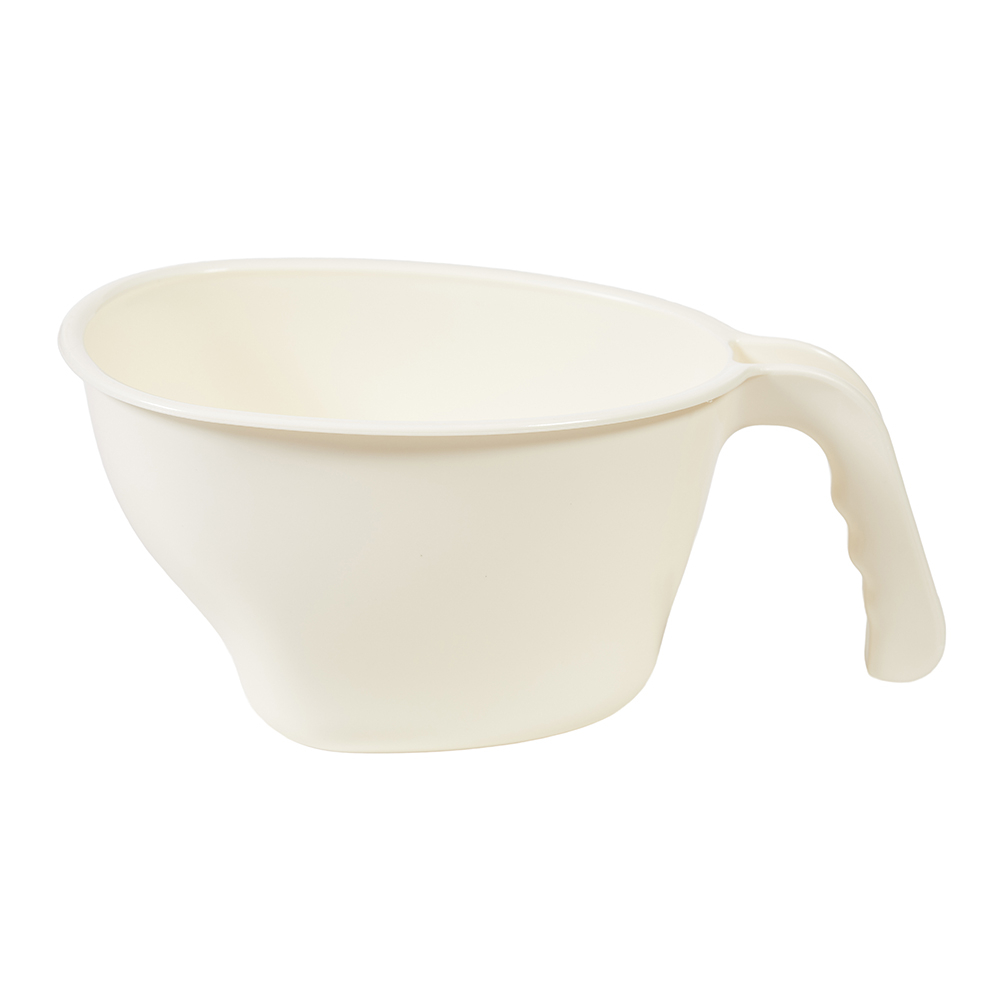

![How to mount commode pan & potty ring](/globalassets/inriver/resources/video/youtubevideo/caigwxptxya2.jpg?width=550&Quality=90&scale=down)
