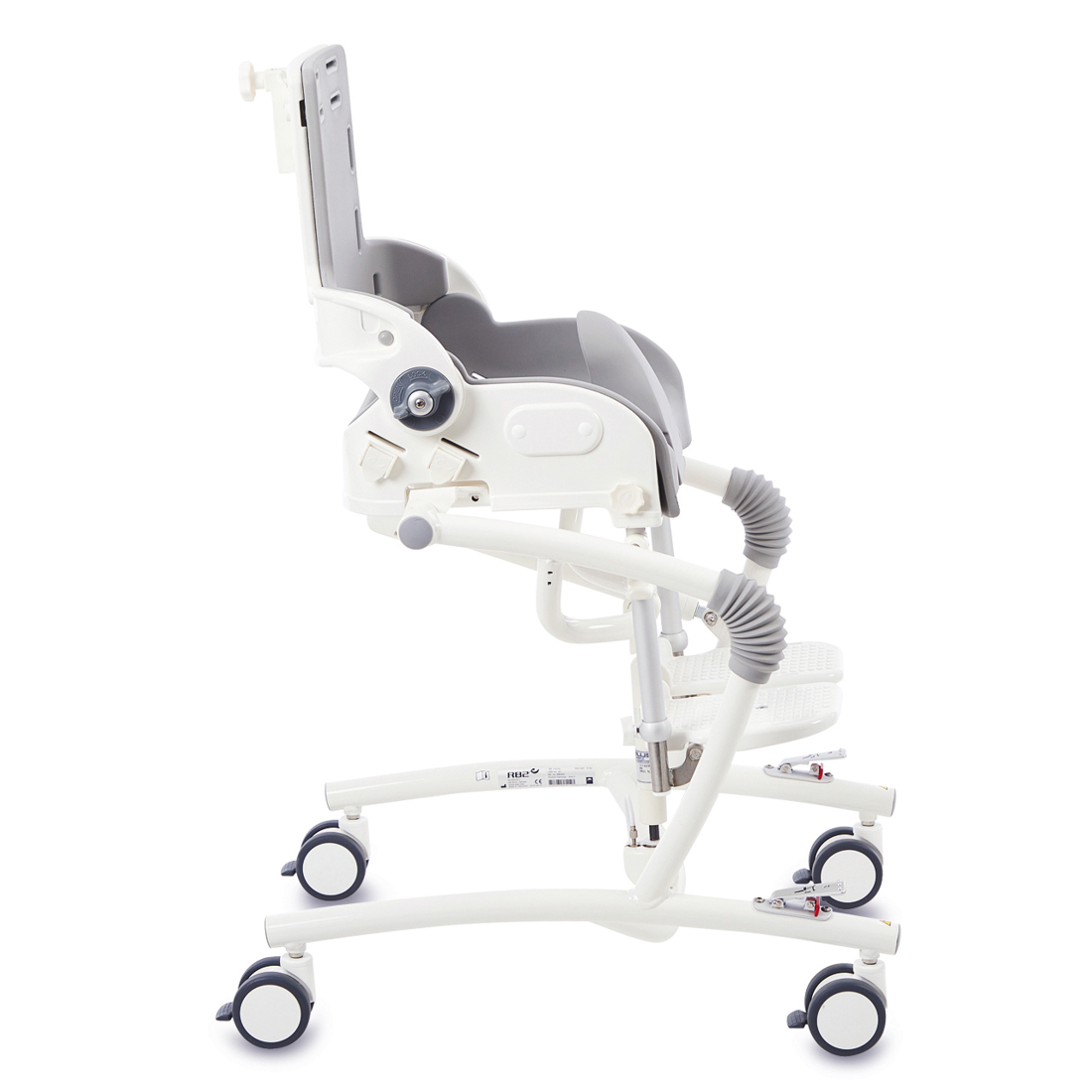

R82 Flamingo High-low
Flamingo High-low is a modern and comfortable toilet/bathing chair that fits into most bathrooms.

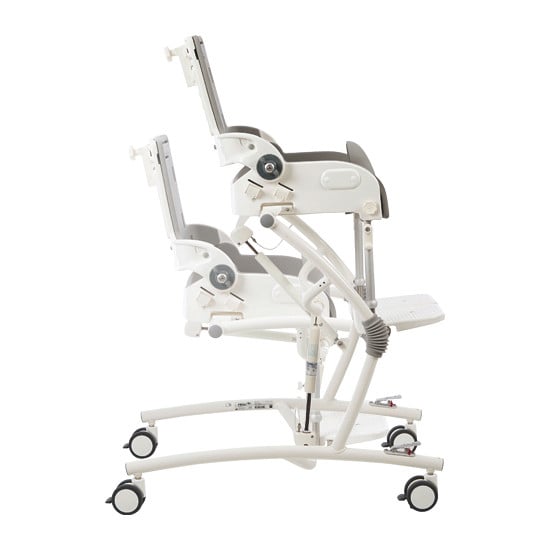

The Flamingo High-low has smooth and stepless height adjustment. The height adjustable feature allows caregivers to perform bathing and hygiene tasks in a convenient and good working position. Furthermore, the function is useful during transfers with a hoist, where it allows the user and caregiver to stay at eye level, providing dignity in the process. The PU inlay provides comfort for the user while the elegant design makes it easy for the caregiver to use. The Flamingo High-low is one of the most versatile products on the market with up to five configurations available. It can be used freestanding with a pan, directly over the toilet and as a shower chair. The seat is also removable for direct mounting on a toilet or in a bath.
Discover
Flamingo High-low video
Features

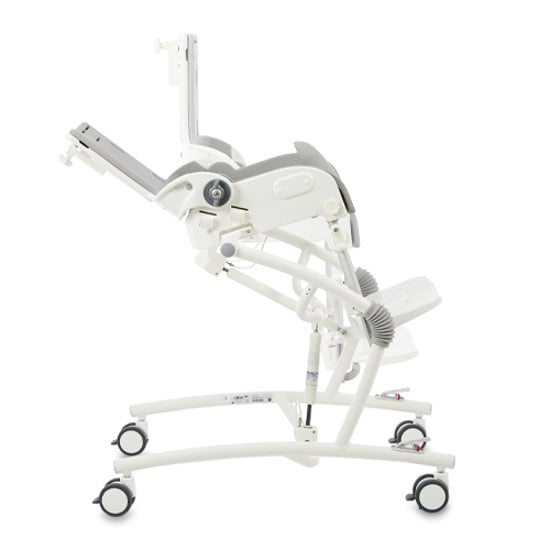

Easy adaptation of working conditions
Optimum positioning

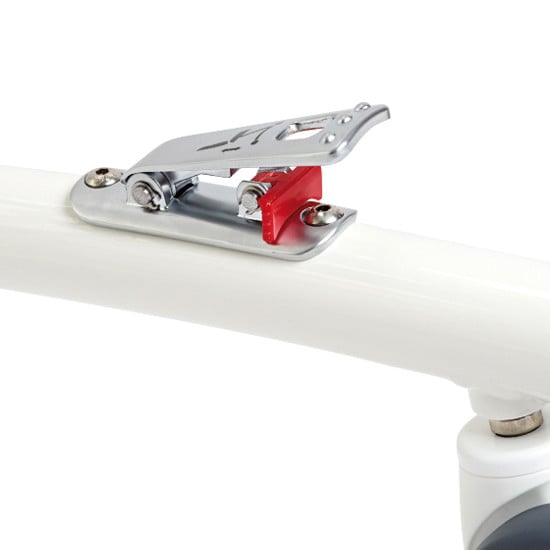

Easy to use
Bathtime is fun and relaxing
Variants
| Size 1 | Size 2 | Size 3 | Size 4 | Flamingo seat size 1 | Flamingo seat size 2 | Flamingo seat size 3 | Flamingo seat size 4 | |
|---|---|---|---|---|---|---|---|---|
| Item number | 880401-x | 880402-x | 880403-x | 880404-x | 880101 | 880102 | 880103 | 880104 |
| Back width (mm) | 200 | 220 | 260 | 280 | - | - | - | - |
| Backrest angle (°) | 30 | 30 | 30 | 30 | - | - | - | - |
| Backrest height (mm) | 350 | 380 | 420 | 470 | - | - | - | - |
| Effective seat depth (mm) | 250 | 290 | 350 | 400 | - | - | - | - |
| Effective seat width (mm) | 240 | 280 | 320 | 340 | - | - | - | - |
| Footrest to seat distance (mm) | 200-250 | 230-340 | 300-420 | 300-420 | - | - | - | - |
| Leg to seat surface angle (°) | 90-75 | 90-75 | 90-75 | 90-75 | - | - | - | - |
| Length (mm) | 640 | 640 | 760 | 760 | 260 | 315 | 360 | 425 |
| Mass device (kg) | 14 | 14.5 | 16.5 | 17 | 2.5 | 3 | 4 | 4.5 |
| Mass device (lbs) | 30.8 | 31.9 | 36.3 | 37.4 | 5.5 | 6.5 | 8.8 | 9.9 |
| Max load, operating force (kg) | 35 | 35 | 55 | 55 | - | - | - | - |
| Maximum rated load (kg) | 41 | 66.5 | 78.5 | 89 | 39.5 | 55 | 66 | 76.5 |
| Maximum user mass (kg) | 35 | 50 | 60 | 70 | 35 | 50 | 60 | 70 |
| Overall height (mm) | 860-1080 | 920-1110 | 940-1170 | 1020-1200 | - | - | - | - |
| Overall width (mm) | 500 | 500 | 570 | 570 | - | - | - | - |
| Seat plane angle (°) | (-5)-20 | (-5)-20 | (-5)-20 | (-5)-20 | - | - | - | - |
| Seat surface height at front edge (mm) | 530-740 | 530-740 | 530-740 | 530-740 | - | - | - | - |
Washing instructions
Options
Colours
The Flamingo PU inlay is available in two different colours.
Grey

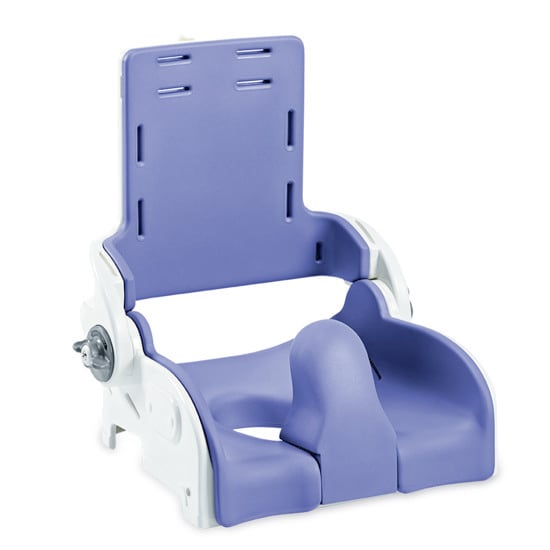

Blue
Basic functions
Flamingo High-low has multi-purpose basic functions and designed for independent use, or with assistance.

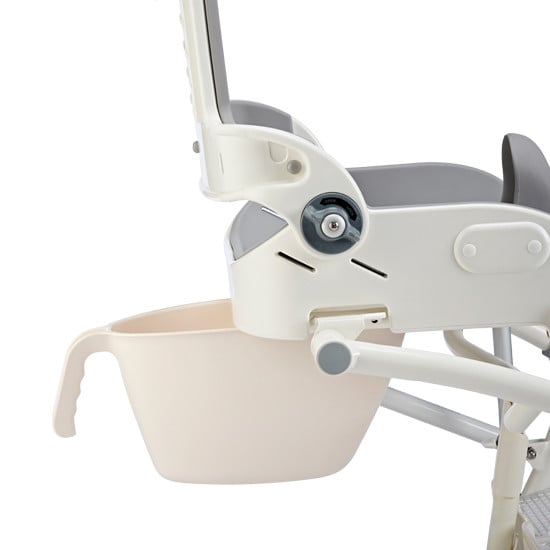

Freestanding with a pan

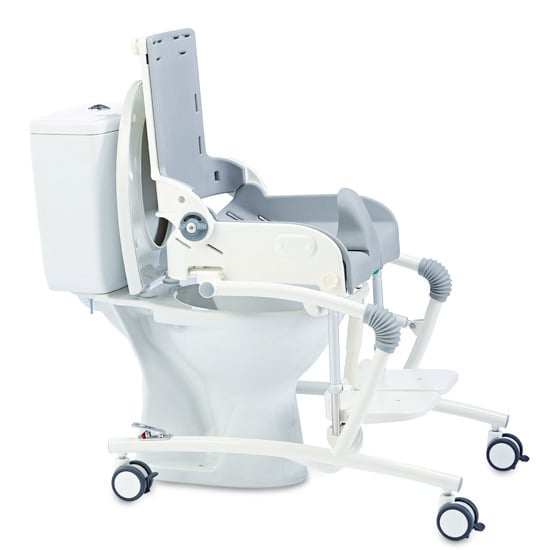

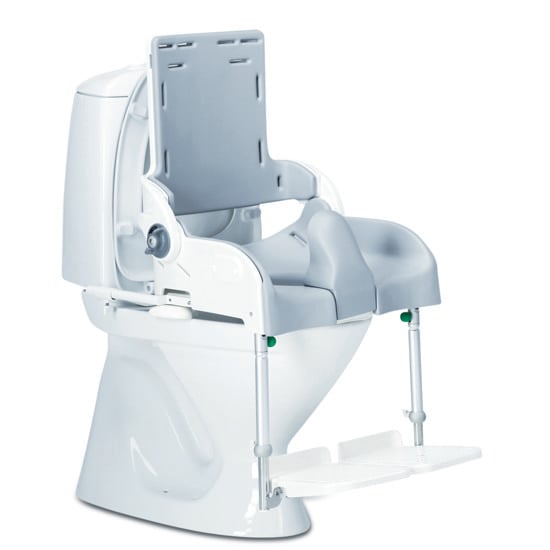

Directly over the toilet
Directly on a toilet

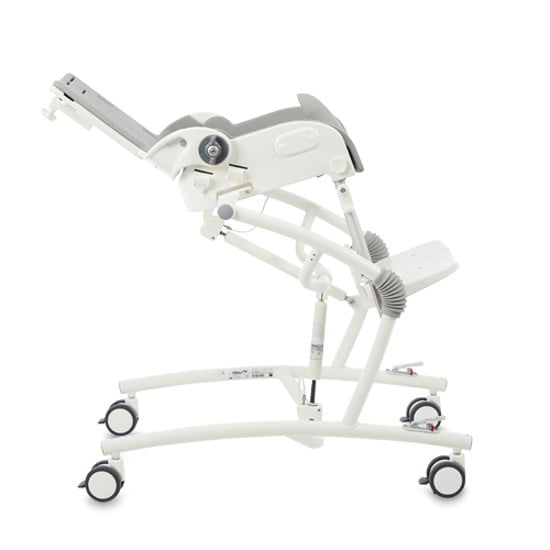

In the shower

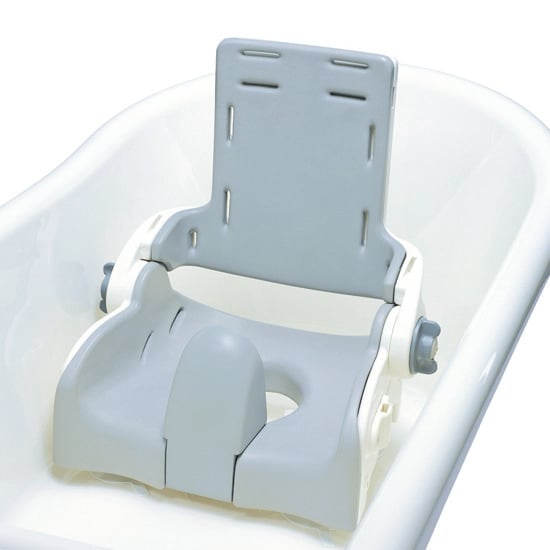

In a bath

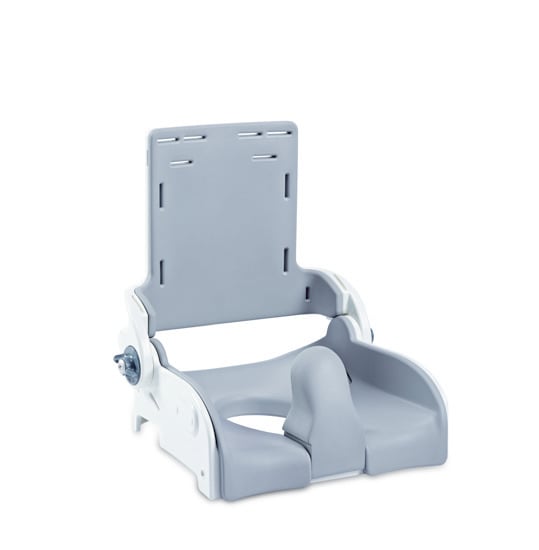

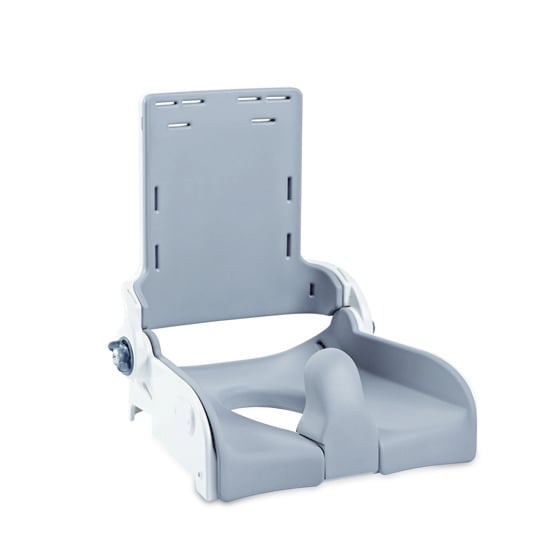

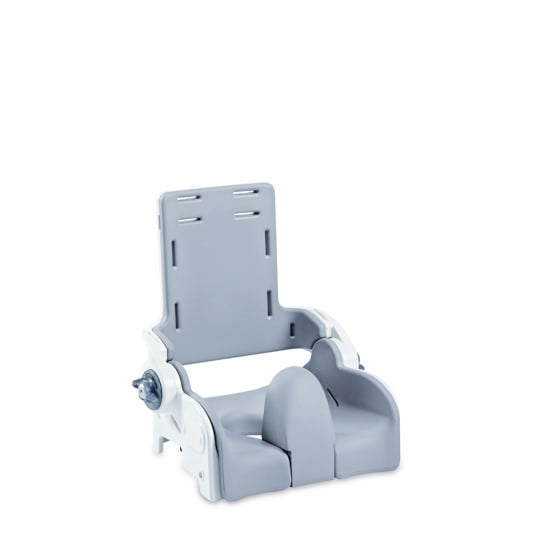

Seats
Size 1

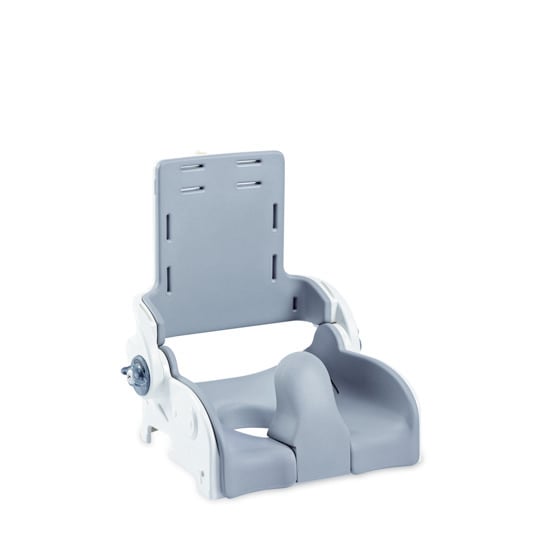

Size 2
Size 3
Size 4

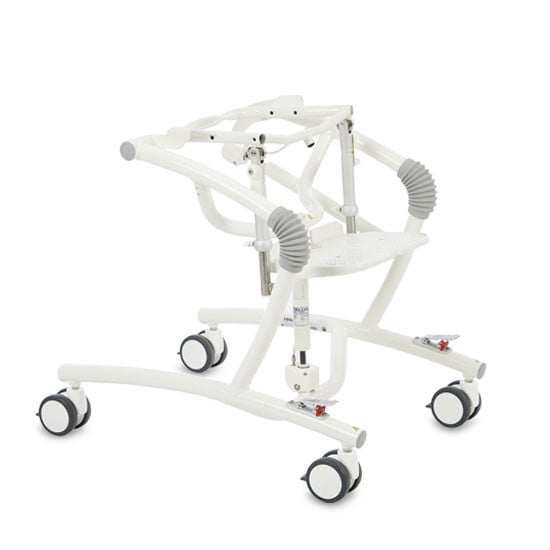

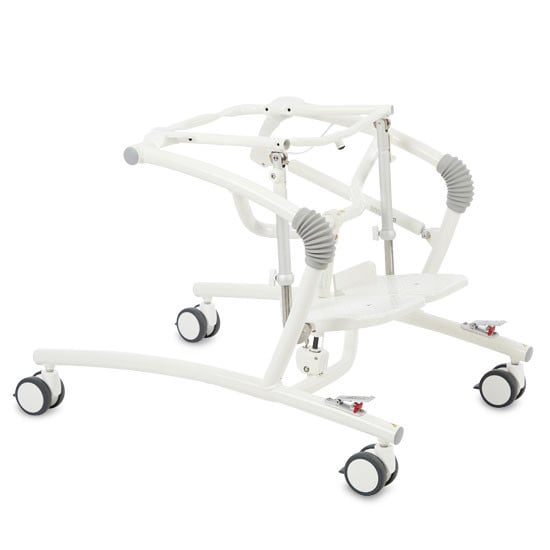

Frame

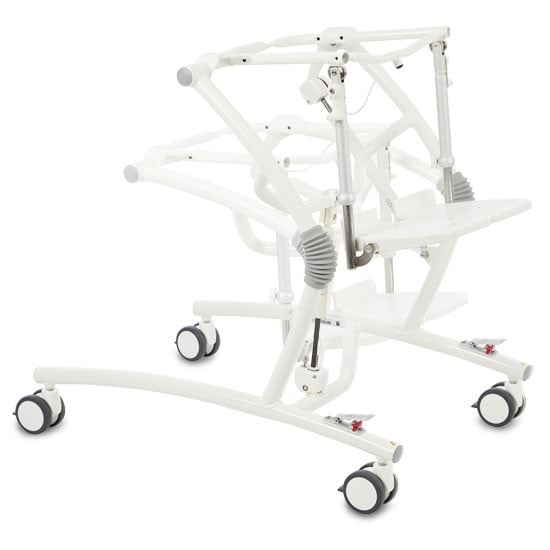

The frame is adjustable in height from 53-74 cm. The frame has a durable waterproof surface and all castors have brakes for safe and stable transfer. The frame comes in two sizes, each available with two sizes of seat mounting.
Height adjustment 53-74 cm
Size 1
Size 2
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos

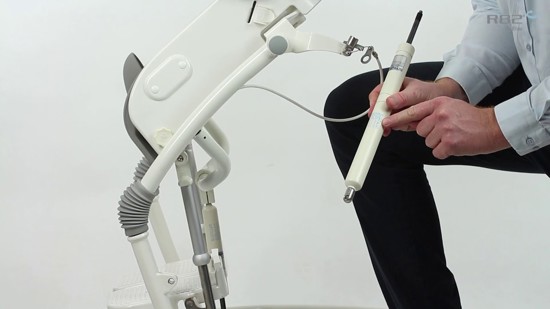

Gas spring adjustment
Gas spring settings

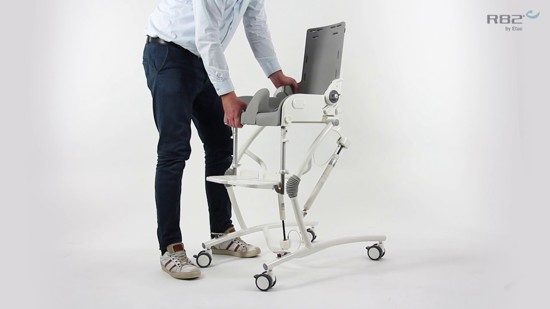

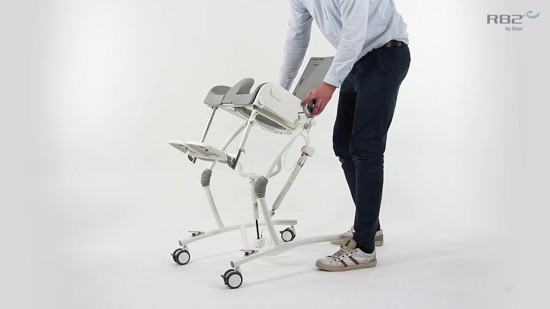

Seat and back adjustments
