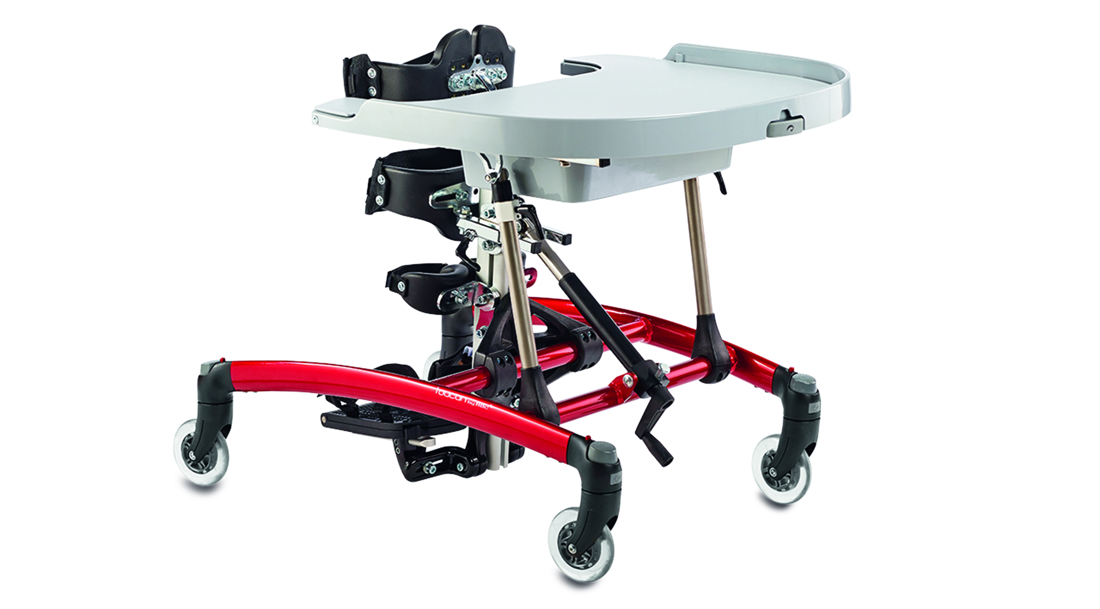

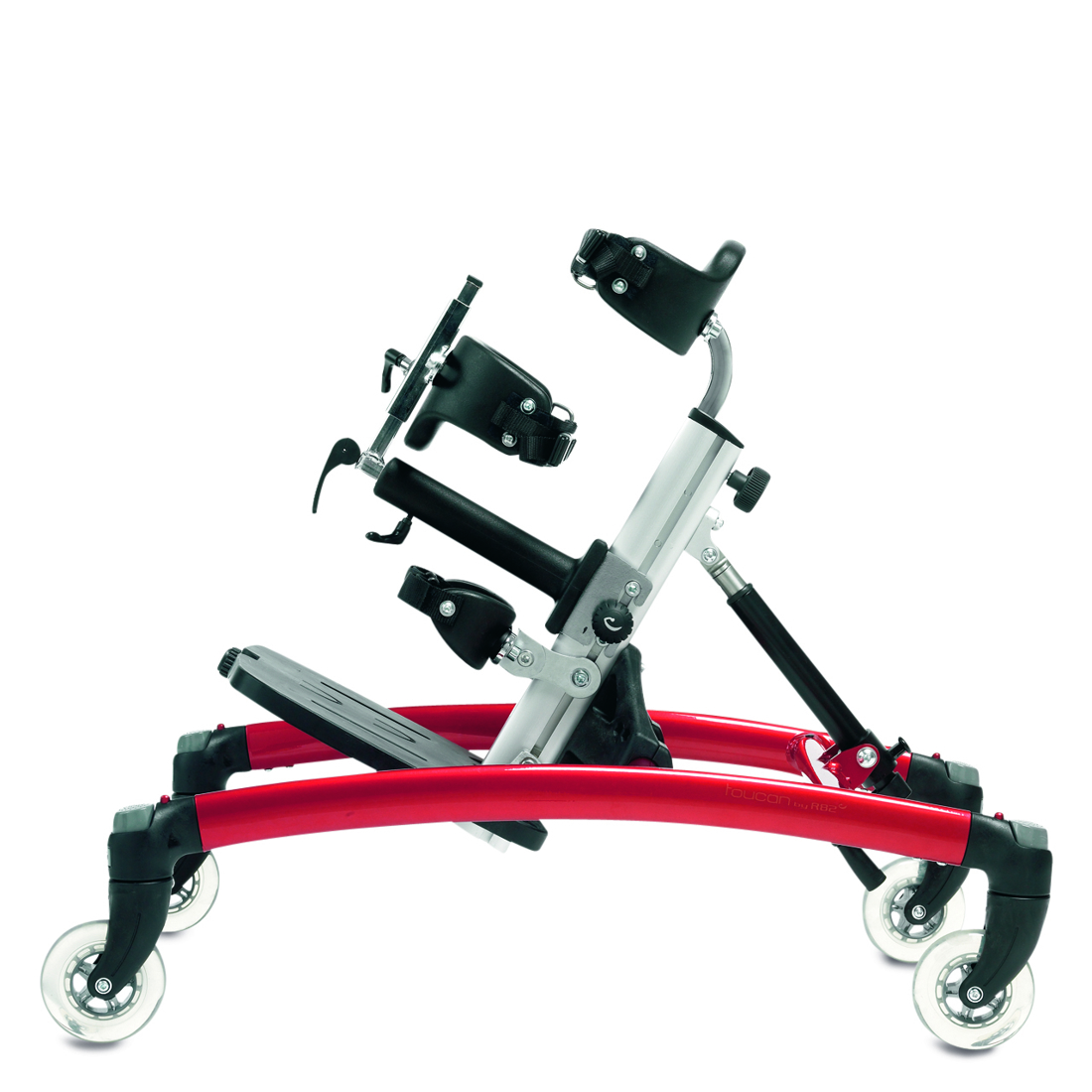

R82 Toucan

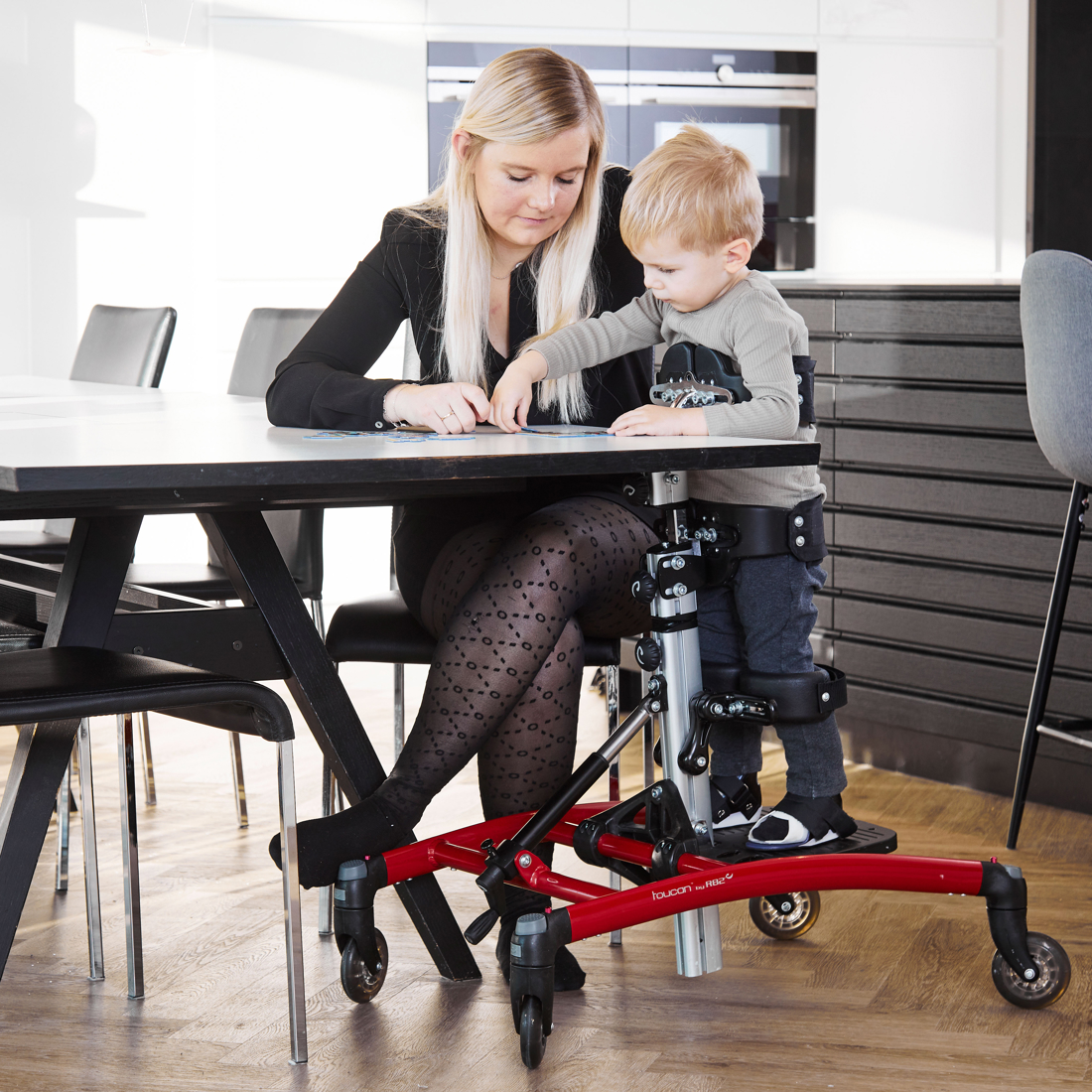

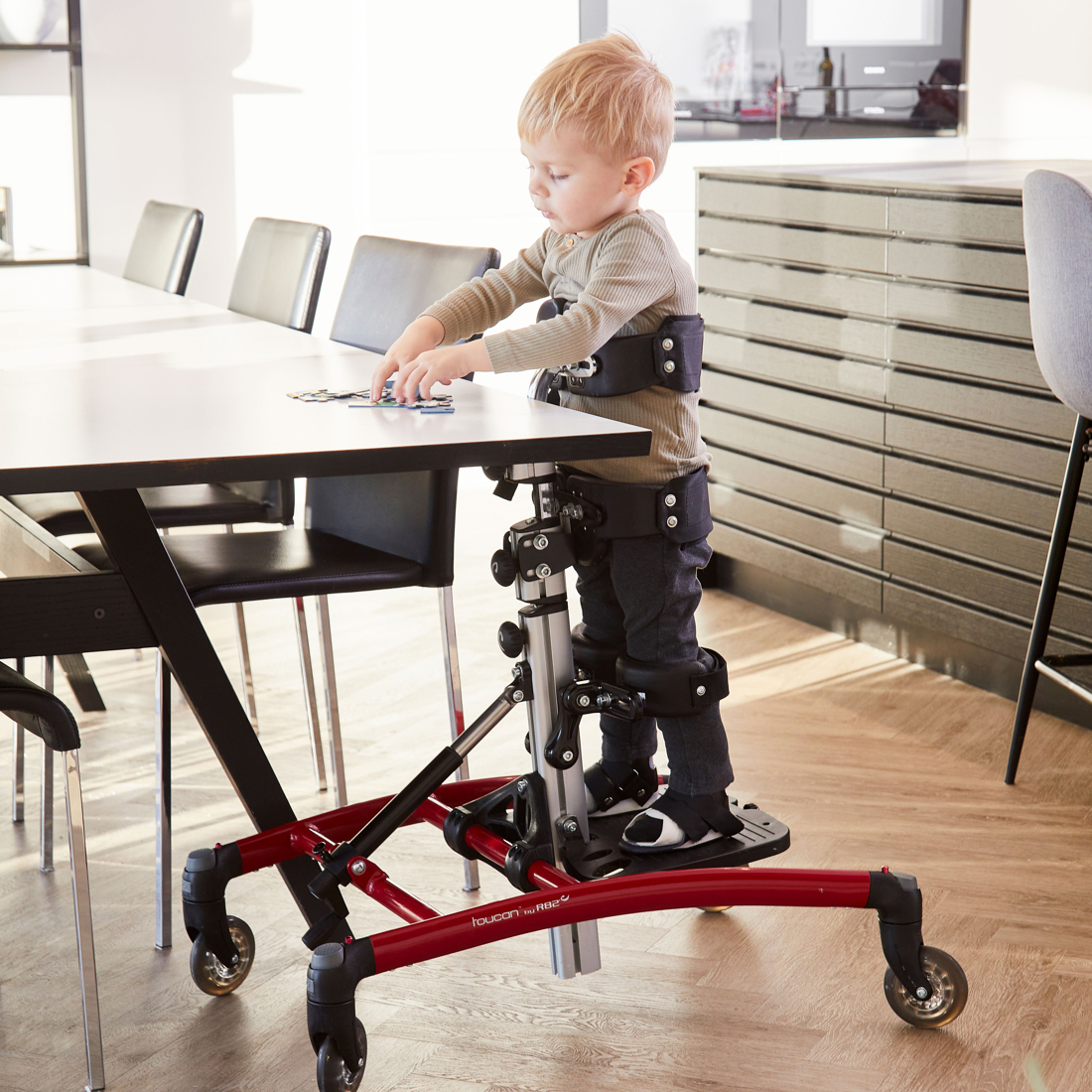

The R82 Toucan is an innovative standing frame for children. Crafted with precision and care, the R82 Toucan standing frame supports both an upright and prone standing position, offering versatility tailored to children's specific needs..
With its soft curves and vibrant colors, the R82 Toucan is designed with both functionality and user comfort in mind. The thoughtful design of the standing frame includes a unique spacing between its side bars, accommodating most wheelchairs and facilitating easy sit-to-stand transfers. Moreover, the standing frames adaptable foot plate can be positioned as low as 60 mm above the floor, ensuring that the majority of the target users can effortlessly step into the frame.
Designed with adaptability at its core, the R82 Toucan standing frame is available in five distinct sizes, catering to children ranging from approximately 870 mm (34 1/4") to 1800 mm (70 3/4"). Demonstrating its robustness and durability, this standing frame boasts a maximum user mass of 70 kg (154 lb).
In summary, the R82 Toucan exemplifies advanced design in pediatric standing frames. Its distinct features and adaptability across various sizes ensure it's an optimal solution for children with a range of standing support requirements.
Features
Prepared for accessories
Angle adjustable centre bar
Handle with lock
Castors with locks
Variants
| Size 1 | Size 2 | Size 3 | Size 4 | Size 5 | |
|---|---|---|---|---|---|
| Item number | 861001 | 861002 | 861003 | 861004 | 861005 |
| Angle, center bar (°) | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 |
| Foot plate angle (°) | 15 - (-10) | 15 - (-10) | 15 - (-10) | 15 - (-10) | 15 - (-10) |
| Height from floor to foot plate (mm) | 60 | 60 | 60 | 60 | 60 |
| Length (mm) | 750 | 880 | 880 | 1110 | 1110 |
| Length, centre bar (mm) | 450 | 500 | 700 | 800 | 1000 |
| Mass device (kg) | 7.5 | 8.5 | 9 | 10.5 | 10.75 |
| Mass device (lbs) | 16.5 | 18.7 | 19.8 | 23.1 | 23.6 |
| Maximum rated load (kg) | 39.5 | 50.5 | 61 | 72.5 | 82.75 |
| Maximum user mass (kg) | 30 | 40 | 50 | 60 | 70 |
| Maximum user weight (kg) | 30 | 40 | 50 | 60 | 70 |
| Overall height (mm) | 670-870 | 720-1010 | 970-1230 | 1040-1340 | 1240-1540 |
| Overall width (mm) | 560 | 630 | 630 | 700 | 700 |
| Static stability downhill (°) | 5 | 5 | 5 | 5 | 5 |
| Static stability sideways (°) | 5 | 5 | 5 | 5 | 5 |
| Static stability uphill (°) | 5 | 5 | 5 | 5 | 5 |
| User height: floor to axil (mm) | 340-700 | 540-900 | 740-1100 | 910-1210 | 1110-1410 |
Washing instructions
Options
Frame colour
Red for size 1
Blue for size 2+3
Silver for size 4+5

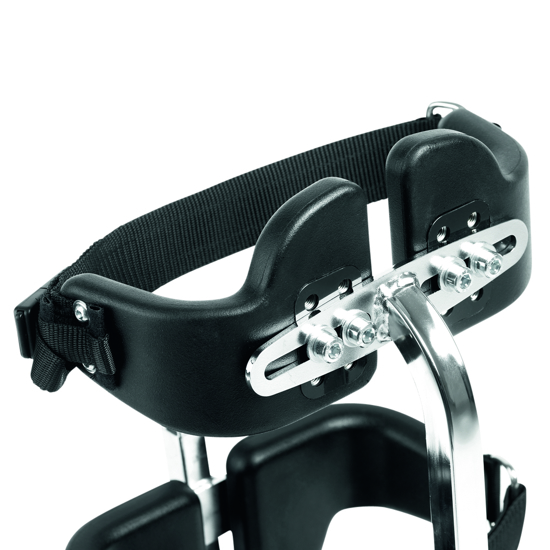

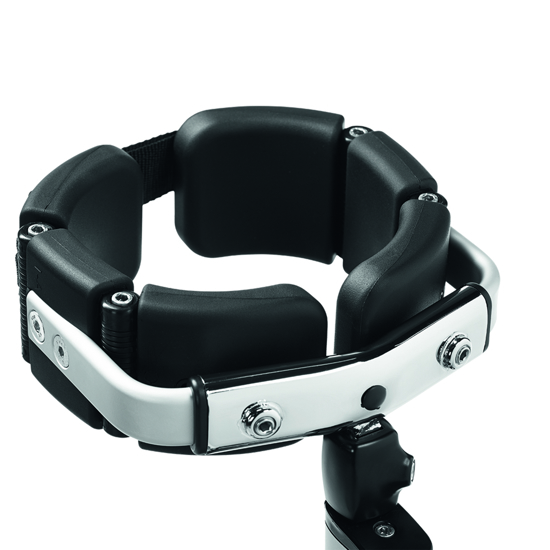

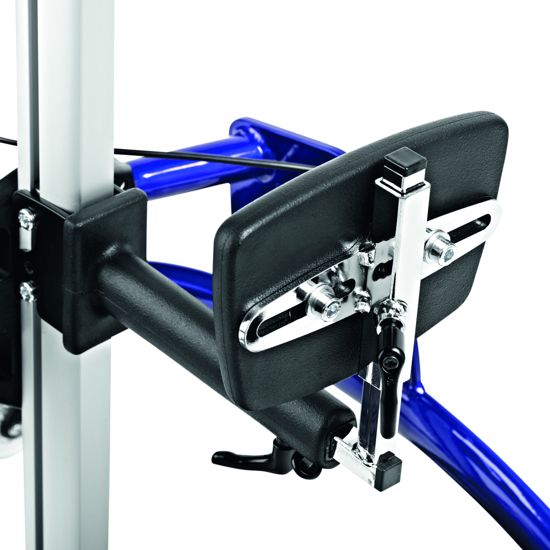

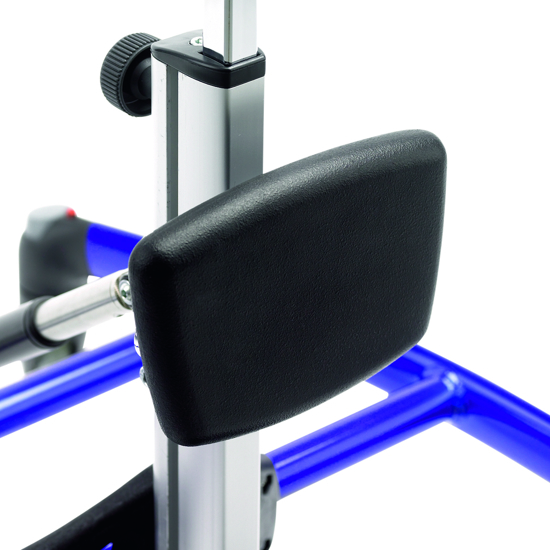

Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
