R82 Meerkat
The Meerkat is a dynamic standing frame designed to support an upright standing position for children with varying needs..
As a standing aid, the Meerkat features a centre column that can be positioned either in front of or behind the child, providing ample space for movement and exploration. One of the key benefits of the Meerkat is its modular design, allowing for quick and easy adjustments to meet the individual needs of each user. The Meerkat's modular accessories can be easily clicked on and off, providing optimal flexibility and adaptability.
Additionally, the Meerkat is specifically designed to facilitate learning through movement. A rocker can be easily mounted under the base plate and positioning is supported while encouraging movement and exploration.
Available in three sizes, the Meerkat is suitable for children ranging from approximately 700 mm to 1800 mm in height. With a maximum user weight capacity of 90 kg, the Meerkat is a suitable and durable standing frame suitable for a range of users.
In summary, the R82 Meerkat is a versatile and flexible standing frame suitable for children with varying needs. Its modular design, combined with its ability to facilitate movement and learning, make it a valuable addition to any therapy or home environment.
Discover
Features
![R82 Meerkat](/globalassets/inriver/resources/image/feature/54788-meerkat-dynamic-standing2.jpg?cache=638479375850000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Dynamic standing
![R82 Meerkat](/globalassets/inriver/resources/image/feature/54789-meerkat-simple-and-intuitive2.jpg?cache=638479376020000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Simple and intuitive
![R82 Meerkat](/globalassets/inriver/resources/image/feature/54790-meerkat-easy-adjustments2.jpg?cache=638479411160000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Easy adjustments
![R82 Meerkat](/globalassets/inriver/resources/image/feature/54791-meerkat-growth-adjustable-accessories2.jpg?cache=638479341230000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Growth adjustable accessories
Variants
Size 1 | Size 2 | Size 3 | |
---|---|---|---|
Item number | 870011-x | 870022 | 870023 |
Length (mm) | 595 | 800 | 800 |
Mass device (kg) | 9 | 15.25 | 15.75 |
Maximum rated load (kg) | 31 | 82.25 | 107.75 |
Maximum user height (mm) | 41.25 | 1350 | 1800 |
Maximum user mass (kg) | 20 | 65 | 90 |
Overall height (mm) | 375-750 | 500-1000 | 650-1300 |
Overall length (mm) | 640 | 860 | 860 |
Overall width (mm) | 525 | 780 | 780 |
Static stability downhill (°) | 10 | 10 | 10 |
Static stability sideways (°) | 10 | 10 | 10 |
Static stability uphill (°) | 10 | 10 | 10 |
User height: floor to axil (mm) | 400-750 | 720-1000 | 840-1300 |
Width (mm) | 445 | 670 | 670 |
Options
Base plate colour
Available in 3 colours.
![Strawberry ice base plate with cow castors](/globalassets/inriver/resources/image/option/52767-strawberry-ice.jpg?cache=638494950730000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Strawberry ice base plate with cow castors
![Pastel blue base plate with airplane castors](/globalassets/inriver/resources/image/option/51486-pastel-blue-meerkat.jpg?cache=638462427030000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Pastel blue base plate with airplane castors
![Anthracite base plate with standard castors](/globalassets/inriver/resources/image/option/54652-anthracite.jpg?cache=638462131240000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Anthracite base plate with standard castors
Meerkat coloumn
The Meerkat column includes built in growth.
![Built in growth](/globalassets/inriver/resources/image/option/54762-meerkat-column.jpg?cache=638462127650000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Built in growth
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
![Ratchet Strap Covers](/globalassets/inriver/resources/video/youtubevideo/ku36lc9vvt0.jpg?width=550&Quality=90&scale=down)
Ratchet Strap Covers
![Adjusting the knee supports](/globalassets/inriver/resources/video/youtubevideo/tz6vqhgilfo.jpg?width=550&Quality=90&scale=down)
Adjusting the knee supports

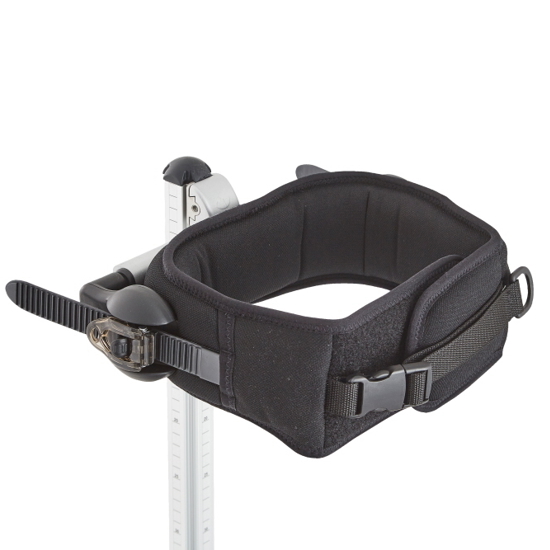

![Chest support adjustments](/globalassets/inriver/resources/video/youtubevideo/qg7ys_9dgme.jpg?width=550&Quality=90&scale=down)
Chest support adjustments

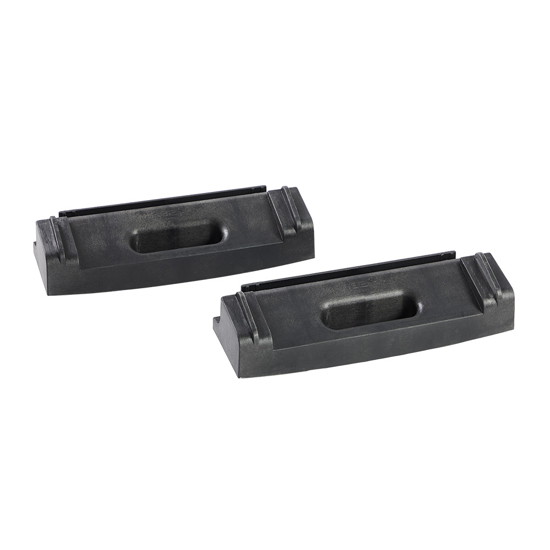

![Sideways rocker_video](/globalassets/inriver/resources/video/youtubevideo/dyf1pt7olku.jpg?width=550&Quality=90&scale=down)
