R82 Panda Futura 5

The Panda Futura size 5 is a comfortable supportive seat for larger children and teenagers.

The seat is available in two versions; Standard and Active which provide the required comfort, support and freedom of movement. The back of the seat unit can be adjusted independently of the seat. The pivotal point of recline is anatomically correct, being in line with the hip joint. The back angles from -5° to 30°.

The Panda Futura size 5 can be mounted on the Combi Frame:x, Multi Frame:x, Strong Base, High-low:x indoor and outdoor frames depending on the use of the seat. The seat is supplemented with and prepared for many optional accessories to fulfill the needs of the individual user.

The Panda Futura seat complies with ISO 16840-4.

Features

Angle adjustable back

Activate the handle on the back to carry out a smooth and stepless angle adjustment of the back.

Easy change - active to standard

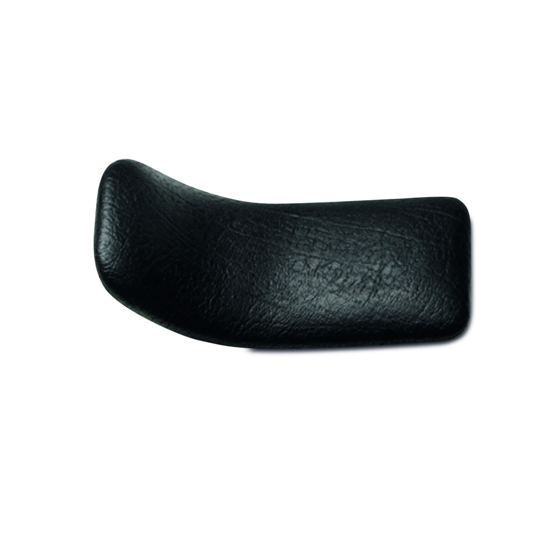

Mount separate sideplates and cushions and the seat is easily transformed into the standard model. Sideplates and side cushions are accessories.

Comfortable cushions

The cushions are carefully moulded to achieve optimum comfort when seated. The cover is available in black Gemma or black Mesh.

Prepared for various accessories

Several fixlocks and slots in the back and seat ensure easy mounting of other accessories.

Variants

	Panda Futura 5 active	Panda Futura 5 standard
Item number	890153-xx	890253-xx
Armrest to seat distance (mm)	210-300	210-300
Back width, bottom of backrest (mm)	320	270
Back width, top of backrest (mm)	350	380
Backrest angle (°)	(-5) - 30	(-5) - 30
Backrest height (mm)	590	590
Effective seat depth (mm)	430	430
Effective seat width (mm)	350	350
Front location of arm rest structure (mm)	480	480
Mass device (kg)	15	15
Mass device (lbs)	33	33
Maximum rated load (kg)	102	102
Maximum user mass (kg)	85	85
Maximum user mass in transportation (kg)	85	85
Overall height (mm)	670	670
Overall length (mm)	560	560
Overall width (mm)	560	560

Options

Frames suitable for Panda 5

Cover

Available in black Gemma and black Mesh

Gemma = 60

Mesh = 85

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
