Convaid EZRider
The Convaid EZRider is a 10° fixed-tilt buggy that provides upright posture to enhance functional positioning.
The Convaid EZRider is a popular upright pediatric buggy that is convenient, lightweight, and compact folding. The EZRider is made to order to meet each individual requirements. It comes equipped with Convaid’s proprietary self-tensioning seating system, Self-Tensio®, which provides increased seating tolerance and can help promote neutral pelvic positioning. It provides growth capability through its seat depth extension system.
The EZRider comes in either Textilene (not available in EU or AU) or Cordura upholstery that is removable, washable, and comes in a wide selection of colours. The EZRider is easy to fold for maximal portability, available in 4 width sizes for users that weigh up to 113 kilograms. Made in the USA.
Features
![Convaid EZRider](/globalassets/inriver/resources/image/feature/ez-rider-zippered-seat--pockets-upholstery-blue_1000x10002.jpg?cache=638479363190000000&width=550&height=550&Quality=90&rmode=max&scale=down)

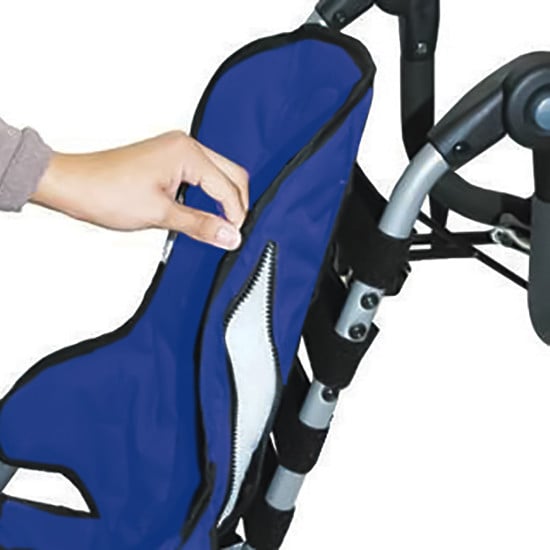

Upholstery with built-in back zippers
![Convaid EZRider](/globalassets/inriver/resources/image/feature/ezrider-zippered-pockets-in-seat-1000x10002.jpg?cache=638479362630000000&width=550&height=550&Quality=90&rmode=max&scale=down)

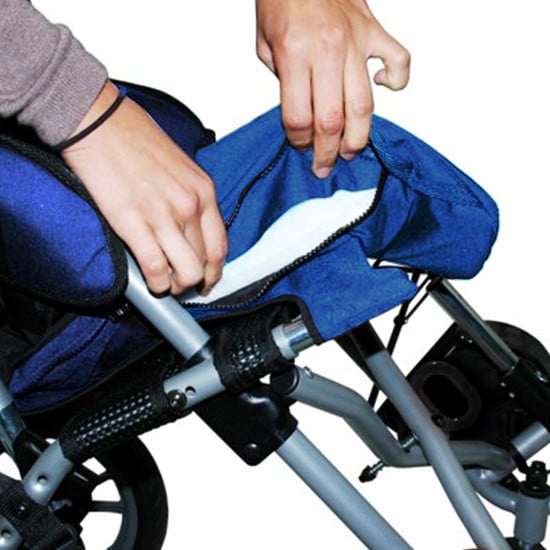

Upholstery with built-in seat zippers
![Convaid EZRider](/globalassets/inriver/resources/image/feature/tension_adjustable_back_1000x10002.jpg?cache=638479349980000000&width=550&height=550&Quality=90&rmode=max&scale=down)

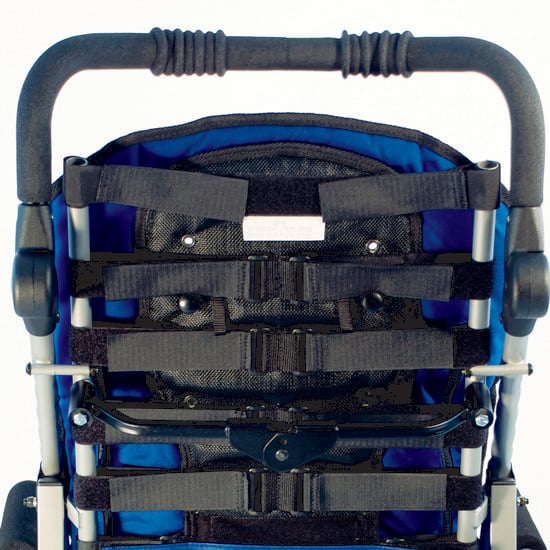

Tension adjustable back upholstery
![Convaid EZRider](/globalassets/inriver/resources/image/feature/self-tensio_blue_1000x10002.jpg?cache=638479350260000000&width=550&height=550&Quality=90&rmode=max&scale=down)

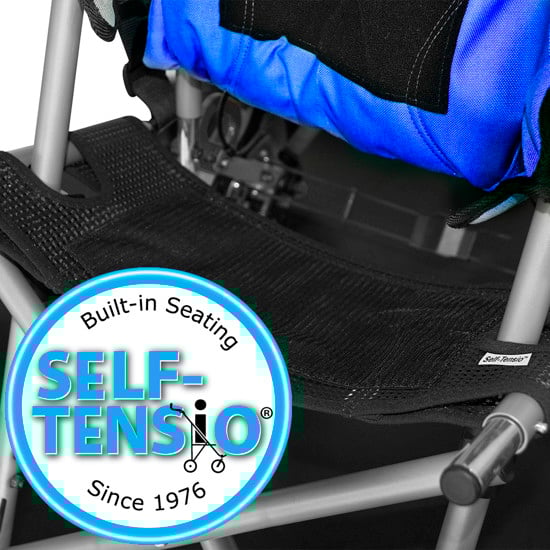

Self-Tensio®
Variants
EZ12 | EZ14 | EZ16 | EZ18 | |
---|---|---|---|---|
Folded height (mm) | 445 | 457 | 432 | 394 |
Folded length (mm) | 1130 | 1168 | 1219 | 1130 |
Folded width (mm) | 356 | 343 | 356 | 368 |
Footrest to seat distance (mm) | 76-508 | 76-533 | 76-559 | 76-559 |
Overall height (mm) | 965 | 978 | 1016 | 940 |
Overall length (mm) | 914 | 953 | 1105 | 1219 |
Overall width (mm) | 546 | 584 | 660 | 660 |
Push handle adjustments (mm) | 749-1182 | 737-1194 | 711-1143 | - |
Seat back height (mm) | 533C | 610C | 660C | 686C |
Seat depth (mm) | 229-356 | 279-406 | 305-432 | 368-495 |
Seat to floor (mm) | 483 | 508 | 508 | 546 |
Seat to footplate (mm) | 76-508 | 76-533 | 76-559 | 76-559 |
Seat width (mm) | 305 | 356 | 406 | 457 |
Shoulder strap height (mm) | 279-432 | 356-508 | 381-533 | 406-559 |
Tilt in space tilt angle (°) | 10 | 10 | 10 | 10 |
Total weight (kg) | 11 | 14 | 14 | 13 |
Weight capacity (kg) | 34 | 45 | 77 | 113 |
Weight capacity transit (kg) | 30 | 45 | 77 | 77 |
Options
Frame options
![Cruiser Frame Size 18](/globalassets/inriver/resources/image/option/ez-rider-option-size18.jpg?cache=638462497190000000&width=550&height=550&Quality=90&rmode=max&scale=down)

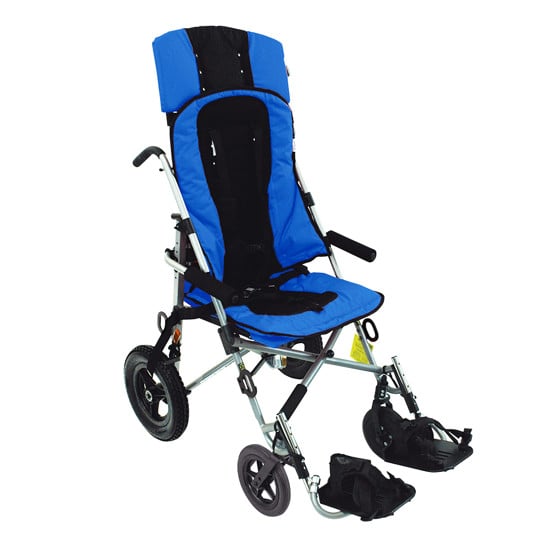

EZ Rider Frame Size 18
Push handle options
![One-piece, height-adjustable push handle](/globalassets/inriver/resources/image/option/ez-rider-feature-one-piece-push-handle---copy2.jpg?cache=638462496690000000&width=550&height=550&Quality=90&rmode=max&scale=down)

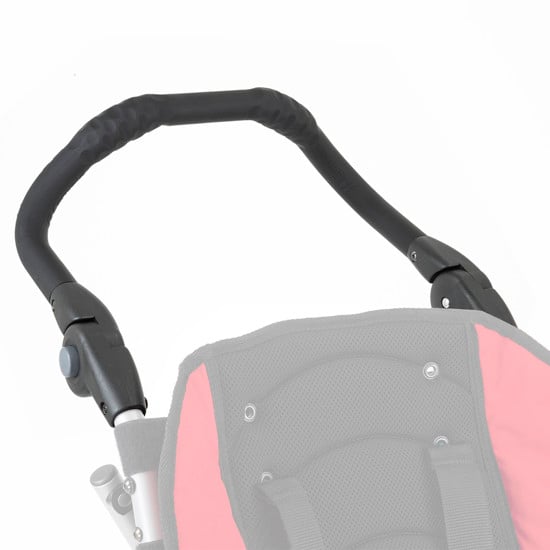

One-piece, height-adjustable push handle
![Two-piece push handle](/globalassets/inriver/resources/image/option/two_handle_ez_rider_1000x10002.jpg?cache=638462113000000000&width=550&height=550&Quality=90&rmode=max&scale=down)

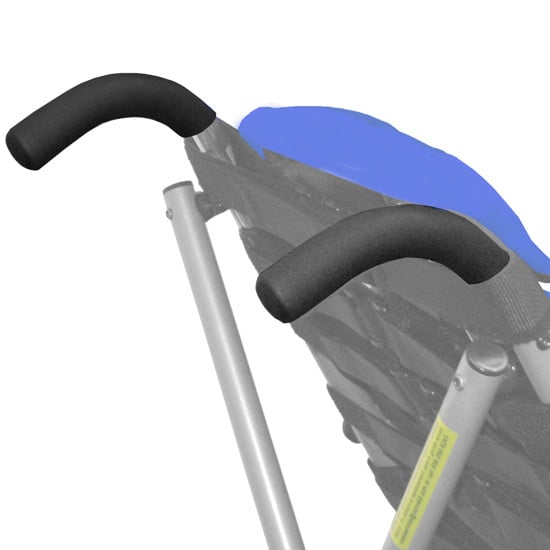

Two-piece push handle
Upholstery fabric options
The Convaid EZ Rider comes standard with Cordura upholstery that is removable and washable. The Cordura upholstery standard colour is panther black but available in a wide selection of colours for an upcharge.

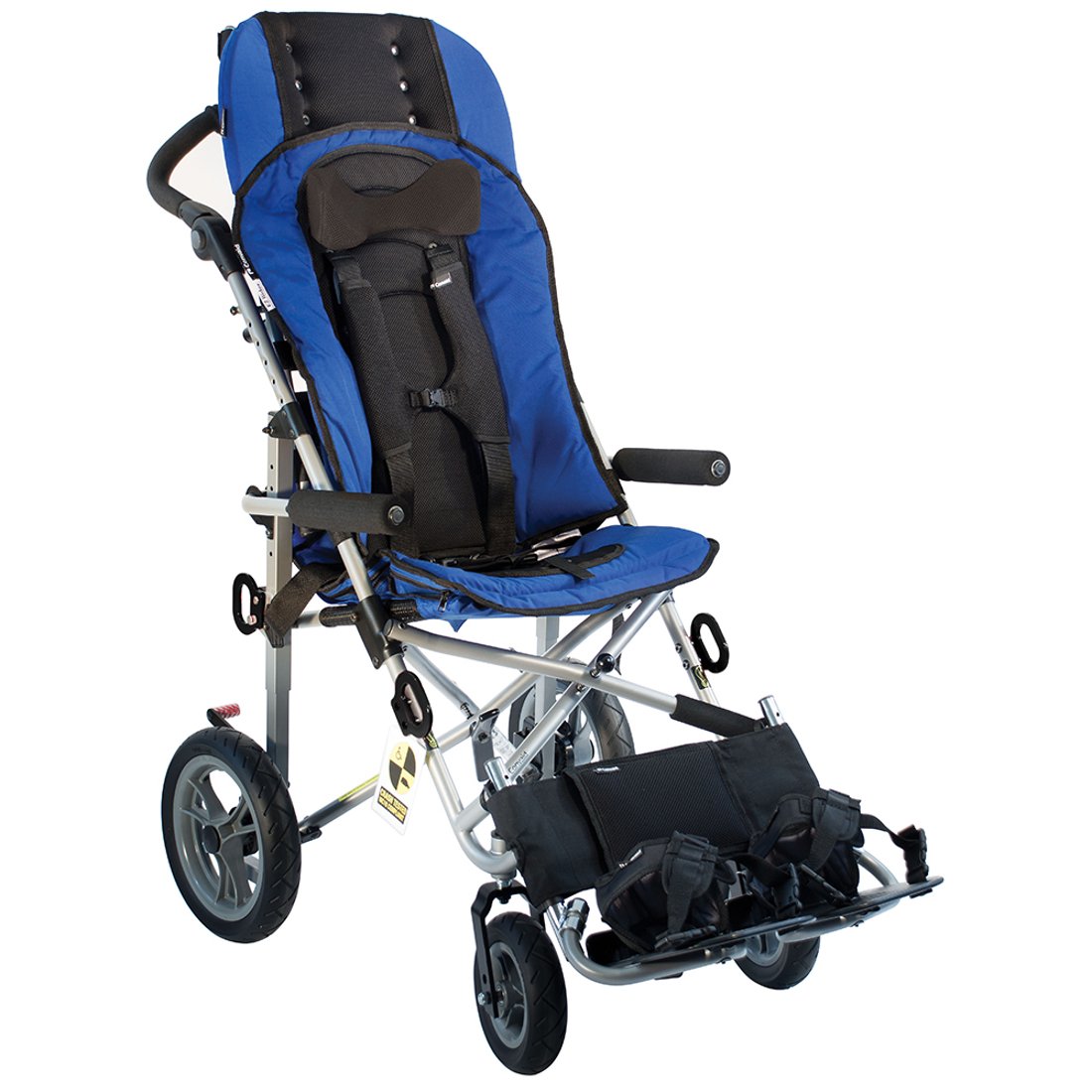

![Convaid EZ Rider](/globalassets/inriver/resources/image/main/ezrider-1000x10002.jpg?cache=638457841130000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Cordura upholstery
Upholstery colours
Convaid's upholstery is known around the world for its durability, abrasion resistance, and high performance. It has a great tactile feel and provides mild positioning capabilities through padding in key areas. It is made with quality material that is removable and washable. In addition, it is very comfortable for the user.
![Royal Blue](/globalassets/inriver/resources/image/option/cordura-royalblue_1000x10002.jpg?cache=638462112650000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Royal Blue
![Sassy Purple](/globalassets/inriver/resources/image/accessory/cordura-sassypurple_1000x1000.jpg?cache=638462113120000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Sassy Purple
![Cherry Red](/globalassets/inriver/resources/image/option/cordura-cherryred_1000x10005.jpg?cache=638462351400000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Cherry Red
![Princess Pink](/globalassets/inriver/resources/image/option/cordura-princesspink_1000x1000.jpg?cache=638462113580000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Princess Pink
![Panther Black](/globalassets/inriver/resources/image/option/cordura-pantherblack_1000x1000.jpg?cache=638462112800000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Panther Black
![Forest Green](/globalassets/inriver/resources/image/option/cordura-forestgreen_1000x10002.jpg?cache=638462134570000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Forest Green
Front tyres
![7.5” X 2” Front air tyres](/globalassets/inriver/resources/image/option/7-5_x_2_front_pneumatic_tire_grey_1000x10002.jpg?cache=638462122320000000&width=550&height=550&Quality=90&rmode=max&scale=down)
7.5” X 2” Front air tyres
Rear tyres
![12.5” X 2” Rear solid knobby tires](/globalassets/inriver/resources/image/option/12-5x2_rear_solid_knobby_1000x10002.jpg?cache=638462496850000000&width=550&height=550&Quality=90&rmode=max&scale=down)
12.5” X 2” Rear solid knobby tires
![12.5” X 2” Rear pneumatic knobby tires](/globalassets/inriver/resources/image/option/12-5x2_rear_solid_knobby_black_1000x10002.jpg?cache=638462495950000000&width=550&height=550&Quality=90&rmode=max&scale=down)
12.5” X 2” Rear pneumatic knobby tires
![12.5" x 2" Rear solid knobby](/globalassets/inriver/resources/image/option/12-5x2_rear_solid_knobby_black_1000x10002.jpg?cache=638462495950000000&width=550&height=550&Quality=90&rmode=max&scale=down)
12.5" x 2" Rear solid knobby
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
![Convaid EZ Rider - How to adjust the back tensioning straps](/globalassets/inriver/resources/video/intructionalvideo/mqinu8kzfn0.jpg?width=550&Quality=90&scale=down)

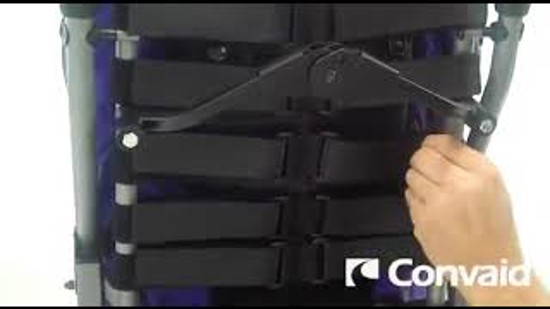

Convaid EZ Rider - How to adjust the back tensioning straps
![Convaid EZ Rider - How to attach the armrest](/globalassets/inriver/resources/video/assemblyinstructionvideo/5xnat_ghuya.jpg?width=550&Quality=90&scale=down)

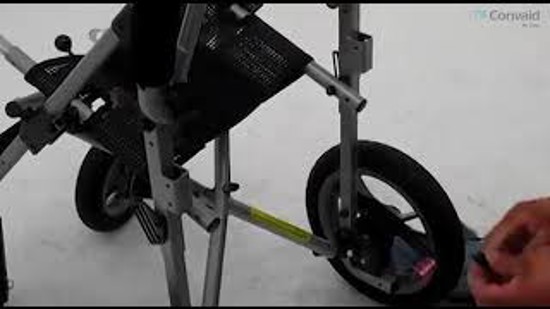

Convaid EZ Rider - How to attach the armrest
![Convaid EZ Rider - How to attach the upholstery](/globalassets/inriver/resources/video/assemblyinstructionvideo/naey1xuym_m.jpg?width=550&Quality=90&scale=down)

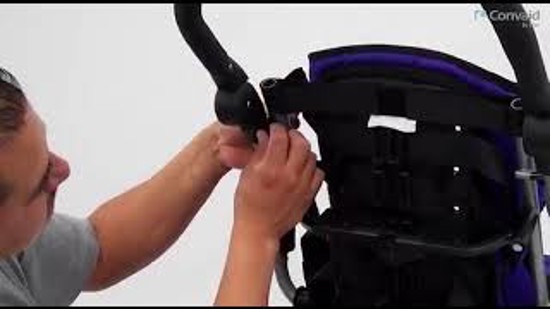

Convaid EZ Rider - How to attach the upholstery

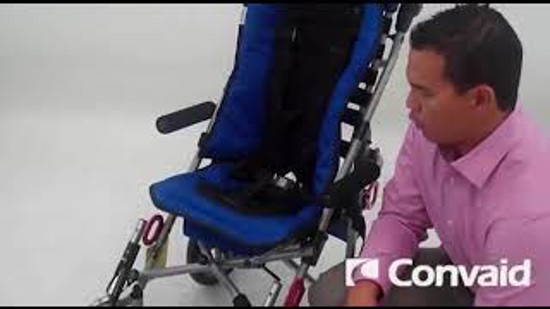

![Convaid EZ Rider - How to remove the upholstery](/globalassets/inriver/resources/video/intructionalvideo/9cj6fby5gby.jpg?width=550&Quality=90&scale=down)
