Convaid Cruiser
The Convaid Cruiser is a 30° fixed-tilt buggy that improves postural control through upper body positioning.
The Convaid Cruiser is a popular 30° fixed-tilt pediatric buggy that is convenient, lightweight, and compact folding. The Cruiser is made to order to meet each individual requirement. It comes equipped with Convaid’s proprietary self-tensioning seating system, Self-Tensio®, which provides increased seating tolerance and can help promote neutral pelvic positioning. It provides growth capability through its seat depth extension system.
The Cruiser comes in either Cordura upholstery or Textilene (not available in EU or AU) that is removable, washable, and comes in a wide selection of colours. The Cruiser is easy to fold for maximal portability, available in 4 width sizes, and for users that weigh up to 113 kilograms. Made in the USA.
Discover
![Cruiser-video-image_selftensio_800x450px.jpg](/globalassets/0-international/products/paediatric/seating/cruiser/cruiser-video-image_selftensio_800x450px.jpg?width=800&height=450&Quality=90&rmode=crop&scale=down)
Cruiser video
Features
![Convaid Cruiser](/globalassets/inriver/resources/image/feature/tension_adjustable_back_cx_1000x1000-12.jpg?cache=638479362800000000&width=550&height=550&Quality=90&rmode=max&scale=down)

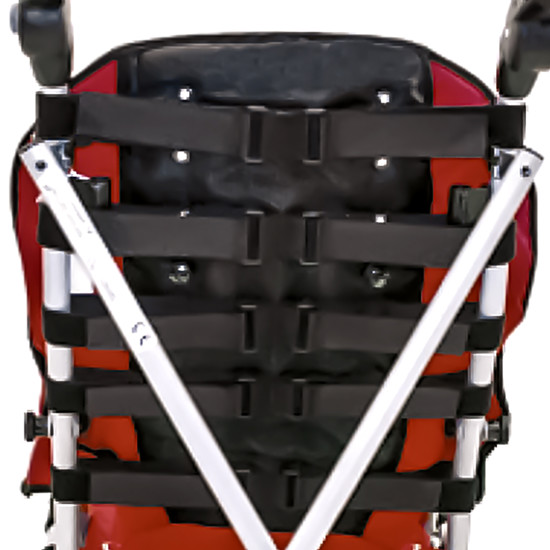

Tension adjustable back upholstery
![Convaid Cruiser](/globalassets/inriver/resources/image/feature/self-tensio_red_1000x10002.jpg?cache=638479362520000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Self-Tensio®
![Convaid Cruiser](/globalassets/inriver/resources/image/feature/cruiser-feature-one-piece-push-handle2.jpg?cache=638479362960000000&width=550&height=550&Quality=90&rmode=max&scale=down)
One-piece, height-adjustable push handle
![Convaid Cruiser](/globalassets/inriver/resources/image/feature/cruiser-tool-less_adjustable_seat_depth_1000x10002.jpg?cache=638479363100000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Tool-less seat depth adjustment
Variants
CX10 | CX12 | CX14 | CX16 | CX18 | |
---|---|---|---|---|---|
Folded height (mm) | 432 | 432 | 432 | 432 | 432 |
Folded length (mm) | 1194 | 1219 | 1194 | 1346 | 1270 |
Folded width (mm) | 381 | 381 | 406 | 406 | 381 |
Foot plate angle (°) | -180 - +180 | -180 - +180 | -180 - +180 | -180 - +180 | -180 - +180 |
Footrest to seat distance (mm) | 127-533 | 127-635 | 102-559 | 102-559 | 203-584 |
Overall height (mm) | 940 | 965 | 940 | 1016 | 965 |
Overall length (mm) | 1219 | 1118 | 1245 | 1321 | 1397 |
Overall width (mm) | 559 | 597 | 648 | 699 | 724 |
Push handle adjustments (mm) | 711-1219 | 737-1168 | 711-1143 | 787-1219 | - |
Seat back height (mm) | 533C | 559C | 635C | 686C | 635C |
Seat depth (mm) | 152-279 | 203-330 | 254-381 | 279-406 | 356-533 |
Seat to floor (mm) | 584 | 635 | 533 | 584 | 660 |
Seat to footplate (mm) | 127-533 | 127-635 | 102-559 | 102-559 | 203-584 |
Seat width (mm) | 254 | 305 | 356 | 406 | 457 |
Shoulder strap height (mm) | 279-483 | 305-508 | 381-584 | 432-635 | 406-559 |
Tilt in space tilt angle (°) | 30 | 30 | 30 | 30 | 30 |
Total weight (kg) | 12 | 12 | 13 | 15 | 14 |
Weight capacity (kg) | 34 | 34 | 45 | 77 | 113 |
Weight capacity transit (kg) | 30 | 30 | 45 | 77 | 77 |
Options
Frame options
![Cruiser Frame Size 18](/globalassets/inriver/resources/image/option/cruiser_option-size18.jpg?cache=638462496290000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Cruiser Frame Size 18
![Cruiser Scout frame](/globalassets/inriver/resources/image/feature/cruiser_scout_1000x10002.jpg?cache=638462271110000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Cruiser Scout frame
![Cruiser Planar frame](/globalassets/inriver/resources/image/feature/cruiser_planar_textilene_1000x10002.jpg?cache=638462265770000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Cruiser Planar frame
![Anatomic back](/globalassets/inriver/resources/image/option/anatomic_back_cx_1000x10002.jpg?cache=638462121490000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Anatomic back
Push handle options
![One-piece, height adjustable push handle](/globalassets/inriver/resources/image/option/one_piece_push_handles_red_cx_1000x10002.jpg?cache=638462270790000000&width=550&height=550&Quality=90&rmode=max&scale=down)

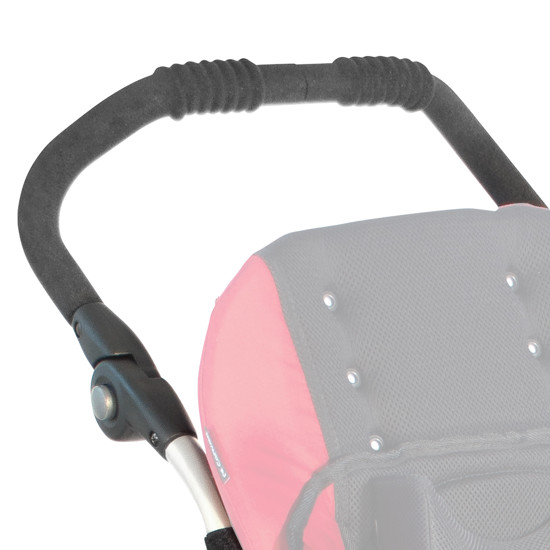

One-piece, height adjustable push handle
![Two-piece push handle](/globalassets/03-sales--customer-service-employee-blocks/etac-staff-images/etac-international-team/missing_image_camera.png?cache=637489815960000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Two-piece push handle
Upholstery fabric options
The Convaid Cruiser comes standard with Cordura upholstery that is removable and washable. The Cordura upholstery standard colour is panther black but available in a wide selection of colours for an upcharge.
![Convaid Cruiser](/globalassets/inriver/resources/image/main/cruiser-1000x10002.jpg?cache=638462514710000000&width=550&height=550&Quality=90&rmode=max&scale=down)

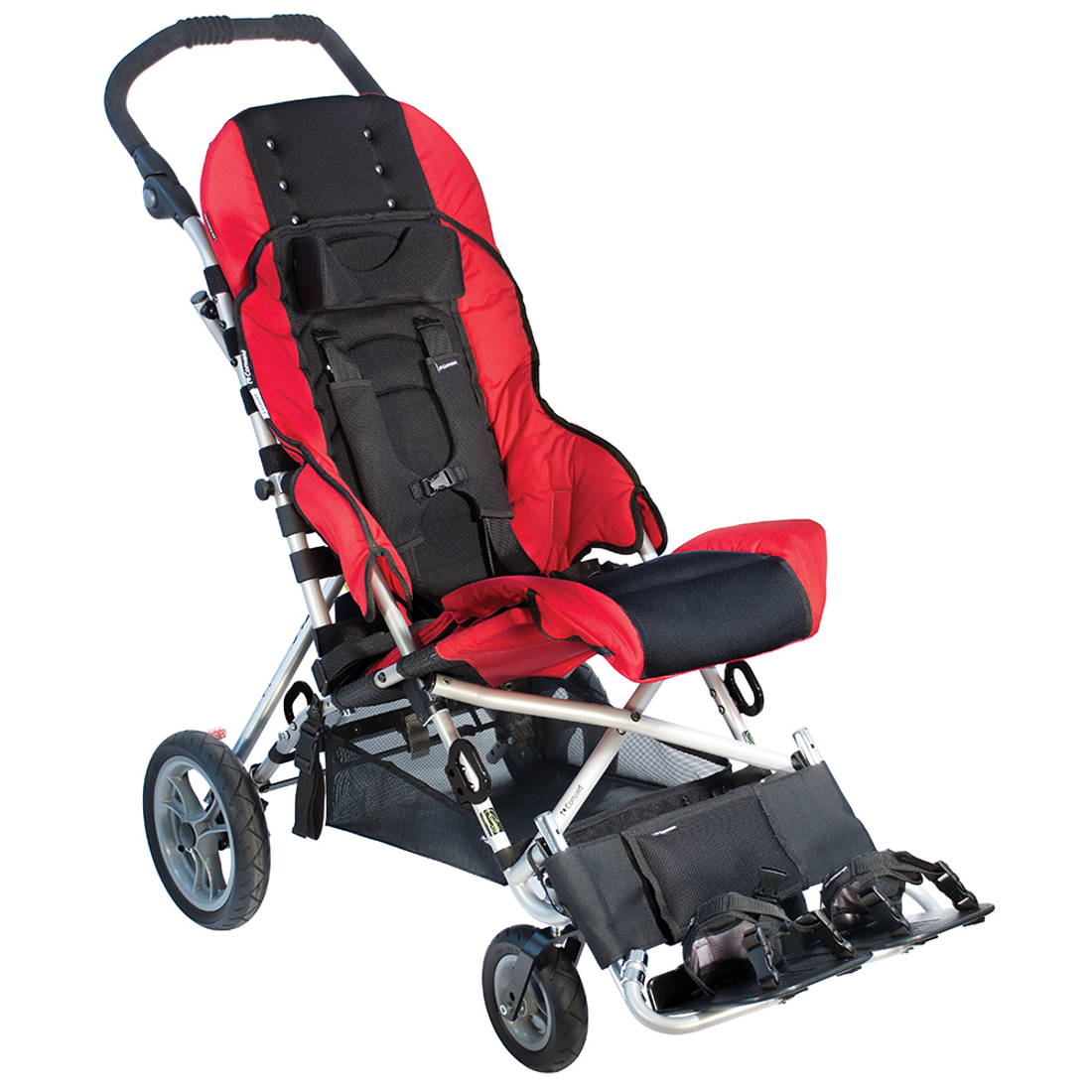

Cordura Upholstery
Upholstery colours
Convaid's upholstery is known around the world for its durability, abrasion resistance, and high performance. It has a great tactile feel and provides mild positioning capabilities through padding in key areas. It is made with quality material that is removable and washable. In addition, it is very comfortable for the user.
![Royal Blue](/globalassets/inriver/resources/image/option/cordura-royalblue_1000x10002.jpg?cache=638462112650000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Royal Blue
![Sassy Purple](/globalassets/inriver/resources/image/accessory/cordura-sassypurple_1000x1000.jpg?cache=638462113120000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Sassy Purple
![Cherry Red](/globalassets/inriver/resources/image/option/cordura-cherryred_1000x10005.jpg?cache=638462351400000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Cherry Red
![Princess Pink](/globalassets/inriver/resources/image/option/cordura-princesspink_1000x1000.jpg?cache=638462113580000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Princess Pink
![Panther Black](/globalassets/inriver/resources/image/option/cordura-pantherblack_1000x1000.jpg?cache=638462112800000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Panther Black
![Forest Green](/globalassets/inriver/resources/image/option/cordura-forestgreen_1000x10002.jpg?cache=638462134570000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Forest Green
Front tyres
![7.5” X 2” Front air tyres](/globalassets/inriver/resources/image/option/7-5_x_2_front_pneumatic_tire_grey_1000x10002.jpg?cache=638462122320000000&width=550&height=550&Quality=90&rmode=max&scale=down)
7.5” X 2” Front air tyres
Rear tyres
![12.5” X 2” Rear solid knobby tires](/globalassets/inriver/resources/image/option/12-5x2_rear_solid_knobby_1000x10002.jpg?cache=638462496850000000&width=550&height=550&Quality=90&rmode=max&scale=down)
12.5” X 2” Rear solid knobby tires
![12.5” X 2” Rear pneumatic knobby tires](/globalassets/inriver/resources/image/option/12-5x2_rear_solid_knobby_black_1000x10002.jpg?cache=638462495950000000&width=550&height=550&Quality=90&rmode=max&scale=down)
12.5” X 2” Rear pneumatic knobby tires
![12.5" x 2" Rear solid knobby](/globalassets/inriver/resources/image/option/12-5x2_rear_solid_knobby_black_1000x10002.jpg?cache=638462495950000000&width=550&height=550&Quality=90&rmode=max&scale=down)
12.5" x 2" Rear solid knobby
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
![How to adjust push handle height](/globalassets/inriver/resources/video/intructionalvideo/t_uz6ahpnmy.jpg?width=550&Quality=90&scale=down)

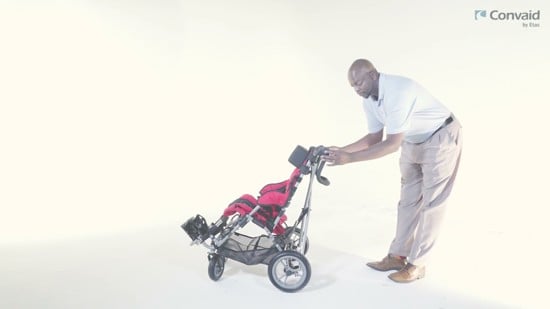

How to adjust push handle height
![How to adjust back tension](/globalassets/inriver/resources/video/intructionalvideo/aefyeim7pgo.jpg?width=550&Quality=90&scale=down)

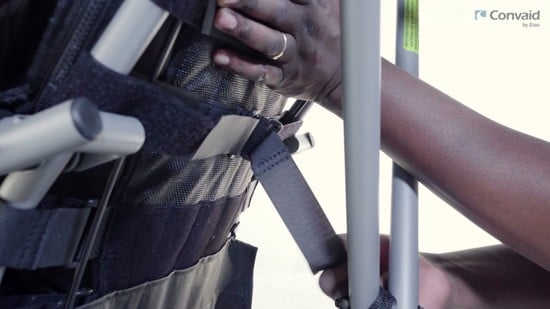

How to adjust back tension
![Self tensio design explained](/globalassets/inriver/resources/video/youtubevideo/fyhfonw39sc.jpg?width=550&Quality=90&scale=down)
Self tensio design explained
![How to load in a vehicle trunk](/globalassets/inriver/resources/video/youtubevideo/ntf64twmnqk.jpg?width=550&Quality=90&scale=down)
