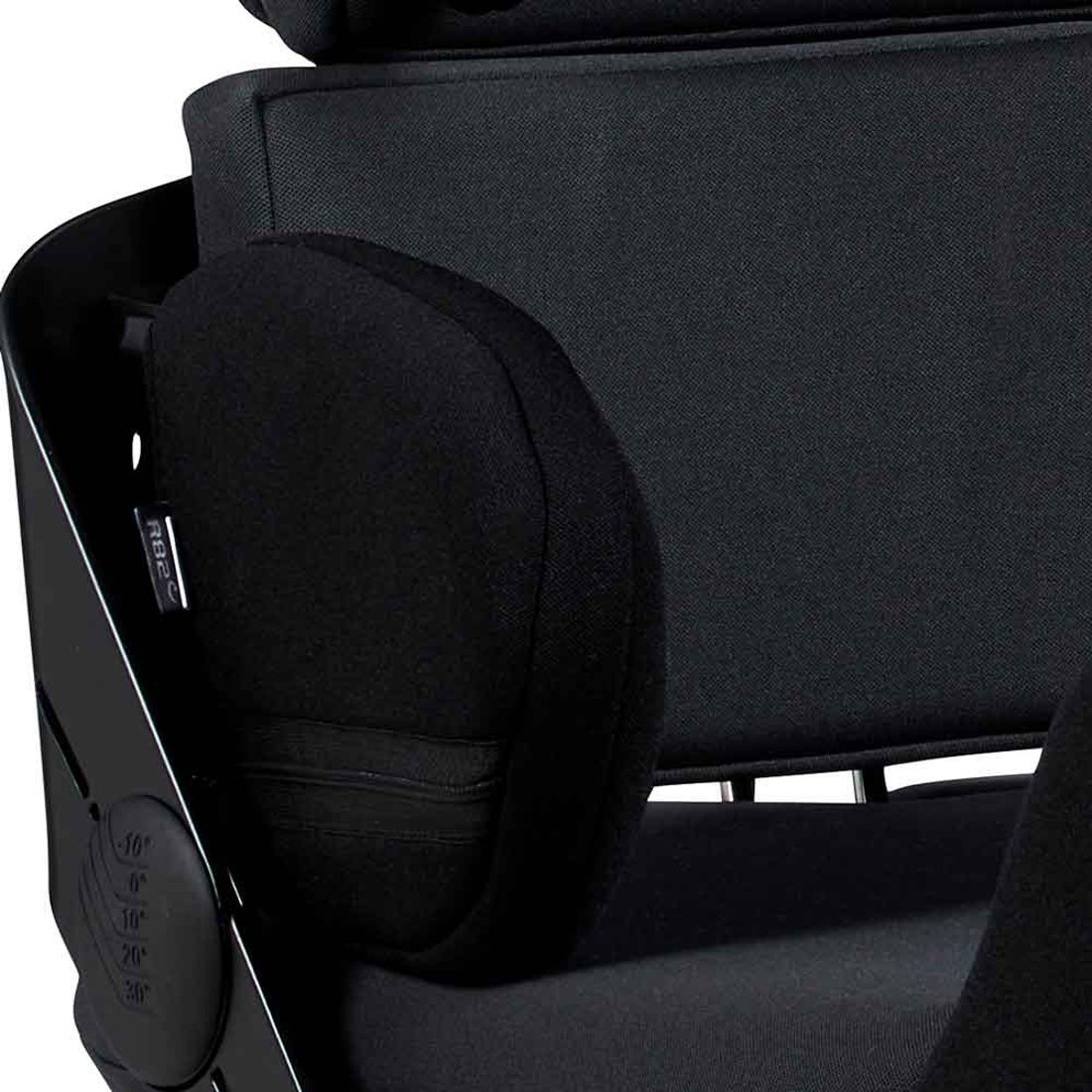

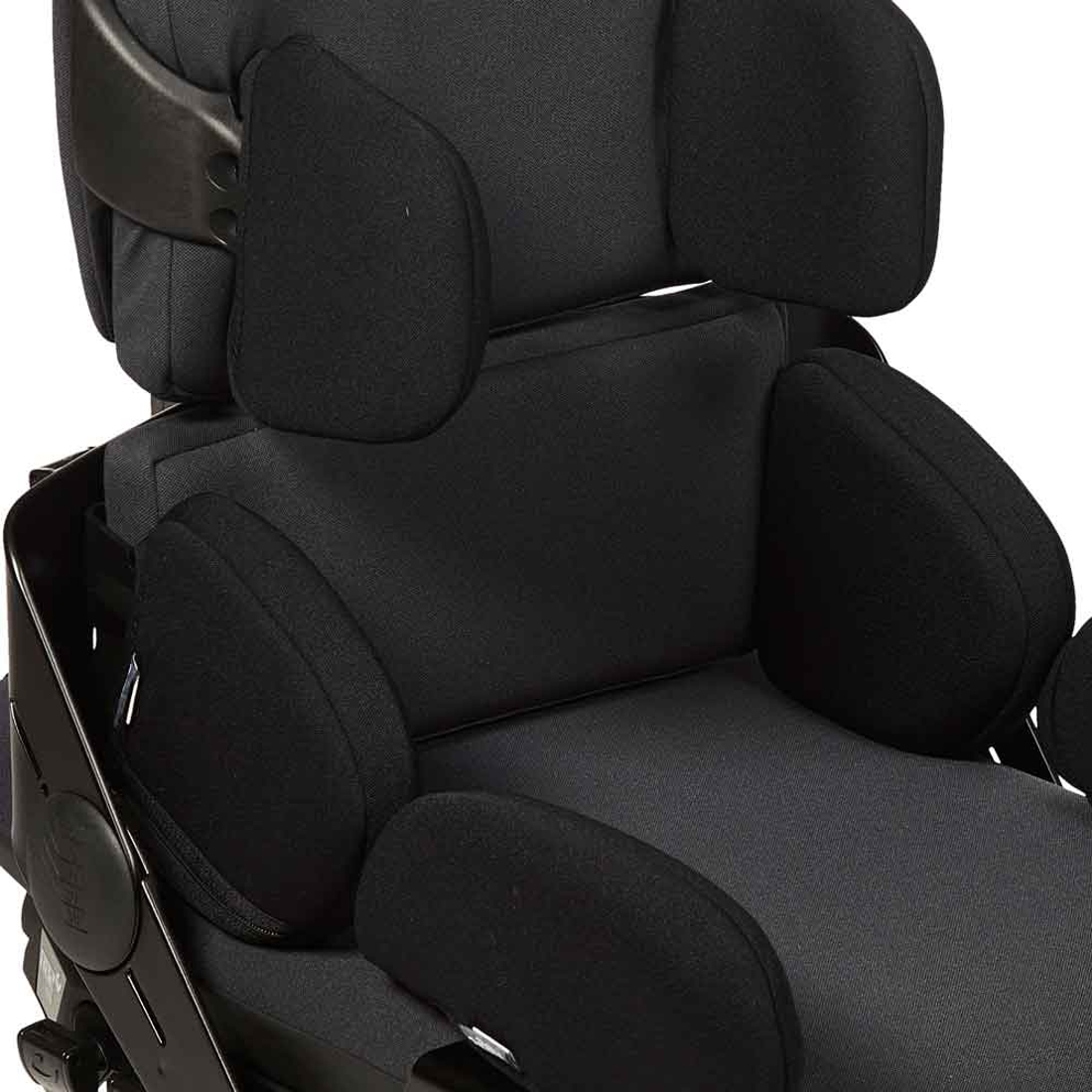

Width adjustable pelvis support
Helps maintain the position of the pelvis for a more stable base of support.
Provides lateral support to the pelvis and hips and is mounted on the lower back of the seat.
Can be adjusted outwards and inwards while the user is seated. It has 20 mm of neoprene underneath the cover, leaving no sharp edges around the hip and pelvis area.
Variants
| Size 1 | Size 2 | Size 3 | |
|---|---|---|---|
| Item number | 905041-xx | 905042-xx | 905043-xx |
| Compatible with | R82 x:panda shape and x:panda shape TS, size 1 (also usable on size 2,3) | R82 x:panda shape and x:panda shape TS, size 2 (Also usable on size 1 from 160 mm hip width and size 3) | R82 x:panda shape and x:panda shape TS, size 3 (Also usable on size 2 from 240 mm hip width) |
| Height (mm) | 110 | 130 | 150 |
| Length (mm) | 100 | 140 | 180 |
Mounted from the back. Including cover. xx=70 for black wipeable and xx=80 for black.
