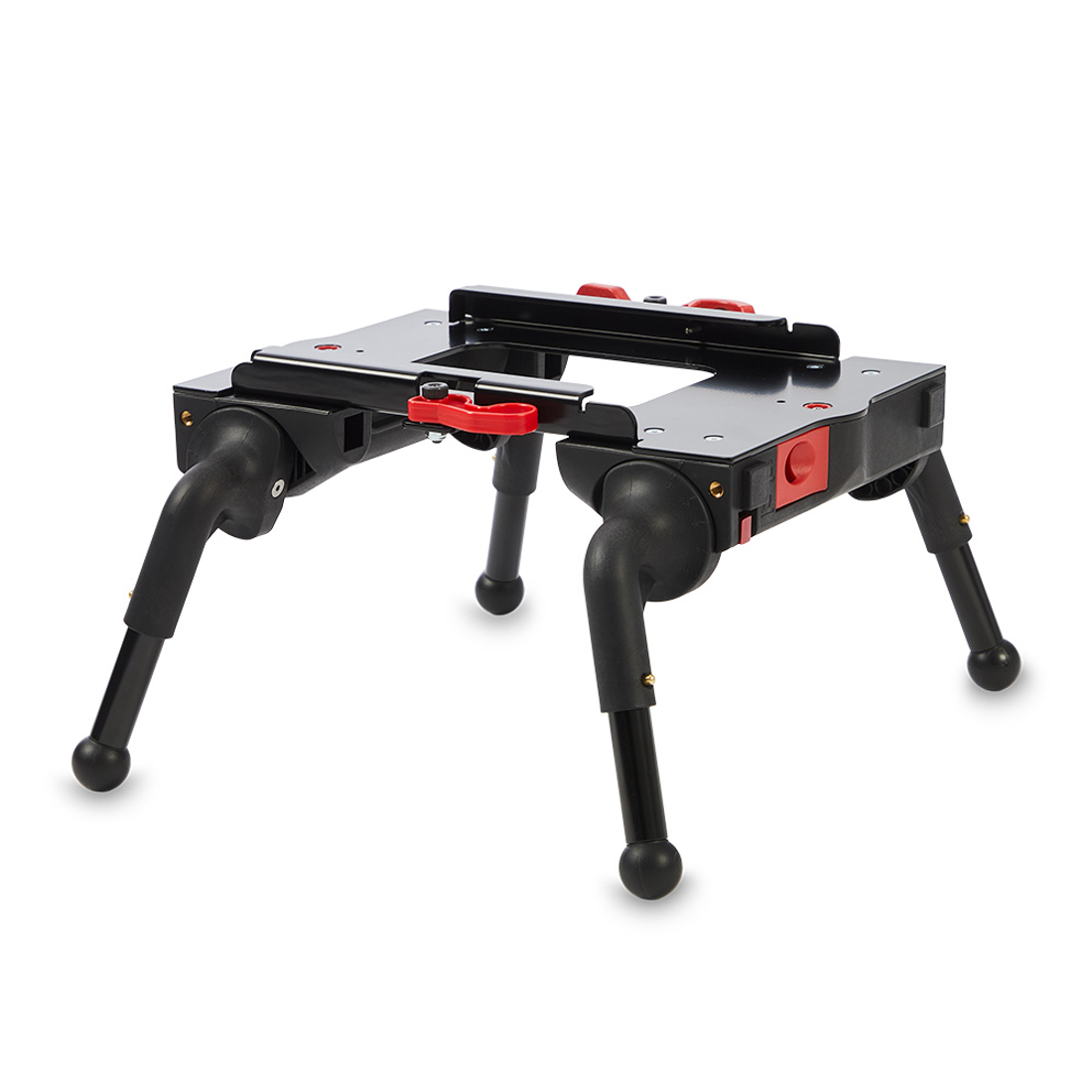

Floor frame

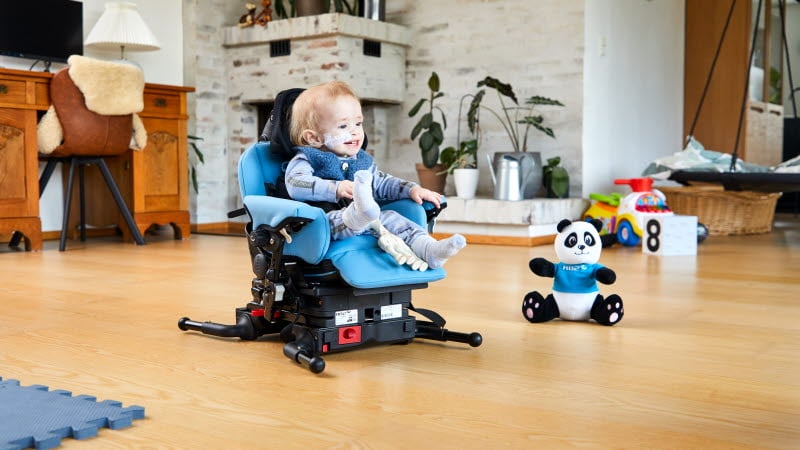

Floor Frame is a frame supporting early intervention through the option of supported floor sitting. Sitting at floor level can support playful activities with family, siblings and friends and facilitate meaningful tasks with arms and hands such as reaching and grasping for toys. The frame has 5 options of leg positions when the short legs are mounted – both for the front legs and the back legs. The 5 different positions enables 4 different seat to floor heights, when the seat is level, and a variety of tilt angles to accommodate different leg lengths and playful activities. A set of four long legs are also available with the floor frame.

Features

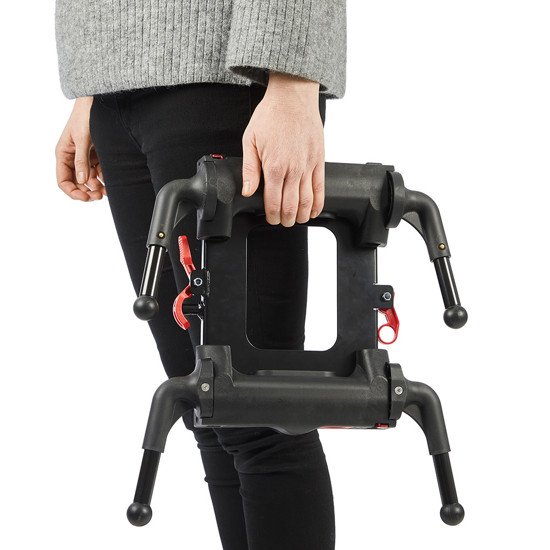

Easy to transport

Easy to transport

Designed with an integrated handle, a flat folding mechanism and a compact footprint. Highly adaptable, allowing you to carry it along where ever your journey takes you and your child.

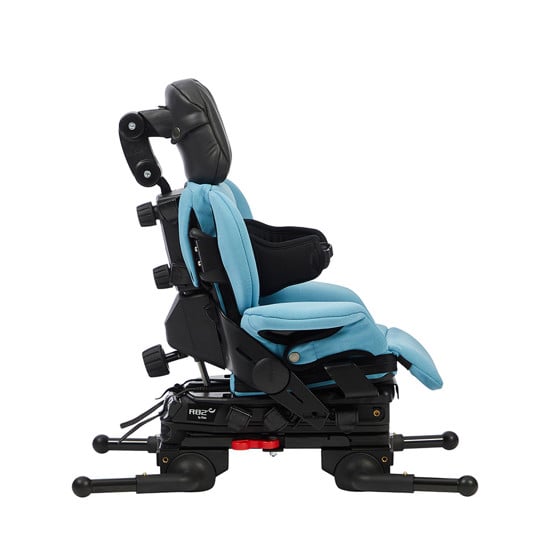

Floor to seat height

Low floor to seat height

Floor frame allows for a low floor to seat height, enabling the child to be put at floor level to interact and play with family and friends.

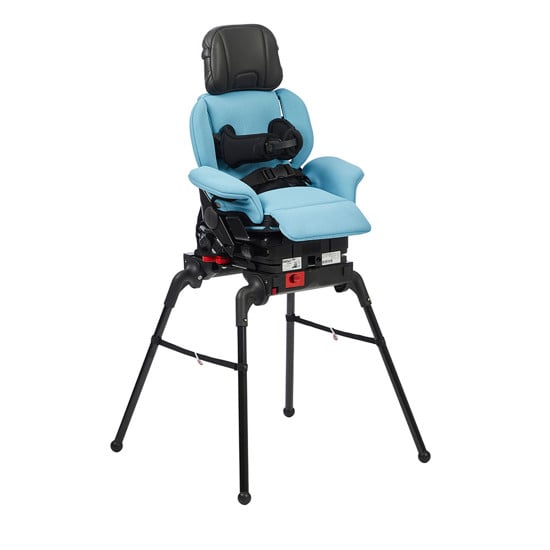

Long legs

Long legs

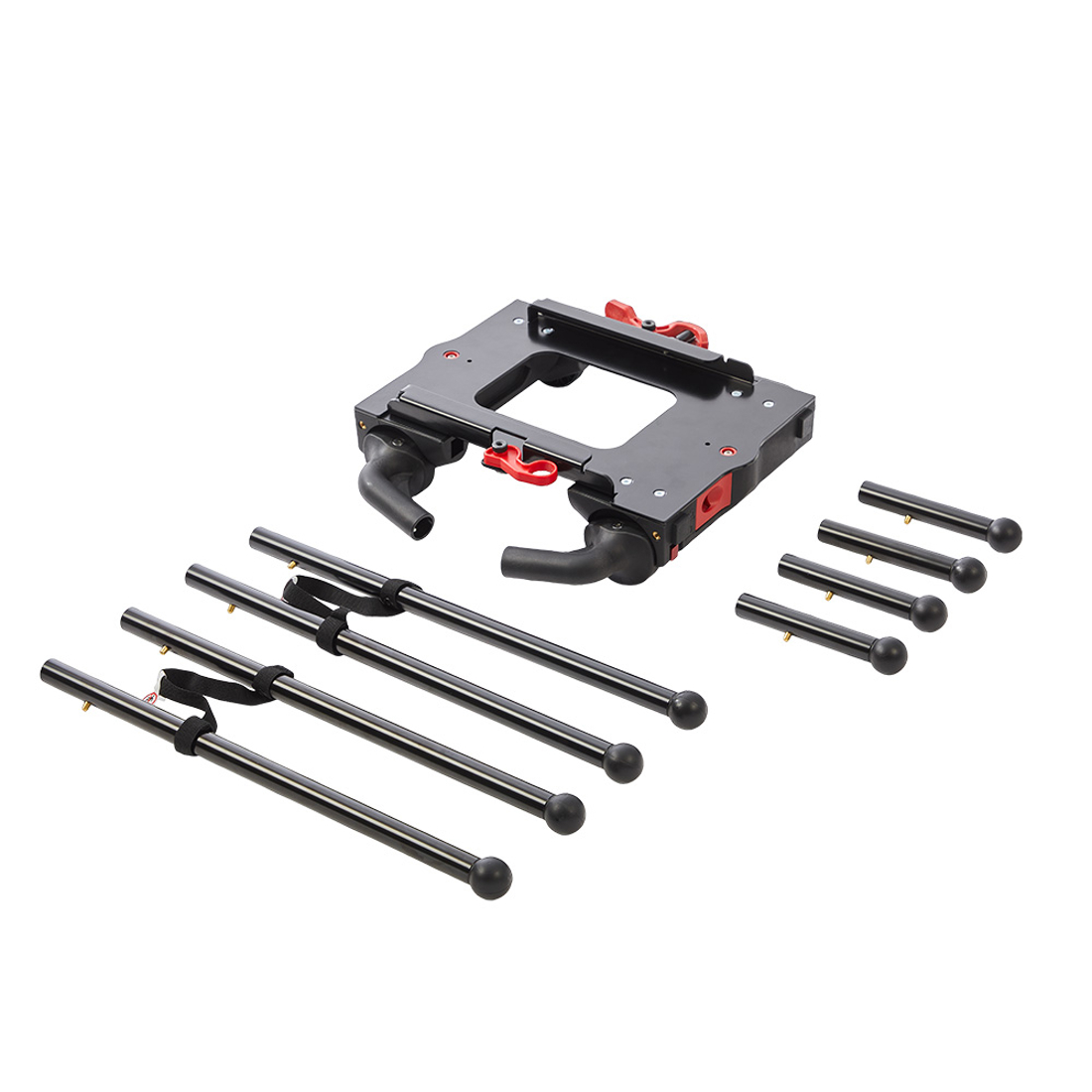

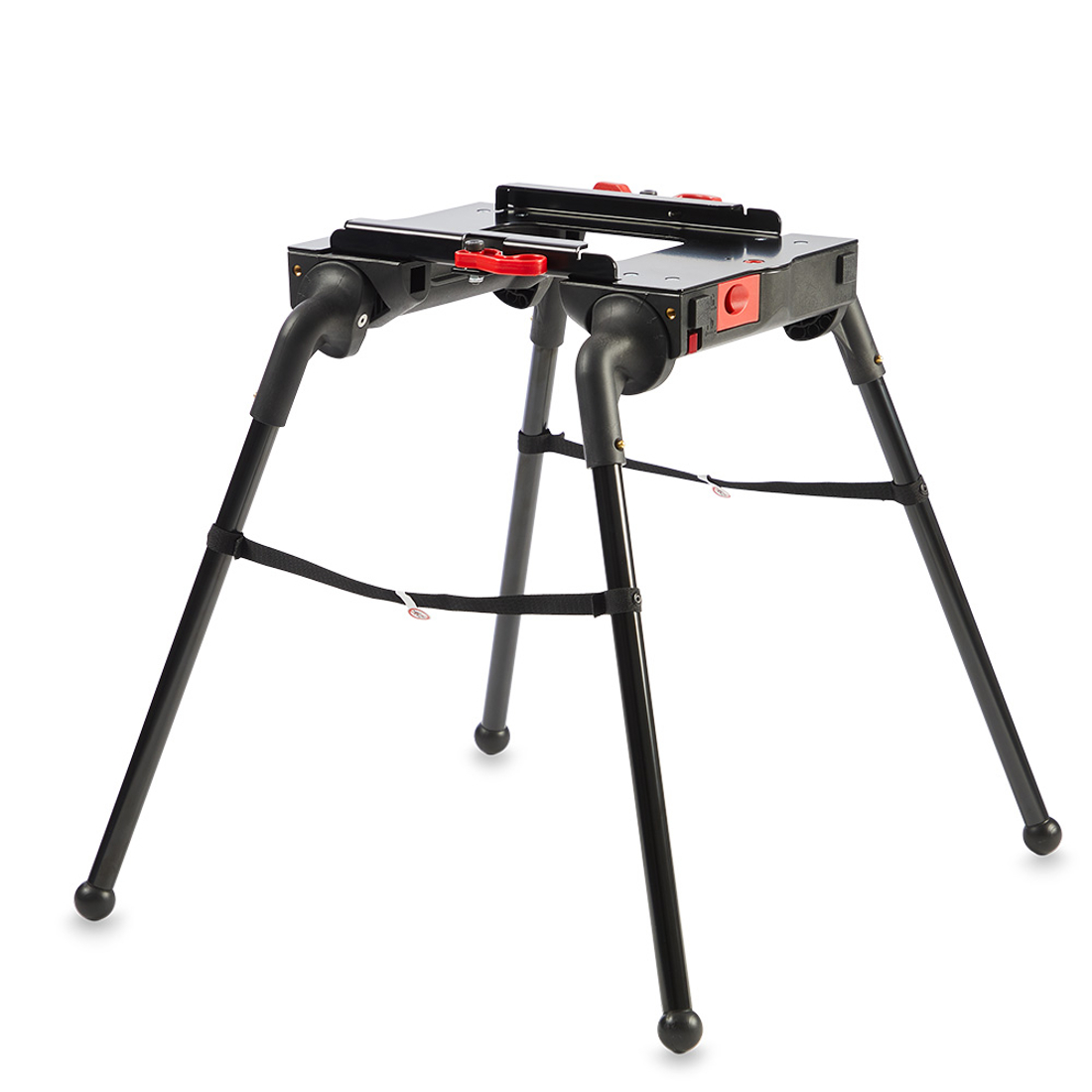

Floor frame includes both long legs and short legs, which are interchangeable with a simple click function. When the long legs are mounted you can only use the fully upright position without tilt and you have a seat to floor height of approx. 580 mm.

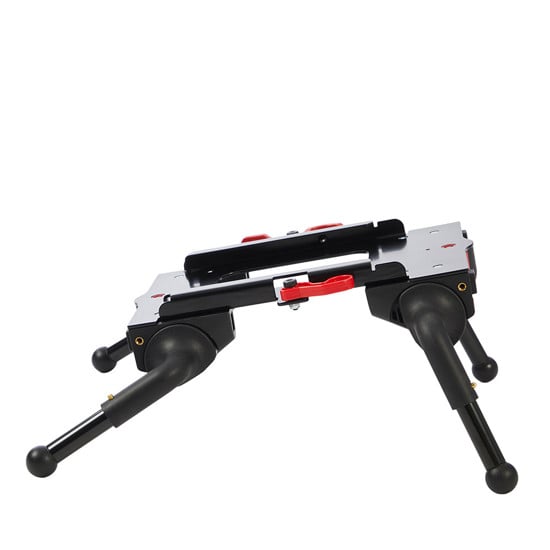

Tilt options

Tilt options

Floor frame gives the option of several different tilt possibilities. It has 5 different leg positions when the short legs are mounted – both for the front legs and the back legs. The 5 different positions enables 4 different seat to floor heights.

Variants

One size
Item number 821111

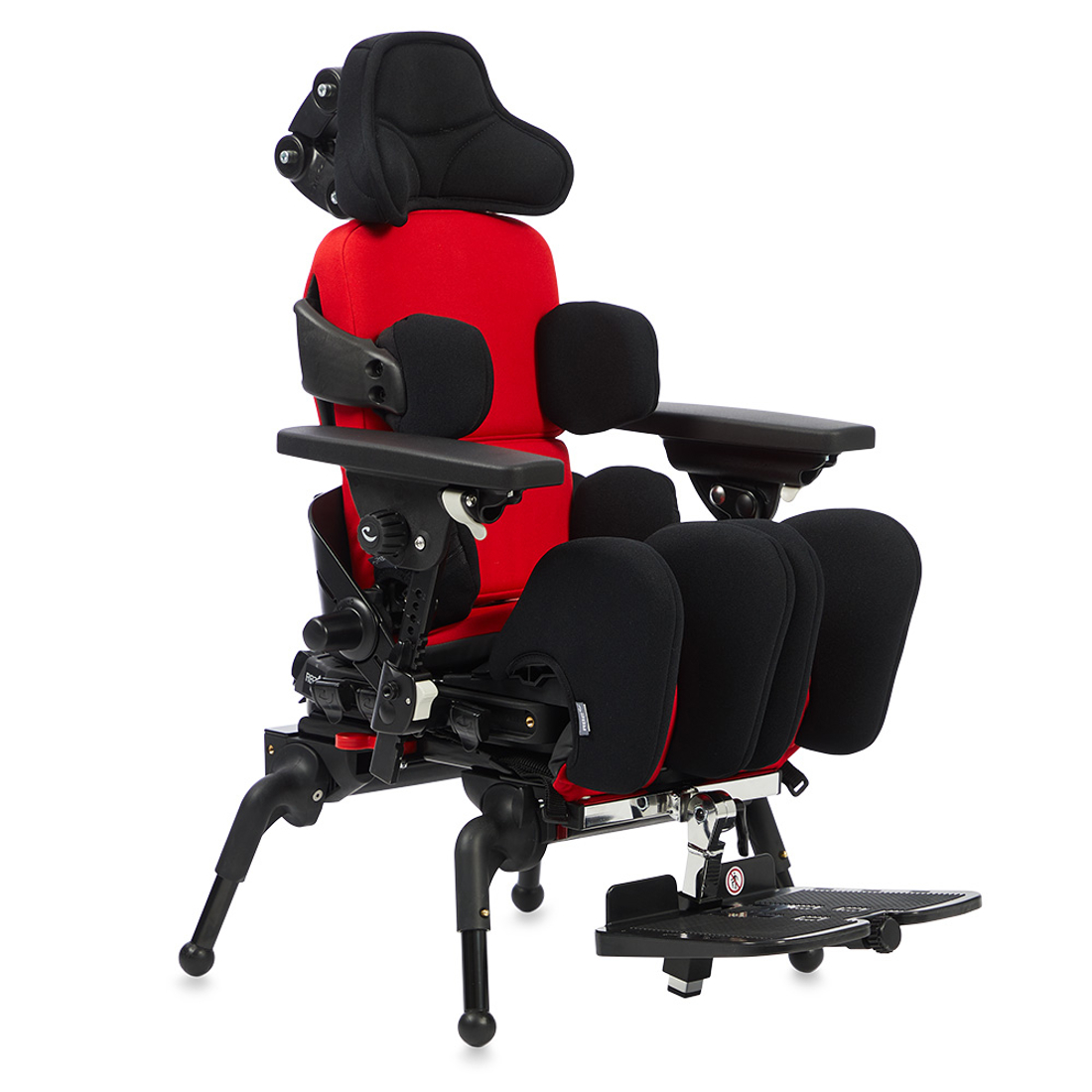

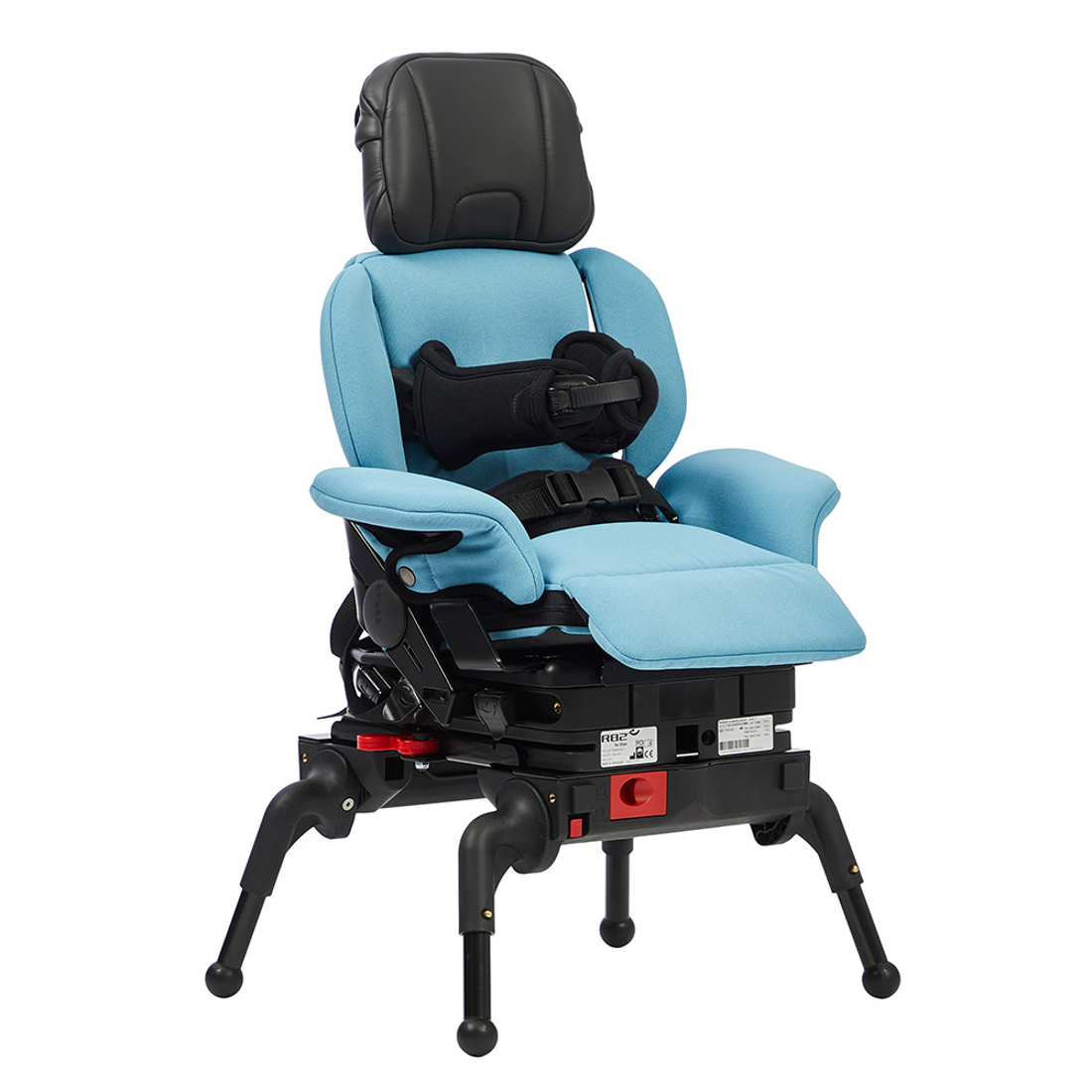

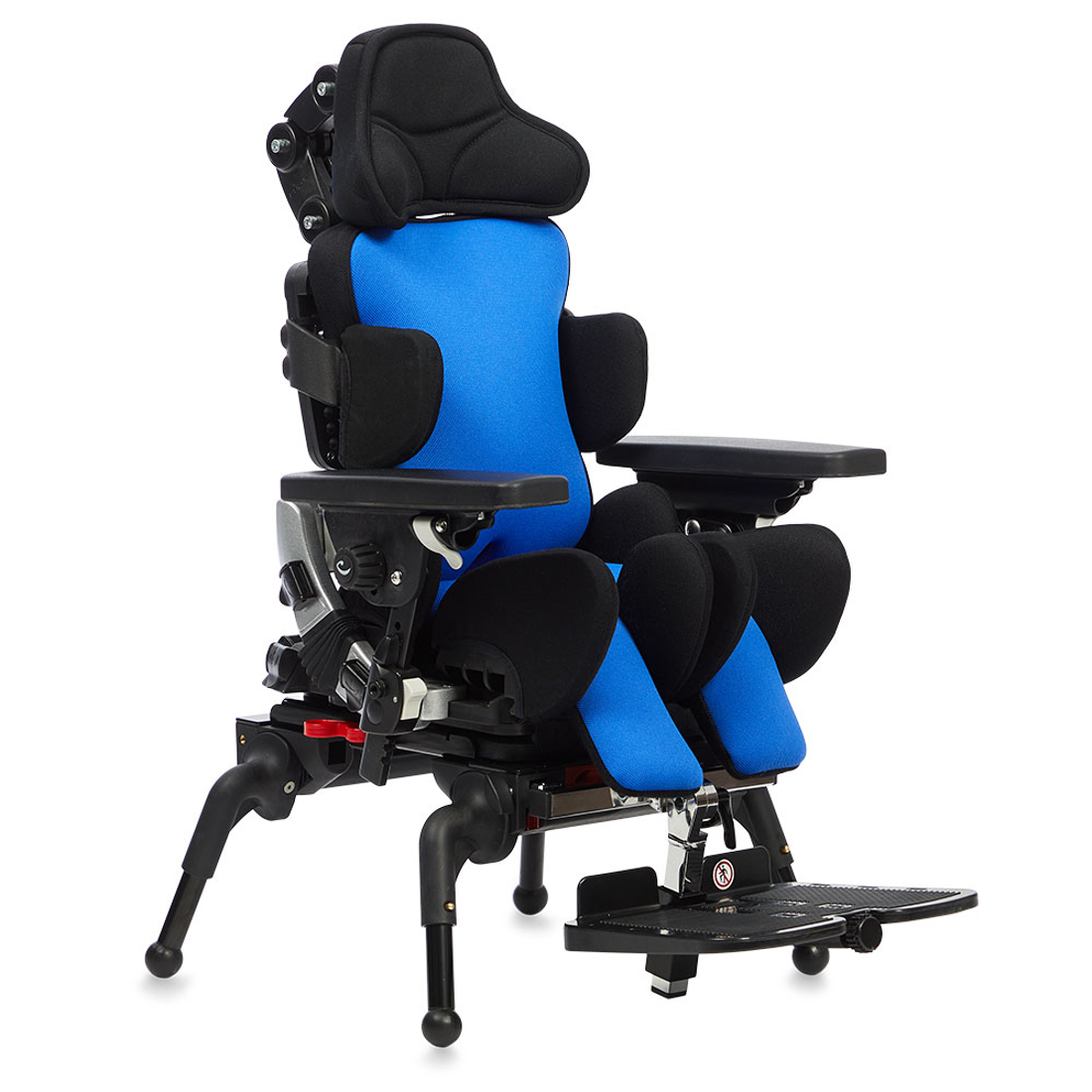

Compatible with R82 x:panda shape infant and size 1, x:panda size 1 and 2
Folded height (mm) 60
Folded length w/o legs (mm) 378
Folded width w/o legs (mm) 369
Mass device (kg) 3
Max load (kg) 43.5
Maximum rated load (kg) 50
Overall height, floor to top of frame (mm) 60 – 192
Overall height, floor to top of frame w/ long legs (mm) 450
Overall length (mm) 335 – 525
Overall length w/ long legs (mm) 505
Overall width (mm) 396
Overall width w/ long legs (mm) 522
Seat plane angle (°) (-25°) – (25°)
Seat surface height at front edge (mm) 7 – 12
Seat surface height at front edge w/ long legs (mm) 570
Seat surface to foot support (mm) 183 – 274
Static stability downhill (°) 5
Static stability sideways (°) 5
Static stability uphill (°) 5
