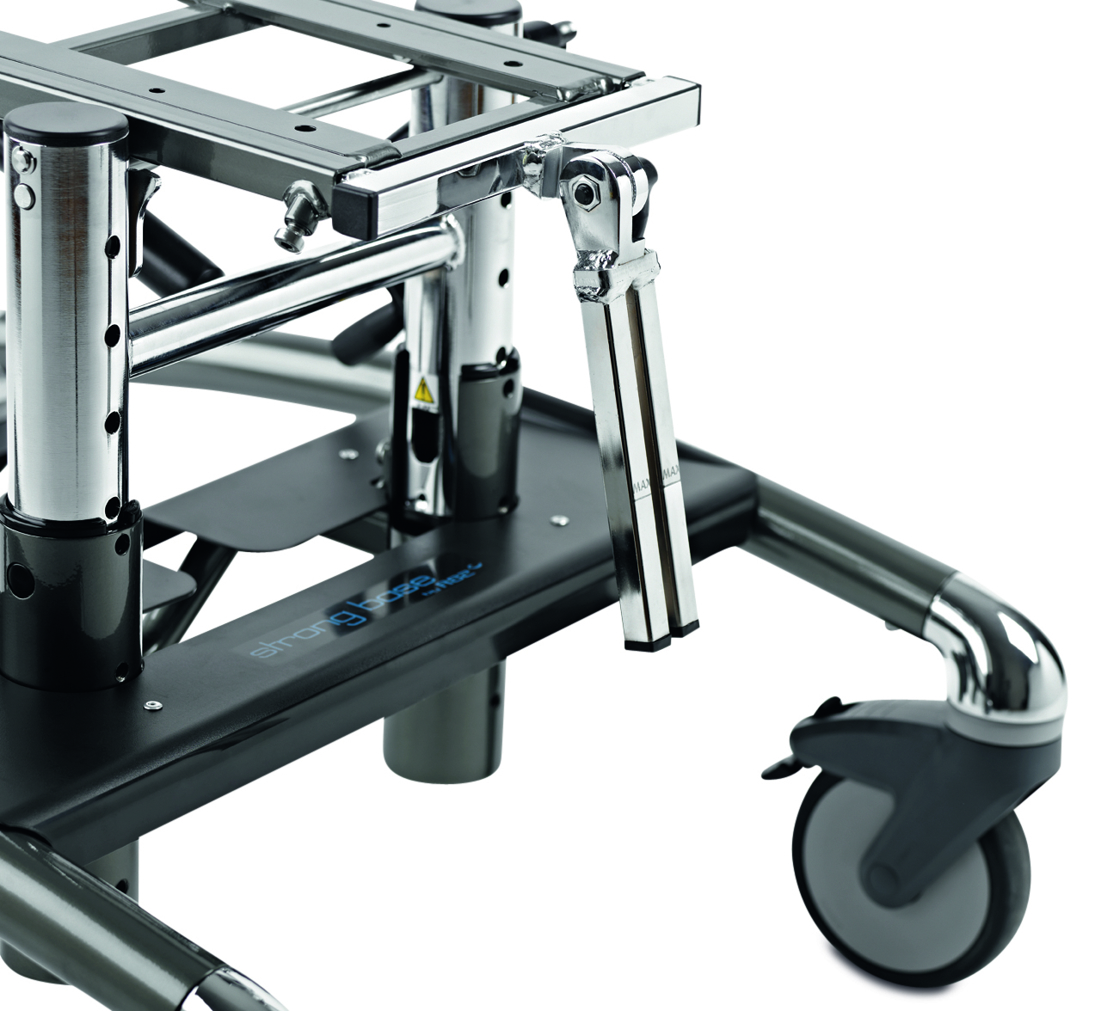

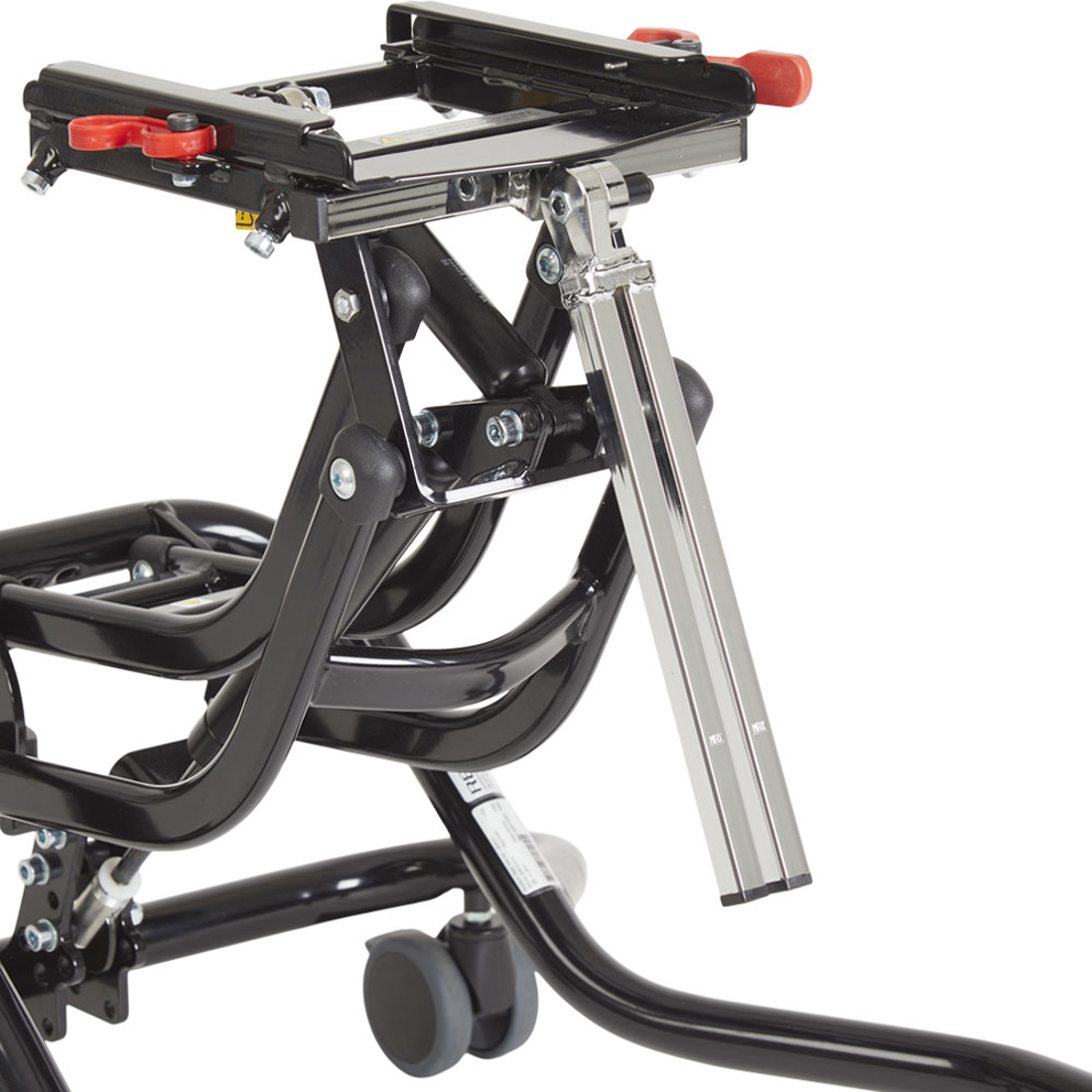

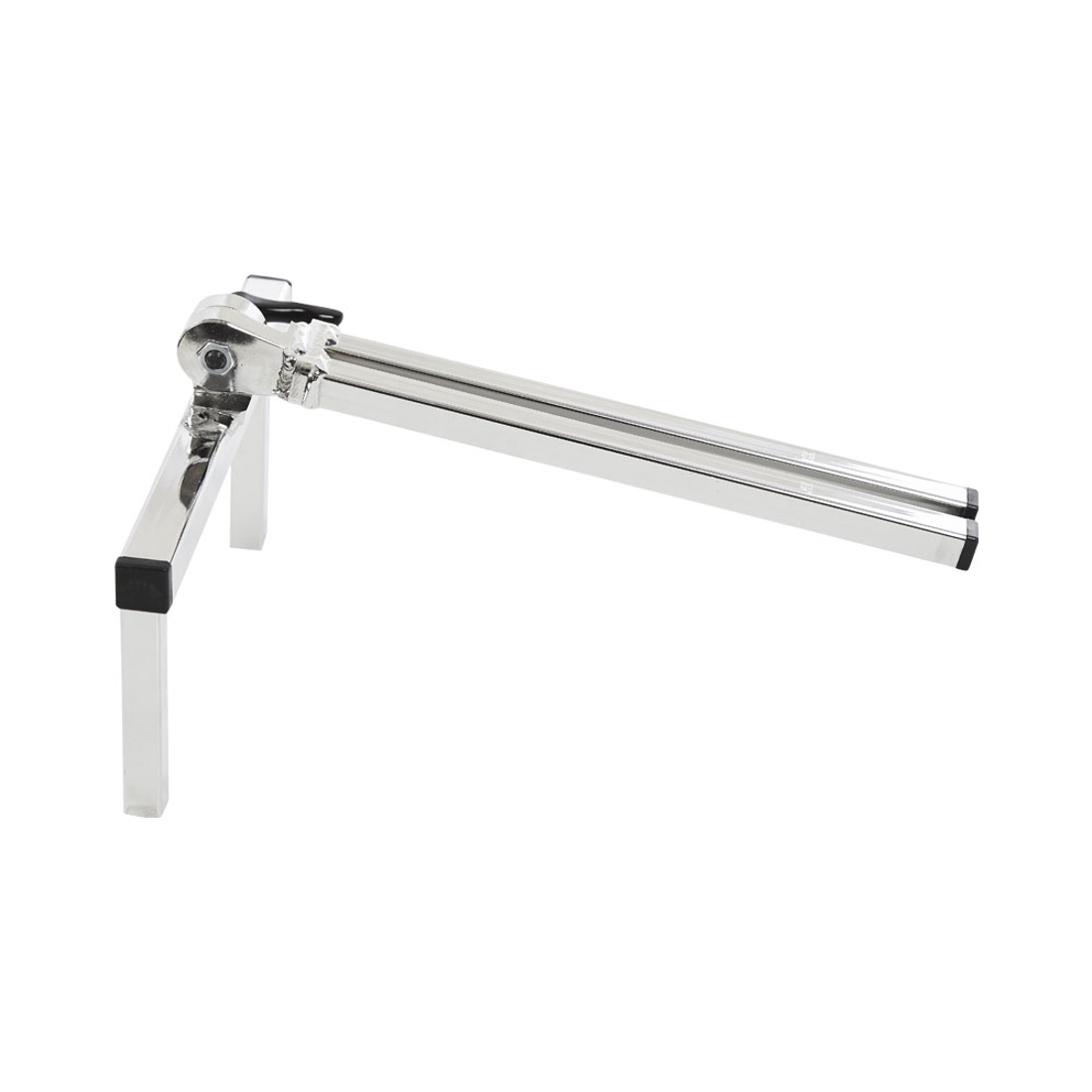

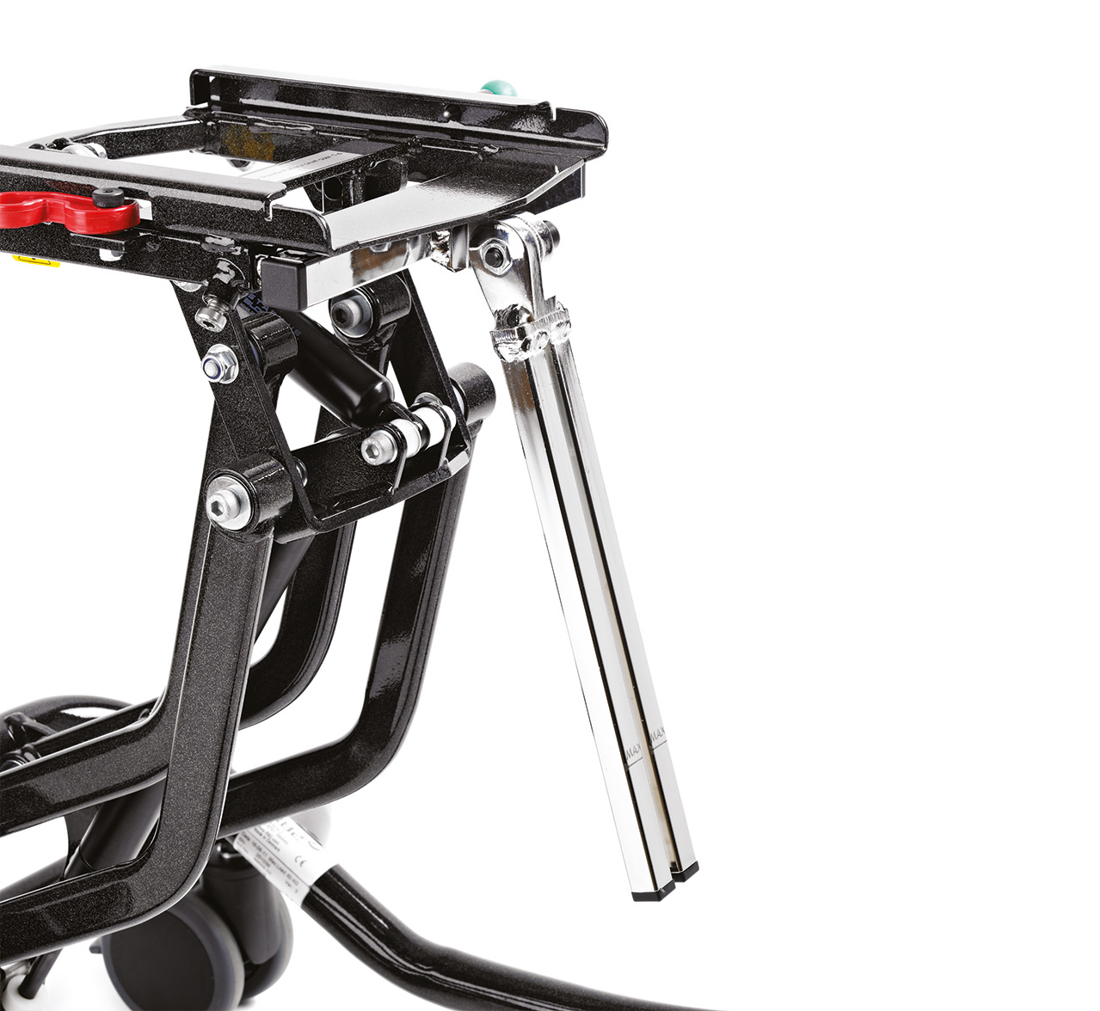

Double rod for foot support
The double rod for foot support is needed to mount the individual angle adjustable foot supports or parted foot supports.
The extended version allows for positioning of the foot support further in front of the frame and therefore accommodate larger seat depths.
Variants
| Size 1 | Size 2 | Size 3 | Size 1 (extended holders) | Size 2 (extended holders) | Size 3 (extended holders) | |
|---|---|---|---|---|---|---|
| Item number | 8910840-1 | 8910840-2 | 8910840-3 | 8910841-1 | 8910841-2 | 8910841-3 |
| Compatible with | R82 High-low:xo, R82 Strong base | R82 High-low:xo, R82 Strong base | R82 High-low:xo, R82 Strong base | R82 High-low:xo, R82 Strong base | R82 High-low:xo, R82 Strong base | R82 High-low:xo, R82 Strong base |
| Length (mm) | 150 | 250 | 310 | 150 | 250 | 310 |
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
