Molift Quick Raiser 205

Ergonomic sit-to-stand hoist with outstanding transfer capability

The Molift Quick Raiser 205 is a state-of-the-art sit-to-stand hoist with outstanding transfer capabilities and exceptional manoeuvrability. The design encourages a natural movement pattern and fulfils the lifting needs of users with some weight-bearing capacity.

The natural movement pattern
The inclined column encourages a natural movement pattern and fulfils the lifting needs of users up to 205 kg, with some weight-bearing capacity. The user can feel safe and comfortable in every movement as the lifting experience is the same regardless of the carer, lifting arm or sling.

Exceptional maneuverability
Molift Quick Raiser 205 is compact, stable and exceptionally easy to manoeuvre. The hoist has a small turning radius and good manoeuvrability even in tight spaces, thanks to the unique wheel position, angled push rod and outstanding base weight distribution.

The hoist fits under most beds and chairs, and the variant with electrically adjustable legs allows accessibility almost anywhere. The fixed leg option enables a very small footprint.

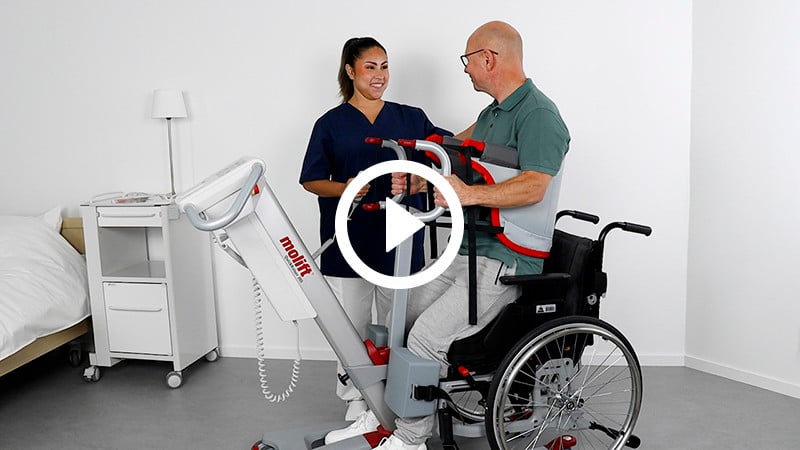

Molift Quick Raiser 205 - video features 800x450 play.jpg

Molift Quick Raiser 205 features

Watch the video for a brief presentation and the many features, such as:

Outstanding lifting capacity
Exceptional manoeuvrability
Ergonomic and comfortable movement
Electrically adjustable legs

Discover_Molift Quick Raiser 205_movement pattern_800x450 cropped.jpg

A consistent & safe lifting

The design of the inclined column guarantees a consistent and secure lifting trajectory. This prevents the sling from sliding up, a common issue with sit-to-stand hoists. As a result, users can always expect a stable and comfortable lifting experience, regardless of the type of sling or caregiver involved.

Molift Service Tool on laptop_800x450.jpg

Molift Service Tool - an intelligent software

All Molift hoists are supplied with the Molift Service Tool – an intelligent software that interacts with the hoist, ensures correct service and maintenance and enables analysis of the lift's use.

Features

Flexible lifting arm

To facilitate the carer’s work and not worry stressed users, the lifting arm can be folded away from the user towards the column when it’s not in use.

Excellent accessibility

Molift Quick Raiser 205 fits under most beds and chairs, and the electrically adjustable legs enable accessibility almost everywhere.

Easily manoeuvred

Easy to manoeuvre even in tight spaces thanks to the base’s small turning radius and weight distribution.

Ergonomic for the carer

The adjustable legs can remain closed, regardless of movement, giving the carer room to work with minimized risk of injury.

Variants

Specifications
Battery	SLA 24V 2,9 Ah	Protection class	IP24
Battery charge time (hours)	5	Rated performance	100 hoists/75 kg
Expected lifetime	30 000 cycles or 10 years	Service software	Molift Service Tool
Height (mm)	1140	Width chassis, legs inner (mm)	220
Hoisting speed 75 kg (mm/sec)	35	Width chassis, legs open inner (mm)	590
Maximum user weight (kg)	205	Width chassis, outer (mm)	630

	Item number	Length (mm)	Material	Product includes	Total weight (kg)
Molift Quick Raiser 205, Active 4-point lifting arm. Adjustable leg.	M29000	1320	Aluminium, plastic, steel	Castor size Ø75 mm. Standard leg supports.	44.5
Molift Quick Raiser 205, Active 4-point lifting arm. Adjustable leg.	M29100	1320	Aluminium, plastic, steel	Castor size Ø100 mm. Standard leg supports.	44.5
Molift Quick Raiser 205, Active 4-point lifting arm. Adjustable legs.	M29100-00	1320	Aluminium, plastic, steel	Castor size Ø100 mm. Alternative leg supports (large).	44.5
Molift Quick Raiser 205, Active 4-point lifting arm. Fixed leg.	M29150	1165	Aluminium, plastic, steel	Castor size Ø75 mm. Standard leg supports.	42.5
Molift Quick Raiser 205, Active 4-point lifting arm. Fixed leg.	M29200	1320	Aluminium, Plastic, Steel	Castor size Ø100 mm. Standard leg supports.	42.5
Molift Quick Raiser 205, StandUp 2-point lifting arm. Adjustable leg.	M29001	1320	Aluminium, plastic, steel	Castor size Ø75 mm. Standard leg supports.	44.5
Molift Quick Raiser 205, Standup 2-point lifting arm. Adjustable leg.	M29101	1320	Aluminium, plastic, steel	Castor size Ø100 mm. Standard leg supports.	44.5
Molift Quick Raiser 205, StandUp 2-point lifting arm. Fixed leg.	M29151	1165	Aluminium, plastic, steel	Castor size Ø75 mm. Standard leg supports.	42.5
Molift Quick Raiser 205, StandUp 2-point lifting arm, Fixed leg.	M29201	1165	Aluminium, plastic, steel	Castor size Ø100 mm. Standard leg supports.	42.5

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
