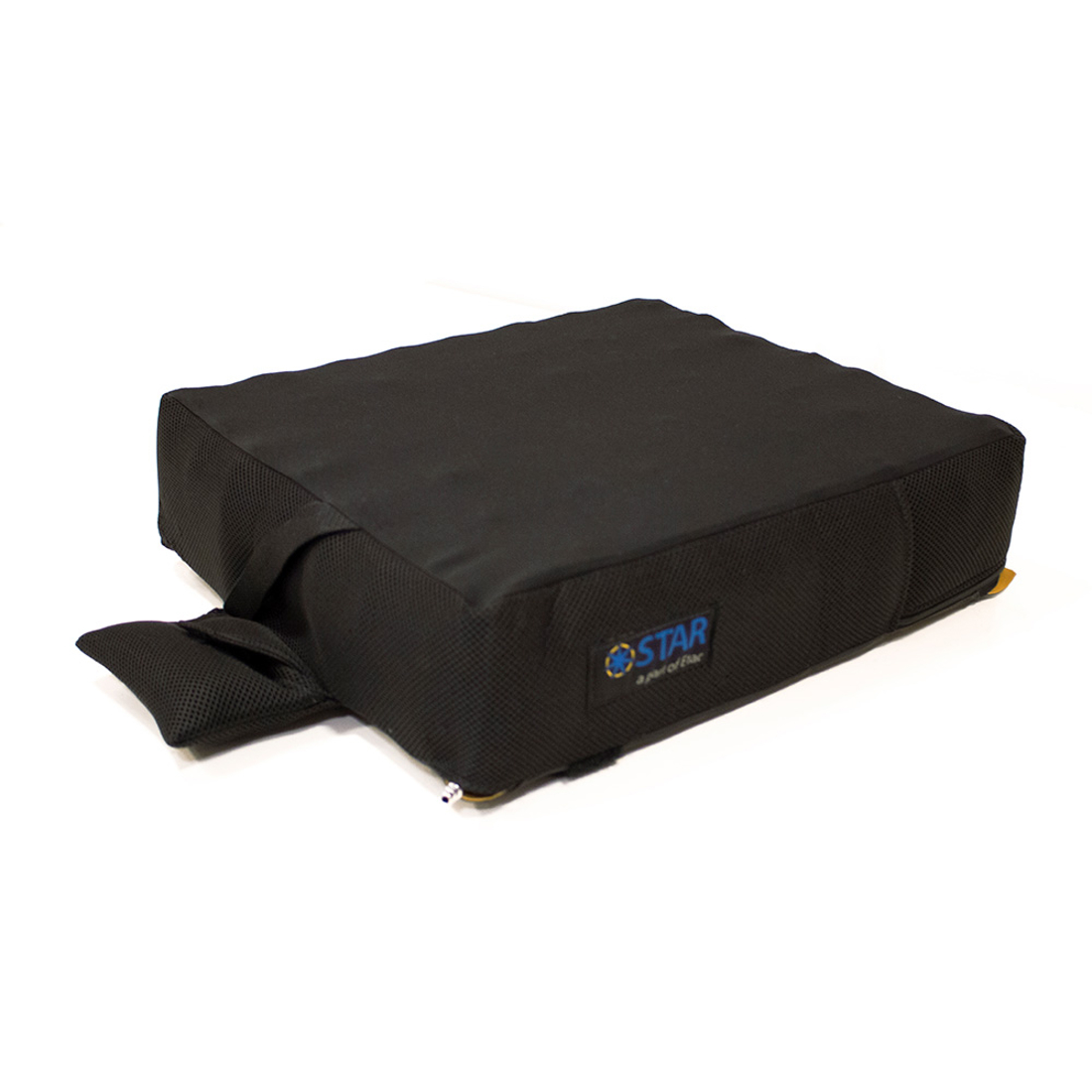

StarLock
Combines excellent pressure redistribution qualities with high stability.
Air Cell Locking Technology
In air cell cushions the combination of pressure redistributing qualities, positioning and stability have always been a difficult compromise. StarLock solves all these requirements elegantly.
With its patented Cell Locking technology, the flow between the StarLock air cells can be locked and thus be custom fitted to the user´s needs for positioning and stability while keeping its pressure redistributing qualities. StarLock cushions provide the highest level of therapeutic prevention and treatment of pressure ulcers, for all pressure ulcers categories together with unique positioning possibilities and stability. Starlock is available in heights of 2, 3, 4 and 5 inches. For users with severe atrophy in the gluteal area, we recommend 5-inch cell height. The Starlock cushion can also easily be used as a one compartment cushion.
Features
Pressure free zones
Locking down cells in a selected area of the cushion can relieve pressure on particularly vulnerable areas.
Standard specifications
| Item number | A x B: Cell amount (W x D) | Cell height (inch) | Cell width (inch) | Maximum user weight | Suits wheelchair seat width (inch) | |
|---|---|---|---|---|---|---|
| 10.25 x 10.25" | ESSL20909-1 | 5x5 | 2 | 2 | Unlimited | 9-10 |
| 10.25 x 11.75" | ESSL20911-1 | 5x6 | 2 | 2 | Unlimited | 9-10 |
| 10.5 x 13.5" | ESSL20913-1 | 5x7 | 2 | 2 | Unlimited | 9-10 |
| 11.75 x 10.25" | ESSL21109-1 | 6x5 | 2 | 2 | Unlimited | 10-12 |
| 11.75 x 11.75 " | ESSL21111-1 | 6x6 | 2 | 2 | Unlimited | 10-12 |
| 11.75 x 13.5" | ESSL21113-1 | 6x7 | 2 | 2 | Unlimited | 10-12 |
| 11.75 x 15.5" | ESSL21115-1 | 6x8 | 2 | 2 | Unlimited | 10-12 |
| 13.5 x 10.25" | ESSL21309-1 | 7x5 | 2 | 2 | Unlimited | 12-14 |
| 13.5 x 11.75" | ESSL21311-1 | 7x6 | 2 | 2 | Unlimited | 12-14 |
| 13.5 x 13.5" | ESSL21313-1 | 7x7 | 2 | 2 | Unlimited | 12-14 |
| 13.5 x 15.5" | ESSL21315-1 | 7x8 | 2 | 2 | Unlimited | - |
| 13.5 x 17.25" | ESSL21317-1 | 7x9 | 2 | 2 | Unlimited | 12-14 |
| 15.5 x 11.75" | ESSL21511-1 | 8x6 | 2 | 2 | Unlimited | - |
| 15.5 x 13.5" | ESSL21513-1 | 8x7 | 2 | 2 | Unlimited | 14-16 |
| 15.5 x 15.5" | ESSL21515-1 | 8x8 | 2 | 2 | Unlimited | 14-16 |
| 15.5 x 17.25" | ESSL21517-1 | 8x9 | 2 | 2 | Unlimited | 14-16 |
| 15.5 x 19.25" | ESSL21519-1 | 8x10 | 2 | 2 | Unlimited | 14-16 |
| 15.5 x 21" | ESSL21521-1 | 8x11 | 2 | 2 | Unlimited | 14-16 |
| 17.25 x 13.5" | ESSL21713-1 | 9x7 | 2 | 2 | Unlimited | 16-17 |
| 17.25 x 15.5" | ESSL21715-1 | 9x8 | 2 | 2 | Unlimited | 16-17 |
| 17.25 x 17.25" | ESSL21717-1 | 9x9 | 2 | 2 | Unlimited | 16-17 |
| 17.25 x 19.25" | ESSL21719-1 | 9x10 | 2 | 2 | Unlimited | 16-17 |
| 17.25 x 21" | ESSL21721-1 | 9x11 | 2 | 2 | Unlimited | 16-17 |
| 19.25 x 15.5" | ESSL21915-1 | 10x8 | 2 | 2 | Unlimited | 17-19 |
| 19.25 x 17.25" | ESSL21917-1 | 10x9 | 2 | 2 | Unlimited | 17-19 |
| 19.25 x 19.25" | ESSL21919-1 | 10x10 | 2 | 2 | Unlimited | 17-19 |
| 19.25 x 21" | ESSL21921-1 | 10x11 | 2 | 2 | Unlimited | 17-19 |
| 21 x 15.5" | ESSL22115-1 | 11x8 | 2 | 2 | Unlimited | 19-21 |
| 21 x 17.25" | ESSL22117-1 | 11x9 | 2 | 2 | Unlimited | 19-21 |
| 21 x 19.25" | ESSL22119-1 | 11x10 | 2 | 2 | Unlimited | 19-21 |
| 21 x 21" | ESSL22121-1 | 11x11 | 2 | 2 | Unlimited | 19-21 |
| 58 x 44 cm | ESSL22317-1 | 12x9 | - | - | Unlimited | - |
| 10.25 x 10.25" | ESSL30909-1 | 5x5 | 3 | 2 | Unlimited | 18-20 |
| 10.25 x 11.75" | ESSL30911-1 | 5x6 | 3 | 2 | Unlimited | 9-10 |
| 10.25 x 13.5" | ESSL30913-1 | 5x7 | 3 | 2 | Unlimited | 9-10 |
| 11.75 x 10.25" | ESSL31109-1 | 6x5 | 3 | 2 | Unlimited | 10-12 |
| 11.75 x 11.75 " | ESSL31111-1 | 6x6 | 3 | 2 | Unlimited | 10-12 |
| 11.75 x 13.5" | ESSL31113-1 | 6x7 | 3 | 2 | Unlimited | 10-12 |
| 11.75 x 15.5" | ESSL31115-1 | 6x8 | 3 | 2 | Unlimited | 10-12 |
| 13.5 x 10" | ESSL31309-1 | 7x5 | 3 | 2 | Unlimited | 12-14 |
| 13.5 x 11.75" | ESSL31311-1 | 7x6 | 3 | 2 | Unlimited | 12-14 |
| 13.5 x 13.5" | ESSL31313-1 | 7x7 | 3 | 2 | Unlimited | 12-14 |
| 13.5 x 15.5" | ESSL31315-1 | 7x8 | 3 | 2 | Unlimited | 12-14 |
| 13.5 x 17.25" | ESSL31317-1 | 7 x9 | 3 | 2 | Unlimited | 12-14 |
| 15.5 x 11.75" | ESSL31511-1 | 8x6 | 3 | 2 | Unlimited | 14-16 |
| 15.5 x 13.5" | ESSL31513-1 | 8x7 | 3 | 2 | Unlimited | 14-16 |
| 15.5 x 15.5" | ESSL31515-1 | 8x8 | 3 | 2 | Unlimited | 14-16 |
| 15.5 x 17.25" | ESSL31517-1 | 8x9 | 3 | 2 | Unlimited | 14-16 |
| 15.5 x 19.25" | ESSL31519-1 | 8x10 | 3 | 2 | Unlimited | 14-16 |
| 15.5 x 21" | ESSL31521-1 | 8x11 | 3 | 2 | Unlimited | 14-16 |
| 17.25 x 13.5" | ESSL31713-1 | 9x7 | 3 | 2 | Unlimited | 16-17 |
| 17.25 x 15.5" | ESSL31715-1 | 9x8 | 3 | 2 | Unlimited | 16-17 |
| 17.25 x 17.25" | ESSL31717-1 | 9x9 | 3 | 2 | Unlimited | 16-17 |
| 17.25 x 19.25" | ESSL31719-1 | 9x10 | 3 | 2 | Unlimited | 16-17 |
| 17.25 x 21" | ESSL31721-1 | 9x11 | 3 | 2 | Unlimited | 16-18 |
| 19.25 x 15.5" | ESSL31915-1 | 10x8 | 3 | 2 | Unlimited | 17-19 |
| 19.25 x 17.25" | ESSL31917-1 | 10x9 | 3 | 2 | Unlimited | 17-19 |
| 19.25 x 19.25" | ESSL31919-1 | 10x10 | 3 | 2 | Unlimited | 17-19 |
| 19.25 x 21" | ESSL31921-1 | 10x11 | 3 | 2 | Unlimited | 17-19 |
| 21 x 15.5" | ESSL32115-1 | 11x8 | 3 | 2 | Unlimited | 19-21 |
| 21 x 17.25" | ESSL32117-1 | 11x9 | 3 | 2 | Unlimited | 19-21 |
| 21 x 19.25" | ESSL32119-1 | 11x10 | 3 | 2 | Unlimited | 19-21 |
| 21 x 21" | ESSL32121-1 | 11x11 | 3 | 2 | Unlimited | 19-21 |
| 10.25 x 10.25" | ESSL40909-1 | 5x5 | 4 | 2 | Unlimited | 9-10 |
| 10.25 x 11.75" | ESSL40911-1 | 5x6 | 4 | 2 | Unlimited | 9-10 |
| 10.25 x 13.5" | ESSL40913-1 | 5x7 | 4 | 2 | Unlimited | 9-10 |
| 11.75 x 10.25" | ESSL41109-1 | 6x5 | 4 | 2 | Unlimited | 10-12 |
| 11.75 x 11.75 " | ESSL41111-1 | 6x6 | 4 | 2 | Unlimited | 10-12 |
| 11.75 x 13.5" | ESSL41113-1 | 6x7 | 4 | 2 | Unlimited | 10-12 |
| 11.75 x 15.5" | ESSL41115-1 | 6x8 | 4 | 2 | Unlimited | 10-12 |
| 13.5 x 10.25" | ESSL41309-1 | 7x5 | 4 | 2 | Unlimited | 12-14 |
| 13.5 x 11.75" | ESSL41311-1 | 7x6 | 4 | 2 | Unlimited | 12-14 |
| 13.5 x 13.5" | ESSL41313-1 | 7x7 | 4 | 2 | Unlimited | 12-14 |
| 13.5 x 15.5" | ESSL41315-1 | 7x8 | 4 | 2 | Unlimited | 12-14 |
| 13.5 x 17.25" | ESSL41317-1 | 7x9 | 4 | 2 | Unlimited | 12-14 |
| 15.5 x 11.75" | ESSL41511-1 | 8x6 | 4 | 2 | Unlimited | 14-16 |
| 15.5 x 13.5" | ESSL41513-1 | 8x7 | 4 | 2 | Unlimited | 14-16 |
| 15.5 x 15.5" | ESSL41517-1 | 8x9 | 4 | 2 | Unlimited | 14-16 |
| 15.5 x 17.25" | ESSL41515-1 | 8x8 | 4 | 2 | Unlimited | 14-16 |
| 15.5 x 19.25" | ESSL41519-1 | 8x10 | 4 | 2 | Unlimited | 14-16 |
| 15.5 x 21" | ESSL41521-1 | 8x11 | 4 | 2 | Unlimited | 14-16 |
| 17.25 x 13.5" | ESSL41713-1 | 9x7 | 4 | 2 | Unlimited | 16-17 |
| 17.25 x 15.5" | ESSL41715-1 | 9x8 | 4 | 2 | Unlimited | 16-17 |
| 17.25 x 17.25" | ESSL41717-1 | 9x9 | 4 | 2 | Unlimited | 16-17 |
| 17.25 x 19.25" | ESSL41719-1 | 9x10 | 4 | 2 | Unlimited | 16-17 |
| 17.25 x 21" | ESSL41721-1 | 9x11 | 4 | 2 | Unlimited | 16-17 |
| 19.25 x 15.5" | ESSL41915-1 | 10x8 | 4 | 2 | Unlimited | 17-19 |
| 19.25 x 17.25" | ESSL41917-1 | 10x9 | 4 | 2 | Unlimited | 17-19 |
| 19.25 x 19.25" | ESSL41919-1 | 10x10 | 4 | 2 | Unlimited | 19-19 |
| 19.25 x 21" | ESSL41921-1 | 10x11 | 4 | 2 | Unlimited | 17-19 |
| 21 x 15.5" | ESSL42115-1 | 11x8 | 4 | 2 | Unlimited | 19-21 |
| 21 x 17.25" | ESSL42117-1 | 11x9 | 4 | 2 | Unlimited | 19-21 |
| 21 x 19.25" | ESSL42119-1 | 11x10 | 4 | 2 | Unlimited | 19-21 |
| 21 x 21" | ESSL42121-1 | 11x11 | 4 | 2 | Unlimited | 19-21 |
| 10 x 10" | ESSL51010-1 | 4x4 | 5 | 2.5 | Unlimited | 9-10 |
| 10 x 12" | ESSL51012-1 | 4x5 | 5 | 2.5 | Unlimited | 9-10 |
| 10 x 14" | ESSL51014-1 | 4x6 | 5 | 2.5 | Unlimited | 9-10 |
| 12 x 10" | ESSL51210-1 | 5x4 | 5 | 2.5 | Unlimited | 11-13 |
| 12 x 12" | ESSL51212-1 | 5x5 | 5 | 2.5 | Unlimited | 11-13 |
| 12 x 14" | ESSL51214-1 | 5x6 | 5 | 2.5 | Unlimited | 11-13 |
| 12 x 16" | ESSL51216-1 | 5x7 | 5 | 2.5 | Unlimited | 11-13 |
| 14 x 10" | ESSL51410-1 | 6x4 | 5 | 2.5 | Unlimited | 13-15 |
| 14 x 12" | ESSL51412-1 | 6x5 | 5 | 2.5 | Unlimited | 13-15 |
| 14 x 14" | ESSL51414-1 | 6x6 | 5 | 2.5 | Unlimited | 13-15 |
| 14 x 16" | ESSL51416-1 | 6x7 | 5 | 2.5 | Unlimited | 13-15 |
| 14 x 18" | ESSL51418-1 | 6x8 | 5 | 2.5 | Unlimited | 13-15 |
| 16 x 12" | ESSL51612-1 | 7x5 | 5 | 2.5 | Unlimited | 15-17 |
| 16 x 14" | ESSL51614-1 | 7x6 | 5 | 2.5 | Unlimited | 15-17 |
| 16 x 16" | ESSL51616-1 | 7x7 | 5 | 2.5 | Unlimited | 15-17 |
| 16 x 18" | ESSL51618-1 | 7x8 | 5 | 2.5 | Unlimited | 15-17 |
| 16 x 20" | ESSL51620-1 | 7x9 | 5 | 2.5 | Unlimited | 15-17 |
| 16 x 22" | ESSL51622-1 | 7x10 | 5 | 2.5 | Unlimited | 15-17 |
| 18 x 14" | ESSL51814-1 | 8x6 | 5 | 2.5 | Unlimited | 17-19 |
| 18 x 16" | ESSL51816-1 | 8x7 | 5 | 2.5 | Unlimited | 17-19 |
| 18 x 18" | ESSL51818-1 | 8x8 | 5 | 2.5 | Unlimited | 17-19 |
| 18 x 20" | ESSL51820-1 | 8x9 | 5 | 2.5 | Unlimited | 17-19 |
| 18 x 22" | ESSL51822-1 | 8x10 | 5 | 2.5 | Unlimited | 17-19 |
| 20 x 16" | ESSL52016-1 | 9x7 | 5 | 2.5 | Unlimited | 19-21 |
| 20 x 18" | ESSL52018-1 | 9x8 | 5 | 2.5 | Unlimited | 19-21 |
| 20 x 20" | ESSL52020-1 | 9x9 | 5 | 2.5 | Unlimited | 19-21 |
| 20 x 22" | ESSL52022-1 | 9x10 | 5 | 2.5 | Unlimited | 19-21 |
| 22 x 16" | ESSL52216-1 | 10x7 | 5 | 2.5 | Unlimited | 21-23 |
| 22 x 18" | ESSL52218-1 | 10x8 | 5 | 2.5 | Unlimited | 21-23 |
| 22 x 20" | ESSL52220-1 | 10x9 | 5 | 2.5 | Unlimited | 21-23 |
| 22 x 22" | ESSL52222-1 | 10x10 | 5 | 2.5 | Unlimited | 21-23 |
FACTS
User weight
No limits as long as the correct sized cushion is used for the user.
Material cushion
High quality latex free, gold color Neoprene. Adaptable and flame resistant.
Cleaning - Cushion
Hand wash with soap, baking soda or vinegar. For disinfection, use 70% disinfectant solution.
Cleaning - Covers: Machine wash 60°C, no bleach.
Washing instructions
Clean the product with a 70% disinfectant solution.
The product is CE marked
Hand wash - max. temperature 40 °C/104 °F
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos

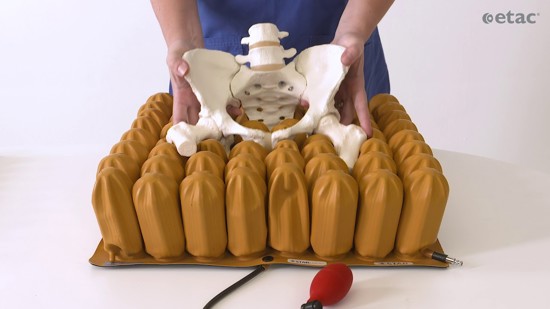

StarLock adjustment for pelvic obliquity

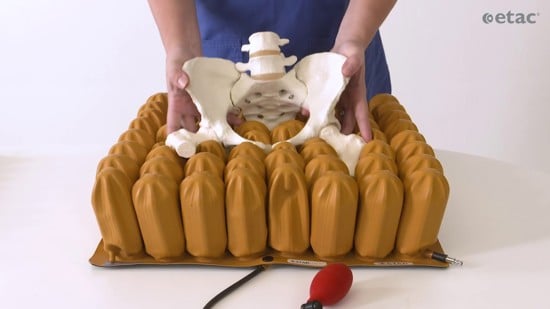

Basic StarLock adjustment principles
StarLock preparations before assessment in wheelchair
