Star Standard Air
Single chamber air cell cushion with excellent pressure redistribution qualities.
High levels of immersion with excellent envelopment
Pressure redistribution is at its best with the enveloping qualities of the one compartment Standard Air cushion series. The flexibility of the Neoprene cells allows the cells to shape around the buttocks, keeping cell deformation to a very low level. Standard Air is available in two different heights; 2 and 4 inches. The higher cells, the better pressure redistribution qualities.
Features
Pressure redistribution
The interconnected air cells ensure excellent pressure redistribution properties, continually readjusted to the user’s shape as they move in their seat.
Single Chamber
Single chamber entails only one valve adjustment. The Standard Air Cushion is ideal for easy handling.

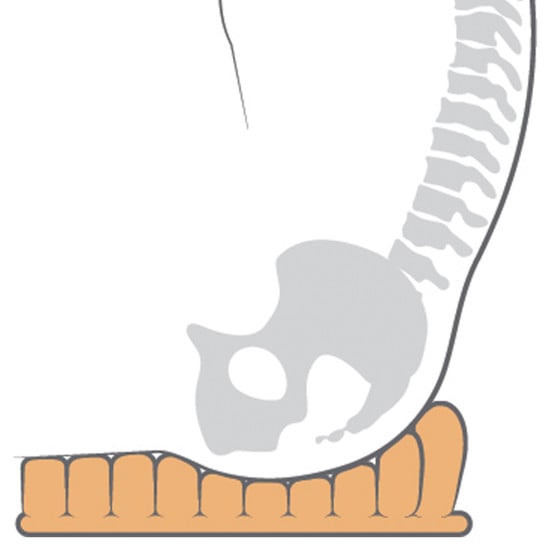

One compartment with dynamic stability
The air cells adapt to the body structure and follow the user´s smallest movement without compressing the tissue. This can aid blood circulation. Perfect for users with low activity level.

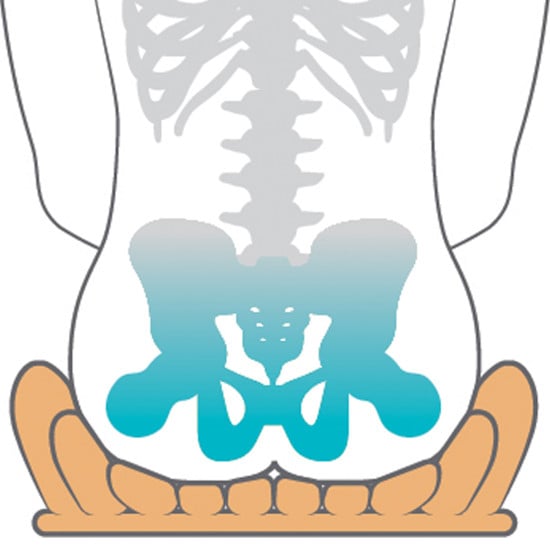

Immersion and envelopment
The air cells allow the user to immerse into the cushion and obtain the best envelopment. The higher the cells, the more immersion. The Standard Air is available in 2 and 4 inch cell heights.
Standard specifications
| Item number | Cell height (inch) | Maximum user weight | Suits wheelchair seat width (inch) | |
|---|---|---|---|---|
| 13.5 x 13.5" | ESSCS1313-1 | 2 | Unlimited | 12-14 |
| 13.5 x 15.5" | ESSCS1315-1 | 2 | Unlimited | 12-14 |
| 15.5 x 15.5" | ESSCS1515-1 | 2 | Unlimited | 14-16 |
| 15.5 x 17.25" | ESSCS1517-1 | 2 | Unlimited | 14-16 |
| 15.5 x 19.25" | ESSCS1519-1 | 2 | Unlimited | 14-16 |
| 17.25 x 15.5" | ESSCS1715-1 | 2 | Unlimited | 16-17 |
| 17.25 x 17.25" | ESSCS1717-1 | 2 | Unlimited | 16-17 |
| 17.25 x 19.25" | ESSCS1719-1 | 2 | Unlimited | 16-17 |
| 17.25 x 21" | ESSCS1721-1 | 2 | Unlimited | 16-17 |
| 19.25 x 15.5" | ESSCS1915-1 | 2 | Unlimited | 17-19 |
| 19.25 x 19.25" | ESSCS1919-1 | 2 | Unlimited | 17-19 |
| 19.25 x 21" | ESSCS1921-1 | 2 | Unlimited | 17-19 |
| 19.25 x 17.25" | ESSCS1917-1 | 2 | Unlimited | 17-19 |
| 21 x 17.25" | ESSCS2117-1 | 2 | Unlimited | 19-21 |
| 21 x 15.5" | ESSCS2115-1 | 2 | Unlimited | 19-21 |
| 21 x 19.25" | ESSCS2119-1 | 2 | Unlimited | 19-21 |
| 21 x 21" | ESSCS2121-1 | 2 | Unlimited | 19-21 |
| 13" x 15" | ESMC1315-1 | 3 | Unlimited | 12-14 |
| 15" x 17" | ESMC1517-1 | 3 | Unlimited | 14-16 |
| 15" x 15" | ESMC1515-1 | 3 | Unlimited | 14-16 |
| 15" x 19" | ESMC1519-1 | 3 | Unlimited | 14-16 |
| 17" x 15" | ESMC1715-1 | 3 | Unlimited | 16-17 |
| 17" x 17" | ESMC1717-1 | 3 | Unlimited | 16-17 |
| 17" x 19" | ESMC1719-1 | 3 | Unlimited | 16-17 |
| 17" x 21" | ESMC1721-1 | 3 | Unlimited | 16-17 |
| 19" x 15" | ESMC1915-1 | 3 | Unlimited | 17-19 |
| 19" x 17" | ESMC1917-1 | 3 | Unlimited | 17-19 |
| 19" x 19" | ESMC1919-1 | 3 | Unlimited | 17-19 |
| 19" x 21" | ESMC1921-1 | 3 | Unlimited | 17-19 |
| 21" x 17" | ESMC2117-1 | 3 | Unlimited | 19-21 |
| 21" x 19" | ESMC2119-1 | 3 | Unlimited | 19-21 |
| 21" x 21" | ESMC2121-1 | 3 | Unlimited | 19-21 |
| 13" x 13" | ESSC1313-2 | 4 | Unlimited | 12-14 |
| 13.5 x 13.5" | ESSC1313-1 | 4 | Unlimited | 12-14 |
| 13" x 15" | ESSC1315-2 | 4 | Unlimited | 12-14 |
| 13.5 x 15.5" | ESSC1315-1 | 4 | Unlimited | 12-14 |
| 15.5 x 13.5" | ESSC1513-1 | 4 | Unlimited | 14-16 |
| 15.5 x 15.5" | ESSC1515-1 | 4 | - | 14-16 |
| 15" x 15" | ESSC1515-2 | 4 | Unlimited | 14-16 |
| 15.5 x 17.25" | ESSC1517-1 | 4 | Unlimited | 14-16 |
| 15" x 17" | ESSC1517-2 | 4 | Unlimited | 14-16 |
| 15.5 x 19.25" | ESSC1519-1 | 4 | - | 14-16 |
| 17.25 x 13.5" | ESSC1713-1 | 4 | Unlimited | 16-17 |
| 17.25 x 15.5" | ESSC1715-1 | 4 | - | 16-17 |
| 17" x 15" | ESSC1715-2 | 4 | Unlimited | 16-17 |
| 17.25 x 17.25" | ESSC1717-1 | 4 | - | 16-17 |
| 17" x 17" | ESSC1717-2 | 4 | Unlimited | 16-17 |
| 17.25 x 19.25" | ESSC1719-1 | 4 | - | 16-17 |
| 17" x 19" | ESSC1719-2 | 4 | Unlimited | 16-17 |
| 17.25 x 21" | ESSC1721-1 | 4 | Unlimited | 16-17 |
| 19.25 x 15.5" | ESSC1915-1 | 4 | Unlimited | 17-19 |
| 19" x 15" | ESSC1915-2 | 4 | Unlimited | 17-19 |
| 19.25 x 17.25" | ESSC1917-1 | 4 | - | 17-19 |
| 19" x 17" | ESSC1917-2 | 4 | Unlimited | 17-19 |
| 19.25 x 19.25" | ESSC1919-1 | 4 | - | 17-19 |
| 49 x 49 cm | ESSC1919-2 | 4 | Unlimited | 17-19 |
| 19.25 x 21" | ESSC1921-1 | 4 | - | 16-17 |
| 19" x 21" | ESSC1921-2 | 4 | Unlimited | 17-19 |
| 21 x 15.5" | ESSC2115-1 | 4 | Unlimited | 19-21 |
| 21" x 15" | ESSC2115-2 | 4 | Unlimited | 19-21 |
| 21 x 17.25" | ESSC2117-1 | 4 | - | 19-21 |
| 21" x 17" | ESSC2117-2 | 4 | Unlimited | 19-21 |
| 21 x 19.25" | ESSC2119-1 | 4 | - | 19-21 |
| 21" x 19" | ESSC2119-2 | 4 | Unlimited | 19-21 |
| 21 x 21" | ESSC2121-1 | 4 | - | 19-21 |
| 53 x 53 cm | ESSC2121-2 | 4 | Unlimited | 19-21 |
Washing instructions
Clean the product with a 70% disinfectant solution.
The product is CE marked
Hand wash - max. temperature 40 °C/104 °F
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
