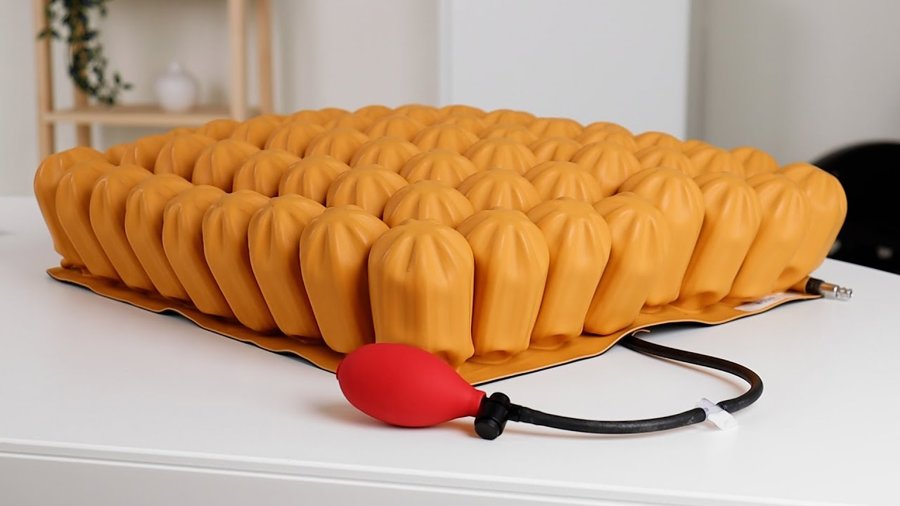

Star Stabil-Air
The perfect blend of multi air cell cushion with soft foam cylinders within each air cell.
StabilAir – the new generation air cell cushion
Each StabilAir cushion has two sizes of foam cylinders. The cylinders on the outside are higher, while those under the buttocks, coccyx and legs are lower, creating an anatomically shaped secondary layer of skin protection. This increases the stability and eases transfer to and from the cushion. The Stabil-Air cushion has one chamber which is easy to use and provides stability.
Features
Pressure redistribution
The interconnected air cells ensure excellent pressure redistribution properties, continually readjusted to the user’s shape as they move in their seat.
Easy Handling
One compartment entails only one valve adjustment. The Stabil-Air cushion is an ideal combination of easy handling and stability, which can improve sitting tolerance over time.
Single compartment with concealed stability
The Stabil-Air cushion has a soft foam cylinder within each air cell. They are anatomically contoured and add exceptional stability to a single compartment air cell cushion.
Immersion and envelopment
The soft foam cylinders contain a considerable amount of air and allow the user to immerse into the cushion to obtain the best envelopment. The Stabil-Air is available in two cell heights: 3 and 4 inches.
Standard specifications
| Item number | Cell height (inch) | Maximum user weight | Suits wheelchair seat width (inch) | |
|---|---|---|---|---|
| 13.5 x 13.5" | ESSA31313-1 | 3 | Unlimited | 12-14 |
| 13.5 x 15.5" | ESSA31315-1 | 3 | Unlimited | 12-14 |
| 15.5 x 15.5" | ESSA31515-1 | 3 | Unlimited | 14-16 |
| 15.5 x 17.25" | ESSA31517-1 | 3 | Unlimited | 14-16 |
| 15.5 x 19.25" | ESSA31519-1 | 3 | Unlimited | 14-16 |
| 17.25 x 15.5" | ESSA31715-1 | 3 | Unlimited | 16-17 |
| 17.25 x 17.25" | ESSA31717-1 | 3 | Unlimited | 16-17 |
| 17.25 x 19.25" | ESSA31719-1 | 3 | Unlimited | 16-17 |
| 17.25 x 21" | ESSA31721-1 | 3 | Unlimited | 16-17 |
| 19.25 x 15.5" | ESSA31915-1 | 3 | Unlimited | 17-19 |
| 19.25 x 17.25" | ESSA31917-1 | 3 | Unlimited | 17-19 |
| 19.25 x 19.25" | ESSA31919-1 | 3 | Unlimited | 17-19 |
| 19.25 x 21" | ESSA31921-1 | 3 | Unlimited | 17-19 |
| 21 x 17.25" | ESSA32117-1 | 3 | Unlimited | 19-21 |
| 21 x 19.25" | ESSA32119-1 | 3 | Unlimited | 19-21 |
| 21 x 21" | ESSA32121-1 | 3 | Unlimited | 19-21 |
| 13.5 x 13.5" | ESSA41313-1 | 4 | Unlimited | 12-14 |
| 13.5 x 15.5" | ESSA41315-1 | 4 | Unlimited | 12-14 |
| 13.5 x 17.25" | ESSA41317-1 | 4 | Unlimited | 12-14 |
| 15.5 x 15.5" | ESSA41515-1 | 4 | Unlimited | 14-16 |
| 15.5 x 17.25" | ESSA41517-1 | 4 | Unlimited | 14-16 |
| 15.5 x 19.25" | ESSA41519-1 | 4 | Unlimited | 14-16 |
| 15.5 x 21" | ESSA41521-1 | 4 | Unlimited | 14-16 |
| 17.25 x 15.5" | ESSA41715-1 | 4 | Unlimited | 16-17 |
| 17.25 x 17.25" | ESSA41717-1 | 4 | Unlimited | 16-17 |
| 17.25 x 19.25" | ESSA41719-1 | 4 | Unlimited | 16-17 |
| 17.25 x 21" | ESSA41721-1 | 4 | Unlimited | 16-17 |
| 19.25 x 15.5" | ESSA41915-1 | 4 | Unlimited | 17-19 |
| 19.25 x 17.25" | ESSA41917-1 | 4 | Unlimited | 17-19 |
| 19.25 x 19.25" | ESSA41919-1 | 4 | Unlimited | 17-19 |
| 19.25 x 21" | ESSA41921-1 | 4 | Unlimited | 17-19 |
| 21 x 17.25" | ESSA42117-1 | 4 | Unlimited | 19-21 |
| 21 x 19.25" | ESSA42119-1 | 4 | Unlimited | 19-21 |
| 21 x 19.25" | ESSA42121-1 | 4 | Unlimited | 19-21 |
Washing instructions
Clean the product with a 70% disinfectant solution.
The product is CE marked
Hand wash - max. temperature 40 °C/104 °F
