R82 Mustang

The R82 Mustang offers an individual solution in children's walking aids and is thoughtfully designed to potentially enhance mobility for children with a range of needs. Its design emphasizes not only function but also aesthetics. This children's walking frame is designed to help children with cerebral palsy and other children with impairments of their motor function.

The Mustang provides excellent and snug support for the upper body whilst also keeping the child’s pelvis gently supported. The upright, slightly forward leaning position stimulates the walking function and encourages the child to participate in daily activities.

The Mustang can be used by children with cerebral palsy and others with impairments of their motor function. The Mustang is developed as an anterior walker but can also be used as a posterior gait trainer, depending on the child’s level of ability.

The Mustang is available in four sizes and suitable for children and young people.

Discover

Tommy achieves encouraging gait progress with R82’s Mustang

Read about how the Mustang helped Tommy in his gait progress.

Mustang brochure

Learn more about Mustang in our interactive brochure: How to enable children to walk

Features

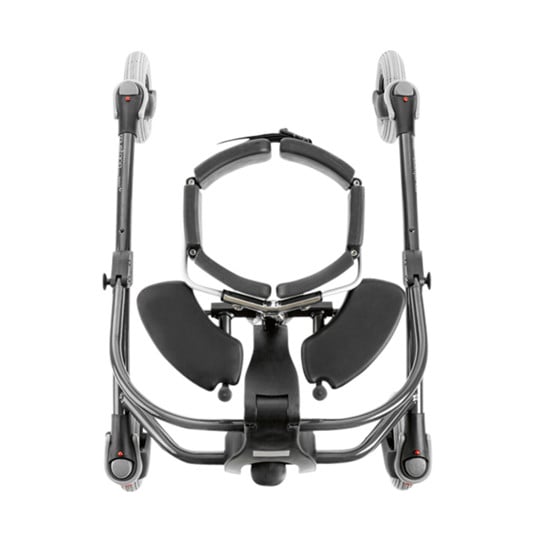

Motivating the child to walk

The user is placed at the center of the Mustang which provides stability of the upper body and enables the user to focus energy on walking.

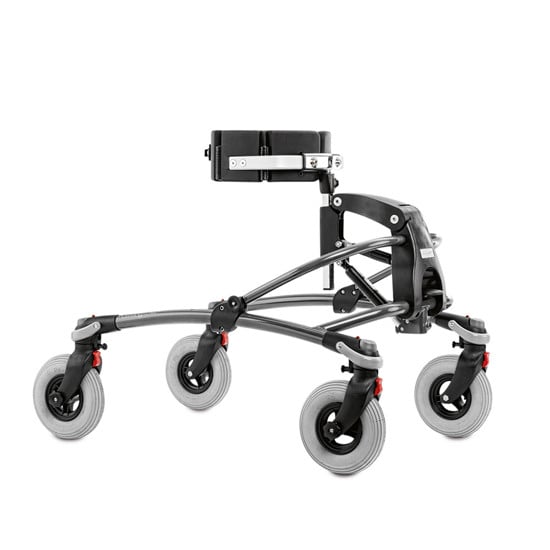

Natural walking pattern

The Mustang has an easy and steady angle adjustable center bar. A slight forward leaning position, combined with built-in suspension, stimulates the natural walking pattern

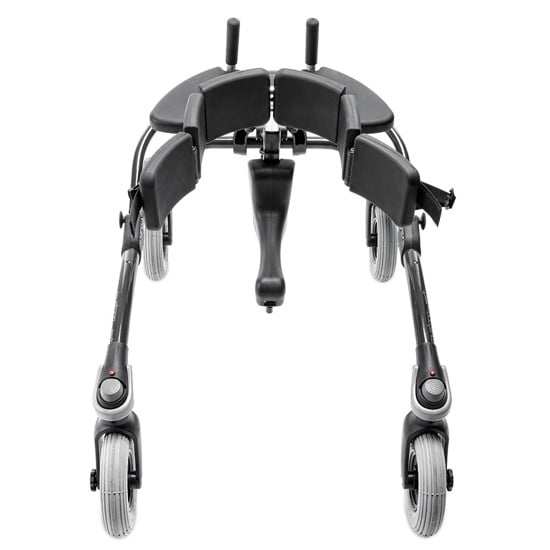

Easy to access

The Mustang has been constructed with accessibility in mind. The U-shaped frame and wrap around support, allows for easy access and transfer.

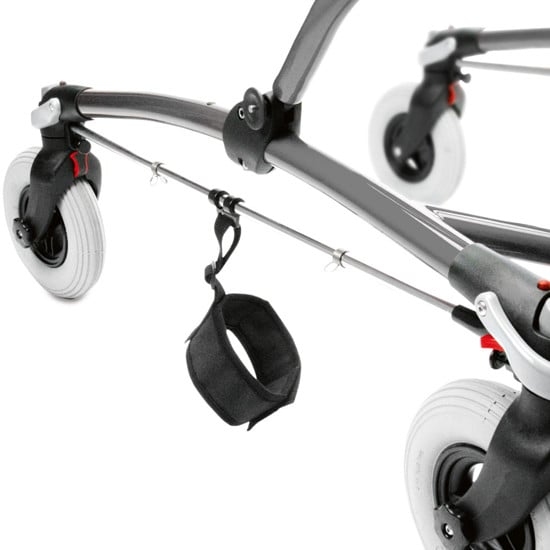

Easy changeable accessories

Accessories are easily added or removed for the carers' convenience.

Standard specifications

	Size 1	Size 2	Size 3	Size 4
Item number	869011	869024	869033	869042
Height with 4" wheels (inch)	15.75-25.5	23.5-33.5	-	-
Height with 8" wheels (Inch)	20-25.5	23.5-33.5	27.5-41.25	40.5-49.25
Inside width (inch)	15	17.75	19.5	22
Length with 4" wheels (inch)	29.5	32.75	-	-
Length with 8 " wheels (inch)	32.25	35.50	39.25	43.25
Mass device with 4" wheels (lbs)	22	24.2	-	-
Mass device with 8" wheels (lbs)	28.6	30.8	39.6	41.8
Maximum rated load (lbs)	99.2	123.4	176.3	222.6
Maximum user mass (lbs)	66.1	88.1	132.2	176.3
Minimum turning radius (inch)	14.25	21.75	23.5	26.5
Overall width with 4" or 8" wheels (inch)	20.5	22.75	25.5	27.5
Seat height with 4" wheels (Comfort seat) (inch)	6.75-17	9.5-19.25	-	-
Seat height with 4" wheels (PU seat) (inch)	6.75-13.75	9.5-16.25	-	-
Seat height with 8" wheels (Comfort seat) (inch)	10.25-20.5	13-22.75	17.75-30	24.5-36.25
Seat height with 8" wheels (PU seat) (inch)	10.25-17.25	13-19.75	17.75-26.75	24.5-33
User height: floor to axil (inch)	15.75-25.5	23.5-33.5	27.5-41.25	34.25-51.25
Width between handles (inch)	6.25-12.5	6.25-12.5	6.5-15.75	6.5-15.75

Options

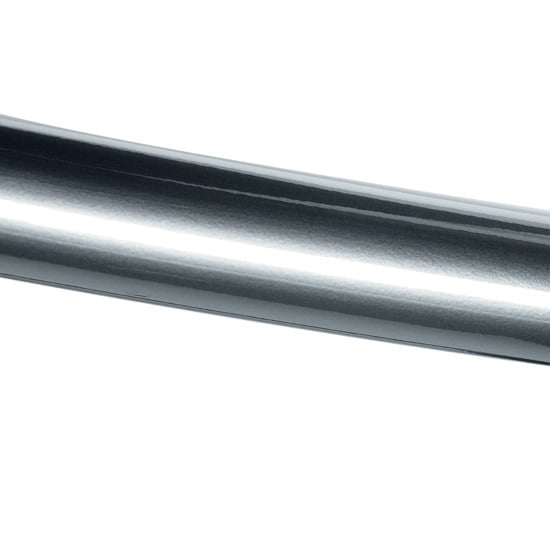

Frame color

Available in 4 colors.

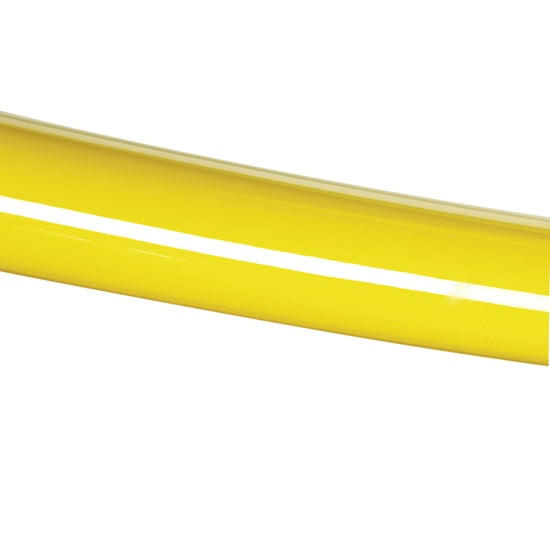

Yellow for size 1

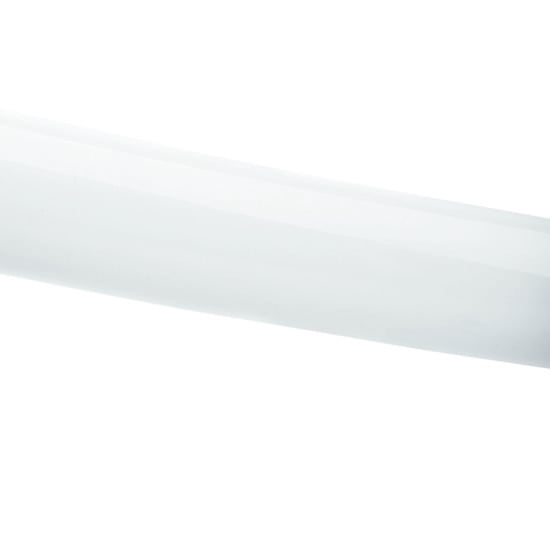

White for size 2

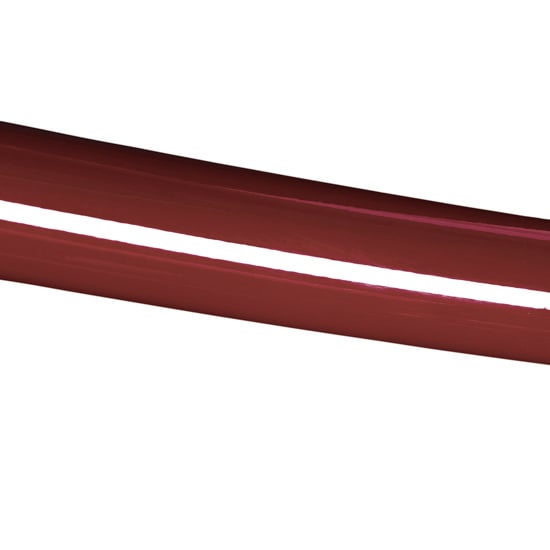

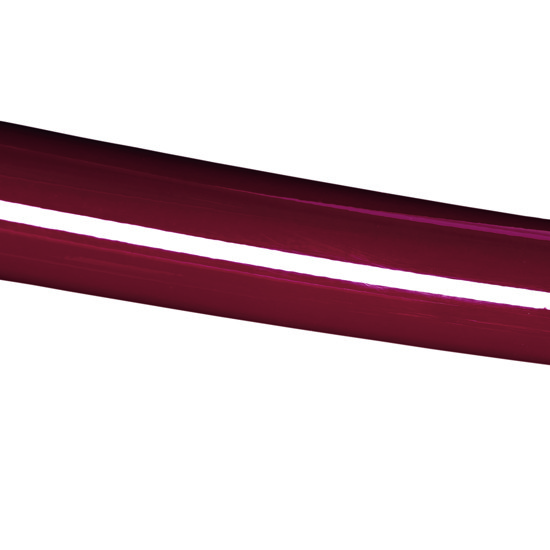

Red for size 3

Anthracite grey for size 4

Castors and wheels

The Mustang is delivered as standard with various wheel options. Choose between the below options.

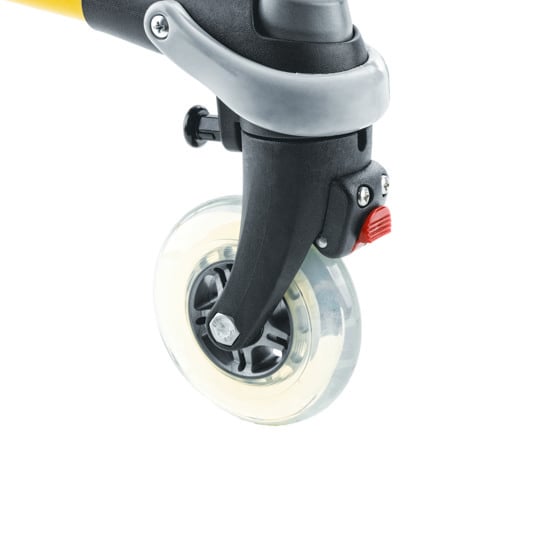

4" castor for size 1 and 2

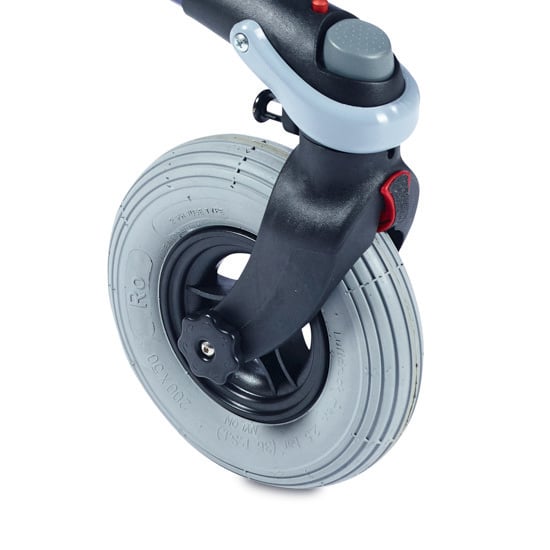

8" wheel

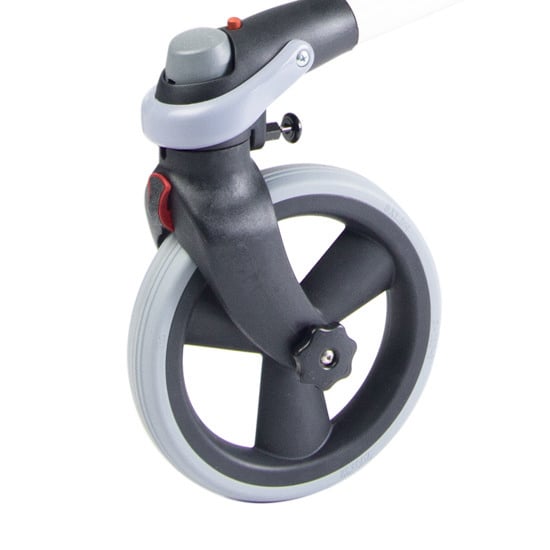

8" slimline wheel

Wheel features

Unique features and adjustment possibilities.

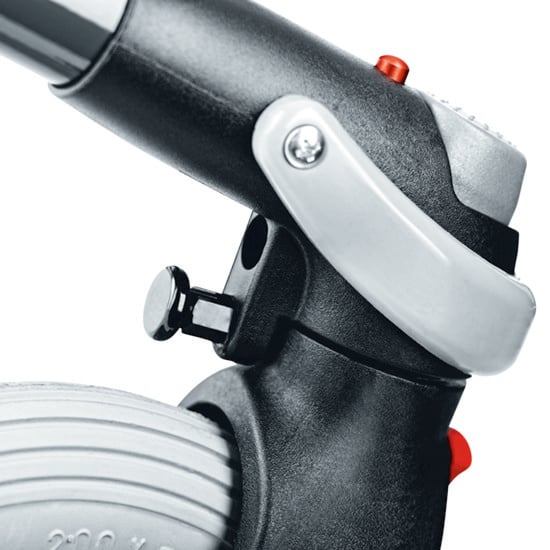

Directional stabilizer

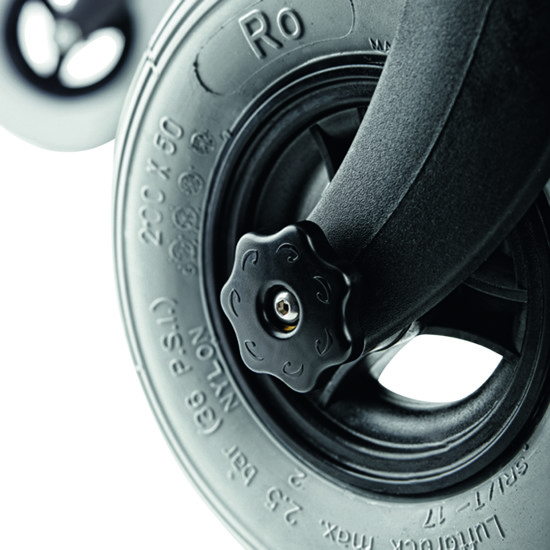

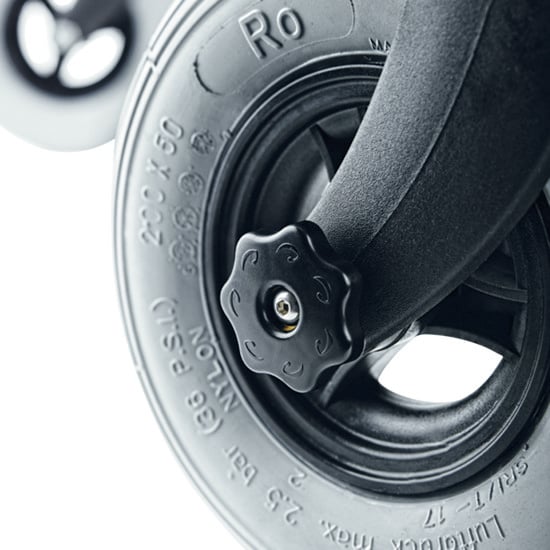

Tension adjustable wheels

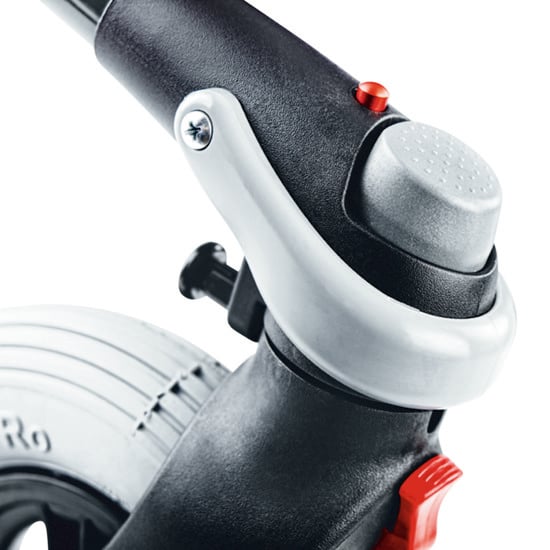

Brake on all 4 wheels

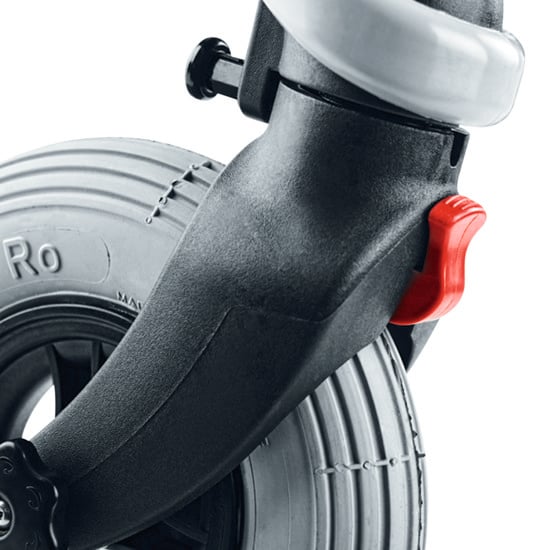

Anti-reverse wheel stop - release

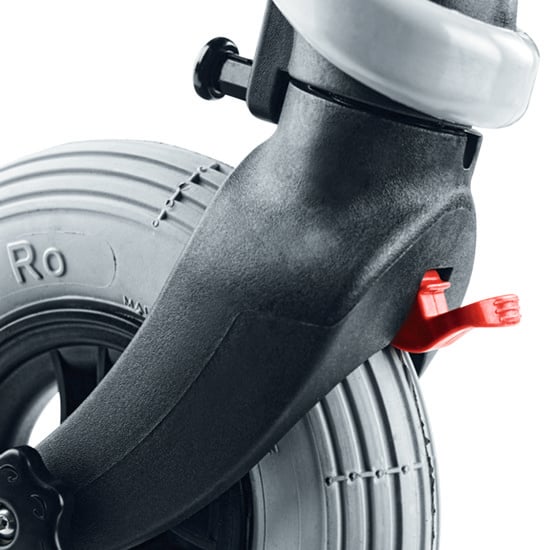

Anti-reverse wheel stop - lock
