Convaid Carrot 3
The Carrot 3 provides optimal positioning for insufficient head, trunk, and pelvic stability; with extensive growth capabilities.
The Convaid Carrot 3 Special Needs Child Restraint System is designed for children and teens. The back reclines flat (180 degrees) from a fully upright position (90 degrees). Optional extensions allow for years of potential growth. The contoured headrest, body-conforming foam, and optional shoulder wings improve side impact protection. The firm lateral supports are optional and encourage midline alignment of the trunk. The inserts for the seat, hips, and trunk come standard and provide custom positioning.
Features
![Convaid Carrot 3](/globalassets/inriver/resources/image/feature/carrot-3-feature-adaptive-positioning2.jpg?cache=638479357070000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Adaptive positioning
![Convaid Carrot 3](/globalassets/inriver/resources/image/feature/carrot-3-pelvic-suport-7inch-rodded-with-2inch-seat-extension2.jpg?cache=638479357300000000&width=550&height=550&Quality=90&rmode=max&scale=down)

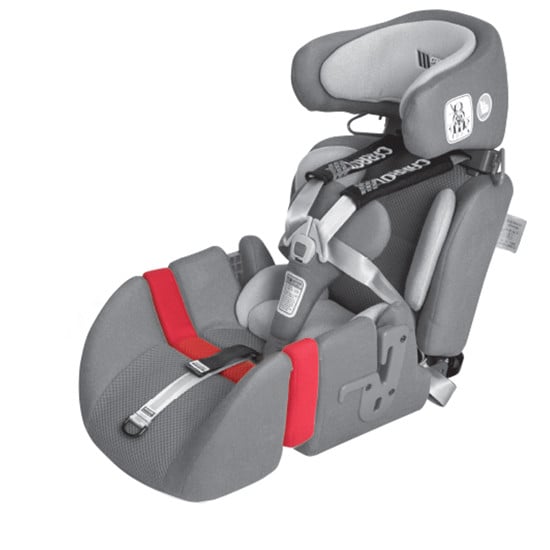

Grows with your child
![Convaid Carrot 3](/globalassets/inriver/resources/image/feature/carrot-3-accessory-faa-fixing-strap-to-aircraft-seat_2.jpg?cache=638479356870000000&width=550&height=550&Quality=90&rmode=max&scale=down)

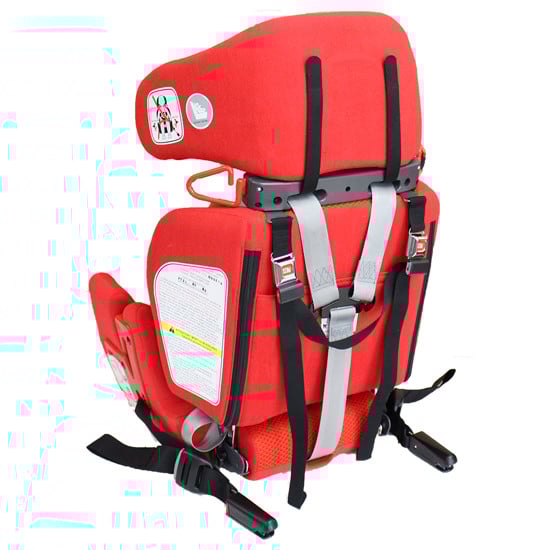

"Free angle" recline 180°
![Convaid Carrot 3](/globalassets/inriver/resources/image/feature/carrot-3-feature-latch-equipped.jpg?cache=638479358470000000&width=550&height=550&Quality=90&rmode=max&scale=down)

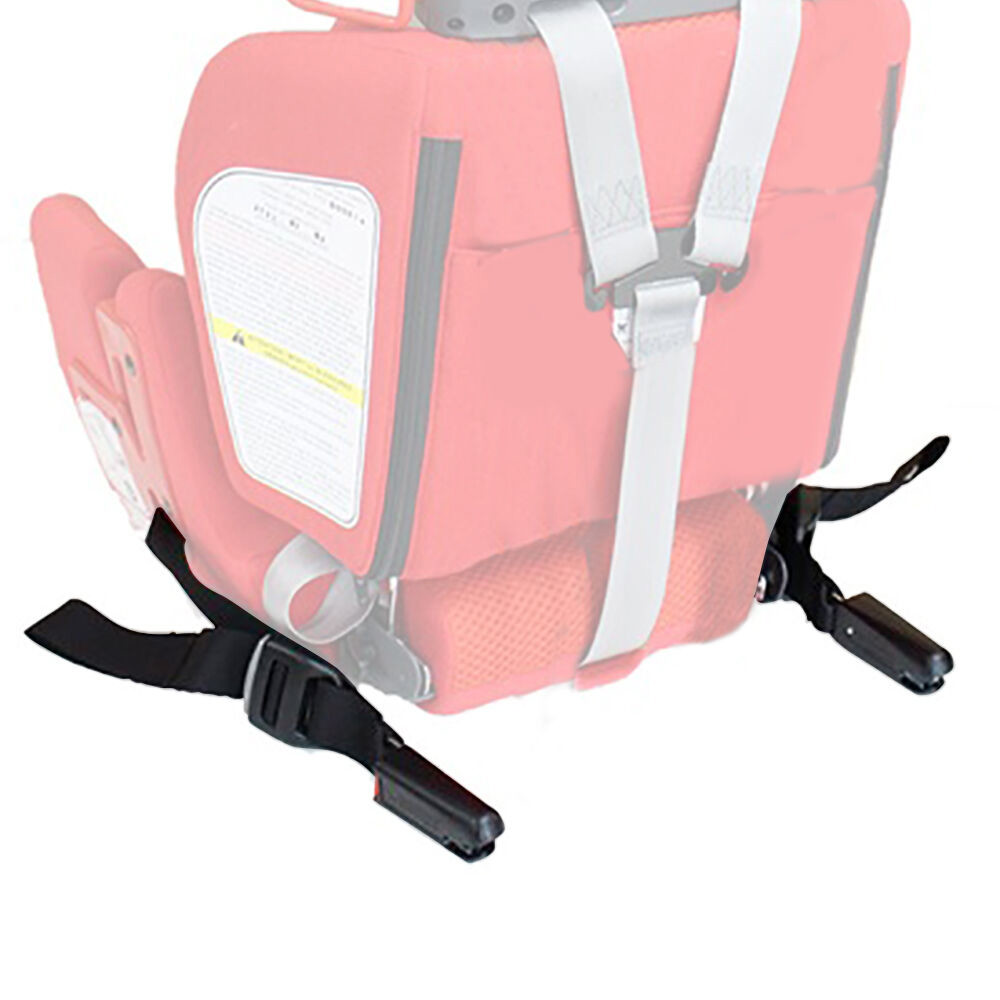

LATCH equipped
Standard specifications
Black | Blue | Red | |
---|---|---|---|
Item number | CT3000-10 | CT3000-20 | CT3000-30 |
Approximate total user height (Inch) | 37-60 | 37-60 | 37-60 |
Back height (inch) | 11.8-12.8 | 11.8-12.8 | 11.8-12.8 |
Head support height (inch) | 8.5 | 8.5 | 8.5 |
Maximum user weight (lbs) | 108 | 108 | 108 |
Minimum user weight (lbs) | 30 | 30 | 30 |
Product weight (lbs) | 19.1 | 19.1 | 19.1 |
Seat depth (inch) | 9.8-11.3 | 9.8-11.3 | 9.8-11.3 |
Seat width (inch) | 11.5 | 11.5 | 11.5 |
Options
Recommended items
![Tether strap](/globalassets/inriver/resources/image/option/carrot-3-recommended-top-tether-strap2.jpg?cache=638462487280000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Tether strap
![Top securement strap](/globalassets/inriver/resources/image/option/carrot-3-recommended-top-securement-strap2.jpg?cache=638462496900000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Top securement strap
![Lower securement strap](/globalassets/inriver/resources/image/option/carrot-3-recommended-lower-securement-strap2.jpg?cache=638462496950000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Lower securement strap
Color options
Choose from three color options.
![Black](/globalassets/inriver/resources/image/option/convaidcarrot3black.png?cache=638462449340000000&width=550&height=550&Quality=90&rmode=max&scale=down)

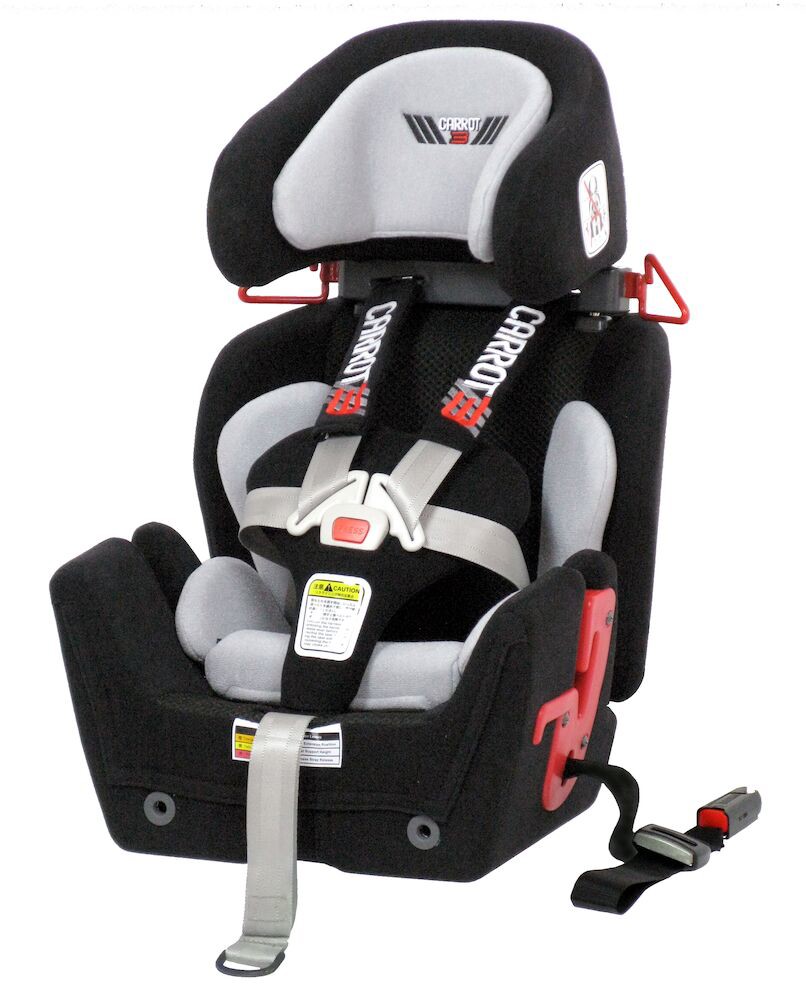

Black

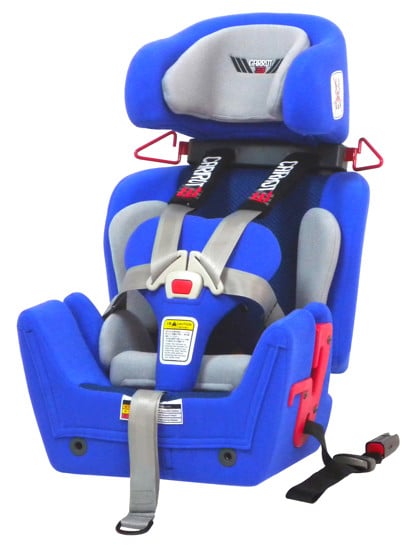

![Blue](/globalassets/inriver/resources/image/option/convaidcarrot3blue2.png?cache=638494988130000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Blue
![Red](/globalassets/inriver/resources/image/option/convaidcarrot3red2.png?cache=638462487230000000&width=550&height=550&Quality=90&rmode=max&scale=down)

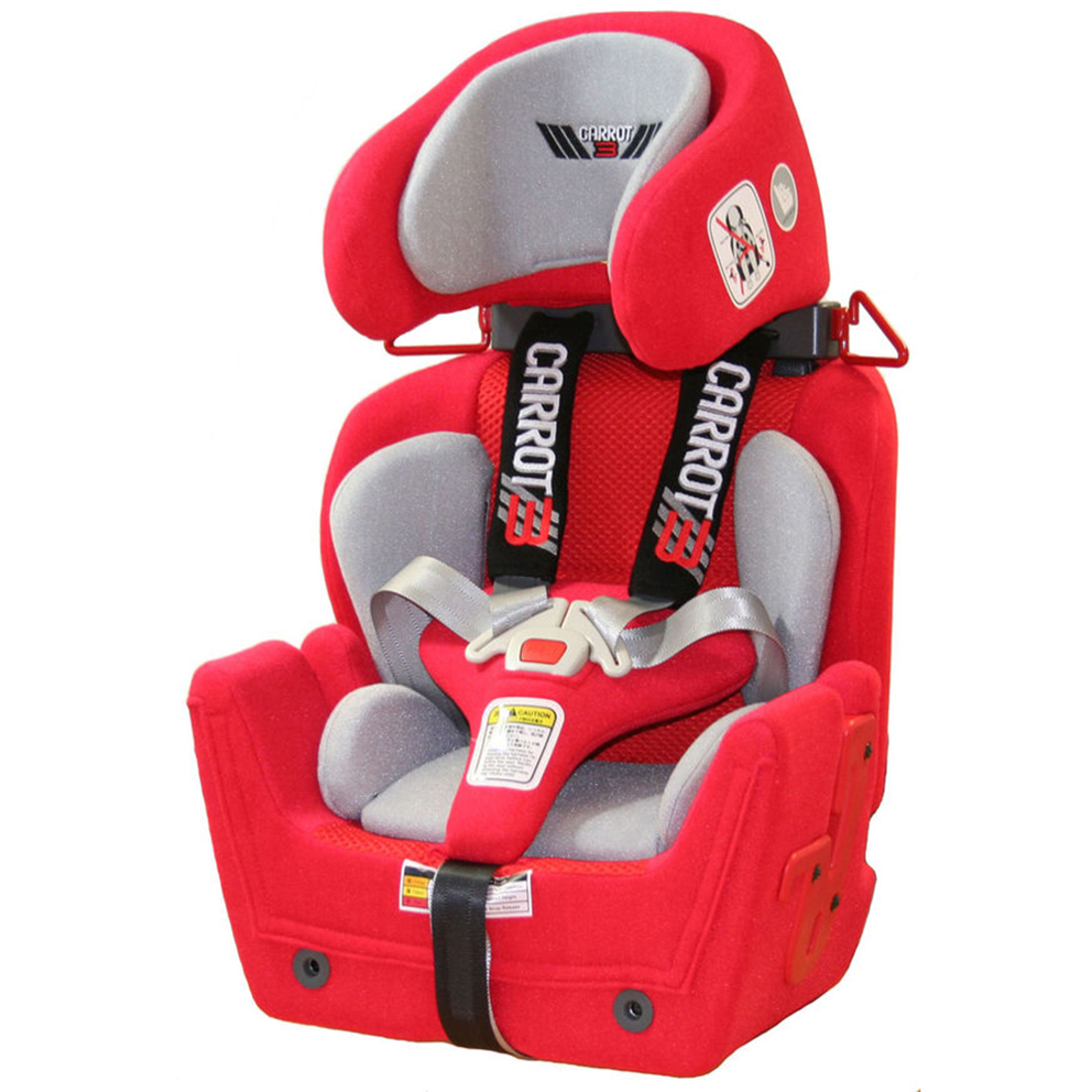

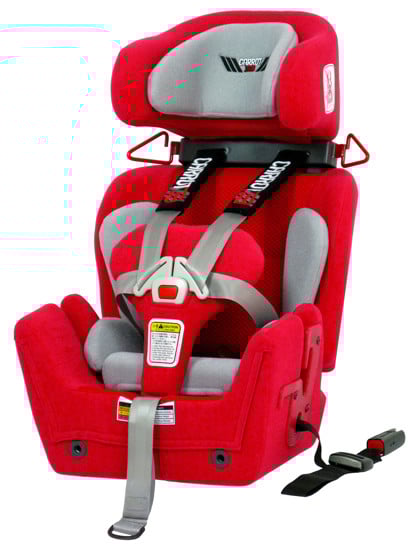

Red
Trunk positioning
The 2" & 4" backrest extensions cannot be used simultaneously.
![2" backrest extension](/globalassets/03-sales--customer-service-employee-blocks/etac-staff-images/etac-international-team/missing_image_camera.png?cache=637489815960000000&width=550&height=550&Quality=90&rmode=max&scale=down)
2" backrest extension

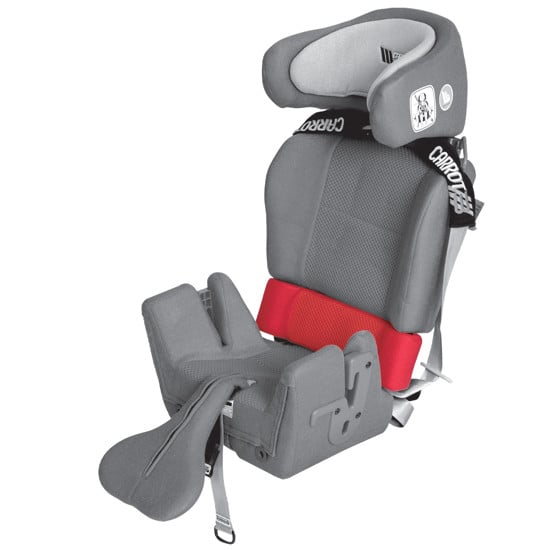

![4" backrest extension](/globalassets/inriver/resources/image/option/carrot-3-trunk-support-backrest-extension-4in-gray-red2.jpg?cache=638462487900000000&width=550&height=550&Quality=90&rmode=max&scale=down)
4" backrest extension

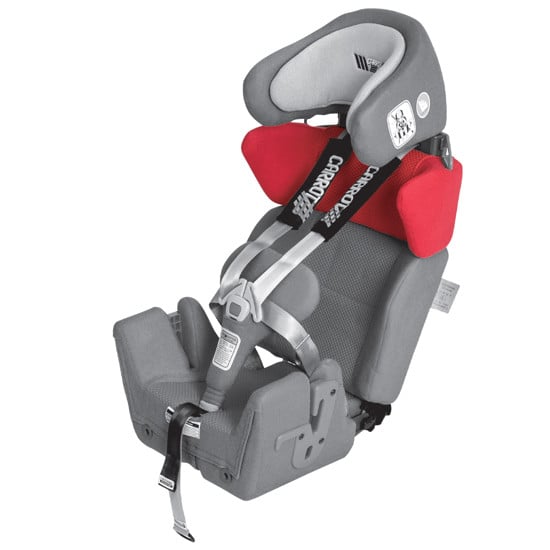

![Shoulder protector wings](/globalassets/inriver/resources/image/option/carrot-3-support-shoulder-protector-wings-gray-red2.jpg?cache=638494989530000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Shoulder protector wings
![Firm lateral trunk supports (black)](/globalassets/inriver/resources/image/option/carrot-3-trunk-support-firm-lateral-trunk-supports-red5.jpg?cache=638462351440000000&width=550&height=550&Quality=90&rmode=max&scale=down)

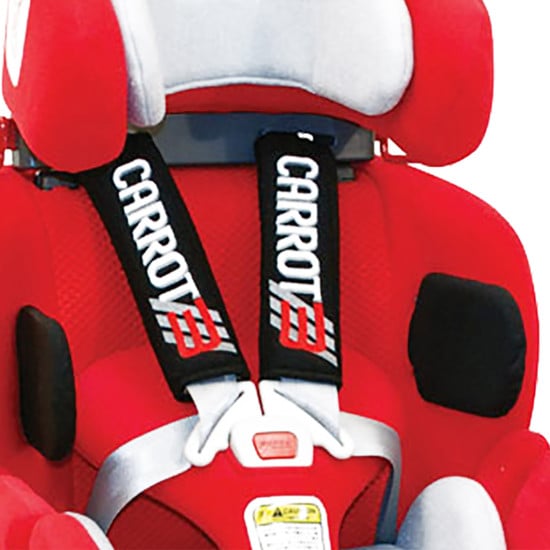

Firm lateral trunk supports (black)
Pelvic positioning
![Rodded seat extension (large/curved)](/globalassets/inriver/resources/image/option/carrot-3-pelvic-support-rodded-seat-extention-7in-off-chair2.jpg?cache=638462487920000000&width=550&height=550&Quality=90&rmode=max&scale=down)

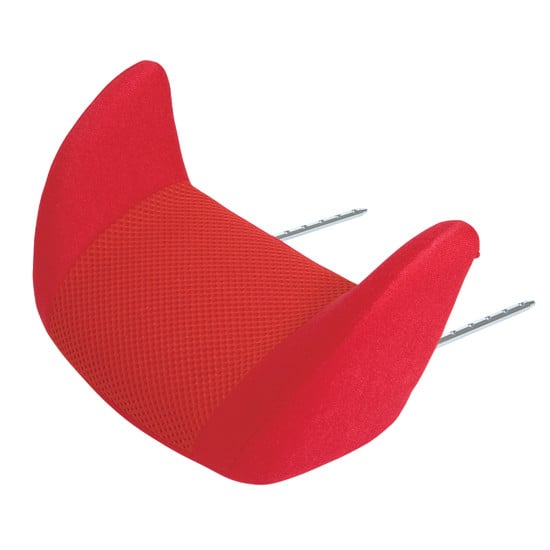

Rodded seat extension (large/curved).
![Rodded seat extension (small/90°)](/globalassets/inriver/resources/image/option/carrot-3-pelvic-support-rodded-seat-extention-2in-off-chair.jpg?cache=638462487340000000&width=550&height=550&Quality=90&rmode=max&scale=down)

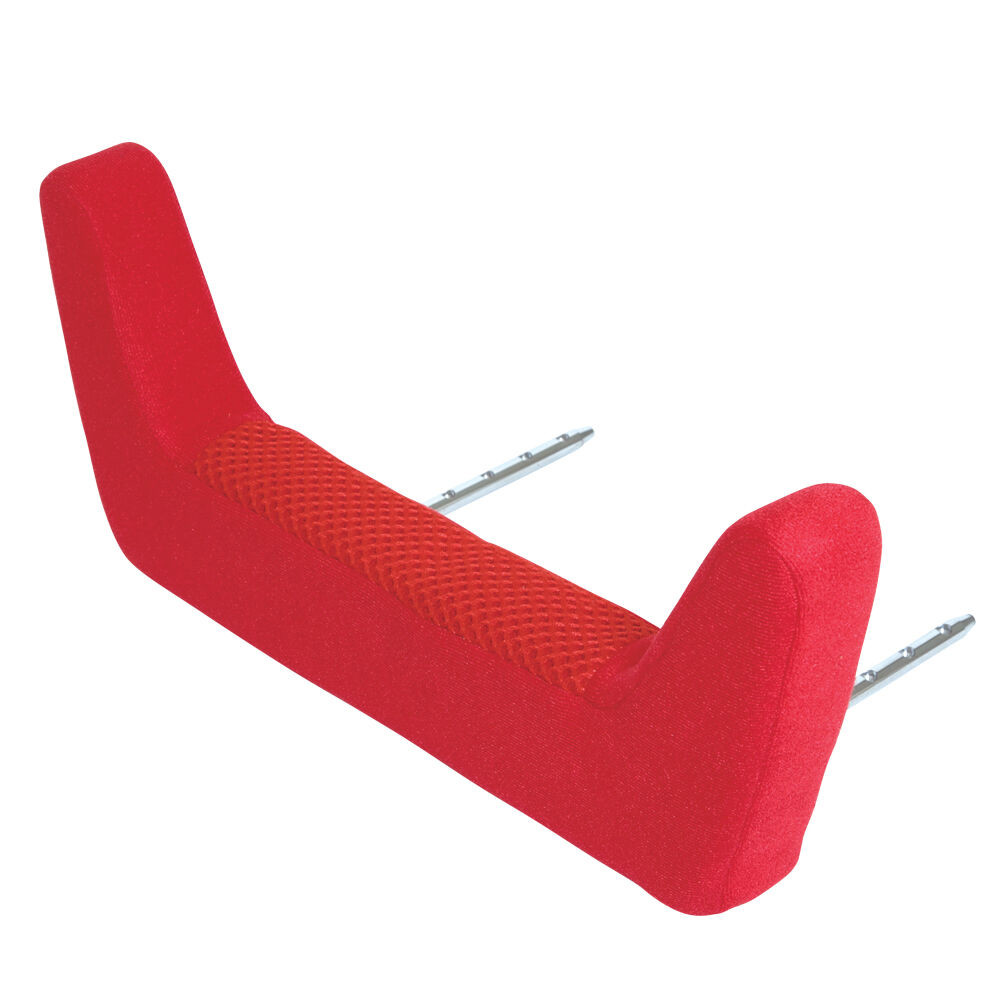

Rodded seat extension (small/90°)
![2" Seat extension](/globalassets/inriver/resources/image/option/carrot-3-pelvic-support-seat-extention-off-chair-2in.jpg?cache=638462487650000000&width=550&height=550&Quality=90&rmode=max&scale=down)

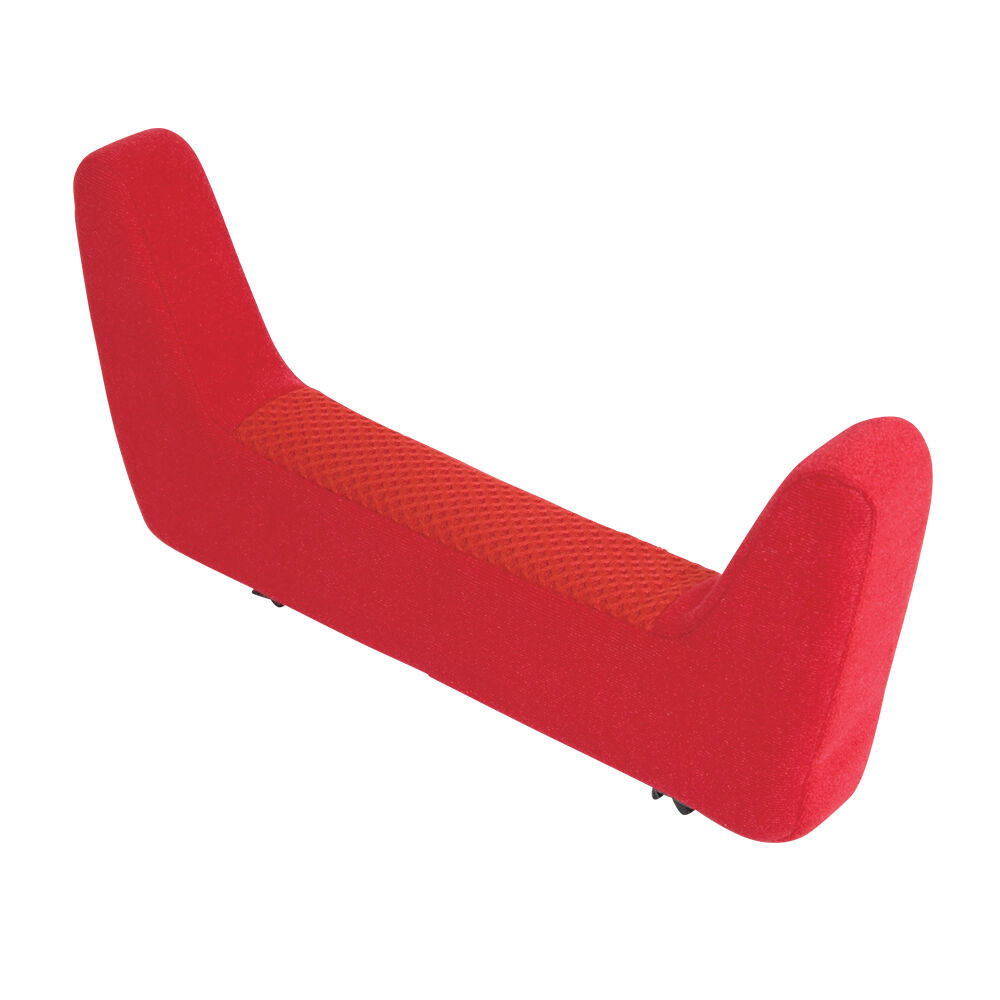

2" Seat extension
![4" Seat extension](/globalassets/inriver/resources/image/option/carrot-3-pelvic-support-seat-extention-off-chair-4in2.jpg?cache=638462496300000000&width=550&height=550&Quality=90&rmode=max&scale=down)

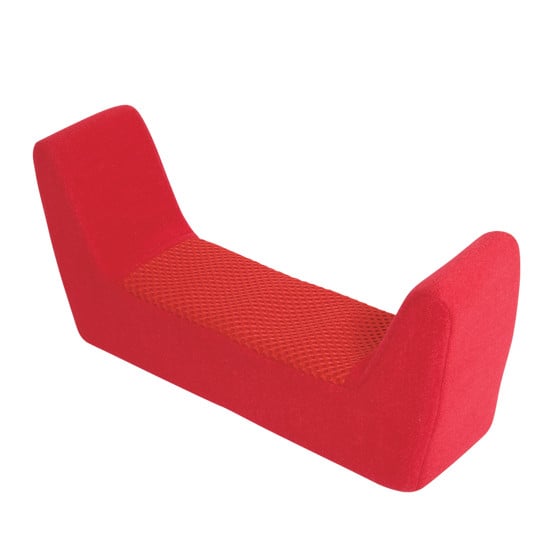

4" Seat extension

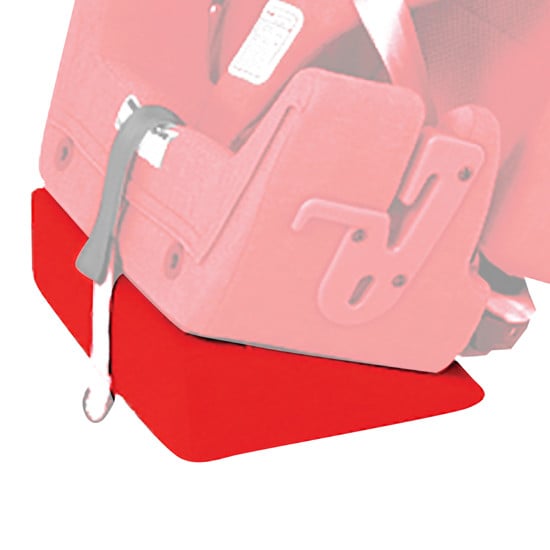

![Seat angle adjustment wedge](/globalassets/inriver/resources/image/option/carrot-3-pelvic-support-seat-angle-adjustment-wedge2.jpg?cache=638462271860000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Seat angle adjustment wedge

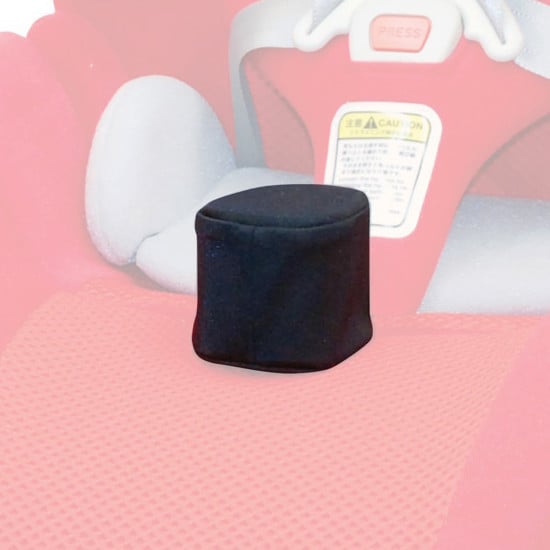

![Pommel](/globalassets/inriver/resources/image/option/carrot-3-pelvic-support-pommel2.jpg?cache=638462450640000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Pommel
![Anti-adduction/knee separator pad](/globalassets/inriver/resources/image/accessory/carrot-3-pelvic-support-anti-adduction-knee-separator-pad2.jpg?cache=638462281380000000&width=550&height=550&Quality=90&rmode=max&scale=down)

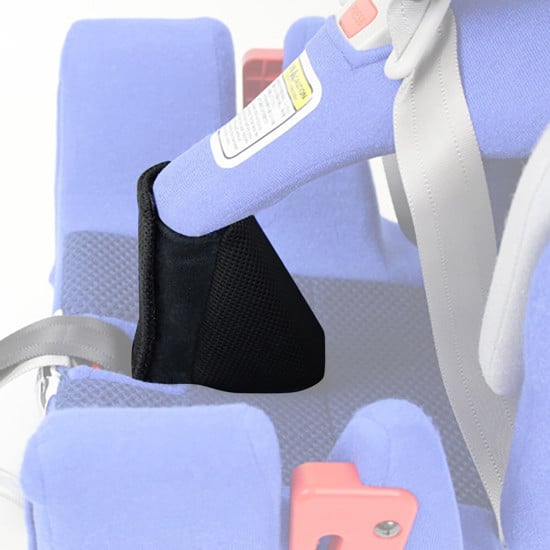

Anti-adduction/knee separator pad
Foot & leg positioning
The rodded footrests provide lower extremity support for added comfort, positioning, and improved circulation.
![Rodded footrest](/globalassets/inriver/resources/image/option/carrot-3-footleg-positioning-rodded-footrest2.jpg?cache=638462487510000000&width=550&height=550&Quality=90&rmode=max&scale=down)

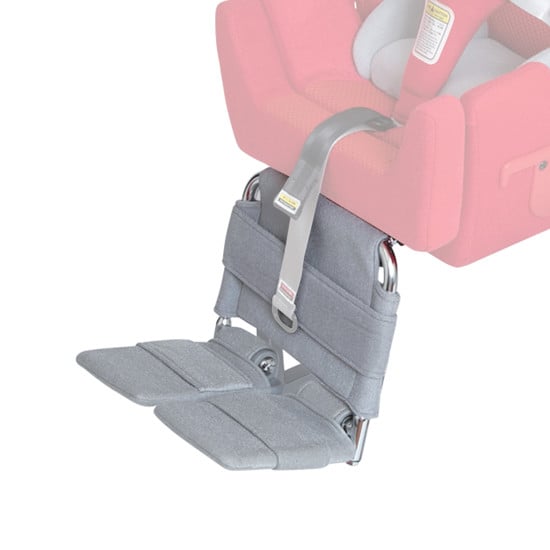

Rodded footrest
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
![Convaid Carrot 3 - How to install in a vehicle with LATCH anchor points](/globalassets/inriver/resources/video/intructionalvideo/pj_ffv1s8di2.jpg?width=550&Quality=90&scale=down)
Convaid Carrot 3 - How to install in a vehicle with LATCH anchor points
![Convaid Carrot 3 - How to install in a vehicle without LATCH anchor points](/globalassets/inriver/resources/video/intructionalvideo/pcu3z5nlrvs2.jpg?width=550&Quality=90&scale=down)
Convaid Carrot 3 - How to install in a vehicle without LATCH anchor points
![Convaid Carrot 3 - Attaching Fixing Strap to Aircraft Seat](/globalassets/inriver/resources/video/intructionalvideo/dypzpx__5a8.jpg?width=550&Quality=90&scale=down)

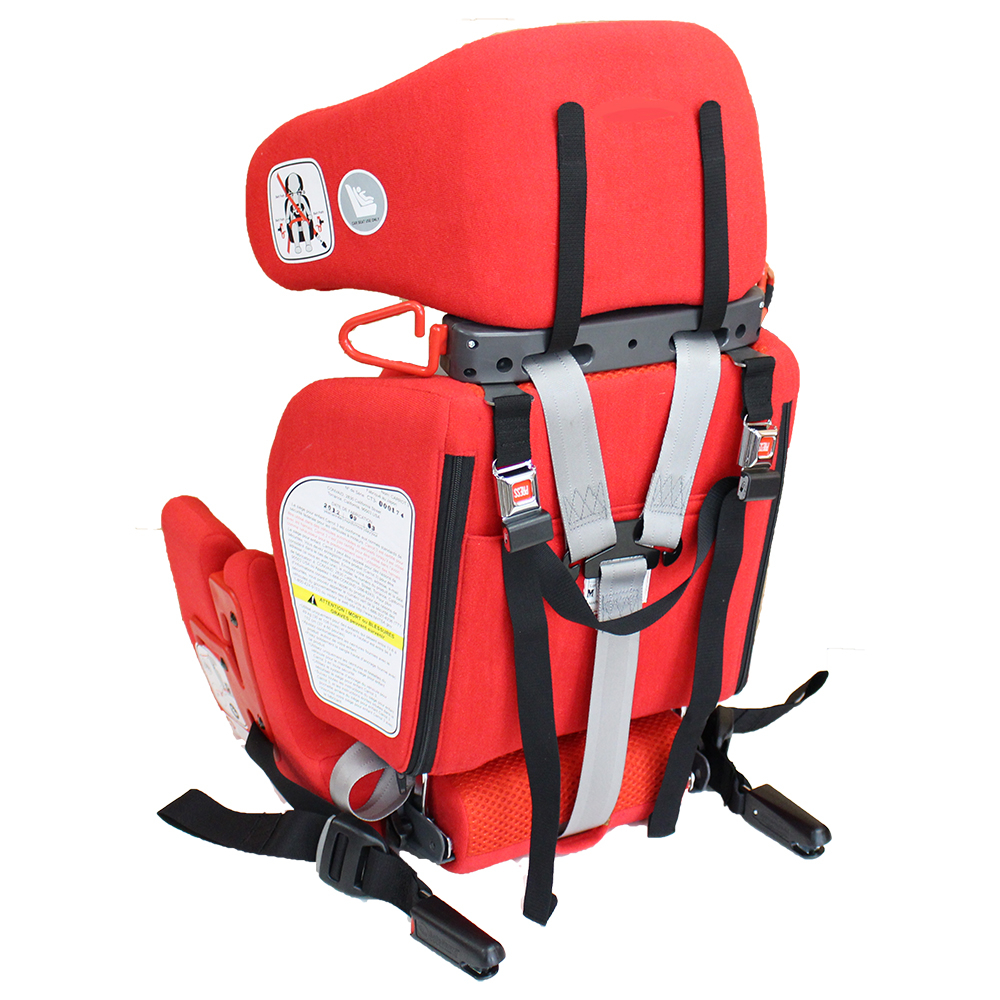

Convaid Carrot 3 - Attaching Fixing Strap to Aircraft Seat
![Convaid Carrot 3 - Installing to Aircraft Passenger Seat](/globalassets/inriver/resources/video/intructionalvideo/us8_c_vm6ha2.jpg?width=550&Quality=90&scale=down)
