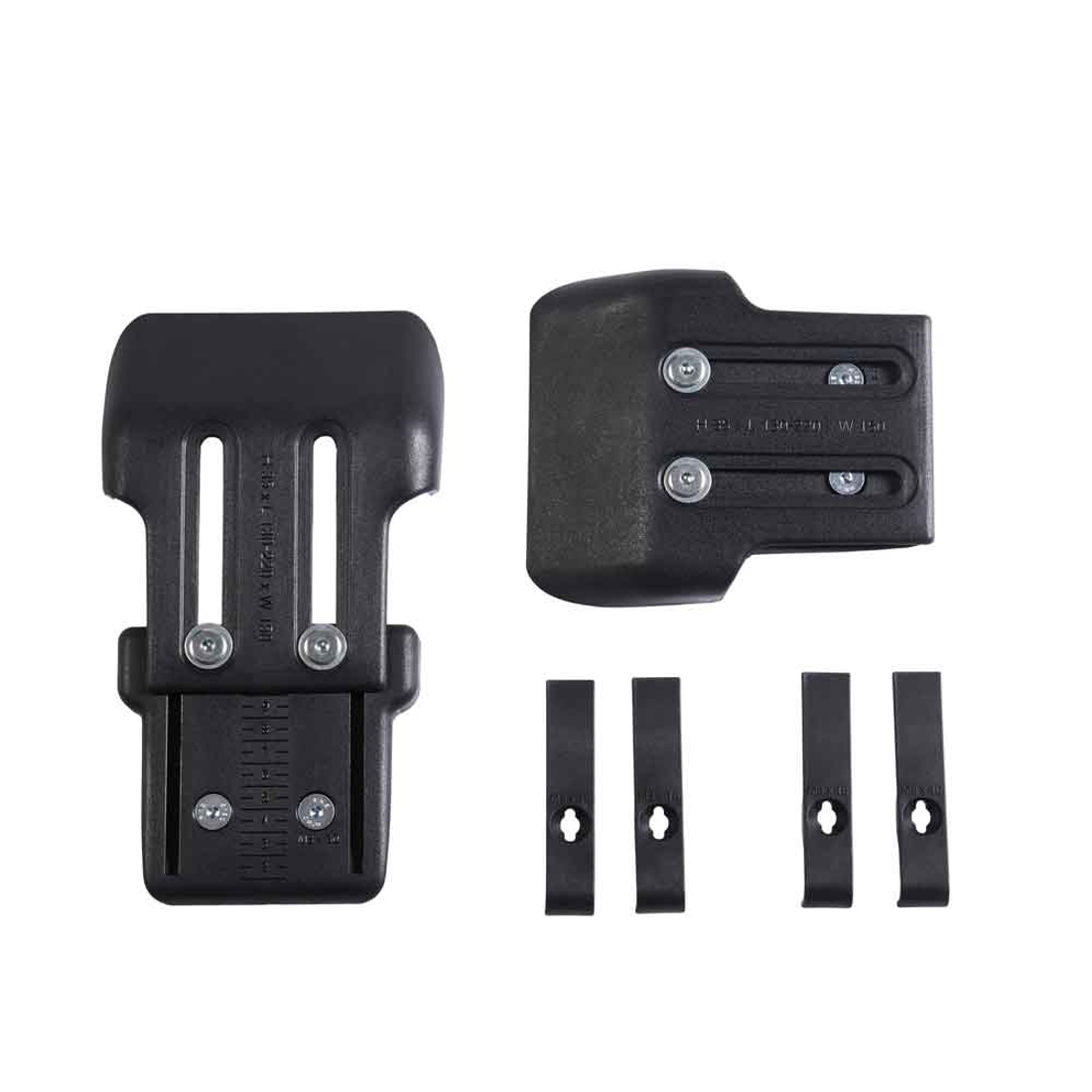

Adjustable Anti-Thrust Wedges

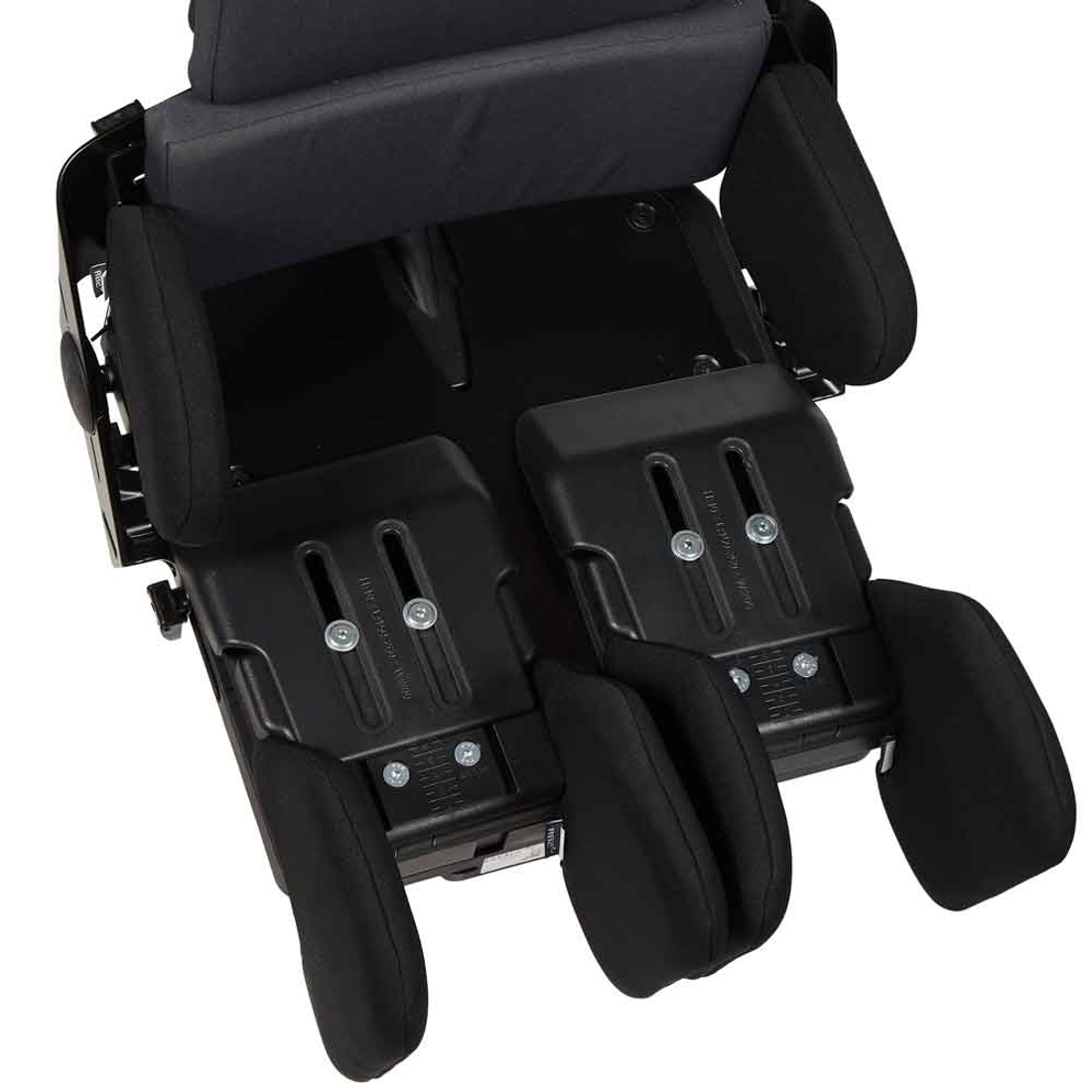

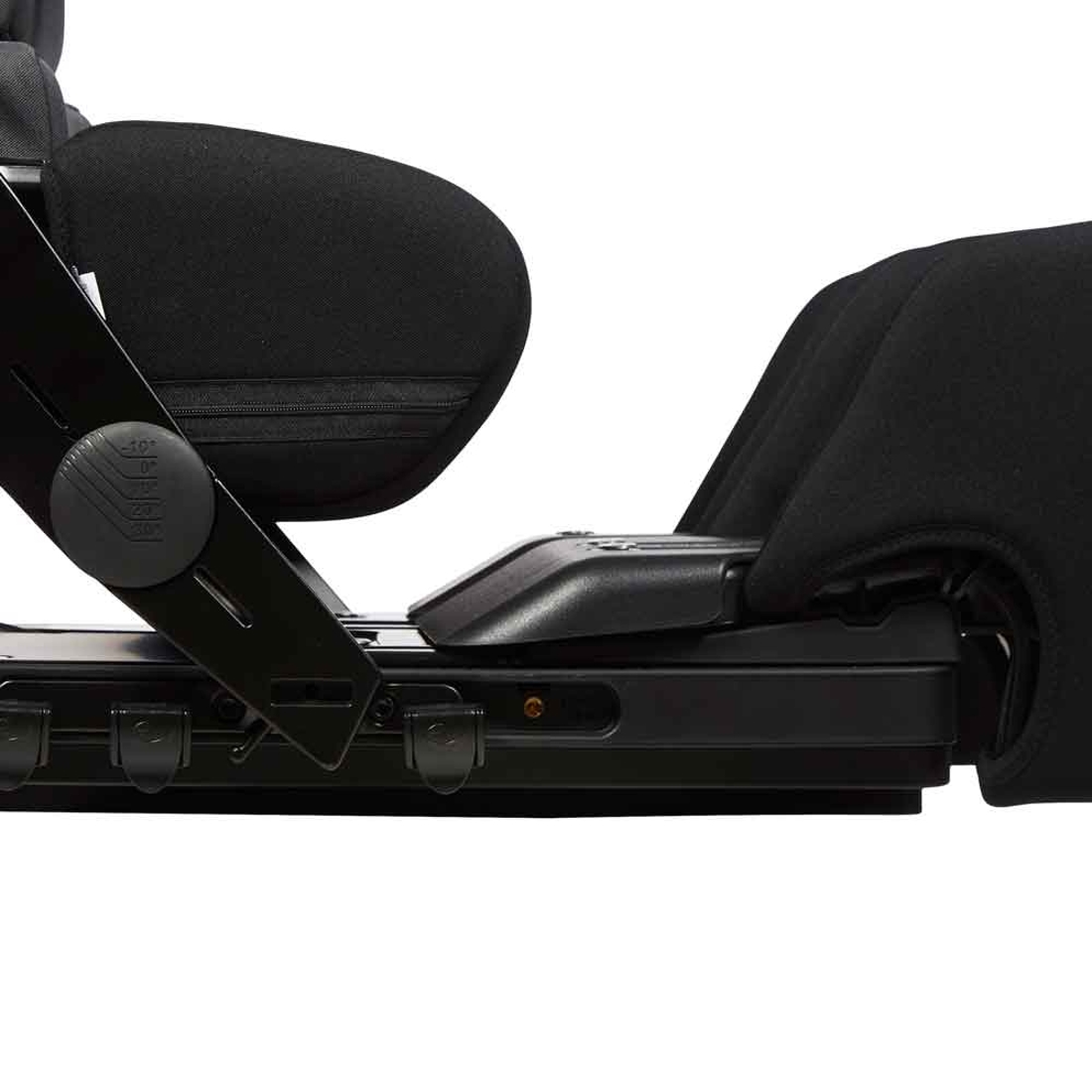

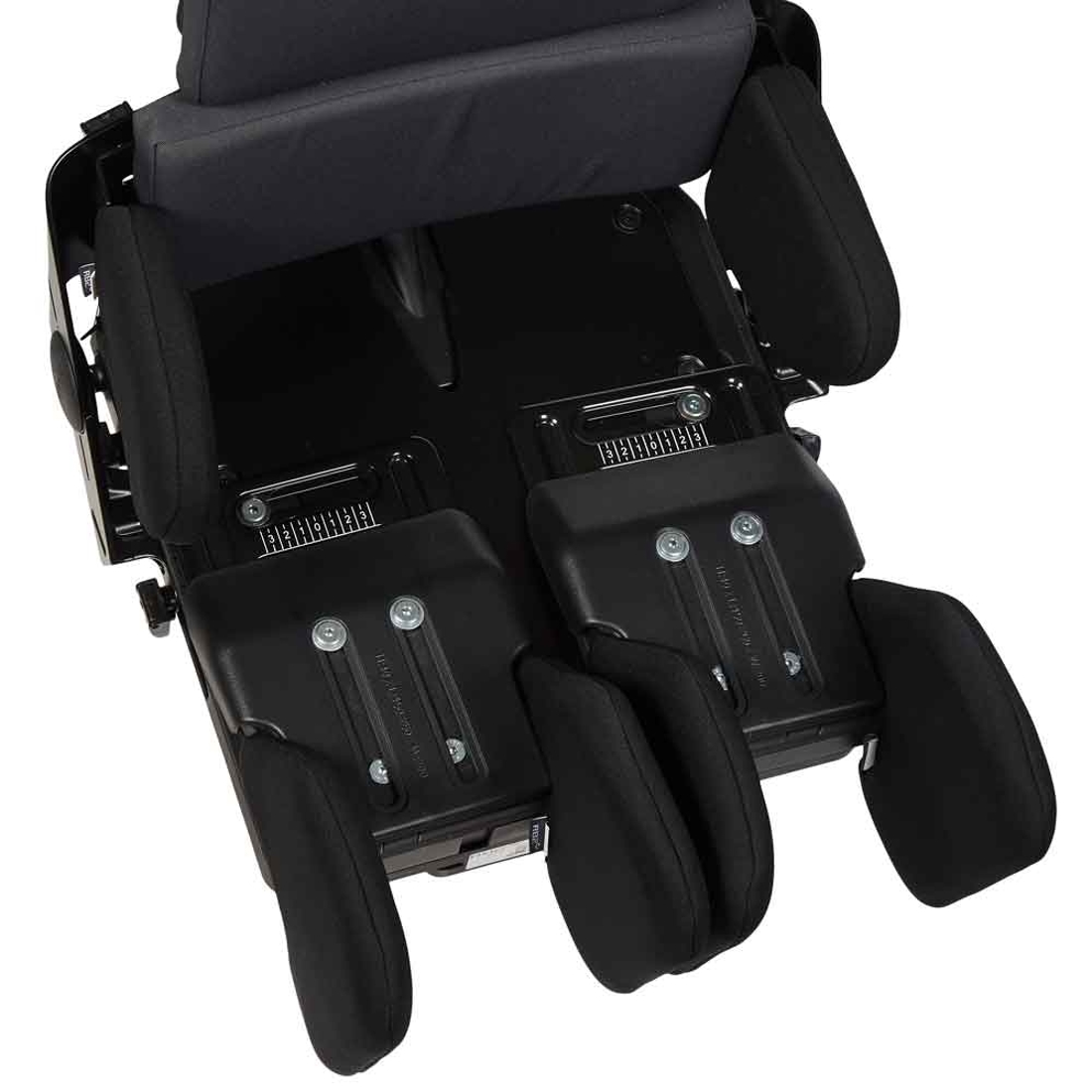

Seat wedges create a gentle contour in the seat and enhance function and pressure distribution by accommodating the ischial tuberosities. The wedges increase the contact area between the user and the cushion, providing pelvis stability and control through optimal positioning, and preventing the pelvis from rolling backwards. The wedges are adjustable in length to accommodate the needs of a growing child. Only for advanced seating.
Standard specifications
| Size 1, short | Size 1, medium | Size 1, long | Size 2, medium | Size 2, long | |
|---|---|---|---|---|---|
| Item number | 905052 | 905053 | 905054 | 905055 | 905056 |
| Compatible with | x:panda shape size 1 | x:panda shape size 1 | x:panda shape size 1 | x:panda size 2* | x:panda shape size 2* |
| Height (inch) | 0,8 | 1.2 | 1.8 | 1.4 | 2 |
| Length (inch) | 2.8-4.3 | 4.3-6.9 | 4.7-7.9 | 5.1-8.7 | 5.5-9.4 |
| Width (inch) | 4.5 | 5.3 | 5.3 | 5.9 | 5.9 |
*also usable on size 1 seat plates for advanced seating, width 300 mm. **also usable on size 2 seat plates for advanced seating, width 400mm.
