Molift Quick Raiser 1

Compact design and excellent maneuverability even in narrow spaces

Compact and easy
By virtue of its compact design and low weight, Molift Quick Raiser 1 is stable and easy to maneuver. The unique wheel position and near-perfect weight distribution of the base provides a small turning radius with easy maneuverability even in narrow spaces.

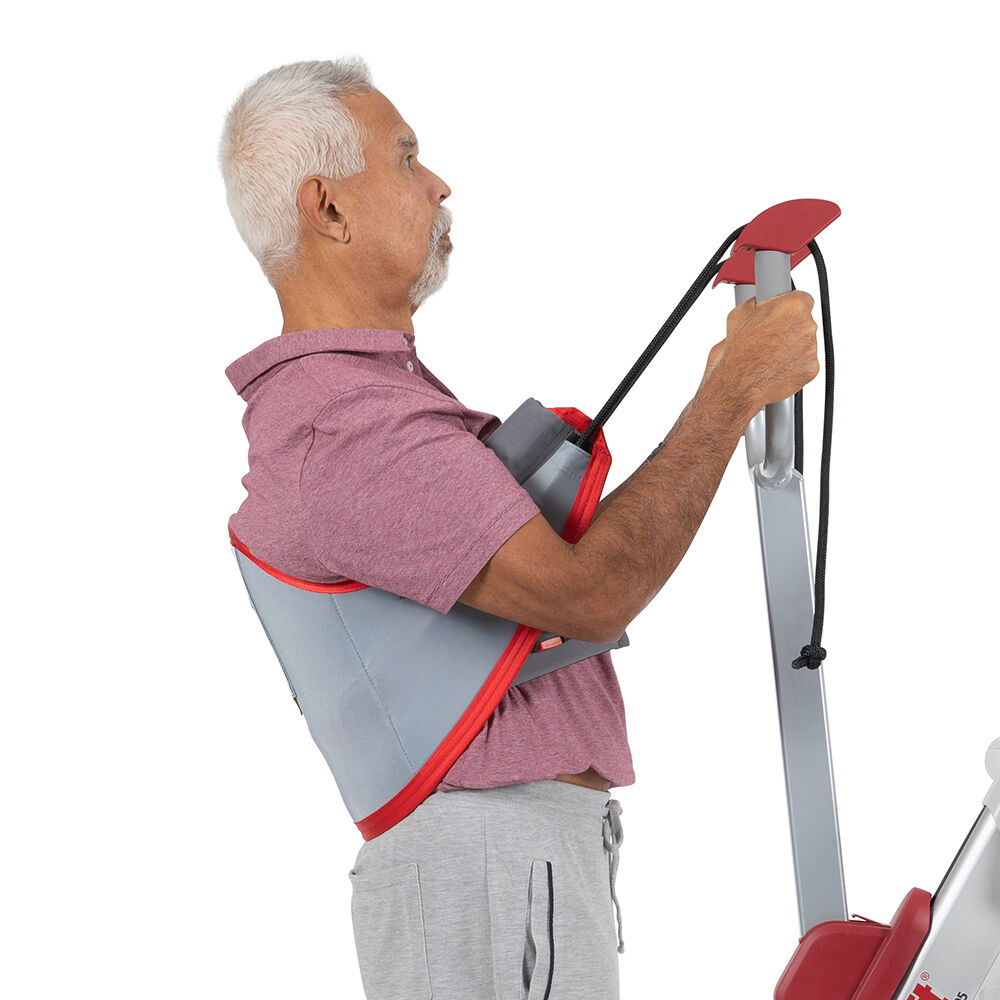

Natural pattern of movement
The inclined straight column imitates the natural pattern of movement and fulfils the lifting needs of users with some degree of weight-bearing capacity. Molift Quick Raiser 1 has a safe working load of 352 lbs.

The extra low base, 2.8 inches, and narrow front, 13.5 inches, fits well around toilets and under most beds, chairs and wheelchairs.

Molift Service Tool on laptop_800x450.jpg

Molift Service Tool - an intelligent software

All Molift lifts are supplied with the Molift Service Tool – an intelligent software that interacts with the lift, ensures correct service and maintenance and enables analysis of the lift's use.

Features

Extra low base

Extra low base with narrow front for easy access.

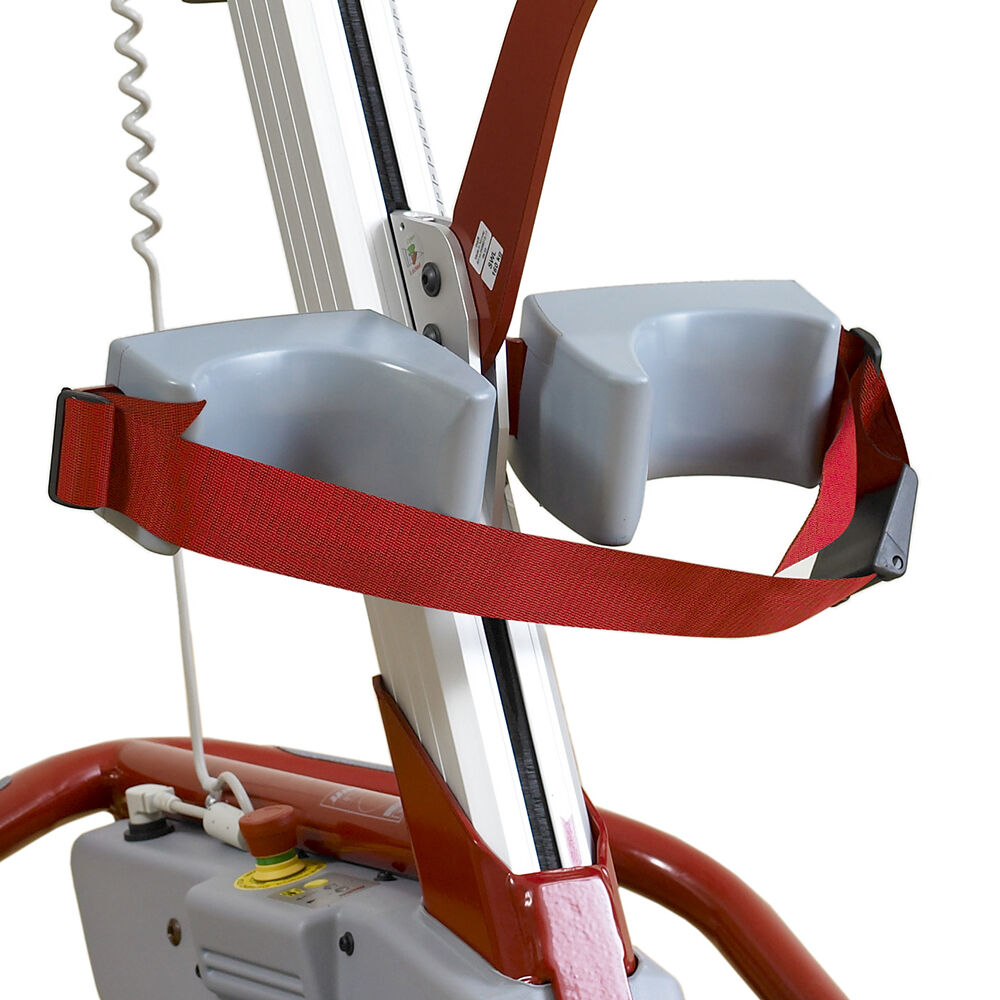

Multiple adjustable knee pads

The knee pads are height adjustable and can be turned around for better fitting and to give alternative support for the legs.

Battery indicator

All Molift lifts have an integrated battery indicator that provides audio and visual notification.

Standard specifications

Specifications common for all sizes
Height (inch)	50	Maximum user weight (lbs)	352
Leg height (inch)	2.8	Weight (lbs)	66
Length (inch)	37.5	Width chassis, outer (inch)	24
Material	Aluminum, steel

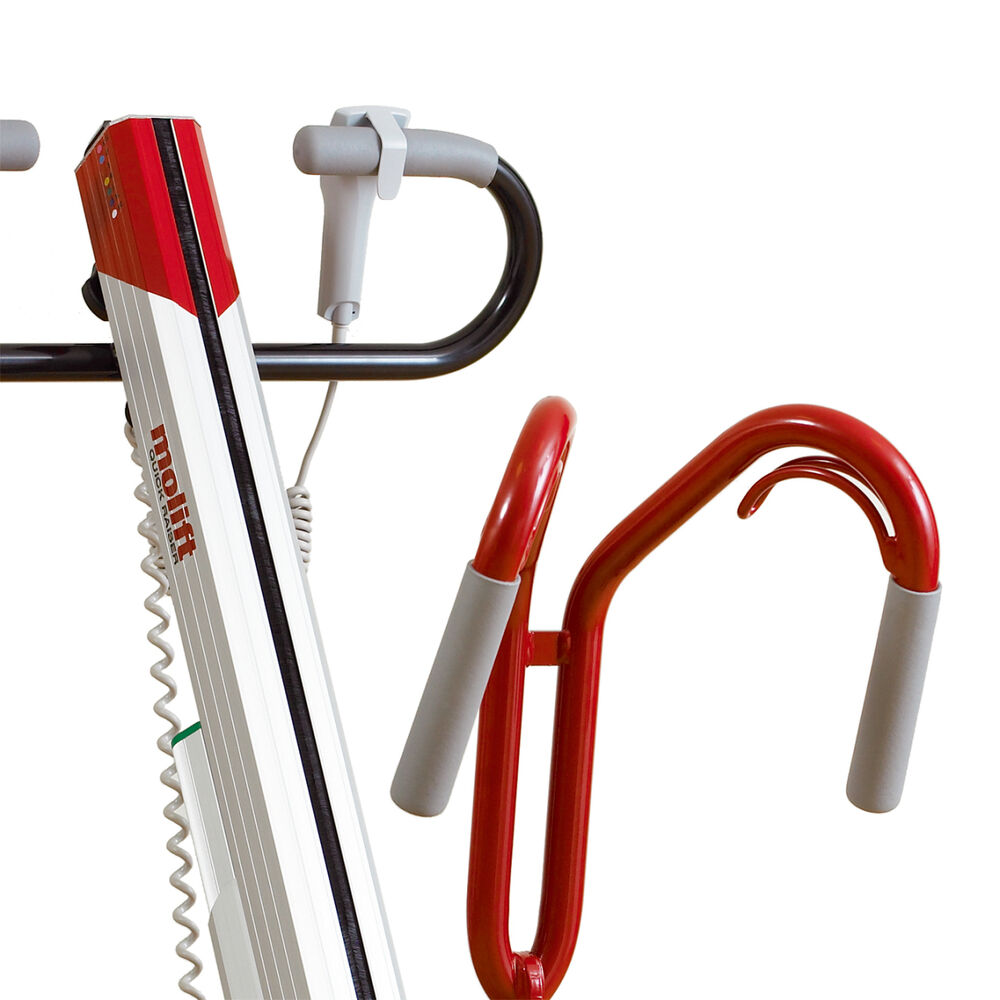

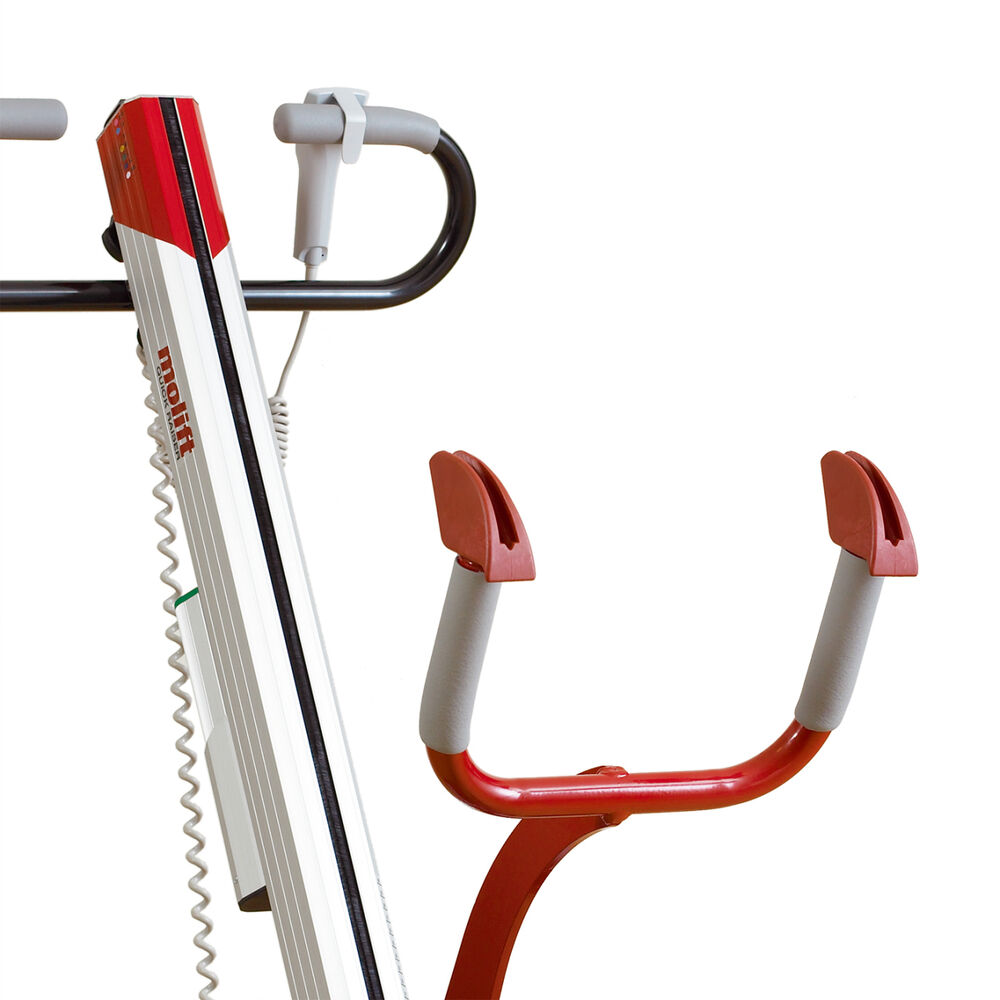

	V-shape arm	U-shape arm
Item number	M04100	M04150

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
