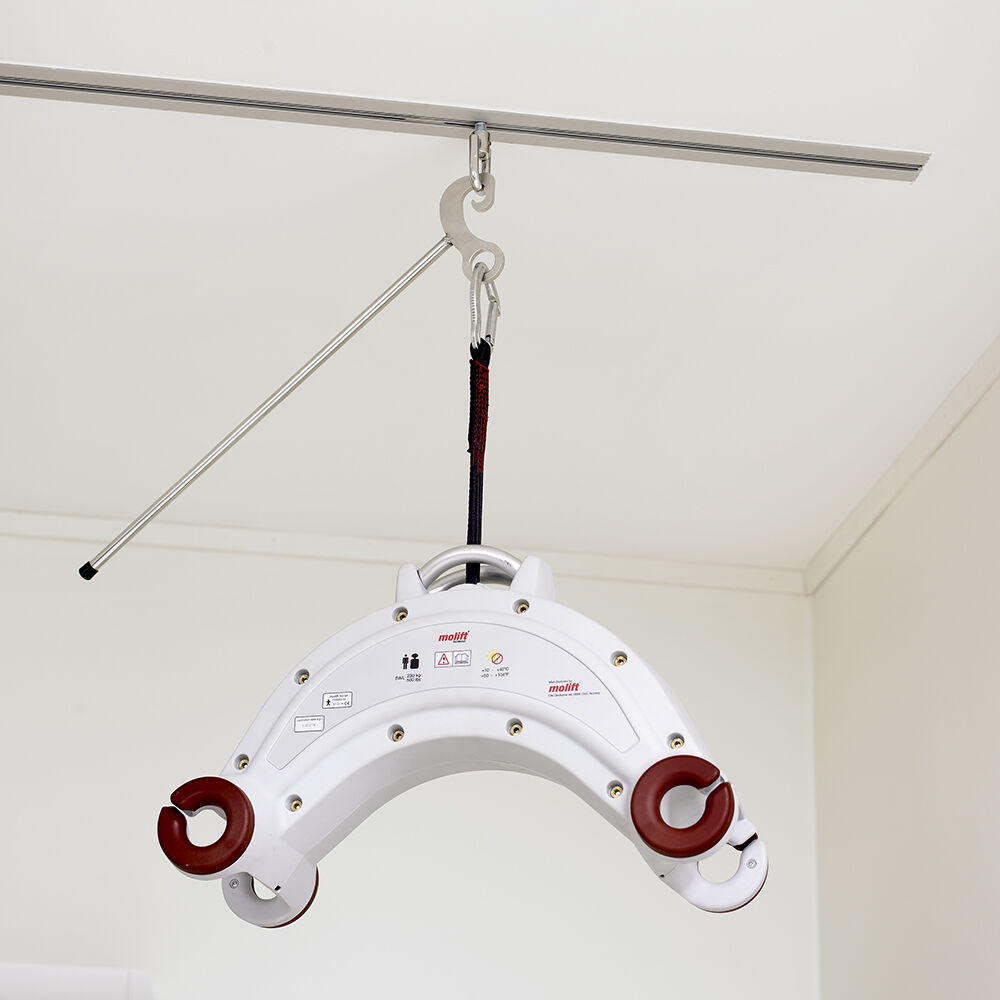

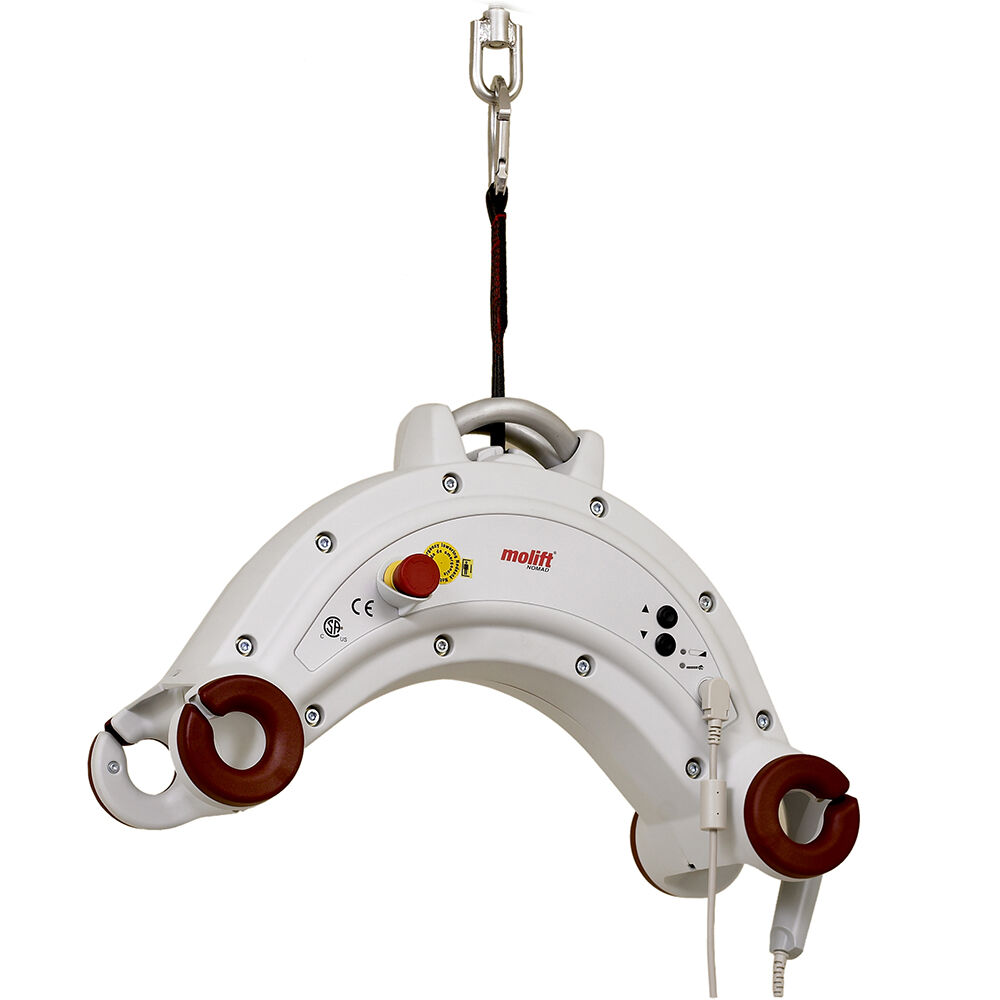

Molift Nomad
With a unique curved design for comfortable and spacious position
Molift Nomad has a unique curved design, and the integrated 4-point sling bar provides the user with a comfortable and spacious position. The lift can be used with all passive Molift Slings. Molift Nomad has numerous safety features such as electronic overload protection, electrical emergency lowering and emergency stop.
Low weight – high hoisting capacity
The Molift Nomad weighs only 6.8 kg. Despite its low weight, It has a lifting capacity of up to 255 kg. The lift also has integrated carry handles for easy handling. In combination with a specially designed trolley, the Molift Nomad can climb from one rail system to another without a transition rail, resulting in easy transfer from room to room.
Connects and disconnects easily – without any tools
Using the Molift Nomad Extension Arm, a single carer can easily connect and disconnect the Molift Nomad. The Etac Cart is ideal for storing and transporting the lift. Molift Nomad provides flexibility for day-to-day operations, as well as for temporary needs.
Accessible controls
The operation of Molift Nomad is easily accessible through the handset or the integrated display in the front. It is operated by environmentally friendly NiMH batteries and equipped with audio and visual battery indicators.
Automatic service notification
The automatic service notification system calculates and indicates when service is required. The integrated software Molift Service Tool also retrieves data about lifter usage and service history.
Features
![Molift Nomad](/globalassets/inriver/resources/image/feature/accessible-controls.jpg?cache=638479149160000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Accessible controls
![Molift Nomad](/globalassets/inriver/resources/image/feature/unique-curved-design.jpg?cache=638479149210000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Unique curved design
![Molift Nomad](/globalassets/inriver/resources/image/feature/molift-nomad-battery-charger-2_550047.jpg?cache=638479149260000000&width=550&height=550&Quality=90&rmode=max&scale=down)
Molift Nomad battery charger
![Molift Nomad](/globalassets/inriver/resources/image/feature/molift-service-tool.jpg?cache=638479344160000000&width=550&height=550&Quality=90&rmode=max&scale=down)

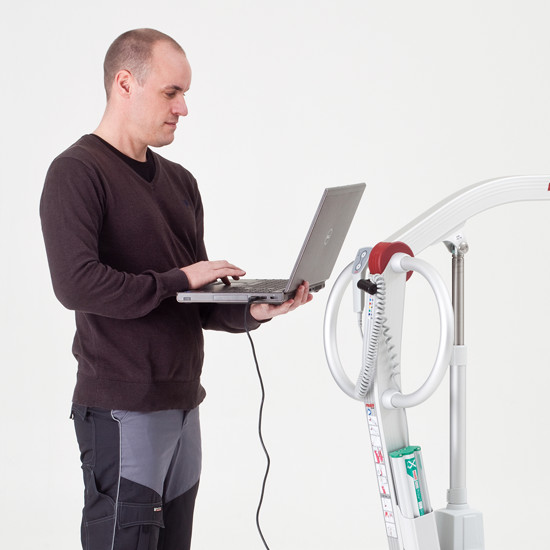

Molift Service Tool
Standard specifications
Specifications common for all sizes | |||
---|---|---|---|
Battery | NiMh 26,4 V-2,6 Ah | Material | Reinforced composite and aluminum |
Battery charge time (hours) | 4 | Protection class | IPX4 |
Height (inch) | 13 | Rated performance | 80 lifts at 165 lbs/20 inch |
Length (inch) | 20.55 | Service software | Molift Service Tool |
Lifting interval (inch) | 79 | Weight (lbs) | 15 |
Lifting speed 165 lbs (inch/sec) | 1.18 | Width (inch) | 8 |
Item number | Safe Working Load SWL (lbs) | |
---|---|---|
Molift Nomad 205 | M22205 | 451 |
Molift Nomad 255 | M22255 | 562 |
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
