Star StabilAir

The StabilAir cushion is a single chamber vertical air cell cushion with foam baffles for added stability, making the StabilAir the perfect first air cushion.

Slowed Airflow Enhancing Stability
Each StabilAir cushion has two sizes of foam cylinders which are higher on the outside, while those under the buttocks, coccyx and legs are lower. The foam cylinders in the air cells function as baffles, slowing the movement of air and enhancing stability. The air pocket above the foam similarly enables effective pressure redistribution, just like all Star Cushions.

Ideal cushion solution if used to a foam cushion
StabilAir is the ideal cushion solution for users who are used to the feel of a foam cushion but need the protection of a vertical air cell cushion.

Star Cushions - Clinical Guide

This clinical guide is to help you, as a prescriber, select the right Star cushion and make an optimal setup to meet an individual user’s needs. Discover it here.

It is also available as a downloadable pdf to keep it close at hand whenever needed.

Star StabilAir + Star Sentinel, powered by Kalogon - The perfect combination

StabilAir and Sentinel make the perfect combination for a 'go anywhere' wheelchair seating cushion without the complexity of a locking mechanism. Together they provide the ultimate air cushion — a cushion which automatically adjusts to changes in altitude or wheelchair tilt angle.

Features

Vertical Air Cell

Interconnected vertical air cell cushions have long been used for pressure redistribution due to high envelopment and immersive properties and reduced surface tension.

Pressure Redistribution

The interconnected air cells ensure excellent pressure redistribution properties, continually readjusted to the user’s shape as they move in their seat.

Adjustability

The air level can be adjusted and reset again and again to achieve the optimal amount of immersion for the individual.

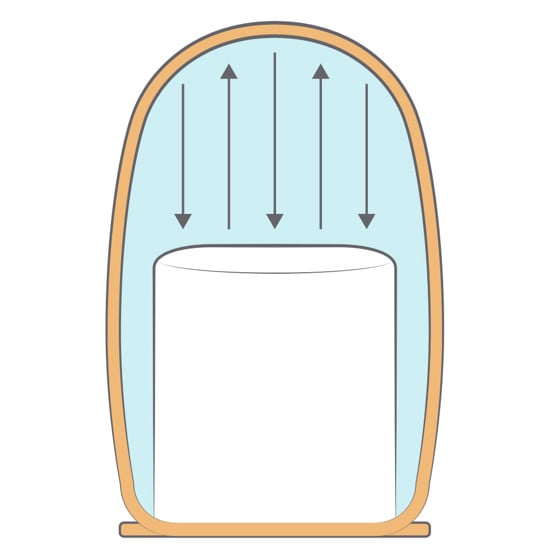

Foam Baffles

Each cell has a built-in soft foam cylinder, which acts as a baffle, slowing air movement throughout the cushion to increase stability. In addition, the foam cylinders are higher on the side to maximise stability.

Variants and details

	Item number	Cell height (mm)	Maximum user weight	Suits wheelchair seat depth (mm)	Suits wheelchair seat width (mm)
26 x 26 cm	ESSA30909-1	75	Unlimited	240-270	220-250
26 x 30 cm	ESSA30911-1	75	Unlimited	280-310	220-250
26 x 34 cm	ESSA30913-1	75	Unlimited	320-350	220-250
30 x 26 cm	ESSA31109-1	75	Unlimited	240-270	250-300
30 x 30 cm	ESSA31111-1	75	Unlimited	280-310	250-300
30 x 34 cm	ESSA31113-1	75	Unlimited	320-350	250-300
30 x 39 cm	ESSA31115-1	75	Unlimited	360-400	250-300
34 x 26 cm	ESSA31309-1	75	Unlimited	240-270	300-350
34 x 30 cm	ESSA31311-1	75	Unlimited	280-310	300-350
34 x 34 cm	ESSA31313-1	75	Unlimited	320-350	300-350
34 x 39 cm	ESSA31315-1	75	Unlimited	360-400	300-350
34 x 44 cm	ESSA31317-1	75	Unlimited	410-450	300-350
39 x 30 cm	ESSA31511-1	75	Unlimited	280-310	350-400
39 x 34 cm	ESSA31513-1	75	Unlimited	320-350	350-400
39 x 39 cm	ESSA31515-1	75	Unlimited	360-400	350-400
39 x 44 cm	ESSA31517-1	75	Unlimited	410-450	350-400
39 x 49 cm	ESSA31519-1	75	Unlimited	460-500	350-400
39 x 53 cm	ESSA31521-1	75	Unlimited	510-550	350-400
44 x 34 cm	ESSA31713-1	75	Unlimited	320-350	400-440
44 x 39 cm	ESSA31715-1	75	Unlimited	360-400	400-440
44 x 44 cm	ESSA31717-1	75	Unlimited	410-450	400-440
44 x 49 cm	ESSA31719-1	75	Unlimited	460-500	400-440
44 x 53 cm	ESSA31721-1	75	Unlimited	510-550	400-440
49 x 39 cm	ESSA31915-1	75	Unlimited	360-400	440-490
49 x 44 cm	ESSA31917-1	75	Unlimited	410-450	440-490
49 x 49 cm	ESSA31919-1	75	Unlimited	460-500	440-490
49 x 53 cm	ESSA31921-1	75	Unlimited	510-550	440-490
53 x 39 cm	ESSA32115-1	75	Unlimited	360-400	490-540
53 x 44 cm	ESSA32117-1	75	Unlimited	410-450	490-540
53 x 49 cm	ESSA32119-1	75	Unlimited	460-500	490-540
53 x 53 cm	ESSA32121-1	75	Unlimited	510-550	490-540
26 x 26 cm	ESSA40909-1	100	Unlimited	240-270	220-250
26 x 30 cm	ESSA40911-1	100	Unlimited	280-310	220-250
26 x 34 cm	ESSA40913-1	100	Unlimited	320-350	220-250
30 x 26 cm	ESSA41109-1	100	Unlimited	240-270	250-300
30 x 30 cm	ESSA41111-1	100	Unlimited	280-310	250-300
30 x 34 cm	ESSA41113-1	100	Unlimited	320-350	250-300
30 x 39 cm	ESSA41115-1	100	Unlimited	360-400	250-300
34 x 26 cm	ESSA41309-1	100	Unlimited	240-270	350-400
34 x 30 cm	ESSA41311-1	100	Unlimited	280-310	300-350
34 x 34 cm	ESSA41313-1	100	Unlimited	320-350	300-350
34 x 39 cm	ESSA41315-1	100	Unlimited	360-400	300-350
34 x 44 cm	ESSA41317-1	100	Unlimited	410-450	300-350
39 x 30 cm	ESSA41511-1	100	Unlimited	280-310	350-400
39 x 34 cm	ESSA41513-1	100	Unlimited	320-350	350-400
39 x 39 cm	ESSA41515-1	100	Unlimited	360-400	350-400
39 x 44 cm	ESSA41517-1	100	Unlimited	410-450	350-400
39 x 49 cm	ESSA41519-1	100	Unlimited	460-500	350x400
39 x 53 cm	ESSA41521-1	100	Unlimited	510-550	350-400
44 x 34 cm	ESSA41713-1	100	Unlimited	320-350	400-440
44 x 39 cm	ESSA41715-1	100	Unlimited	360-400	400-440
44 x 44 cm	ESSA41717-1	100	Unlimited	410-450	400-440
44 x 49 cm	ESSA41719-1	100	Unlimited	460-500	400-440
44 x 53 cm	ESSA41721-1	100	Unlimited	510-550	400-400
49 x 39 cm	ESSA41915-1	100	Unlimited	360-400	440-490
49 x 44 cm	ESSA41917-1	100	Unlimited	410-450	440-490
49 x 49 cm	ESSA41919-1	100	Unlimited	460-500	440-490
49 x 53 cm	ESSA41921-1	100	Unlimited	510-550	440-490
53 x 39 cm	ESSA42115-1	100	Unlimited	360-400	490-540
53 x 44 cm	ESSA42117-1	100	Unlimited	410-450	490-540
53 x 49 cm	ESSA42119-1	100	Unlimited	460-500	490-540
53 x 49 cm	ESSA42121-1	100	Unlimited	510-550	490-540

Documents

Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
