Molift Nomad ceiling hoist

With a unique curved design for comfortable and spacious position

Molift Nomad has a unique curved design, and the integrated 4-point sling bar provides the user with a comfortable and spacious position. The hoist can be used with all passive Molift Slings. Molift Nomad has numerous safety features such as electronic overload protection, electrical emergency lowering and emergency stop.

Low weight – high hoisting capacity
The Molift Nomad weighs only 6.8 kg. Despite its low weight, It has a hoisting capacity of up to 255 kg. The hoist also has integrated carry handles for easy handling. In combination with a specially designed trolley, the Molift Nomad can climb from one rail system to another without a transition rail, resulting in easy transfer from room to room.

Connects and disconnects easily – without any tools
Using the Molift Nomad Extension Arm, a single carer can easily connect and disconnect the Molift Nomad. The Etac Cart is ideal for storing and transporting the hoist. Molift Nomad provides flexibility for day-to-day operations, as well as for temporary needs.

Accessible controls
The operation of Molift Nomad is easily accessible through the handset or the integrated display in the front. It is operated by environmentally friendly NiMH batteries and equipped with audio and visual battery indicators.

Automatic service notification
The automatic service notification system calculates and indicates when service is required. The integrated software Molift Service Tool also retrieves data about hoister usage and service history.

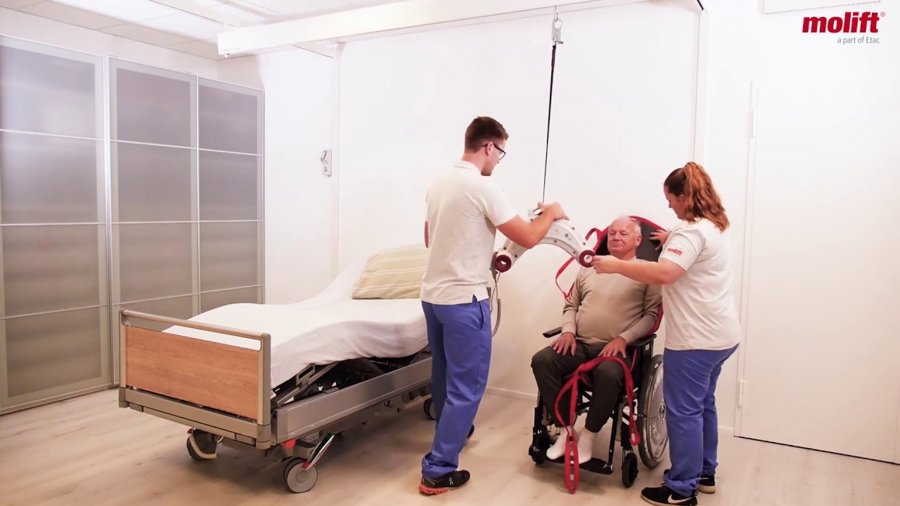

Transfer users seamlessly between rooms

Since intruding into the doorframe's physical structure is not always possible, room-to-room functionality is ideal when users must be transferred between two rail systems in adjoining rooms.

Molift Service Tool on laptop_800x450.jpg

Molift Service Tool - an intelligent software

All Molift hoists are supplied with the Molift Service Tool – an intelligent software that interacts with the hoist, ensures correct service and maintenance, and enables analysis of the lift's use.

Features

Accessible controls

Molift Nomad ceiling hoist can be easily operated by accessing controls through the handset or the integrated display in the front. It is operated by environmentally friendly NiMh batteries and is equipped with audio and visual battery indicators.

Unique curved design

Molift Nomad has a unique curved design and with the integrated 4-point sling bar provides the user with a comfortable and more spacious position.

Molift Nomad battery charger

The charger can be placed on the wall, on a table or be integrated into Etac Cart.

Molift Service Tool

Includes software that interacts with the hoist and ensures correct servicing and maintenance.

Variants and details

Specifications for all variants
Battery	NiMh 26,4 V-2,6 Ah	Material	Reinforced composite and aluminum
Battery charge time (hours)	4	Protection class	Handcontrol IPX4 - Hoist motor IPX4
Height (mm)	330	Rated performance	80 hoists at 75 kg and 500 mm
Hoisting interval (mm)	2000	Service software	Molift Service Tool included
Hoisting speed 75 kg (mm/sec)	23	Weight (kg)	6,8
Length (mm)	522	Width (mm)	200

	Item number	Safe working load (SWL) (kg)
205	M22205	205
255	M22255	255
