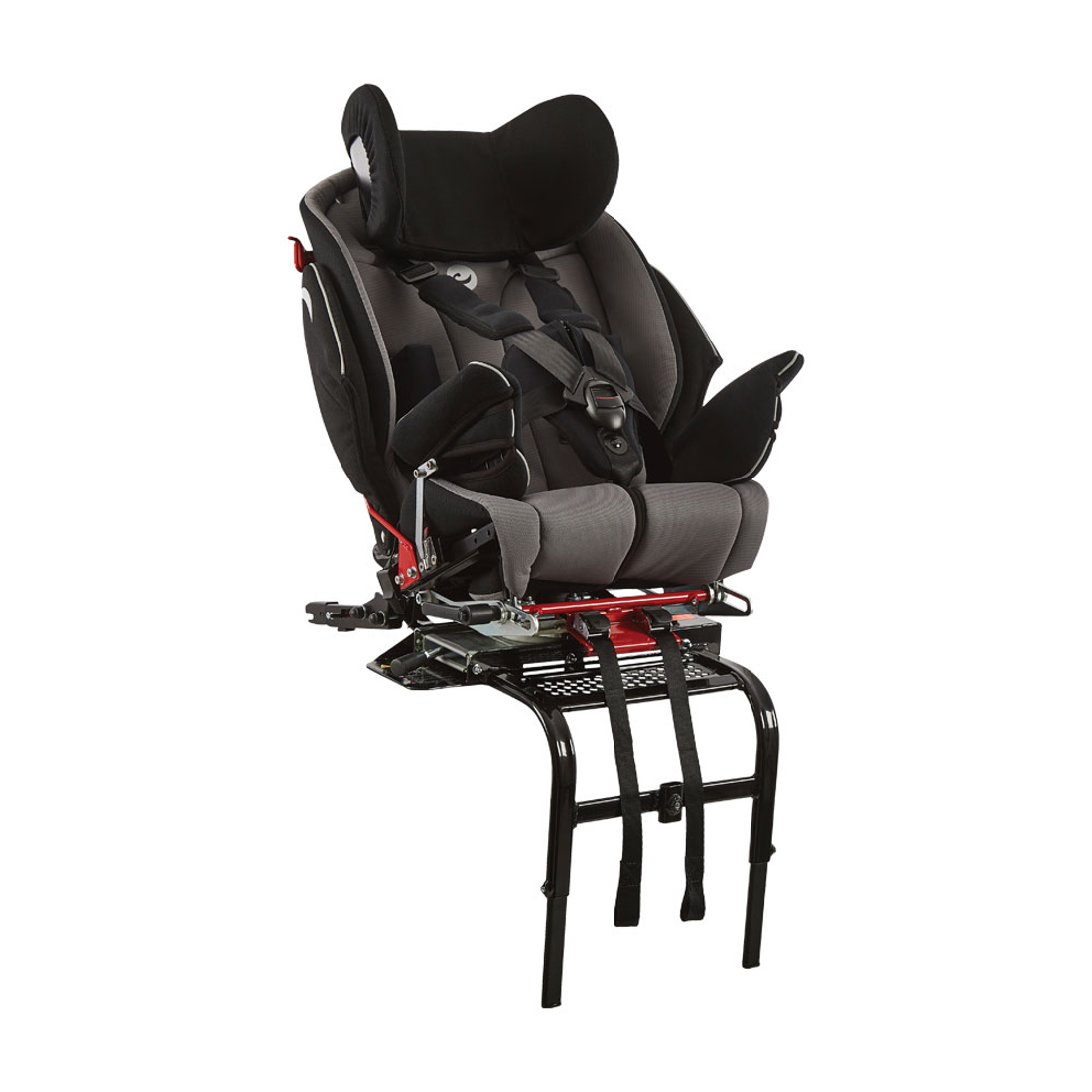

Stingray Swing-out
The car seat with optimum support and function – it tilts, it swivels and it slides.

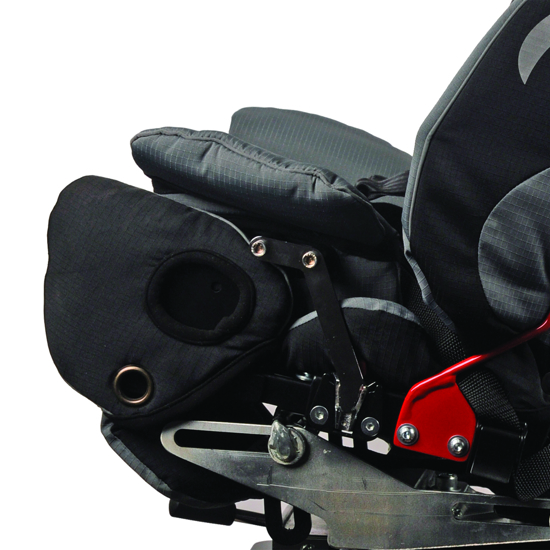

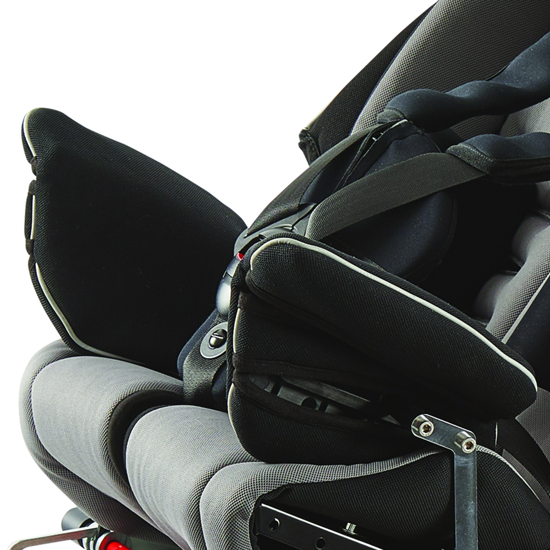

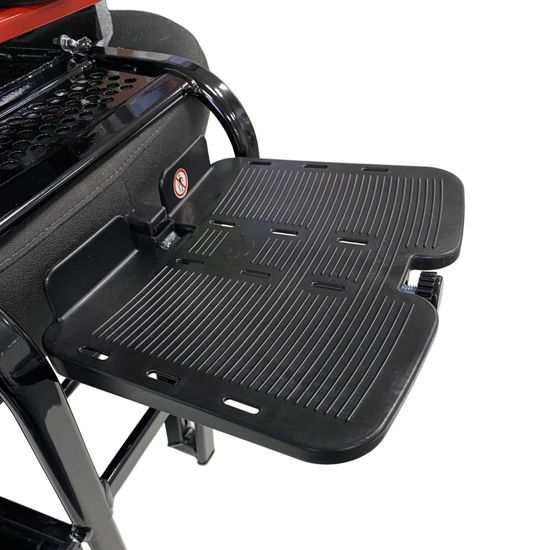

The Stingray swing-out car seat, makes it easy to get a child in and out of the car and offers safe, comfortable support during transportation. It comes with a range of accessories such as side supports, which can be adjusted without the need for tools. It has width adjustable pelvic supports, foot plate and offers adjustment in seat depth and back height to suit the needs of the child.
The Stingray swing-out is available in 4 sizes and suitable for children weighing between 9 and 36kgs. With its adjustment for growth, it will meet the needs of a growing child for longer. The seat has tilt in space with a range between 10 and 30 degrees to ensure an ideal sitting position and maximum comfort. The Stingray swing-out car seat is available in 5 fun colours - blue, red, green, pink and grey.
Features

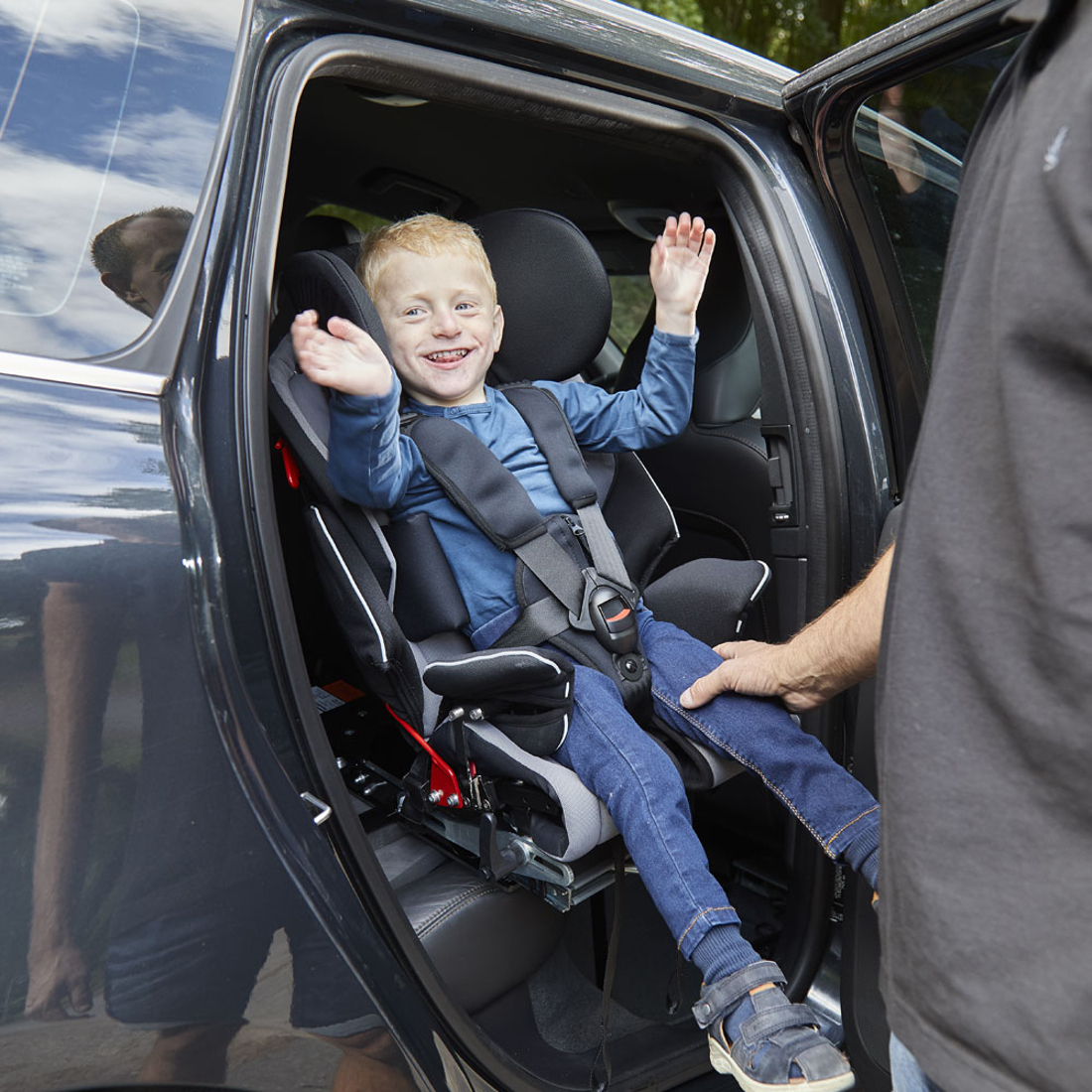

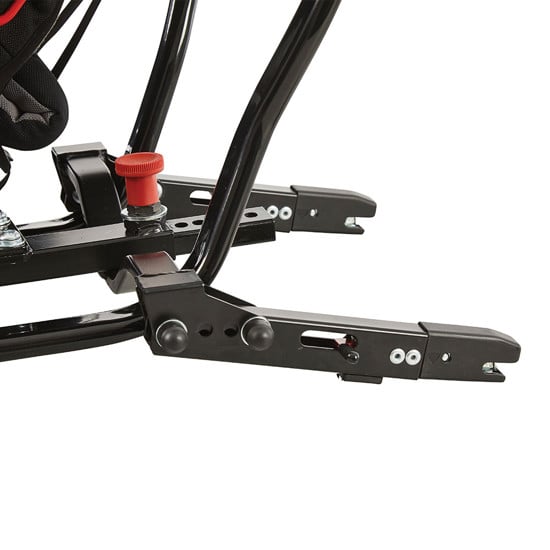

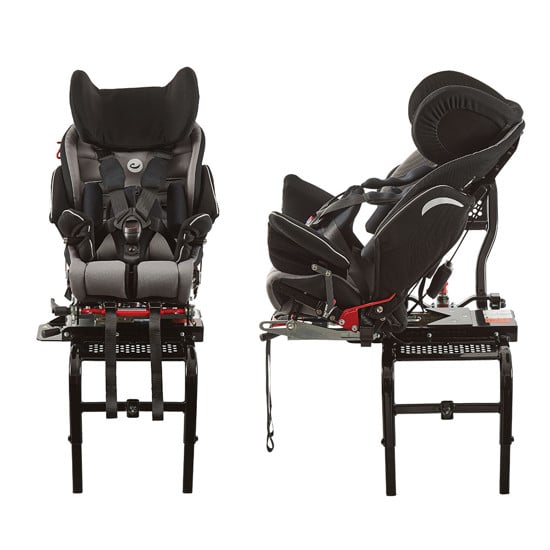

Swing-out function
EasyFit System

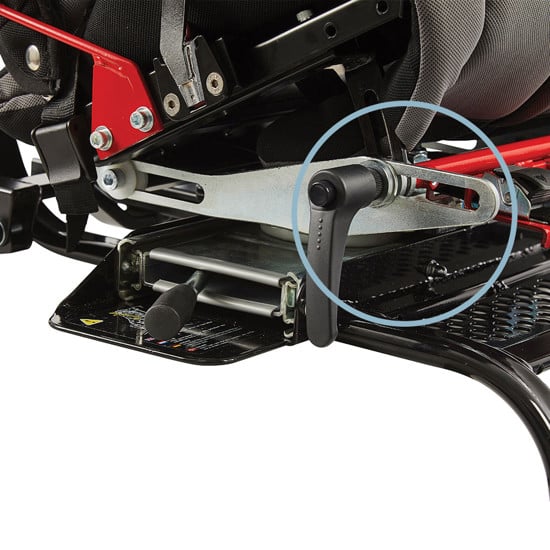

Tilt Adjustment

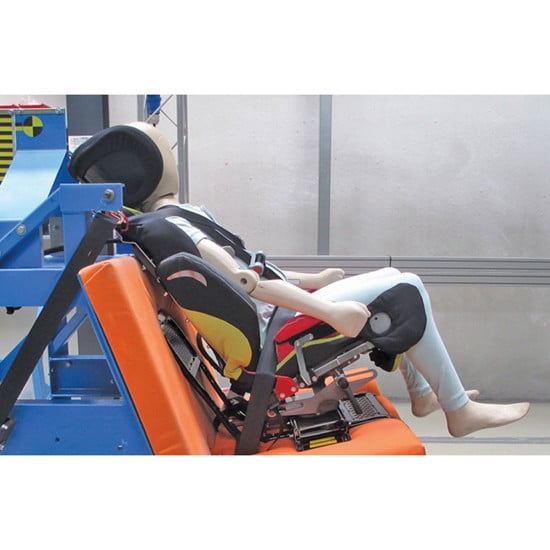

Tested and approved to ECE 4404
Variants and details
| Size 1, right | Size 1, left | Size 2, right | Size 2, left | Size 3, right | Size 3, left | Size 4, right | Size 4, left | |
|---|---|---|---|---|---|---|---|---|
| Item number | 90002-R | 90002-L | 92001-R | 92001-L | 92003-R | 92003-L | 92004-R | 92004-L |
| Back height (mm) | 490 | 490 | 510 | 510 | 550 | 550 | 600 | 600 |
| Effective seat depth (mm) | 170-240 | 170-240 | 210-280 | 210-280 | 270-340 | 270-340 | 290-360 | 290-360 |
| Effective seat width (mm) | 200-280 | 200-280 | 200-280 | 200-280 | 260-380 | 260-380 | 260-380 | 260-380 |
| Head support height range maximum (mm) | 440 | 440 | 460 | 460 | 500 | 500 | 560 | 560 |
| Head support height range minimum (mm) | 320 | 320 | 340 | 340 | 380 | 380 | 440 | 440 |
| Height of shoulder strap slots (mm) | 300/350 | 300/350 | 320/370 | 320/370 | 365/420 | 365/420 | 410/470 | 410/470 |
| Maximum user mass (kg) | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 |
| Minimum user weight (kg) | 9 | 9 | 9 | 9 | 9 | 9 | 9 | 9 |
| Overall width (mm) | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| Rear seat height (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Seat plane angle (°) | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 | 10-30 |
| Total weight (kg) | 21 | 21 | 22 | 22 | 23 | 23 | 24 | 24 |
Washing instructions
Options

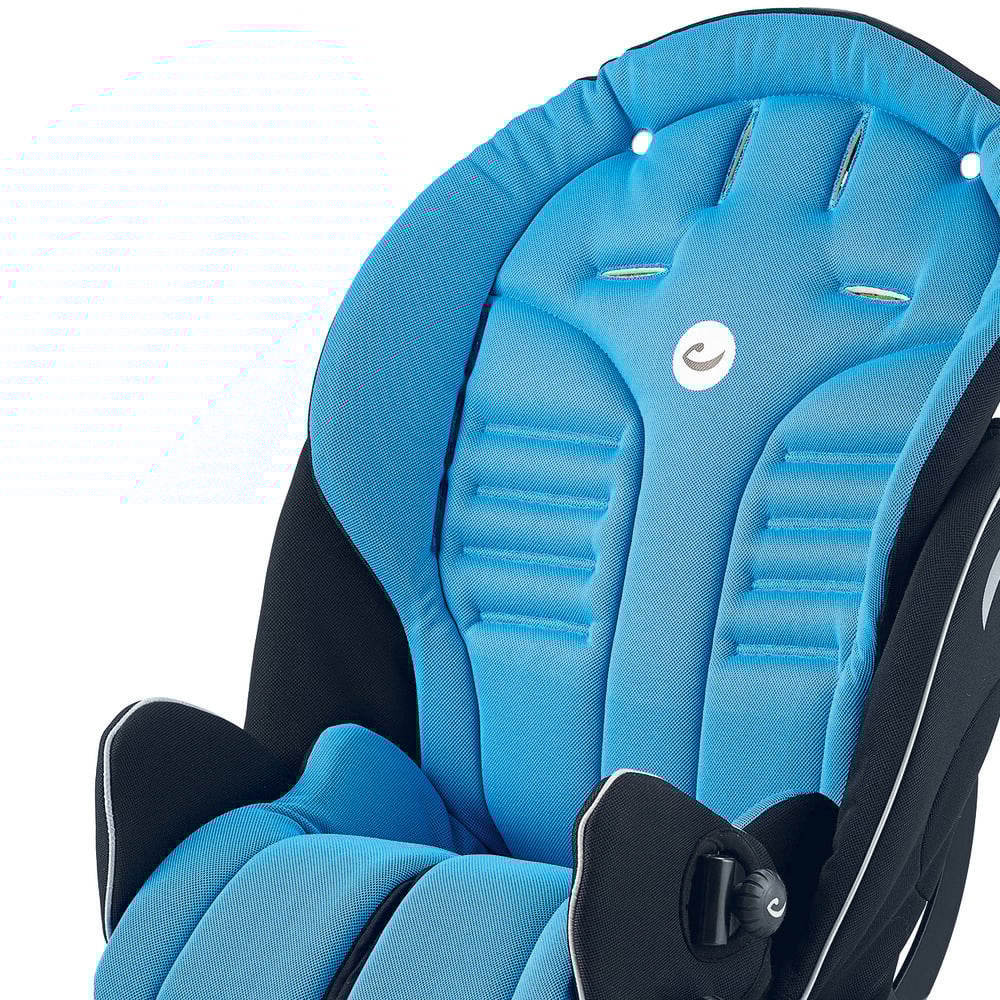

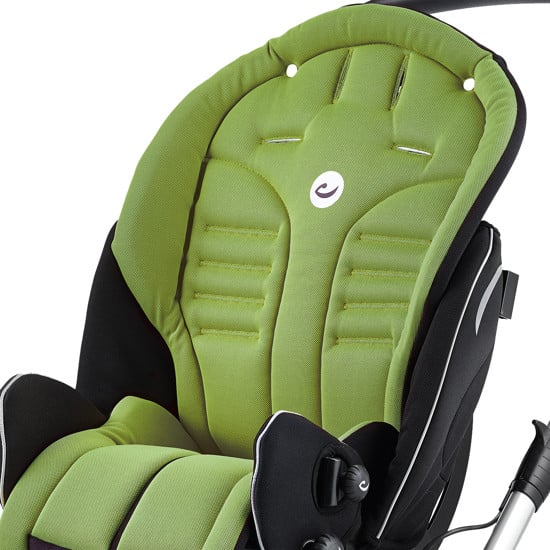

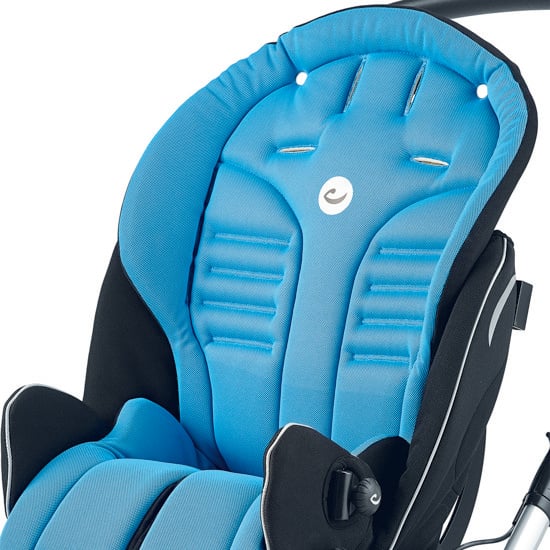

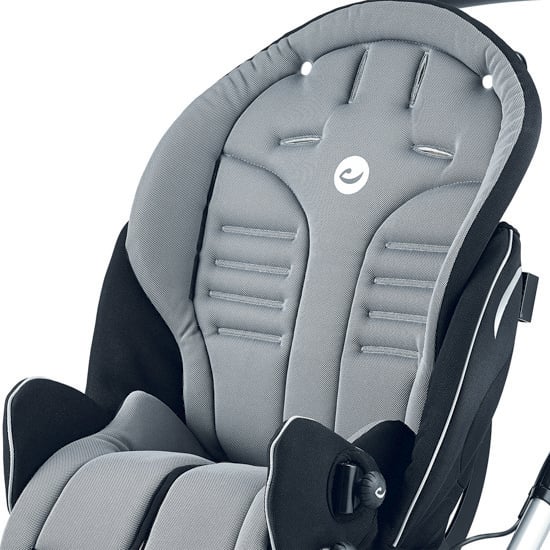

Cushion colours
Available in 5 different colours
Blue

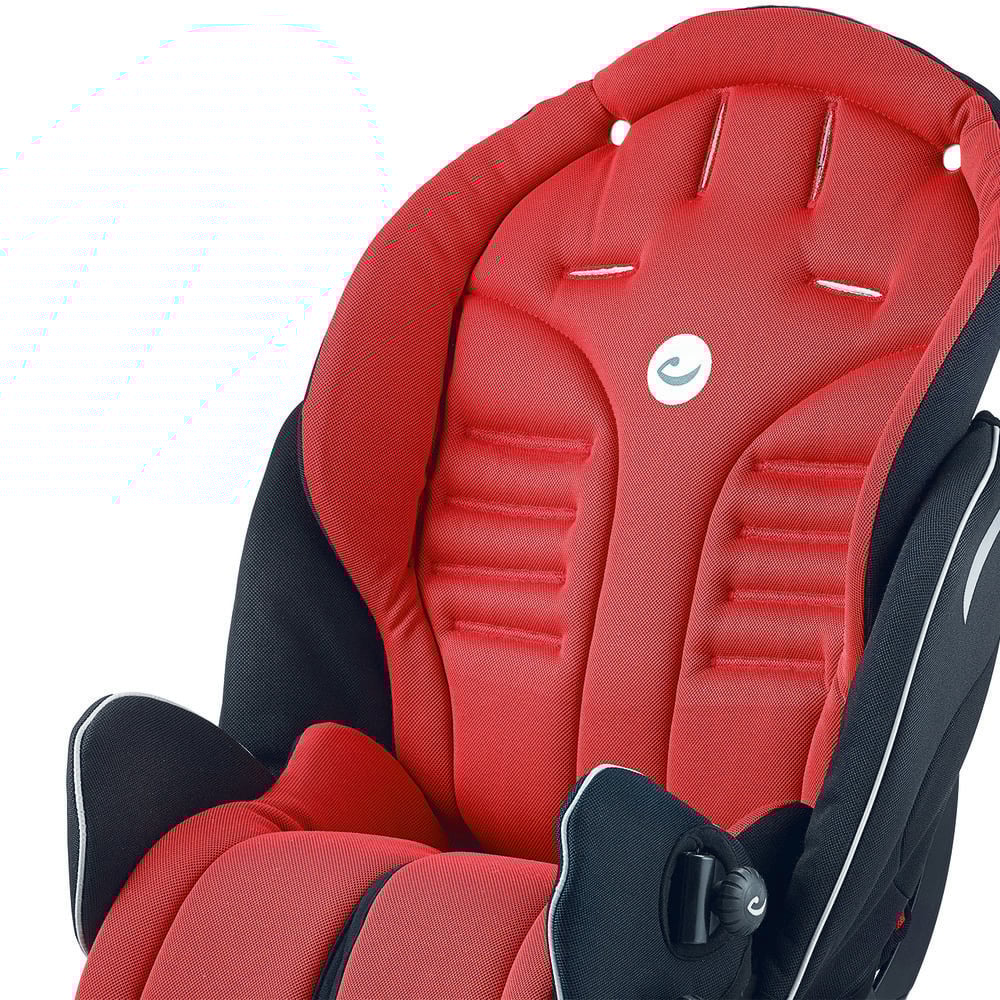

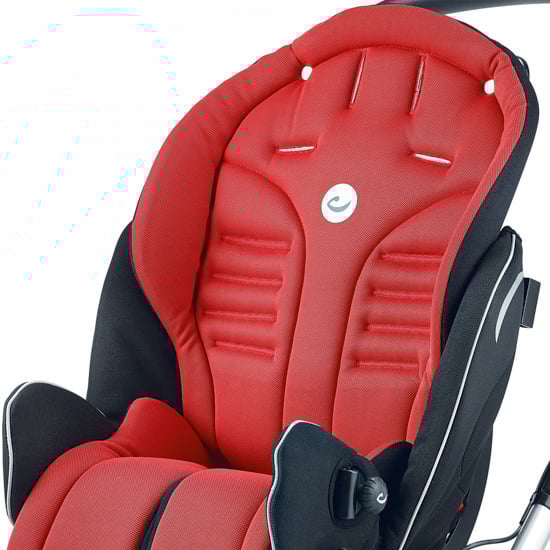

Red

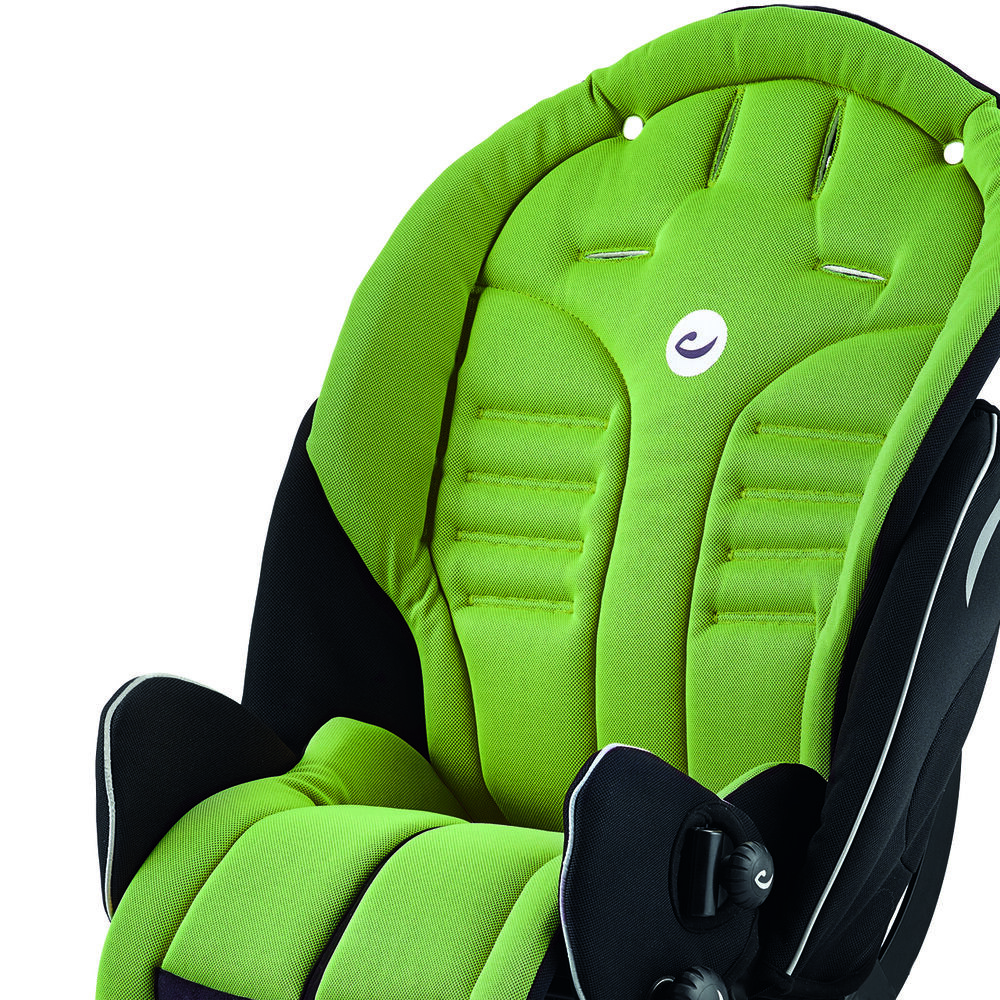

Green

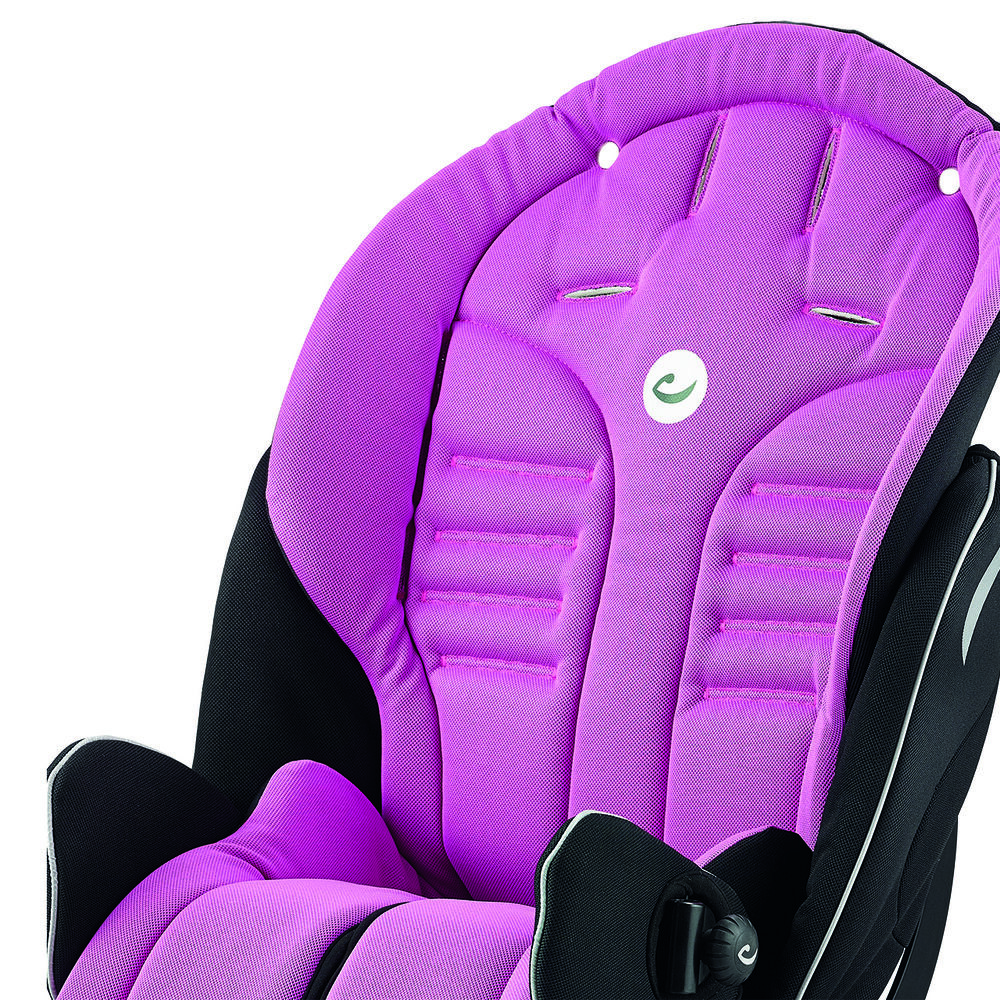

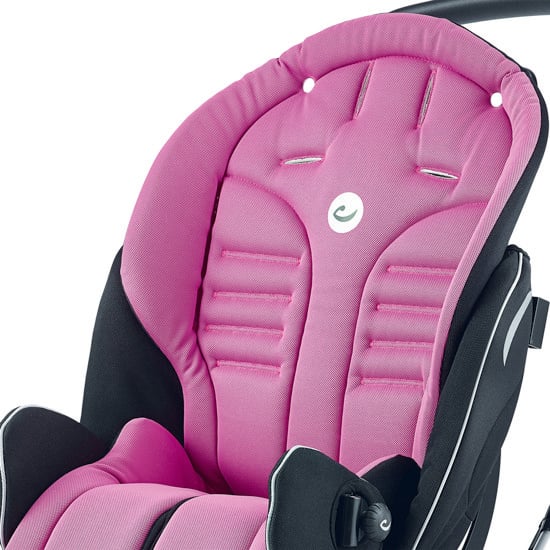

Pink

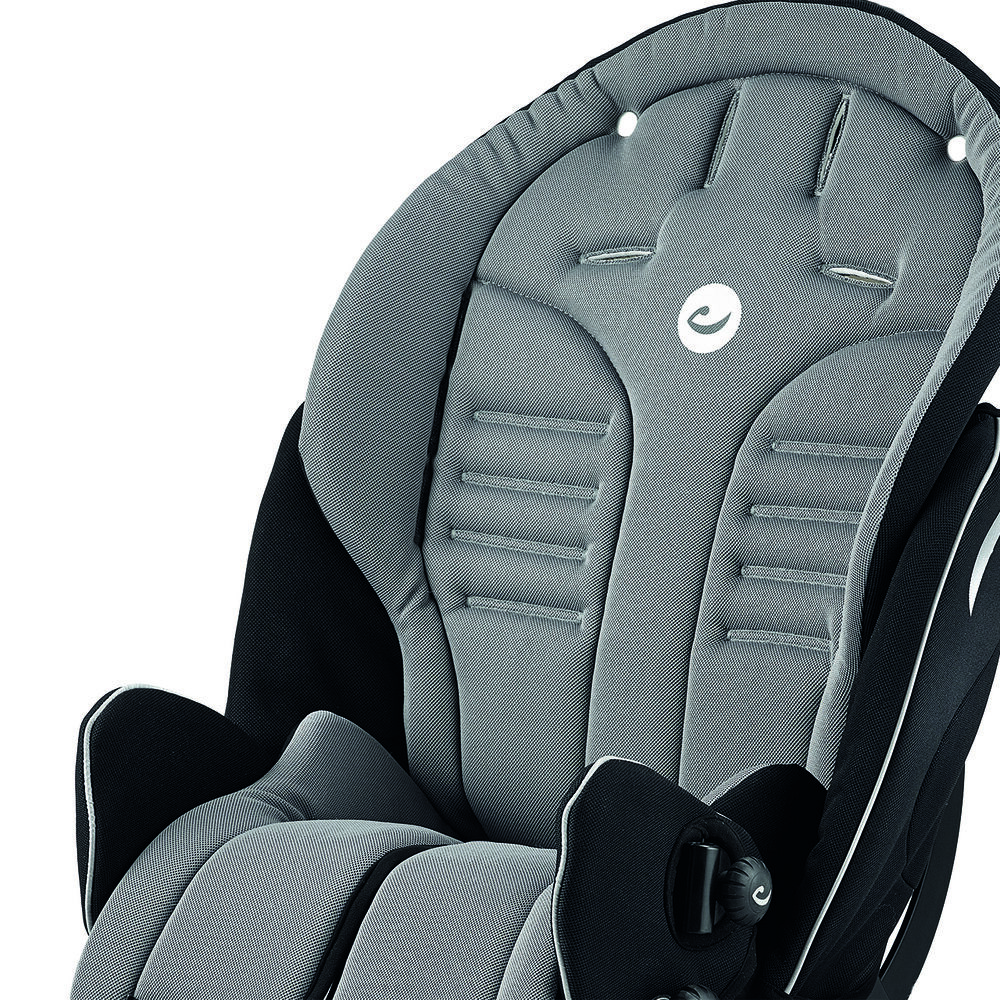

Grey
Adjustability

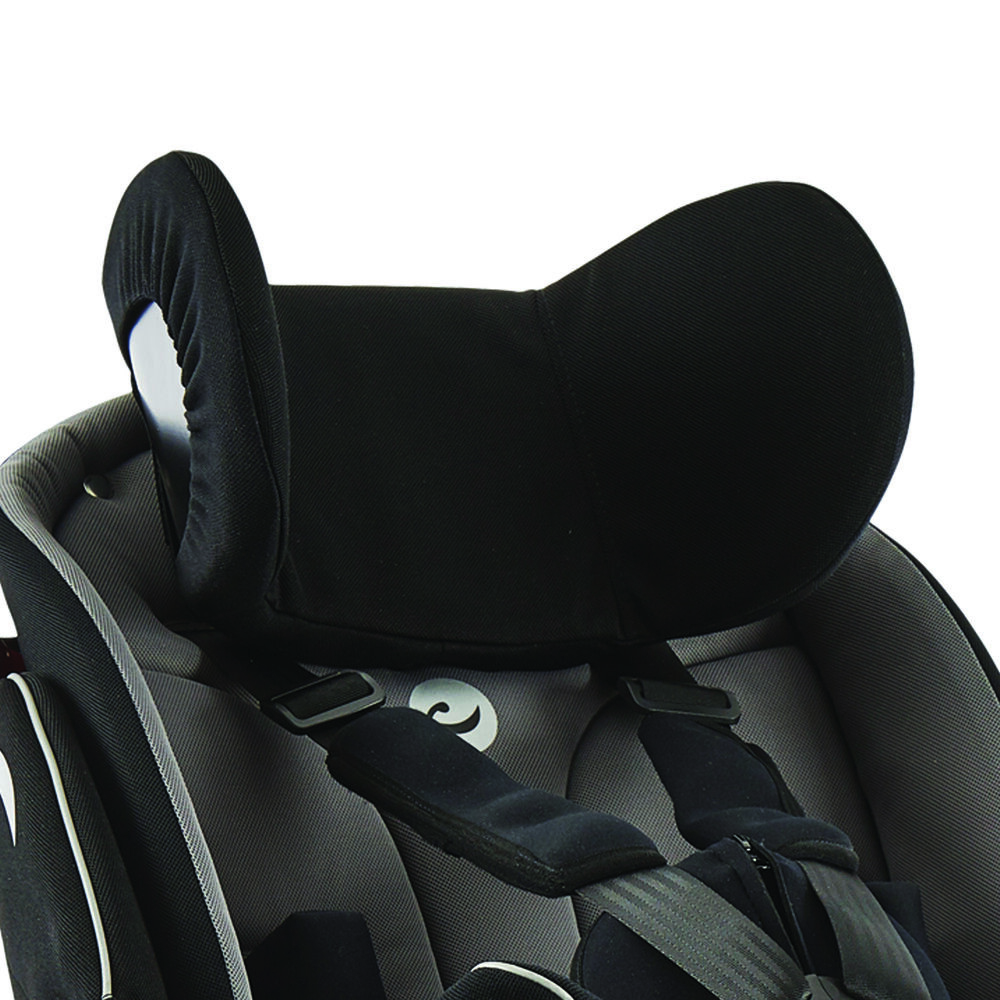

Height adjustable headrest
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
