R82 Orca/Penguin

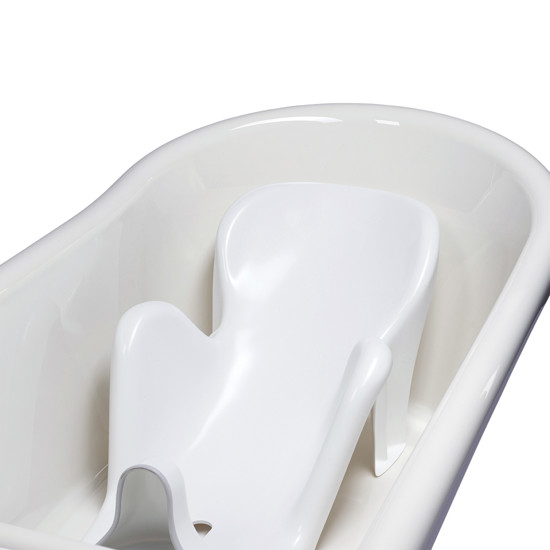

The Penguin can be used in the Orca bathtub, but fits ordinary bathtubs as well. With its suction cups, the Penguin sits firmly on most smooth surfaces.
The Orca is a spacious bathtub that provides comfort and freedom of movement for your child. Functionality is an integral feature in the design of the Orca bathtub. It has smooth round edges and a space saver within the area around and beneath the bathtub. The Orca has a hygienic and smooth surface bathtub making it easy to clean. The frame can be taken apart to minimise space for storage or transportation.
The Penguin makes bathing comfortable for the child. It provides support for head and trunk together with great freedom of movement for arms and legs so that the child can stay longer in the bath. With its adjustable abduction block it easily fits the individual child.
Features

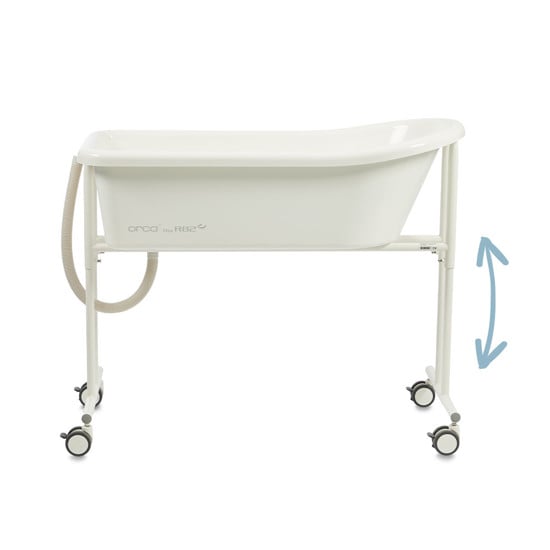

Excellent working conditions

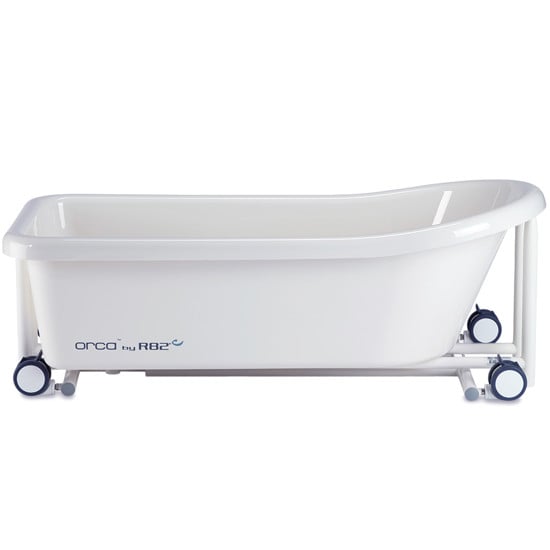

Easy to handle
Freedom of movement
Variants and details
| Orca | Penguin | |
|---|---|---|
| Item number | 87550 | 87702 |
| Bathtub height, inside (mm) | 290 | - |
| Bathtub height, inside (mm) | 400 | - |
| Bathtub length, inside, bottom (mm) | 860 | - |
| Bathtub length, inside, top (mm) | 1030 | - |
| Bathtub width, inside, top (mm) | 470 | - |
| Frame height (mm) | 940-1150 | - |
| Height (mm) | 260 | - |
| Length (mm) | 1110 | 800 |
| Length, abduction block to top (mm) | - | 560-720 |
| Mass device (kg) | 17 | 1.35 |
| Mass device (lbs) | 37.5 | 3 |
| Max load (kg) | 120 | - |
| Maximum rated load (kg) | 69 | 23.35 |
| Maximum user mass (kg) | 50 | 20 |
| Minimum turning diameter (mm) | 675 | - |
| Overall height (mm) | 940-1150 | 260 |
| Overall width (mm) | 550 | 330 |
| Required width of right angled corridor (mm) | 1350 | - |
| Total mass (kg) | 16 | - |
Washing instructions
Options
Bathing seats
The Orca can be equipped with bathing seats from R82 making the bathing experience even more comfortable for the child.
Standard equipment
Soap dish, plug and drain pipe (for fast and easy drainage) are standard equipment on the Orca.

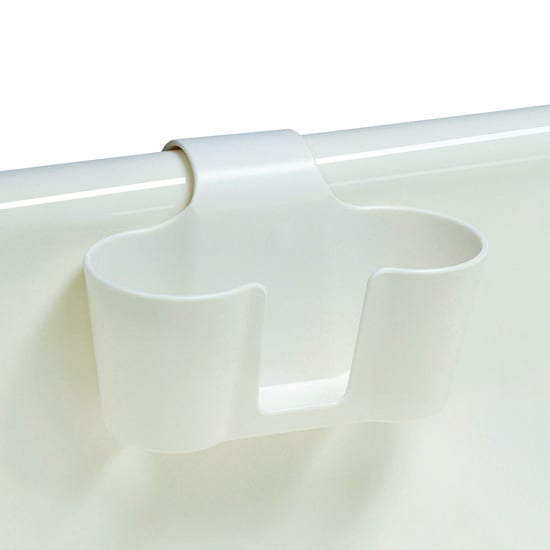

Soap dish

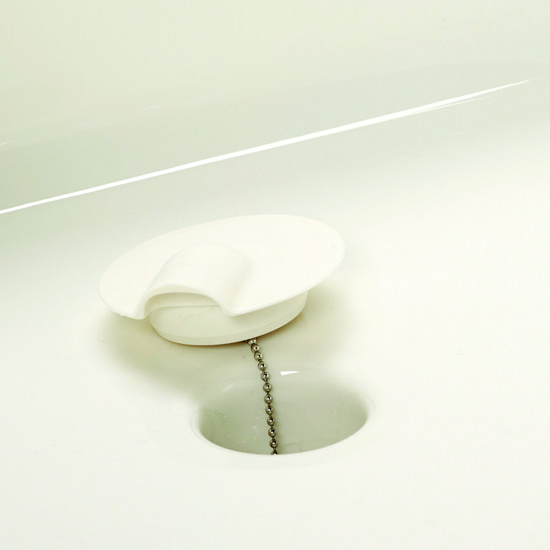

Plug

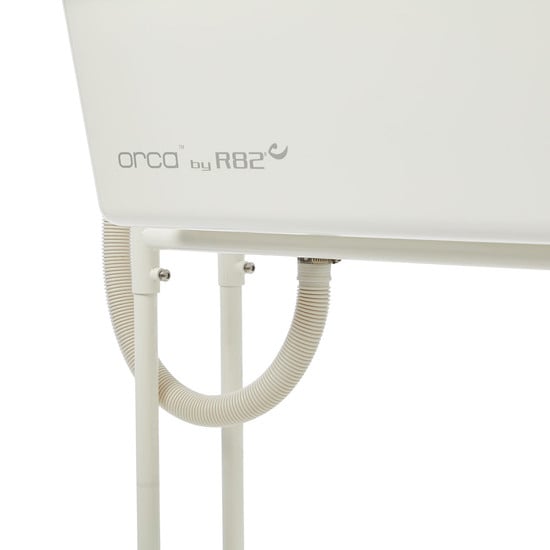

Drain pipe
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
