R82 x:panda shape
The x:panda shape is designed to change shape as your child develops and grows so they can live their life to the fullest. It is highly configurable and provides tailored support to fit the individual's needs.
The x:panda shape is highly configurable and provides tailored support to fit the individual's needs. It can be adjusted in seat width and depth, and back width and height to assure a tailored fit with a high level of comfort. It always creates a stable seat from where the user can interact and participate in life as independently as possible. It can accommodate very complex seating positions with a high level of advanced and adaptable support. This combines with an adjustable dynamic back rest which can accommodate the lower leg past midline providing stability and optimum positioning.

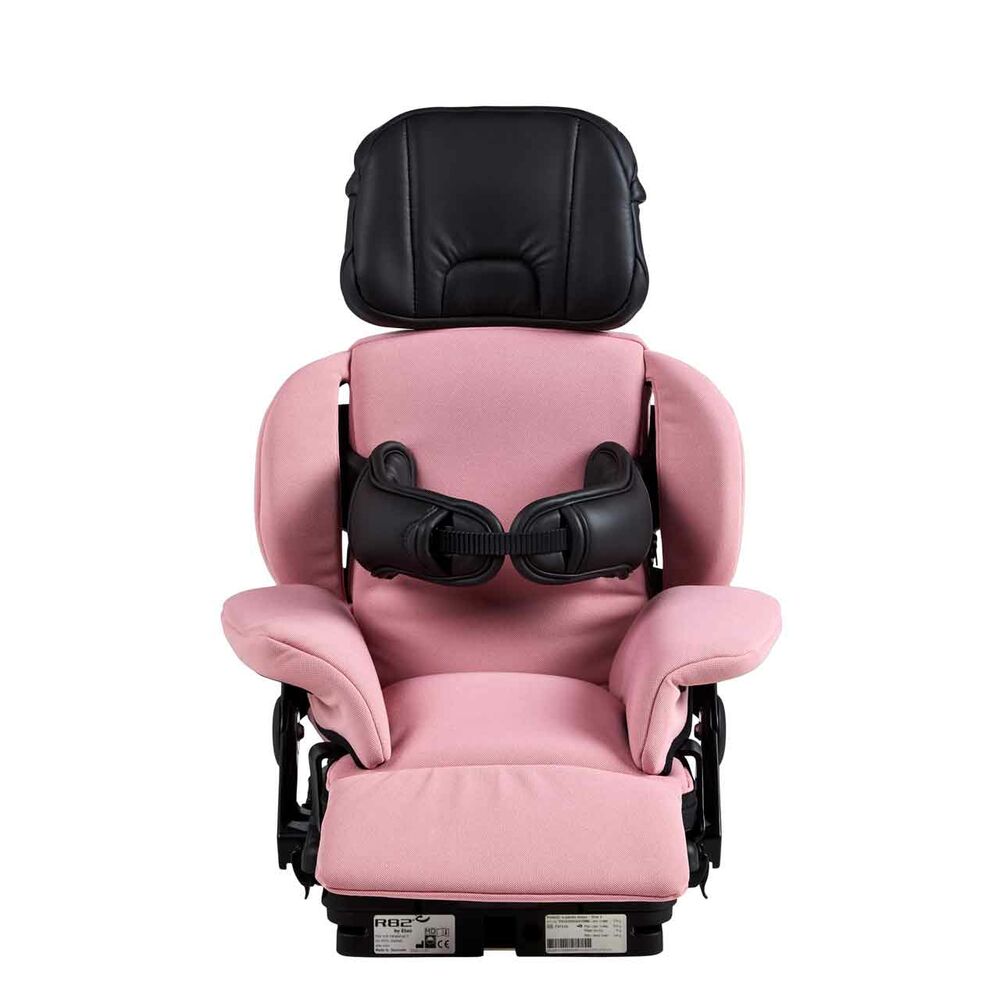

The infant seat provides supported seating for infants and thereby presents the opportunity for early intervention and facilitation of the child's participation and social interaction with parents, carers, and the environment.
Features
Dynamic back
Early intervention
True growth
Tailored support and highly adaptable
Variants and details
| Size 1 | Size 2 | Size 3 | |
|---|---|---|---|
| Abduction angle, each leg (°) | 10°/20-30° | 15°/30° | 25°/30° |
| Adduction angle, each leg (°) | 10°/20°-30° | 15°/30° | 25°/30° |
| Armrest to seat distance (mm) | 90-155 | 100-165/100-220 | 130-280 |
| Back width, top of backrest (mm) | 180/220/260/300/340 | 180/220/260/300/340/380 | 220/260/300/340/380/420 |
| Backrest height (mm) | 280-370/320-420/360-470 | 340-440/380-490/430-560 | 420-530/470-600/540-690 |
| Backrest recline angle (°) | (-10°)-(30°) | (-10°)-(30°) | (-10°)-(30°) |
| Effective seat depth (mm) | 160-320 | 240-420 | 350-550 |
| Effective seat width (without hip support) (mm) | 220/260/300 | 280/320/360/400 | 380/420/460/500 |
| Front location of arm rest structure (mm) | 230 | 290 | 360-420 |
| Mass device (kg) | 6.5 | 11 | 14 |
| Mass device (lbs) | 14.3 | 24.3 | 30.9 |
| Maximum rated load (kg) | 43.5 | 78 | 106 |
| Maximum user mass (kg) | 35 | 65 | 90 |
| Maximum user mass in transportation (kg) | 35 | 65 | 90 |
| Overall width, both legs in maximum abduction (mm) | 300/400/500 | 350/460/560/660 | 600/700/740/780 |
| Seat width, minimum/maximum (with hip supports) (mm) | 120-180/160-220/200-260 | 180-240/220-280/260-320/300-360 | 280-340/320-380/360-420/400-460 |
| Width thighs (mm) | 70/92/115 | 85/108/130/152 | 100/122/145/168/190 |
Options
Seat base
The seat base is for attachment of simple or advanced seat plates. Allows for adjustments in seat width. The effective seat width will be reduced with the use of hip or pelvis supports.
Seat plate

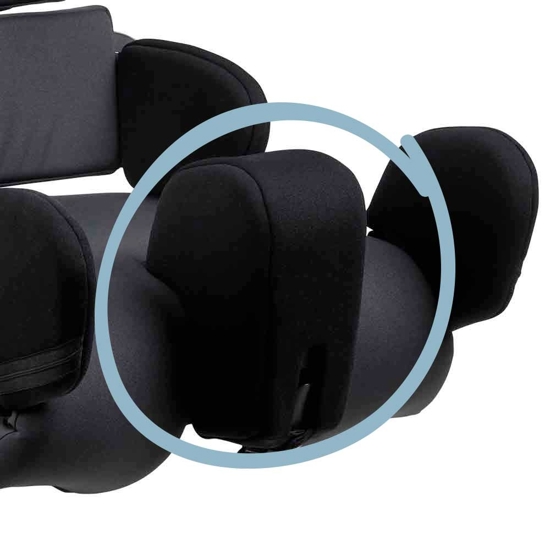

Hip supports
When you choose hip or pelvis supports, the seat width is reduced with min. 40 mm. Choose covers under accessory. Width adjustable pelvis supports, mounted from the back, are available as accessories.

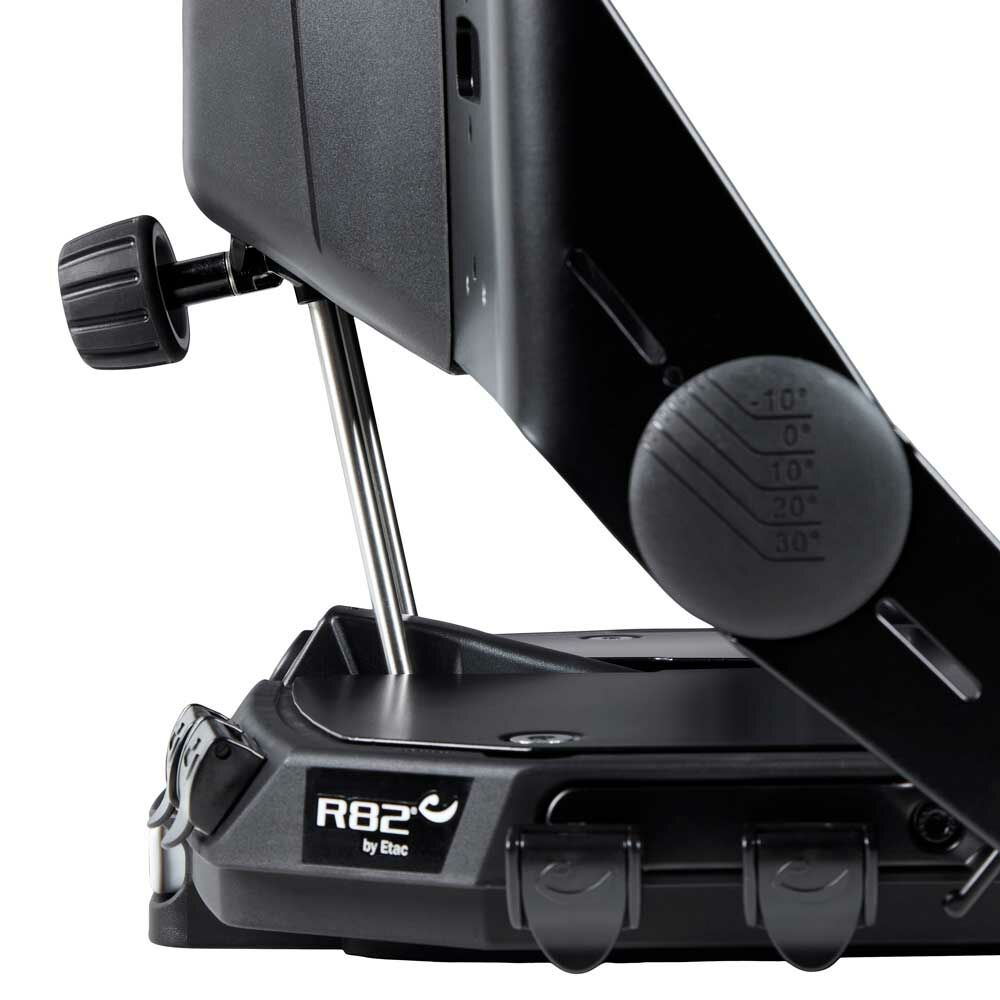

Back recline
Upper back mounting
Enables quick and easy removal of the upper back. Removal of the upper back allows the opportunity to challenge the postural control and balance of the upper body (head, arms, and trunk) and thereby facilitates the activation of the trunk and back muscles. Can be used with therapy kit tubes for 60 mm extra back height (accessory).
Upper back
Provides support for the upper back when the user is seated. The upper back grows in width and adjusts in height to accommodate the individual needs and secure the best fit as the user develops and grows.. Choose cushions under accessories. A kit for frequent and toolless height adjustment of the upper back is available as an accessory.
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to adjust seat width for simple seating on the x:panda shape
How to adjust seat width for advanced seating on the x:panda shape
How to demount upper back with quick release on the x:panda shape
