R82 Wombat Living

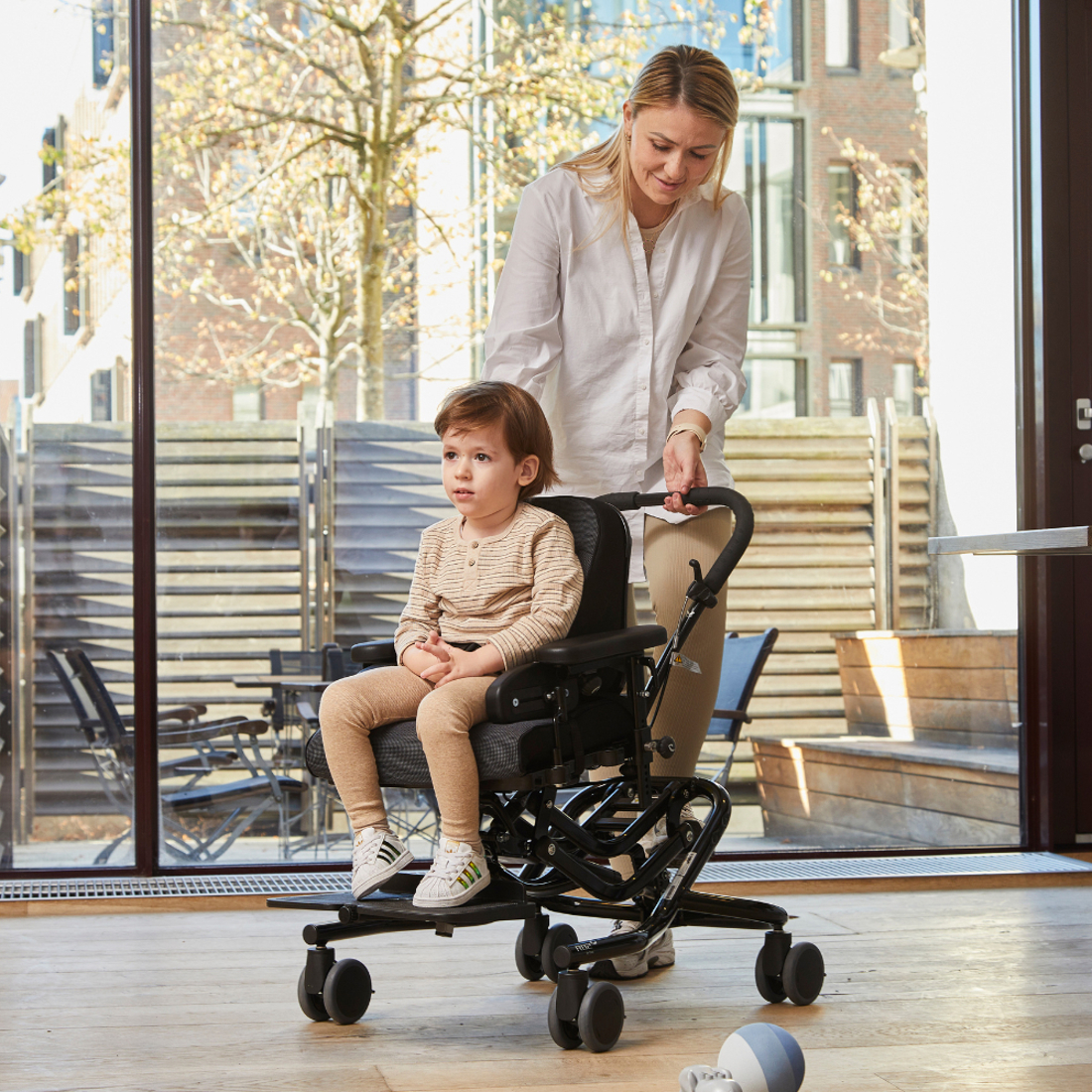

Wombat Living is a functional assistive chair with numerous configuration possibilities. It is perfect for daily activities such as reading and learning at school, having fun with friends and when helping with daily chores at home.
Depending on the user’s level of function, the chair can be designed with standard functions that suit the specific needs. For some users a chair with only a few accessories and simple standard features is suitable. Others might need a chair with much more accessories and technical functions, like a power unit for height adjustment. Nothing compares to a custom designed chair!

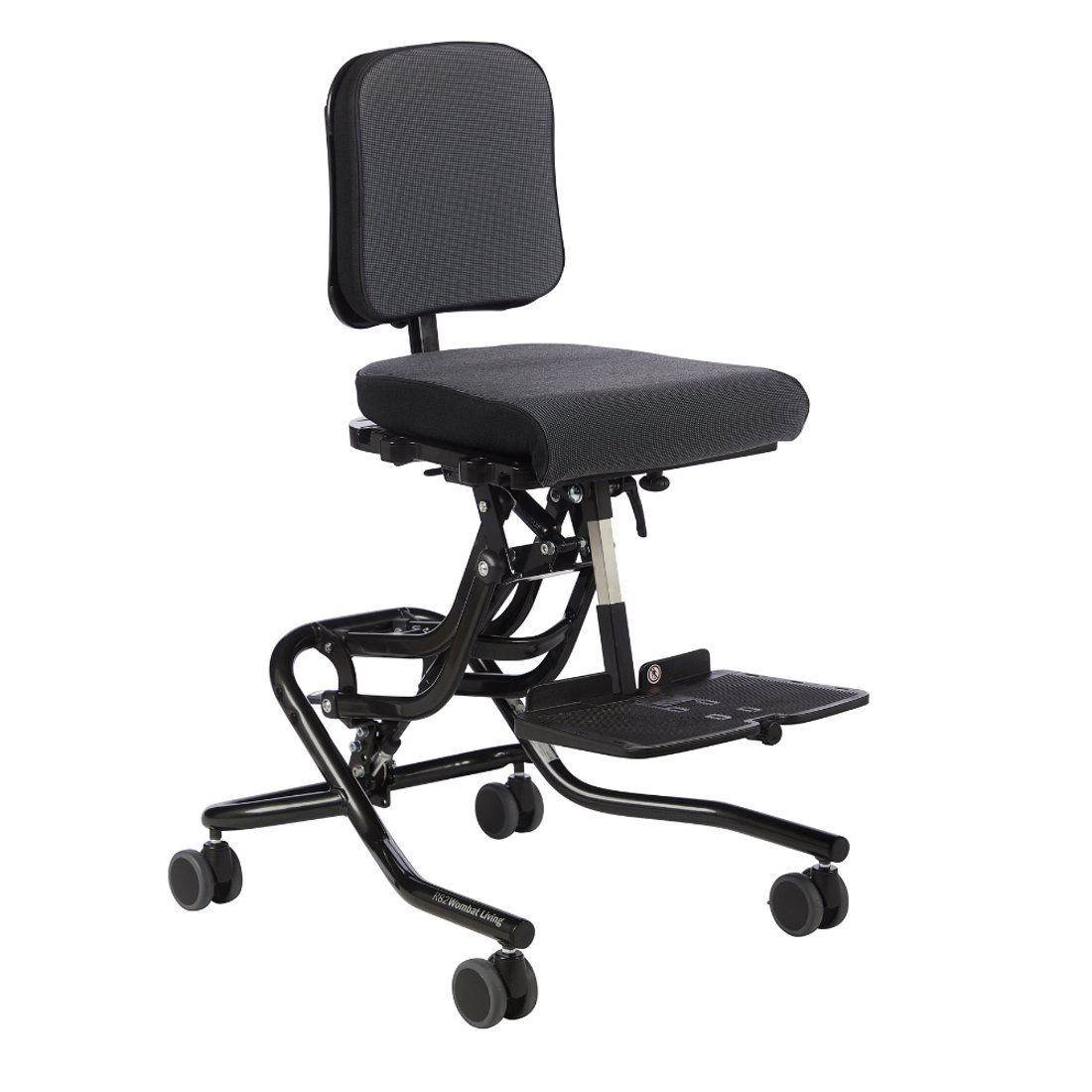

The height adjustable frame, which goes all the way down to 29 cm above floor level, in combination with anterior tilt eases standing transfer and ensures that all unnecessary and repetitive lifting is avoided.
It is available in 3 sizes and can be configured to accommodate different needs for postural support through different cushions and a wide range of accessories.
Discover
Features
Variants and details
| Size 1 | Size 2 | Size 3 | Size 3 - Hydraulics | |
|---|---|---|---|---|
| Arm rest to seat distance, long rod and pad (accessories) (mm) | 65–265 | 65–265 | 65–265 | 65–265 |
| Armrest to seat distance (mm) | 65–175 | 65–175 | 65–175 | 65–175 |
| Back width (mm) | 250 | 300 | 350 | 350 |
| Backrest angle (°) | 0–28 | 0–28 | 0–33 | 0–33 |
| Backrest height (Long back) (mm) | 360–430 | 395–460 | 460–550 | 460–550 |
| Backrest height (mm) | 280–340 | 310–380 | 390–475 | 390–475 |
| Effective back width, contoured cushion (mm) | 170 | 230 | 270 | 270 |
| Effective seat depth (mm) | 180–310 | 250–380 | 320–500 | 320–500 |
| Effective seat width (mm) | 300 | 370 | 420 | 420 |
| Footrest to seat distance (mm) | 150–250 | 150–350 | 150–440 | 150–440 |
| Leg to seat surface angle (°) | (-30)–(30) | (-30)–(30) | (-30)–(30) | (-30)–(30) |
| Length (mm) | 650 | 650 | 650 | 750 |
| Mass device (kg) | 18 | 18.5 | 23.5 | 26.2 |
| Mass device (lbs) | 39.8 | 40.8 | 51.8 | 57.8 |
| Maximum rated load (kg) | 65 | 65.5 | 95.5 | 98.2 |
| Maximum user mass (kg) | 45 | 45 | 70 | 70 |
| Overall width (mm) | 550 | 550 | 550 | 610 |
| Seat plane angle (°) | (-10)–(30) | (-10)–(30) | (-10)–(22) | (-10)–(22) |
| Seat surface height at front edge (mm) | 230–610 | 230–610 | 330–630 | 390–630 |
| Seat width between Hip Supports (accessories) (mm) | 105–300 | 170–370 | 215–420 | 215–420 |
| Seat width, pelvis support with sides (accessories)(mm) | 170–240 | 230–300 | 290–360 | 290–360 |
| Total height (mm) | 640–990 | 670–1030 | 780–1145 | 780–1145 |
| Width, pelvis support without sides (accessories)(mm) | 240 | 240 | 290 | 290 |
Options
Backs
Wombat Living with Long back

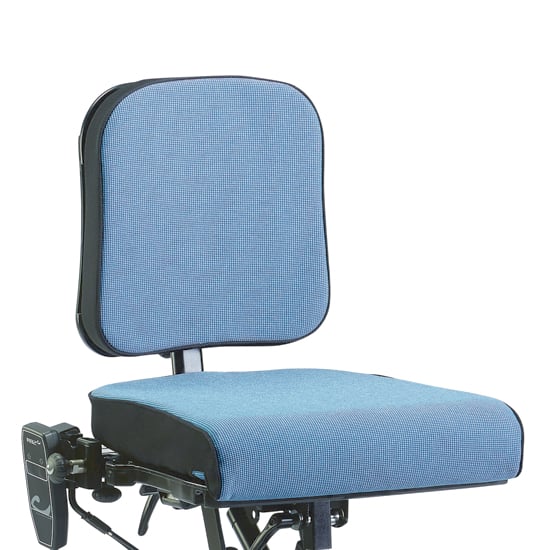

Wombat Living with Short back
Frame colour
Available in two colours
White (Not available in Australia)
Anthracite grey
Height adjustment
Choose between three different ways to perform the height adjustment
Gas
Release handle mounted on the push brace
Power
Hydraulic
Seat angle adjustment
Choose between two different ways to perform the seat angle adjustment
Release handle mounted beneath the seat
Release handle mounted on the push brace
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
R82 Wombat Living - Back Height adjustment on size 3
R82 Wombat Living - Footplate adjustment on size 3
R82 Wombat Living - long back on size three
