R82 Strong Base

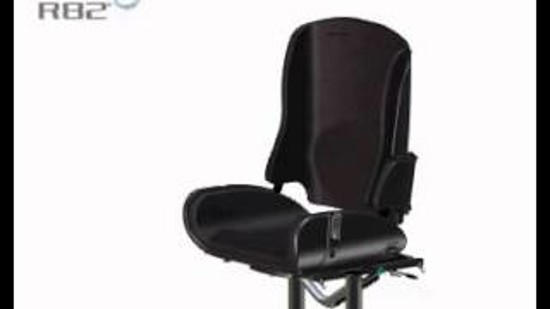

The Strong Base is a simple, stable and strong base for large seat units such as the Panda Futura 5 and the x:panda 4 from R82.
Seat units are mounted either directly onto the Strong Base or by means of an interface making it’ easy to switch between frames.
The Strong Base is equipped with four smooth running castors which makes it easy to move the frame around.
The Strong Base comes in one size and in two versions, with either manual or spindle height adjustment. Max. load on the Strong Base is 120 kg.
Features
Easy to manoeuvre
The smooth running castors make it very easy to move the Strong Base around. All four castors are equipped with directional stabilizers and brakes.
Height adjustment
The Strong Base has either manual or spindle height adjustment. The manual base adjust from 30 to 55 cm in height - the spindle base adjust from 30 to 51 cm in height.
Tilt in space
The tilt in space function helps obtain varied seating positions. Simply angle the complete unit into the desired position. Tilt in space from -10 to +25°.
Fixed mounting or interface

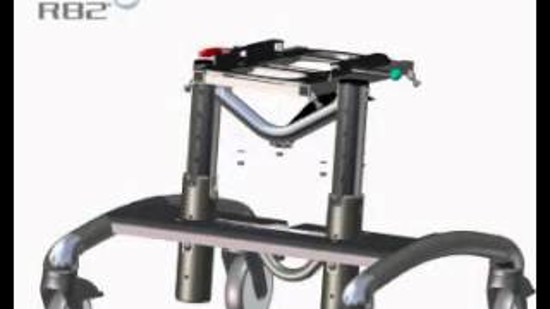

Various seats can be mounted directly onto the Strong Base. Alternatively the seats can be mounted by means of an interface.
Variants and details
| Manual | Spindle | |
|---|---|---|
| Item number | 89508-1M | 89508-1S |
| Footrest to adaptor plate (mm) | 160-350 | 160-350 |
| Length (mm) | 700 | 700 |
| Length with pushbar (mm) | 830 | 830 |
| Mass device (kg) | 14 | 15.5 |
| Max load (kg) | 120 | 120 |
| Maximum rated load (kg) | 136 | 137.5 |
| Overall height (mm) | 300-550 | 300-510 |
| Overall height, push brace (mm) | 795-1045 | 795-1005 |
| Overall length (mm) | 830 | 830 |
| Overall width (mm) | 600 | 600 |
| Seat plane angle (°) | (-10) - 25 | (-10) - 25 |
| Total mass (kg) | 14 | 15.5 |
Washing instructions
The product is CE marked
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
