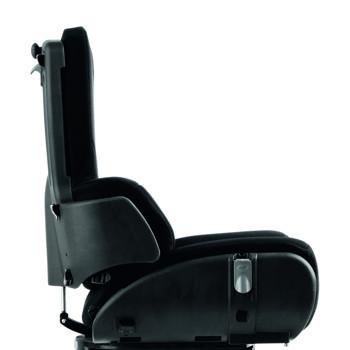

Panda Futura 5
The Panda Futura size 5 is a comfortable supportive seat for larger children and teenagers.
The seat is available in two versions; Standard and Active which provide the required comfort, support and freedom of movement. The back of the seat unit can be adjusted independently of the seat. The pivotal point of recline is anatomically correct, being in line with the hip joint. The back angles from -5° to 30°.
The Panda Futura size 5 can be mounted on the Combi Frame:x, Multi Frame:x, Strong Base, High-low:x indoor and outdoor frames depending on the use of the seat. The seat is supplemented with and prepared for many optional accessories to fulfill the needs of the individual user.
The Panda Futura seat complies with ISO 16840-4.
Features
Angle adjustable back
Easy change - active to standard
Comfortable cushions
Prepared for various accessories
Variants and details
| Panda Futura 5 active | Panda Futura 5 standard | |
|---|---|---|
| Item number | 890153-xx | 890253-xx |
| Armrest to seat distance (mm) | 210-300 | 210-300 |
| Back width, bottom of backrest (mm) | 320 | 270 |
| Back width, top of backrest (mm) | 350 | 380 |
| Backrest angle (°) | (-5) - 30 | (-5) - 30 |
| Backrest height (mm) | 590 | 590 |
| Effective seat depth (mm) | 430 | 430 |
| Effective seat width (mm) | 350 | 350 |
| Front location of arm rest structure (mm) | 480 | 480 |
| Mass device (kg) | 15 | 15 |
| Mass device (lbs) | 33 | 33 |
| Maximum rated load (kg) | 102 | 102 |
| Maximum user mass (kg) | 85 | 85 |
| Maximum user mass in transportation (kg) | 85 | 85 |
| Overall height (mm) | 670 | 670 |
| Overall length (mm) | 560 | 560 |
| Overall width (mm) | 560 | 560 |
Washing instructions
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
