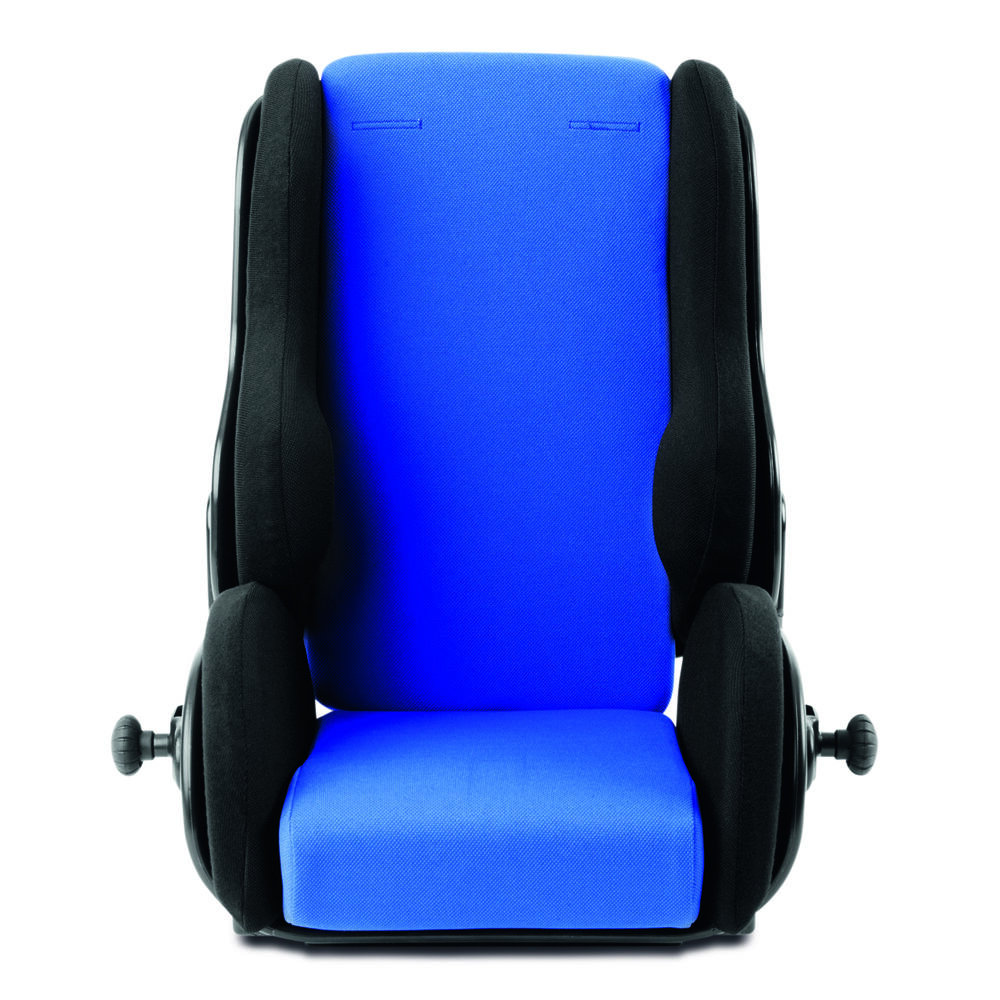

Panda Futura

The Panda Futura is a modular seating system for both indoor and outdoor use.

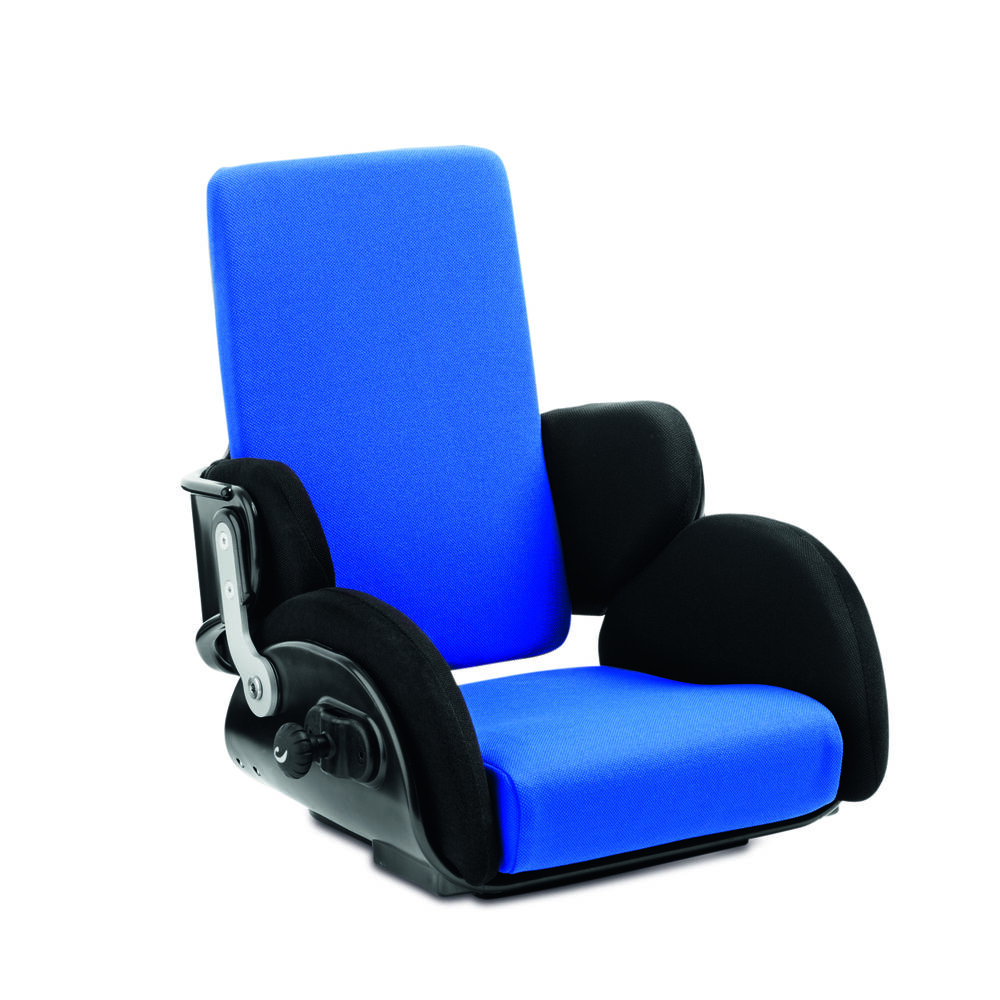

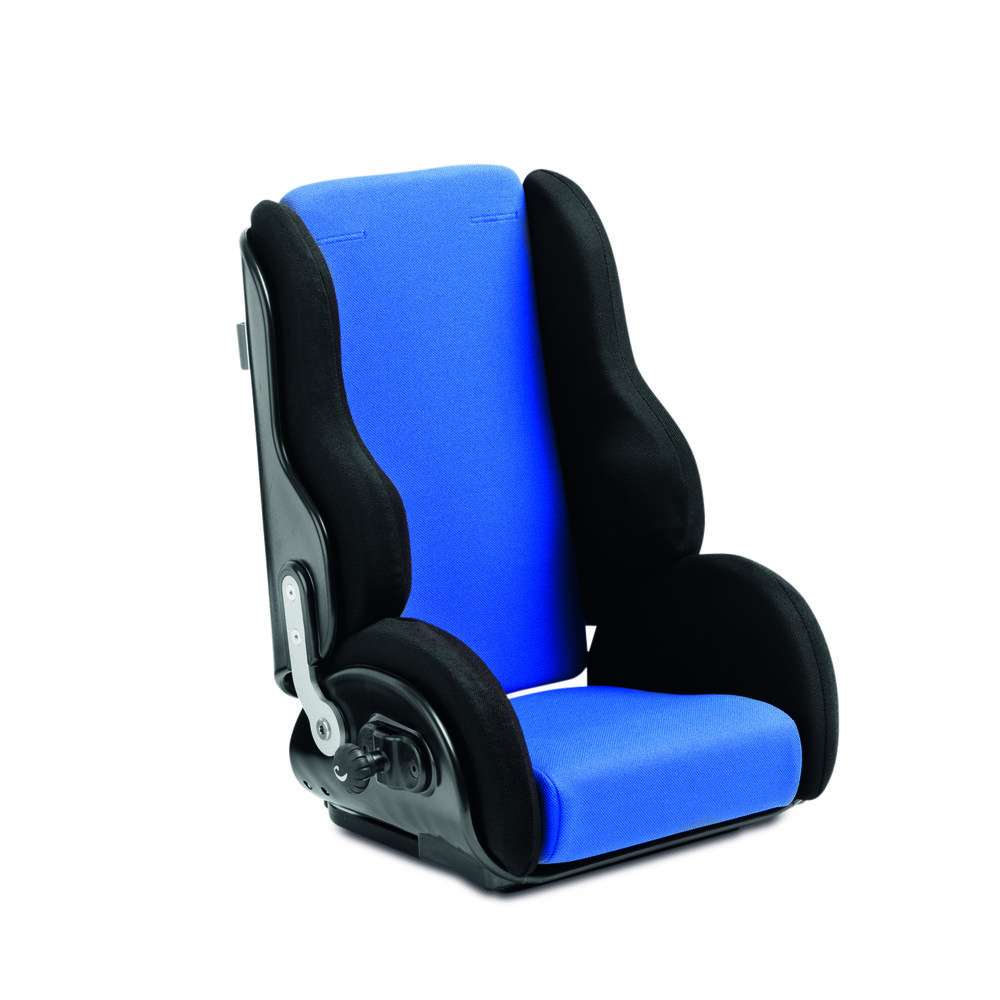

The Panda Futura seat is available in two different versions: Standard and Active. The Standard seat is primarily for children with the need of support around arms and shoulders. The Active seat is for the active children who need more freedom of movement.

The Panda Futura Standard is available in 5 sizes accomodating children aged approx. 1 to 12 years. The Panda Futura is available in 4 sizes as an Active version and will accomodate children aged approx. 1 to 12 years.

The Panda Futura seat complies with ISO 16840-4.

Features

Comfortable seating

A modular seating system with comfortable, six part cushion set that can be specified to suit a variety of different sizes and needs

Back recline

The back can be adjusted independently of the seat. The pivotal point of recline is anatomically correct, i.e. in line with the hip joint

Prepared for accessories

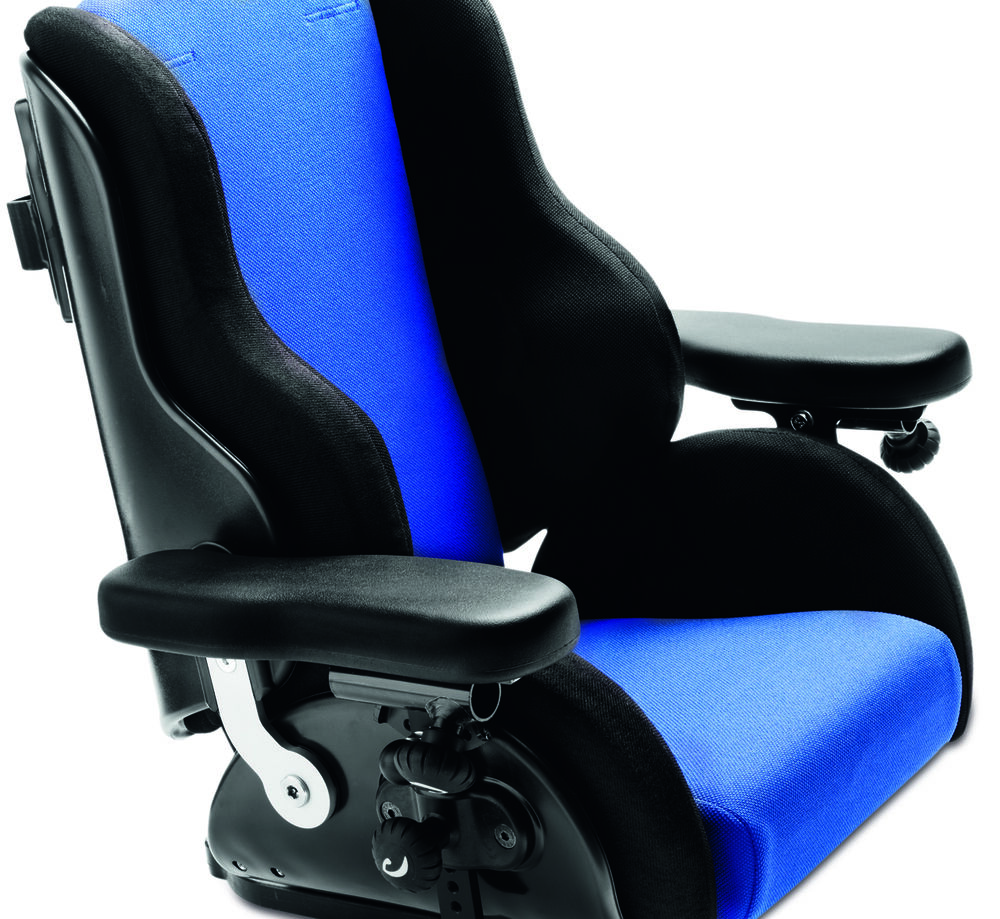

The seat is prepared for mounting of e.g. armrests. Several fixlocks and slots in the back and seat ensure easy mounting of other accessories

Fits on a variety of frames

The Panda Futura seat can be mounted on many different frames. Also, the seat on an indoor frame is easy to dismount and place on an outdoor frame.

Variants and details

	Panda active, size 2	Panda active, size 2½	Panda active, size 3	Panda active, size 4	Panda standard, size 1	Panda standard, size 2	Panda standard, size 2½	Panda standard, size 3	Panda standard, Size 4
Item number	890121-xx	890161-xx	890131-xx	890141-xx	890211-xx	890221-xx	890261-xx	890231-xx	890241-xx
Armrest to seat distance (mm)	130-180	130-180	130-240	130-240	130-180	130-180	130-180	130-240	130-240
Backrest angle (°)	(-4) - 27	(-10) - 20	(-9) - 27	(-6) - 17	(-3) - 28	(-15) - 32	(-10) - 35	(-5) - 36	(-5) - 30
Backrest height (mm)	350	380	400	450	290	390	410	440	535
Effective seat depth (mm)	240	280	310	360	220	240	280	310	360
Effective seat width (mm)	220	250	290	320	220	220	250	290	320
Front location of arm rest structure (mm)	280	280	370	480	280	280	280	370	370
Mass device (kg)	5.2	5.6	6.2	7.5	5.7	5.7	6.2	7.3	8.7
Mass device (lbs)	11.5	12.3	13.7	16.5	12.5	12.5	13.7	16.1	19.2
Maximum rated load (kg)	37.2	57.6	58.2	69.5	37.7	37.7	58.2	59.3	70.7
Maximum user mass (kg)	30	50	50	60	30	30	50	50	60
Maximum user mass in transportation (kg)	-	-	-	-	-	30	50	50	57

Options

Safety

A safety lock secures the seat’s stability on the frame

Cover colours

Available in two colours. Red is standard delivery in the UK.

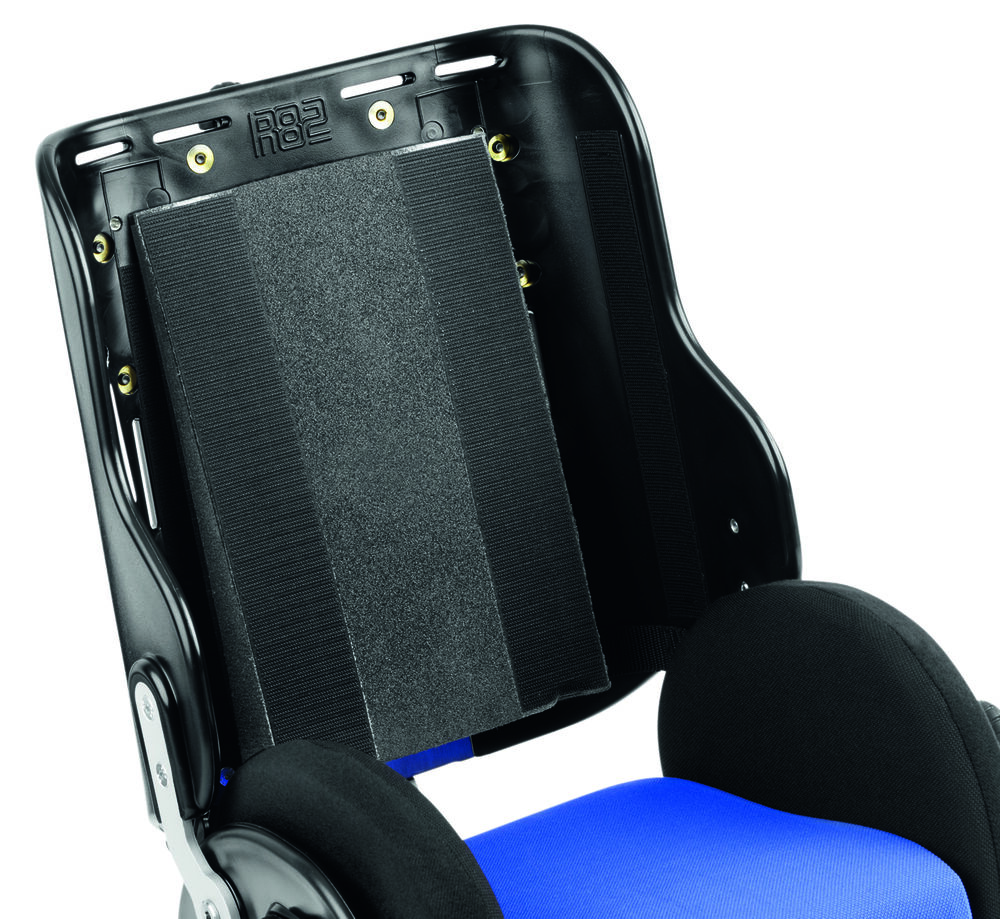

Cushions

Available with either 3 or 5 cm side and back cushions

Adjustable seat & back width

The choice of cushion width makes it possible to adjust the seat and back width.
