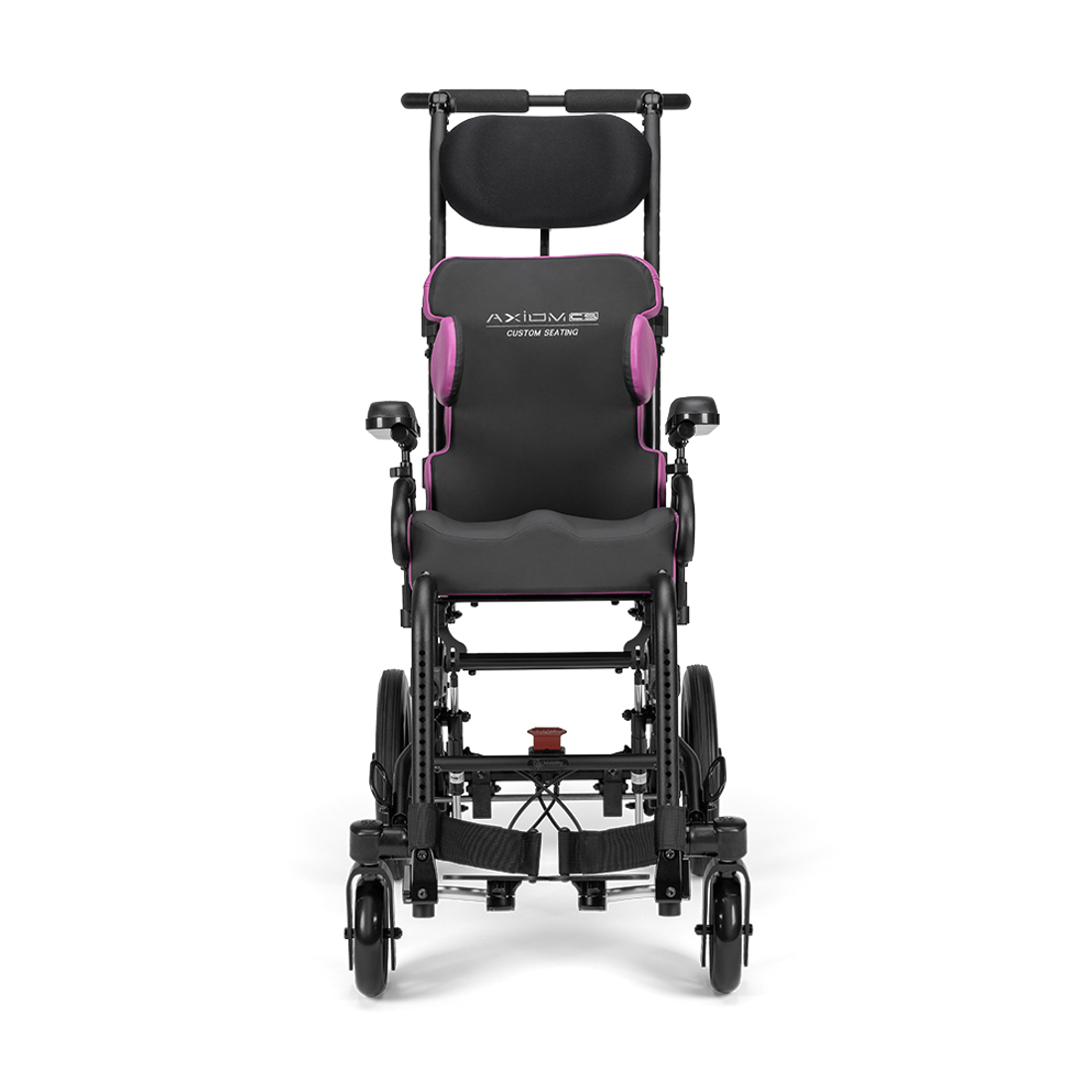

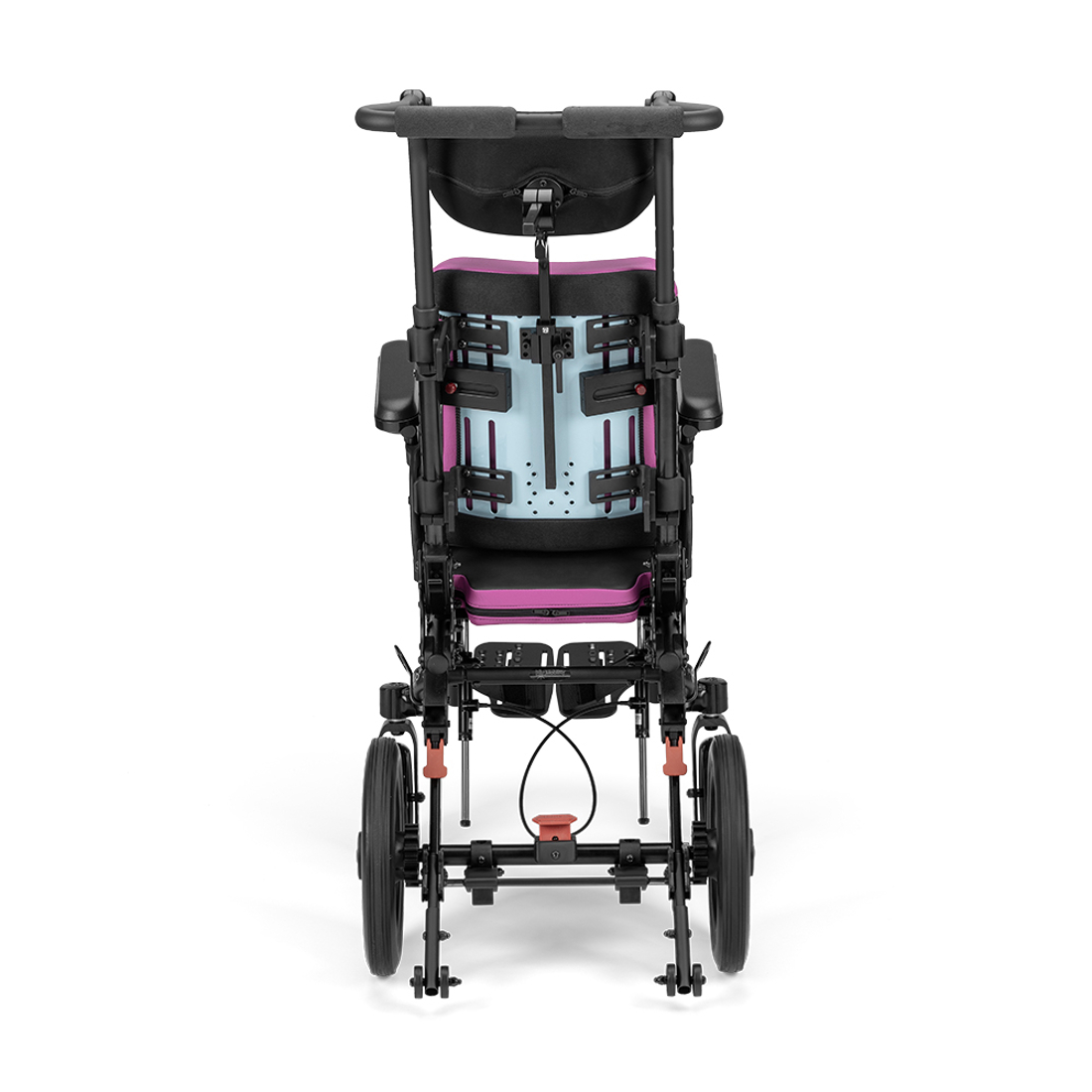

Ki Little Wave Flip

The first pediatric tilt-in-space solution designed to look more like a stroller with the technology of a wheelchair.

Flip the script on ordinary. Designed to be as unique as your child.

When a child’s adaptive stroller no longer fits their unique seating and positioning requirements, Little Wave Flip is the answer. A pediatric tilt-in-space solution designed to look like a stroller but provide the technology of a wheelchair.

Features

Expand Children's Horizons

The R82 x:panda shape pediatric seating system is designed to change shape as your child develops. Paired with the Little Wave Flip base, the combination promotes independence and active participation to fully embrace life's adventures. The LW Flip base offers the same benefits as LW flip with the added adaptor plate that makes adding and removing the x:panda shape seating simple. Both units provide growth and adjustments, making the combination the perfect pair for your growing child.

Put a flip to your fold

The Little Wave Flip integrates design elements from strollers into the durability of a wheelchair. Just because it is a wheelchair, does not mean it needs to look like one. From its flat folding design to its use of TAPER LOK technology, the Flip is simply the most advanced pediatric tilt in space available today.

Don't struggle with growth. Embrace it.

The Flip offers a new paradigm in adjustability. Seat height, seat depth, and seat width have never been so easy to change, with fewer parts than any other chair.

High Pivot Folding Back

By raising pivot point on the folding back, we’ve created the possibilities to leave more seating on the chair while folded.

Variants and details

	Seat depth (mm)	Seat width (mm)	Tilt angle (°)	Transport weight (kg)	Tubing Size (mm)	WC-19 Transit Approved	Weight capacity (kg)
Little wave Flip	304.8 - 508	254 - 457.2	0° - 45°	9.6	2.54	YES	75

Calculation for Transport Weight based on: 355.6 x 355.6 mm Frame with Attendant Wheel Locks. Armrests, Rear Wheels and Footrests removed

Options

Frame Options

Flip - Transit System

Provides securement points so the chair can be used as a seat in a motor vehicle when used in accordance with the User Instruction Manual.

Offset Hanger

Available only with Rigid Base.

Backrest Options

Dynamic Back

Shock absorbing back frame reduces stresses on the frame from high tone riders. Not available with Flip Up Armrests. Available only with Non-Folding Back.

Stroller Handle Back Post

Available in Short (20") or Tall (24"), the back cane is vertical to the frame with a 90° bend at the top for a push handle.

Fixed Height Back with Adjustable Handle

1" diameter to accommodate a multitude of aftermarket seating.

Adjustable Height Back with Adjustable Handle

Available in Short (18" - 25") and Tall (20" - 27") height ranges, this back post is height adjustable and comes with an adjustable handle.

Reclining Backrest with Adjustable Handle

The only Pediatric Reclining Backrest with locking gas springs. Allows for the opening of back angles (0° - 60°) to best facilitate each unique situation.

Hanger Options

Front Mount Hangers

With 3.5" knee-to-heel capability in 0.5" increments. Available in 70°, 80°, and 90° versions.

Pro ELR

Pro ELR has an adjustable pivot location (range of 2") to promote proper knee placement and an adjustable calf pad for personalized fit from client to client.

Pediatric Pro ELR

Patented adjustable pivot location to promote proper knee placement and an adjustable calf pad for personalized fit.

Contracture Footrest

Allows for extension, flexion, or lower leg rotation for optimal angle of knees and ankles. Helps maintain pelvic positioning, postural support, and pressure distribution, even with windswept deformity.

Classic Hanger Release

Ergonomic hanger release design for easy actuation.

4-Way Hanger Release - Inline

Mount in 4 different positions with ONE bolt! 4-Way Inline position provides best optimization for caregivers.

4-Way Hanger Release - Out

Mount in 4 different positions with ONE bolt! 4-Way Out provides best optimization for clients.

Residual Limb Support

Just as easy to operate as our patented swing away hangers using the same swing in/out design. An incredible amount of adjustment within the system allows you to achieve the exact position and angle your client needs. Pad Sizes: 5"x8", 7"x10", 9"x10", 9"x14", 11"x10", 11"x14". Cover Options: Smooth. Wipeable yet breathable; Breathable Air Mesh.

Tilt Mechanism

Hand Tilt

Two Levers operating to tilt giving caregivers full control.

Foot Tilt

Foot operated tilt control. Reduces cable clutter at the back canes and more stroller like appearance.

Armrests

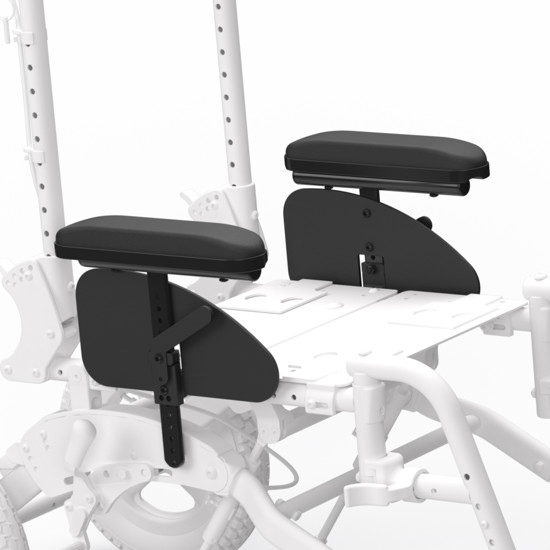

Height Adjustable Pediatric Desk

Our single post height adjustable T-arm made for smaller riders. Available in 6.5" - 9".

Height Adjustable Pediatric Desk Tall

Our single post height adjustable T-arm made for smaller riders. Available in 8" - 10.5".

Height Adjustable T-Arm

The single post height adjustable arm is easy to release and adjust in height. Lower profile and lighter than competitive models. Available in 21.5 cm-34.2 cm.

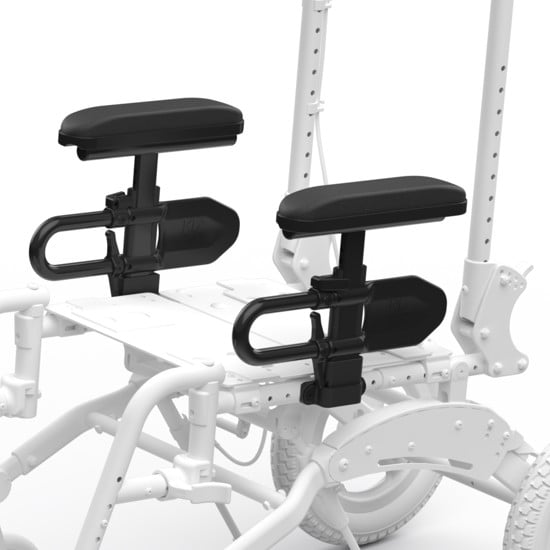

Height Adjustable T-Arm Low

The single post height adjustable arm is easy to release and adjust in height. Lower profile and lighter than competitive models. Available in 7.5" - 11.5".

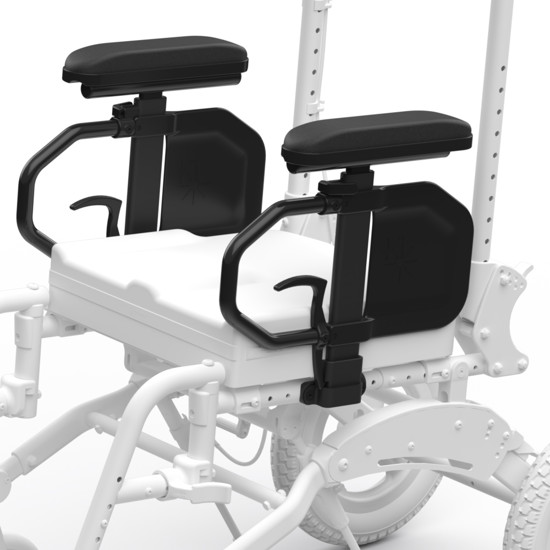

Height Adjustable T-Arm Tall

This easily retrofittable, lightweight design is easy to release and adjust in height. The tall version offers ample surface area above a cushion to provide proper coverage of the client’s body and ensures the transfer tube is easily accessible. Panel and armrest height is increased by 2.5”. Overall height adjustment range of 11" - 15”.

Tubular Flip Up Armrests

Simple Flip up arm engages at the top to stay up for transfers.

Angle Adjustable Locking Extendable Flip Up

This Angle Adjustable Locking Extendable Flip Up armrest is the ONLY cantilever armrest approved to 181.4 kg! It locks into position by a spring loaded latch while extending up to 10 cm in 5 cm increments and 7 angle adjustments in 5° increments from -5° to 25°. Available with standard and foam pads in desk or full lengths.

Waterfall Armpads

A generously padded waterfall design providing additional comfort and protection. Desk length: 22.8 cm.

Standard Armpads

Padded and textured armrest pad available in both full and desk lengths.

Foam Grip

Available only with Angle Adjustable Locking Extendable Flip Up Armrest. Foam grip armrest pad available in both full and desk lengths.

Footplates

Composite Angle Adjustable

Sleek design, easy to operate and fully adjustable. The Composite Angle Adjustable footplate makes adjustments fast and easy. Includes adjustments of the angle as well as fore and aft positioning of the footplate. Available with extension mount footrest hangers.

Aluminum Locking Multi-Angle Adjustable

Infinite adjustment in multiple axes to accommodate difficult positioning requirements such as inversion, eversion, plantar, and dorsi- flexion. Optimizes support, pressure distribution and postural alignment.

Composite

Made from a fiberglass filled nylon composite, these footplates are lightweight and tough, making them hard to bend or break.

Aluminum Angle Adjustable

Infinite adjustability for more accurate placement of the foot. Aluminum plates have slots for ankle straps and multiple attaching holes.

One Piece Flip Up Angle Adjustable

Solid, angle adjustable, aluminum footplate provides an excellent surface for your feet and increases rigidity at the front.

Heel Loops

Cradles the foot and helps keep it on the footplate.

Wheels

Mag

Made of a high-quality magnesium alloy, our Maxx Mag wheel design is lighter and more rigid than other mag wheels on the market. Save up to one inch of overall chair width creating better manoeuvrability in doorways and tight spaces.

12" Mag with Drum Brake

Available with Poly (Left Image) and Pneumatic tires.

16" Mag with Drum Brake

Available with Poly, Airless Insert and Pneumatic tires.

Maxx with Drum Brake

This hybrid wheel features a hub design with straight pull radial spokes on the outside flange, like most high-end wheelchair wheels. The inside flange has a 2 cross spoke pattern to handle the torque resulting from stopping a larger wheel by the relatively small hub.

Maxx Spoke

The Maxx Spoke high flange hub and eighteen radial spoke design provides increased rigidity and responsiveness. High-quality material construction with a durable black satin finish gives you a look and feel that is anything but standard.

Colored Mag

Our 5-spoke composite wheel, now available with color options in 20” and 22” sizes, is 20% lighter than the competition and maintenance free. Colors available are Pink, Blue, White and Fluorescent Red.

12" Mag Wheel

Available with Poly and Pneumatic tires.

16" Mag Wheel

The new 16"x2" mag rear wheels make it easier to handle everyday obstacles such as curbs and inclines. Available in Full poly, pneumatic, pneumatic with airless insert, or low profile poly.

Tires

Pneumatic

This standard air tire is more forgiving when going over obstacles and off curbs or stairs.

Pneumatic with Airless Insert

Low density foam is inserted into a pneumatic tire. Low maintenance - no air, no flat tires! (3.5 cm)

Full Profile Poly

Corded to prevent it from rolling off the wheel. Provides a softer ride than other low cost "over-molded" tires. (3.5 cm)

Handrims

Close Mount Handrims

Handrim is mounted closer to wheel rim, reducing overall chair width by approximately 1.9 cm.

Aluminum Anodized

Aluminum is lighter than steel, stronger than plastic, and won't rust. Comes standard with a hard anodized finish on 24", 25", and 26" spoke wheels.

Plastic Coated

Peel resistant poly coating creates a tacky surface for users with limited hand dexterity. The poly coat will not continue to peel from cuts and nicks caused by everyday use.

Projection

8 vertical projections, each 1 cm, are plastic coated for individuals with limited grip strength. Available only with full profile tires. Available only with 22"-26" Spoke wheel sizes or Mag wheels.

Ergo Standard Regular Grip

The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a powder coated contoured thumb piece that provides a low friction surface for smooth braking. Available on 22", 24" and 25" wheels.

Ergo Standard Extra Grip

The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a high friction coated contoured thumb piece that provides a grippier propulsion surface. Available on 22", 24" and 25" wheels.

Ergo Standard Omit Grip

The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish that is available on 22", 24" and 25" wheels.

Ergo Lite Regular Grip

The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a powder coated contoured thumb piece that provides a low friction surface for smooth braking. Available on 22", 24" and 25" wheels.

Ergo Lite Extra Grip

The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a high friction coated contoured thumb piece that provides a grippier propulsion surface. Available on 22", 24" and 25" wheels.

Ergo Lite Omit Grip

The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish that is available on 22", 24" and 25" wheels.

3M Micro Grip

Micro Grip Non-Slide Tape enhances your grip in dry, wet, and snowy conditions! Made of micro-injected silicone and 3M adhesive.

Wheel Locks

Drum Brake

Acts as a true brake allowing the chair to be slowed as opposed to just locking the wheel. The new dual lever allows for the combination of tilt and Drum Brake actuation in one system.

Flip Push to Lock

After engagement the lever is at 45°. Lever is easily reachable.

Flip Pull to Lock

After engagement the lever is at 45°. Lever is easily reachable.

Pull or Push with Extensions

For people with limited strength, this design requires very little effort to engage. Removable 6" foldable extension increases leverage.

Axles and Axle Plates

Standard Axle Plate

Common Axle Plate that receives Fixed or Quick Release Axles unless Self Propel Axle Plate is requested.

Self Propel Axle Plate

Propel yourself with our Self-Propel Axle Plate. This system allows for a CG wheel access position similar to a folding or a rigid wheelchair.

Quick Release Axle

Standard axle with a quick release button for easy wheel removal.

Fixed Axle

Threaded Fixed Axle prevent easy or inadvertent removal. Perfect for facilities.

Casters

1.9 cm Lighted Rollerblade

Similar than the standard micro caster. Add some pizazz to your chair! Available in 7.62 - 12.7 cm.

Pneumatic

A low-cost way to get a great and comfortable ride. You just need to add air from time to time. Available in 6" and 8".

2.5 cm Poly

The wider profile uses molded polyurethane to create a great tire. Hard on the outside for low rolling resistance, soft on the inside for cushioning. Available in 4", 5", 6", 7" and 8".

3.8 cm Poly

The wider profile uses molded polyurethane to create a great tire. Hard on the outside for low rolling resistance, soft on the inside for cushioning. Available in 10 - 15 cm.

2.5 cm Poly Aluminum

Uses a 3-spoke aluminum hub for added strength and styling. Available in 10 and 12.7 cm.

Soft Roll Aluminum

3-Spoke ultralight aluminum hubs, highly resistant, with improved mobility. Available in 3", 4", 5" and 6".

6"x2" Poly

This tire is quite firm with a subtle radius so that it is easy to push on hard surfaces and gives you great flotation on soft or uneven ground.

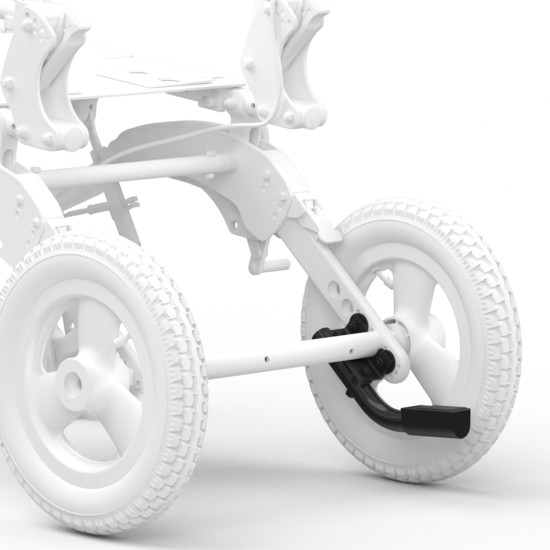

Anti Tips

Our design allows the anti-tips to stay connected while making everyday obstacles such as curb climbing hassle free.

Pelvic Positioning Belts

2.5 cm Auto Buckle

Using a double-pull to ensure the buckle remains in the proper position and attaching hardware for proper placement on the frame our new belts are an industry best value.

2.5 cm Padded Auto Buckle

This belt has a wide 4 cm pad for riders who may need additional padding. *Image is only representative and actual product may vary slightly

3.8 cm Auto Buckle

Using a double-pull to ensure the buckle remains in the proper position and attaching hardware for proper placement on the frame our new belts are an industry best value. *Image is only representative and actual product may vary slightly

3.8 cm Padded Auto Buckle

This belt has a wide 5.7 cm pad for riders who may need additional padding. *Image is only representative and actual product may vary slightly

5 cm Airline Buckle

This belt uses an airline style buckle that can add a degree of security. It uses a wider 5 cm belt.

BodyPoint Evoflex Pelvic Stabilizer

Stays where you need it. Provides stability and flexibility. Versatile and easy to use. Stiffened end straps keep belt from twisting. Sized for users 15 kg to 130 kg. Available in Extra Small, Medium and Large.

Bodypoint Belt Mounting Kit

Mounting hardware for the Bodypoint Pelvic Stabilizer.
