Ki Little Wave Clik

Little Wave Clik is designed to help kids confidently navigate their environment and comfortably grow with their wheelchair. Being able to move around in different environments is an essential phase of neurodevelopment.

Little Wave Clik has options that can make a child feel more confident, and it has the built-in adjustment and growth needed to support proper positioning and wheel access throughout the life of the wheelchair.

Features

Ease of Adjustment

The Index System is an adjustment system designed to provide accurate, easy growth options. Time effective and easy to adjust for proper positioning and wheel access for independence and mobility with just a Clik.

Built In Adjustment

You are only a Clik away from just right. With adjustable seat height, width, depth, CG, caster wing position, seat upholstery, and seat pans, meeting kids' needs has never been easier.

Hybrid Offset Frame Design

Give your child the room they need. The Clik Offset frame allows more room for abducted position, AFO's and braces while facilitating proper foot positioning. Hybrid design does not increase frame length or compromising seat support.

Dynamic 5th Wheel

The adjustable and removable dynamic 5th wheel can be set up in mid-wheel for the smallest riders or help promote and teach the balance and wheeling skills that encourage confidence to overcome everyday obstacles and terrain.

Variants and details

	Camber angle (°)	Front seat height (mm)	Rear seat height (mm)	Seat depth (mm)	Seat width (mm)	Transit Approved	Transport weight (kg)	Tubing Size (mm)	Weight capacity (kg)
Little Wave Clik	0°, 2°, 4°, 6°, 8°	290-510	290-520	200-460	200-460	Yes	5.7	28.5	75

Options

Frame Options

Transit System

Provides securement points so the chair can be used as a seat in a motor vehicle when used in accordance with the User Instruction Manual.

Offset Frame

The Clik Offset Frame allows more room for an abducted position, AFO's and braces while facilitating proper foot positioning. The hybrid design does not increase frame length or compromise seat support.

Growing Seat Pan

Grows 5 cm in width from even widths and 2.5 cm from odd widths. Depth growth is matched to Frame Depth Range and can be adjusted to any depth in the range.

Growing Seat Sling

Accommodates up to 7.6 cm depth growth.

Backrest Options

Adjustable Height Back

Allows for 10 cm height adjustment in 3 different ranges.

2.5 cm Inward Offset Back Post

A height adjustable back post that allows 10.16 cm of height adjustment in 3 different ranges. The frame has a 1.27 cm inward offset on each side to accommodate trunk size. This back post uses 2.5 cm tubes compatible with after-market backs.

5 cm Outward Offset Back Post

The frame has a 2.5 cm outward offset on each side to accommodate trunk size.

Straight Back Posts w/o Push Handle

The back cane is vertical to the frame, ending at the exact height you choose. The push handle has been removed to create more freedom for shoulder rotation.

Fold Down Push Handle

Sleek, ergonomic push handles that are there when you need them and can be easily folded down when you don't.

Bolt-On Push Handle

Stroller handle is behind the back frame and fixed to a desired height.

Single Stroller Handle

Positioned at the ideal height, the stroller handle can greatly assist the caretaker in handling the wheelchair.

Double Stroller Handle

Adjustable so they can be positioned at the ideal height. The stroller handle can greatly assist the caretaker in handling the wheelchair.

Ergo Stroller Handle

Whether it’s for mom, dad, sister, brother, friend or caregiver the adjustable height Ergo stroller handle is the ergonomic choice for all. Adjustable in height for the most comfortable access to a stroller handle you will experience!

Upholstery

Air Mesh Breathable Cover

A breathable back upholstery cover improves airflow. Available on both standard Velcro adjustable and tension adjustable upholstery. The anti-pilling fabric along the sides improves durability and helps protect from wear when in contact with abrasive surfaces such as Velcro.

Padded Velcro Adjustable Back Upholstery

Uses 2.5 cm poly foam with a nylon parapak cloth cover. Very comfortable and shear resistant.

Tension Adjustable

Adjustable straps allow independent support for the pelvis and trunk, improving postural control and alignment.

Armrests

Tubular Flip Up Armrests

Simple Flip up arm engages at the top to stay up for transfers.

Swing Away Armrests

Easy to swing away. Easy to remove. The cantilevered arms help to keep your chair light yet provide a solid hold for transfers and weight shifts.

Height Adjustable Pediatric Desk

Our single post height adjustable T-arm made for smaller riders. Available in 16.5 cm-22.8 cm.

Height Adjustable T-Arm

The single post height adjustable arm is easy to release and adjust in height. Lower profile and lighter than competitive models. Available in 21.5 cm-34.2 cm.

Height Adjustable T-Arm Low

The single post height adjustable arm is easy to release and adjust in height. Lower profile and lighter than competitive models. Available in 19.05 cm-29.21 cm.

Height Adjustable T-Arm Tall

The tall version offers ample surface area above a cushion to provide proper coverage of the client’s body and ensures the transfer tube is easily accessible. Panel and armrest height is increased by 6.35 cm. Overall height adjustment range of 27.94 - 38.1 cm.

Waterfall Armpads

A generously padded waterfall design providing additional comfort and protection. Desk length: 22.8 cm.

Standard Armpads

Padded and textured armrest pad available in both full and desk lengths.

Foam Grip

Available only with Angle Adjustable Locking Extendable Flip Up Armrest. Foam grip armrest pad available in both full and desk lengths.

Footplates

Aluminum Angle Adjustable

Solid, adjustable angle aluminum footplate provides the adjustment when needed and increases rigidity in the front.

Aluminum Angle Adjustable w/ Riser

Raises the solid, Aluminum Angle Adjustable footplate to the desired footrest length position. Risers available in 13 cm, 10 cm, 7.5 cm, 5 cm and 2.5 cm for future adjustment needs.

Angle Adjustable Flip Under

Solid, adjustable angle aluminum footplate provides and excellent surface for your feet, but can flip back out of the way to allow standing transfers.

High Mount Aluminum Angle Adjustable

Clamp mounts attach the footrest assembly to the front frame tubes at the desired footrest length position.

High Mount Angle Adjustable Flip Under

Mounts the footrest on the front frame tubes at the desired footrest length position. The Angle Adjustable Flip Under footrest can be flipped back to get your footplate out of the way for standing transfers.

Wheels

Maxx with Drum Brake

This hybrid wheel features a hub design with straight pull radial spokes on the outside flange, like most high-end wheelchair wheels. The inside flange has a 2 cross spoke pattern to handle the torque resulting from stopping a larger wheel by the relatively small hub.

Maxx Spoke

The Maxx Spoke high flange hub and eighteen radial spoke design provides increased rigidity and responsiveness. High-quality material construction with a durable black satin finish gives you a look and feel that is anything but standard.

Mag

Made of a high-quality magnesium alloy, our Maxx Mag wheel design is lighter and more rigid than other mag wheels on the market. Save up to one inch of overall chair width creating better manoeuvrability in doorways and tight spaces.

Spinergy Spox

The name to trust in performance wheels. Extremely reliable and comfortable for your everyday needs.

Spinergy LX

Spinergy's Light Extreme (LX). With 12 high-strength spokes, the wheel is ultra-strong and stiff for maximum performance while offering a very cool and minimal look.

Colored Mag

Our 5-spoke composite wheel, now available with color options in 20” and 22” sizes, is 20% lighter than the competition and maintenance free. Colors available are Pink, Blue, White and Fluorescent Red.

Spoke with One Arm Drive

Quick release One Arm Drive system available with 20", 22" and 24" spoke wheels. Available with or without camber for better handrim access and ease of propulsion. For the drive handrim choose from standard aluminum anodized or poly coated.

Tires

Sentinel Solid

The Sentinel Solid 2.5 cm tire is a new durable, lightweight solid PU tire option. Offering improved ride quality with decreased rolling resistance. This tire is now available on 20", 22" and 24" wheels. (2.5 cm)

Pneumatic

This standard air tire is more forgiving when going over obstacles and off curbs or stairs.

Full Profile Poly

Corded to prevent it from rolling off the wheel. Provides a softer ride than other low cost "over-molded" tires. (3.5 cm)

Pneumatic with Airless Insert

Low density foam is inserted into a pneumatic tire. Low maintenance - no air, no flat tires! (3.5 cm)

Low Profile Poly

A softer ride than low cost "over-molded" tires. Corded to prevent it from rolling off the wheel. (2.5 cm)

High Pressure

High pressure, puncture resistant performance tire. 50 kg of pressure. High pressure tires have minimal rolling resistance. (2.5 cm) Depending on size of wheel, tire brand and color may vary. Please contact customer service for details.

Schwalbe Marathon Plus Evolution

Top of the class in performance and durability. Non-marking black tire. Has a thin line of gel inside to seal punctures and keep you running. (2.5 cm)

Handrims

Close Mount Handrims

Handrim is mounted closer to wheel rim, reducing overall chair width by approximately 1.9 cm.

Aluminum Anodized

Aluminum is lighter than steel, stronger than plastic, and won't rust. Comes standard with a hard anodized finish on 24", 25", and 26" spoke wheels.

Plastic Coated

Peel resistant poly coating creates a tacky surface for users with limited hand dexterity. The poly coat will not continue to peel from cuts and nicks caused by everyday use.

Projection

8 vertical projections, each 1 cm, are plastic coated for individuals with limited grip strength. Available only with full profile tires. Available only with 22"-26" Spoke wheel sizes or Mag wheels.

Ergo Standard Regular Grip

The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a powder coated contoured thumb piece that provides a low friction surface for smooth braking. Available on 22", 24" and 25" wheels.

Ergo Standard Extra Grip

The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a high friction coated contoured thumb piece that provides a grippier propulsion surface. Available on 22", 24" and 25" wheels.

Ergo Standard Omit Grip

The larger ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish that is available on 22", 24" and 25" wheels.

Ergo Lite Regular Grip

The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a powder coated contoured thumb piece that provides a low friction surface for smooth braking. Available on 22", 24" and 25" wheels.

Ergo Lite Extra Grip

The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish and a high friction coated contoured thumb piece that provides a grippier propulsion surface. Available on 22", 24" and 25" wheels.

Ergo Lite Omit Grip

The smaller and lighter ergonomic profile can provide improved propulsion and braking efficiency. Made to last with a durable, hard anodized finish that is available on 22", 24" and 25" wheels.

3M Micro Grip

Micro Grip Non-Slide Tape enhances your grip in dry, wet, and snowy conditions! Made of micro-injected silicone and 3M adhesive.

Wheel Locks

Drum Brake

Acts as a true brake allowing the chair to be slowed as opposed to just locking the wheel.

Push to Lock

Standard. After engagement the lever is at 45°. Lever is easily reachable.

Push to Lock Flush Mount

After engagement the lever is flush to the seat. Lever moves out of the way for people who perform lateral seat transfers.

Pull to Lock

After engagement the lever is at 90°. Lever is easily reachable.

Pull or Push with Extensions

For people with limited strength, this design requires very little effort to engage. Removable 15 cm foldable extension increases leverage.

Low Profile Scissor Lock

Low profile and easy to engage with a sleek and ergonomic design.

Grade Aids

Grade aids prevent your wheel from rolling backwards when you push up a hill.

Axles

Quick Release Axle

Standard axle with a quick release button for easy wheel removal.

Quad Quick Release Axle

The flip lever on the quad quick release requires very minimal hand strength for greater independence.

Casters

1.9 cm Lighted Rollerblade

Similar than the standard micro caster. Add some pizazz to your chair! Available in 7.62 - 12.7 cm.

1.9 cm Rollerblade

Available in 7.6 and 10 cm.

Pneumatic

A low-cost way to get a great and comfortable ride. You just need to add air from time to time. Available in 6" and 8".

2.5 cm Poly

The wider profile uses molded polyurethane to create a great tire. Hard on the outside for low rolling resistance, soft on the inside for cushioning. Available in 4", 5", 6", 7" and 8".

3.8 cm Poly

The wider profile uses molded polyurethane to create a great tire. Hard on the outside for low rolling resistance, soft on the inside for cushioning. Available in 10 - 15 cm.

2.5 cm Poly Aluminum

Uses a 3-spoke aluminum hub for added strength and styling. Available in 10 and 12.7 cm.

Soft Roll Aluminum

3-Spoke ultralight aluminum hubs, highly resistant, with improved mobility. Available in 3", 4", 5" and 6".

Forks

Standard Fork

Available in multiple sizes for optimal front seat height adjustment as it relates caster and stem selections.

Single Sided Fork

A stylish treatment. With only a single side of material, you have a unique design. Available on 7.6 - 12.7 cm casters.

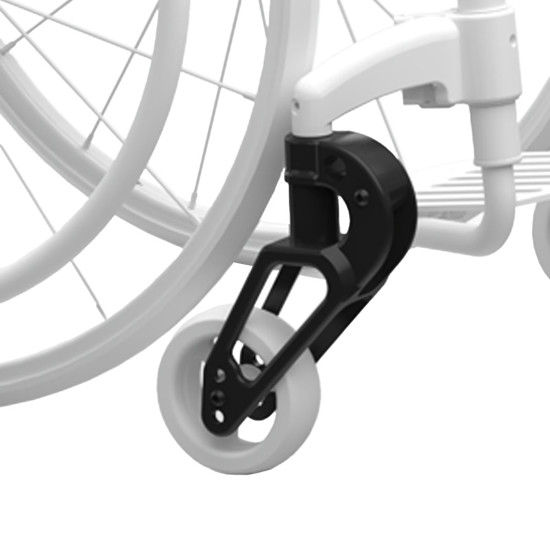

Frog Legs Suspension Fork

Reduce vibration, prevent pitching. Ultra-shock absorbing.

Anti-Tippers

5th Wheel

Rotating 5th wheel allows for aggressive center of gravity positioning of the rear wheels. Removable.

Dynamic 5th Wheel

The adjustable dynamic 5th wheel allows you to adjust both the range and spring rate to help promote proper wheelchair skills. Comes standard with two elastomers so over time, the spring rate can be increased or decreased. Removable.

Anti-Tips

A sleek low profile lightweight safety option and accessory. Easy to adjust. Removable.

Pelvic Positioning Belts

Ki Mobility Belt Mounting Clamp

The Ki Mobility seatbelt clamp allows for 100% infinite adjustment. Ensure proper positioning by achieving the perfect seatbelt angle.

2.5 cm Auto Buckle

Using a double-pull to ensure the buckle remains in the proper position and attaching hardware for proper placement on the frame our new belts are an industry best value.

2.5 cm Padded Auto Buckle

This belt has a wide 4 cm pad for riders who may need additional padding. *Image is only representative and actual product may vary slightly

3.8 cm Auto Buckle

Using a double-pull to ensure the buckle remains in the proper position and attaching hardware for proper placement on the frame our new belts are an industry best value. *Image is only representative and actual product may vary slightly

3.8 cm Padded Auto Buckle

This belt has a wide 5.7 cm pad for riders who may need additional padding. *Image is only representative and actual product may vary slightly

5 cm Airline Buckle

This belt uses an airline style buckle that can add a degree of security. It uses a wider 5 cm belt.

BodyPoint Evoflex Pelvic Stabilizer

Stays where you need it. Provides stability and flexibility. Versatile and easy to use. Stiffened end straps keep belt from twisting. Sized for users 15 kg to 130 kg. Available in Extra Small, Medium and Large.

Bodypoint Belt Mounting Kit

Mounting hardware for the Bodypoint Pelvic Stabilizer.
