Convaid Coaster
A compact, durable, adjustable fixed tilt mobility chair that provides families the freedom to go anywhere.

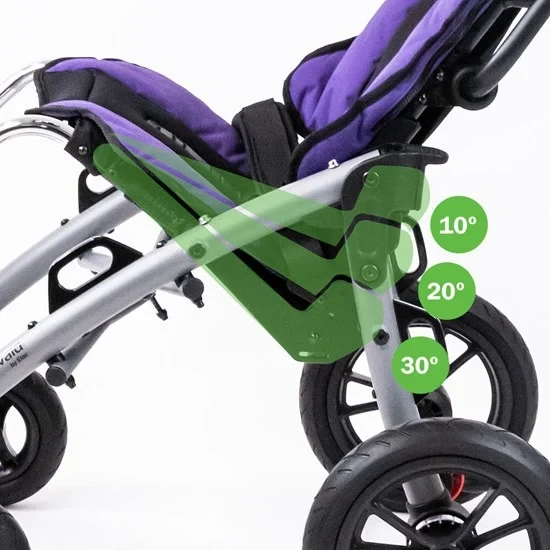

The Coaster is the latest addition to our fixed-tilt family. This mobility chair accomplishes simple adjustment between 10°, 20°, or 30° seat tilt angle, in a lightweight, compactly folded frame that demonstrates the same longevity seen in all Convaid products. The Coaster also offers an adjustable fixed recline across four different positions, providing optimal support for all children.
The Coaster offers 5” of seat depth growth in all four sizes, 12”, 14”, 16”, and 18” seat width, and comes in a wide variety of colors in the Convaid standard upholstery. Having been successfully tested to the WC19 & ISO7176 transport safety standards the Coaster protects users with weight up to 170lbs while also being compact and lightweight. This innovative device offers a streamlined two-step clamshell folding design and can be easily unfolded in one intuitive motion. The Coaster is the perfect family-friendly chair to get everyone out for adventures and an EZ Cruise.
Features

Adjustable fixed tilt and fixed recline

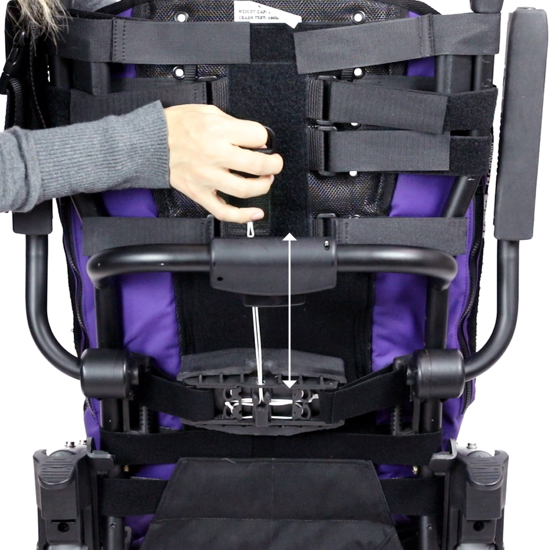

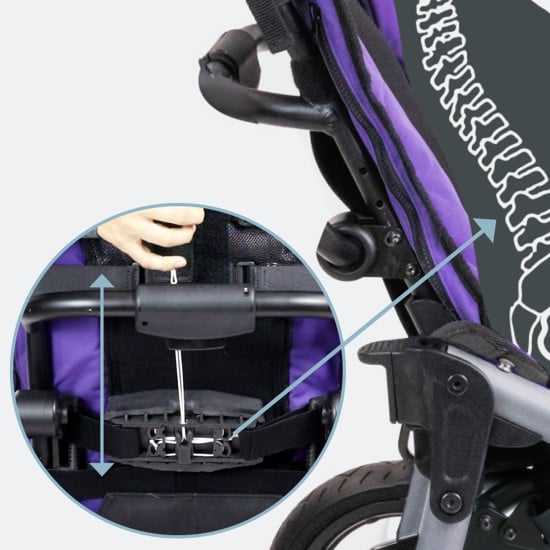

Height and tension adjustable back positioner

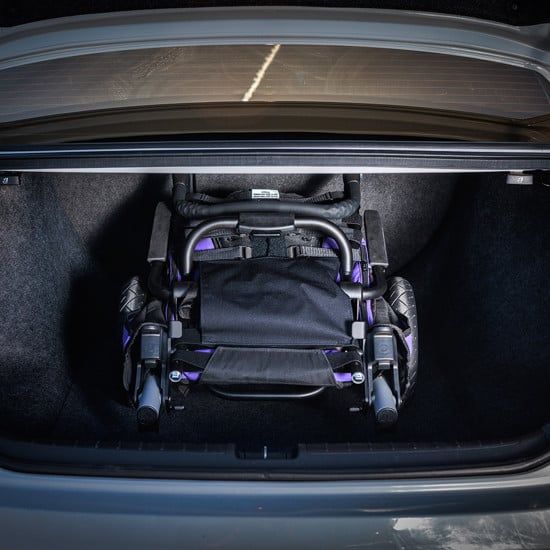

Compact clamshell folding

Saddlebags
Variants and details
Specifications for all variants | |||
---|---|---|---|
Folded height (mm) | 432 | Seat angle (°) | 10,20,30 |
Foot plate angle (°) | -180 - +180 |
CTR12 | CTR14 | CTR16 | CTR18 | |
---|---|---|---|---|
Folded length (mm) | 813 | 813 | 889 | 889 |
Folded width (mm) | 559 | 610 | 660 | 711 |
Overall height (mm) | 1016 | 1041 | 1067 | 1118 |
Overall length (mm) | 762 | 787 | 813 | 838 |
Overall width (mm) | 559 | 610 | 660 | 711 |
Push handle adjustments (mm) | 813-1168 | 864-1194 | 864-1270 | 889-1295 |
Seat back height (mm) | 559-610 | 635-686 | 660-711 | 711-737 |
Seat depth (mm) | 254-305 | 279-330 | 305-356 | 368-419 |
Seat to floor (mm) | 483-533 | 483-533 | 533-584 | 533-584 |
Seat to footplate (mm) | 152.4-406.4 | 152.4-406.4 | 152.4-406.4 | 152.4-508 |
Seat width (mm) | 305 | 356 | 406 | 457 |
Shoulder strap height (mm) | 267-457 | 330-533 | 356-559 | 419-660 |
Total weight (kg) | 13 | 13.5 | 14 | 14 |
Weight capacity (kg) | 34 | 45 | 77 | 77 |
Weight capacity transit (kg) | 30 | 45 | 77 | 77 |
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
