R82 Flamingo
The Flamingo is a toilet/bathing chair available in 4 sizes and suitable for children and youngsters.
The seat can be tilted and the back can be angled. The Flamingo can therefore assist children with special needs with their seating posture. The Flamingo is easy to clean and facilitates personal hygiene. It is adjustable in height and it can be placed over the toilet or can be used with a pan.

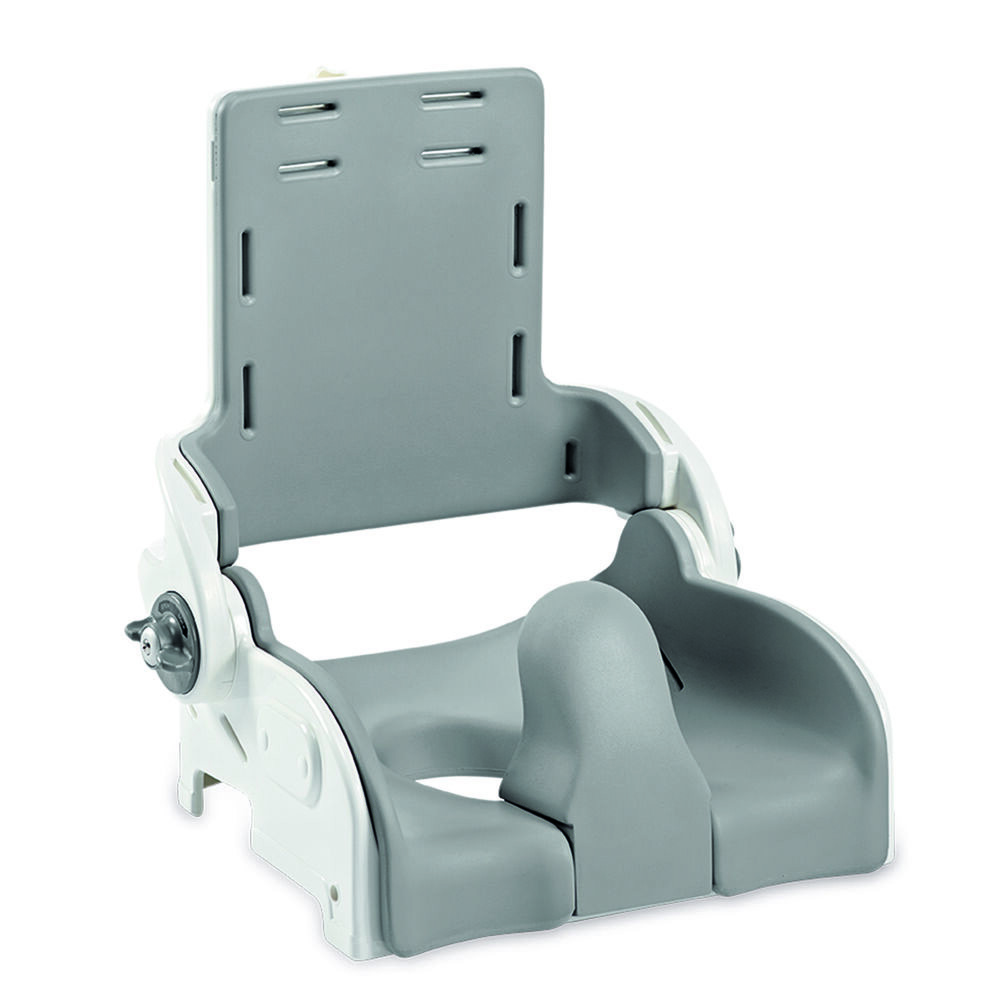

As standard the Flamingo seat is delivered with a narrow open backrest. For more support for the trunk either swing-away side supports can be mounted or sides with PU inlay, which surround and support the shoulders can be used.
Discover
Features
Tilt in space and back recline
Adjustable foot supports
Height adjustable frame
Foldable frame
Variants and details
Flamingo size 1 | Flamingo Size 2 | Flamingo Size 3 | Flamingo Size 4 | Flamingo seat size 1 | Flamingo seat size 2 | Flamingo seat size 3 | Flamingo seat size 4 | |
---|---|---|---|---|---|---|---|---|
Item number | 880001-xxx | 880002-xxx | 880003-xxx | 880004-xxx | 880101 | 880102 | 880103 | 880104 |
Back width, top of backrest (mm) | 200 | 220 | 260 | 280 | - | - | - | - |
Backrest angle (°) | 30 | 30 | 30 | 30 | - | - | - | - |
Backrest height (mm) | 350 | 380 | 420 | 470 | - | - | - | - |
Effective seat depth (mm) | 250 | 290 | 350 | 400 | - | - | - | - |
Effective seat width (mm) | 240 | 280 | 320 | 340 | - | - | - | - |
Folded height, frame (mm) | 200 | 200 | 200 | 200 | - | - | - | - |
Folded length, frame (mm) | 740 | 740 | 740 | 740 | - | - | - | - |
Frame length (mm) | 660 | 660 | 660 | 660 | - | - | - | - |
Leg to seat surface angle (°) | 90-60 | 90-60 | 90-60 | 90-60 | - | - | - | - |
Length (mm) | - | - | - | - | 260 | 315 | 360 | 425 |
Lower leg length (mm) | 180-260 | 250-350 | 300-400 | 300-400 | - | - | - | - |
Mass device (kg) | 11 | 13 | 14 | 15 | 2.5 | 3 | 4 | 4.5 |
Maximum rated load (kg) | 48 | 65 | 76 | 87 | 39.5 | 55 | 66 | 76.5 |
Maximum user mass (kg) | 35 | 50 | 60 | 70 | 35 | 50 | 60 | 70 |
Overall height (mm) | 860 | 890 | 930 | 950 | - | - | - | - |
Overall width (mm) | 440 | 460 | 500 | 540 | - | - | - | - |
Seat plane angle (°) | (-15)-35 | (-15)-35 | (-15)-35 | (-15)-35 | - | - | - | - |
Seat surface height at front edge (mm) | 500-600 | 500-600 | 500-600 | 500-600 | - | - | - | - |
Options
Colours
The Flamingo PU inlay is available in two different colours.
Grey
Blue
Support bar and rod
Curved
Rust-proof frame and locking castors
Aluminium frame with lockable castors for safe and stable transfer.
Frame & Castor
Flamingo use
The Flamingo can be used over a toilet, with a pan, directly on the toilet, as a bathing seat in the bath tub, as a shower chair or reclined over the bath for hair washing.
Freestanding with a pan
Directly on a toilet
In a bath
