R82 Rabbit Up

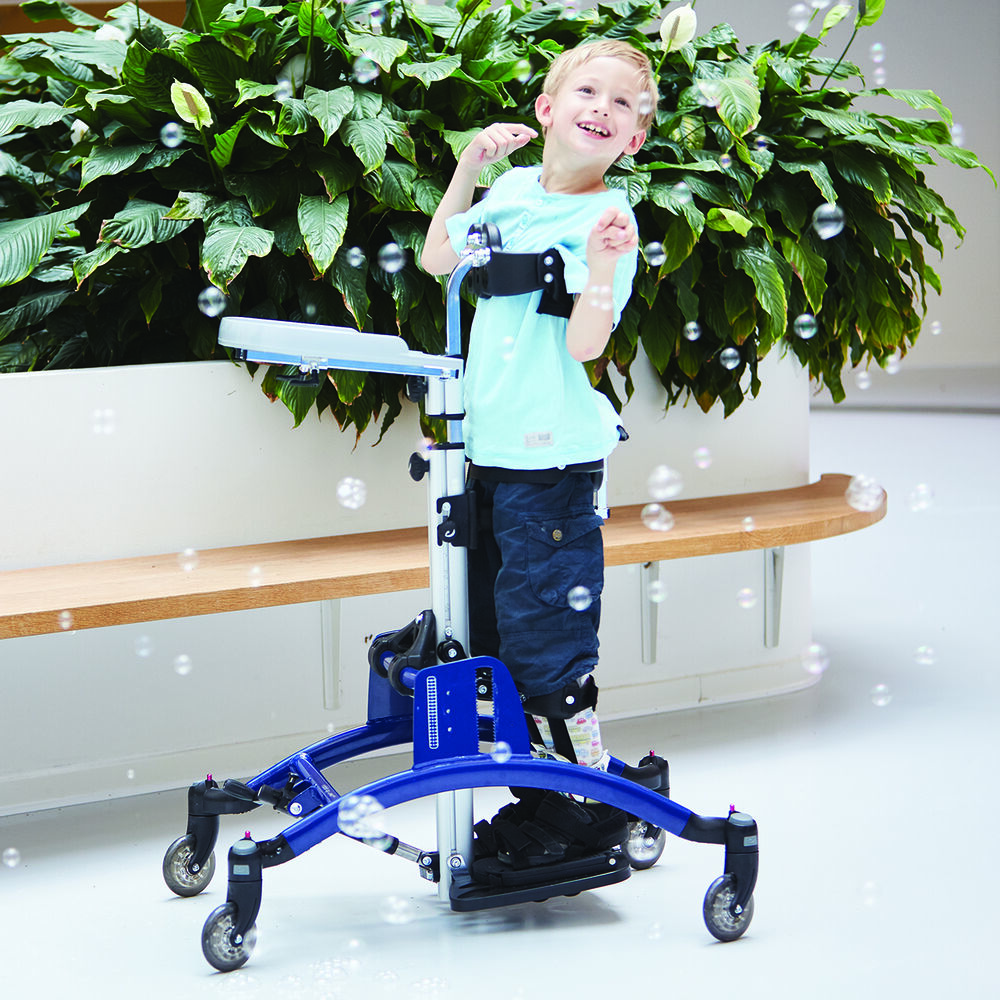

The Rabbit Up is an adaptive standing frame suitable for children with varying needs. This standing frame supports an upright or prone standing position, providing optimal flexibility and adaptability for the child's needs.

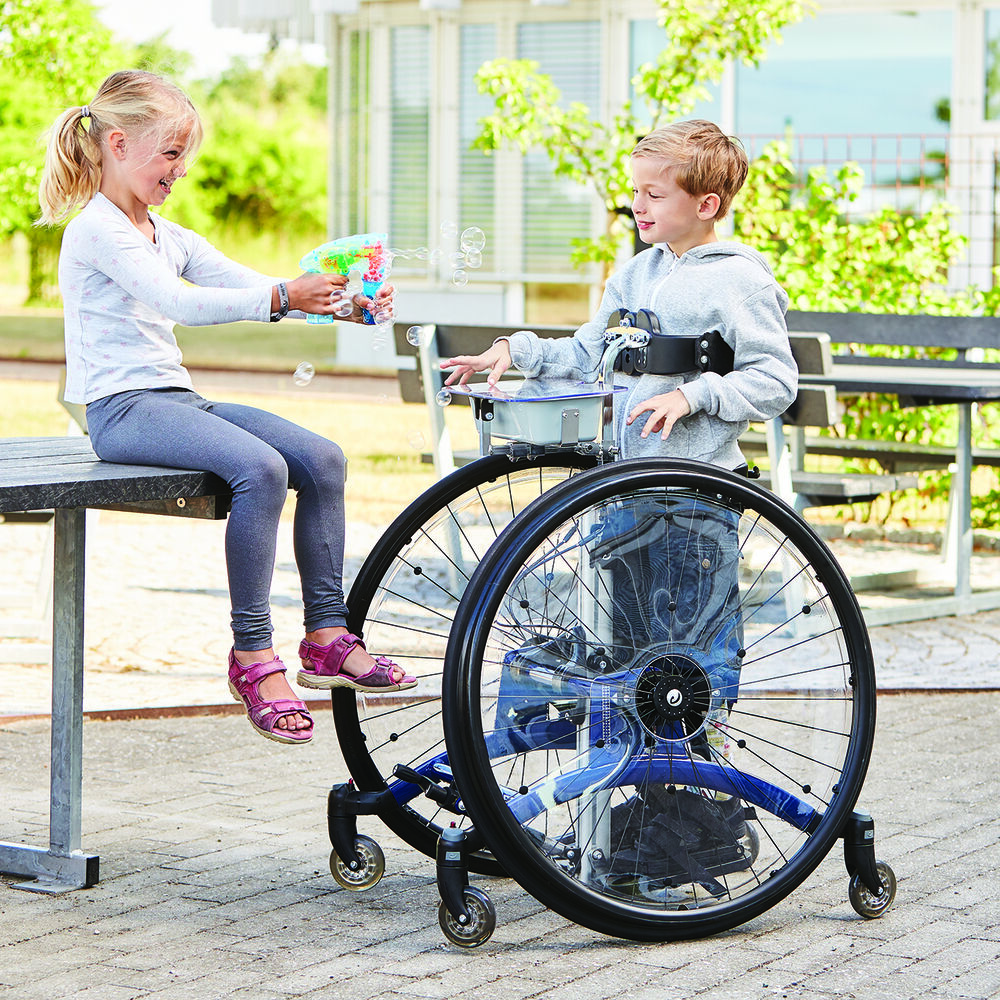

The Rabbit Up offers users the freedom and opportunity to explore and move about using its two optional driving wheels. This feature allows the child to be an active participant, stimulating their senses and promoting independence.
Designed specifically for paediatric use, the Rabbit Up is available in four sizes, making it suitable for children ranging from approximately 870 mm to 1800 mm in height. With a maximum user weight capacity of 70 kg, this standing frame is durable and suitable for a range of users.
The Rabbit Up is a valuable tool for therapy and home environments, providing support and assistance for children with varying needs. Its adaptable design and optional driving wheels make it a popular choice for parents and therapists alike.
In summary, the R82 Rabbit Up is a versatile and adaptive standing frame suitable for paediatric use. Its ability to support an upright or prone standing position, as well as its optional driving wheels make it an excellent choice for children with varying needs.
Discover
Rabbit Up video
Features
Stander and Mobile stander

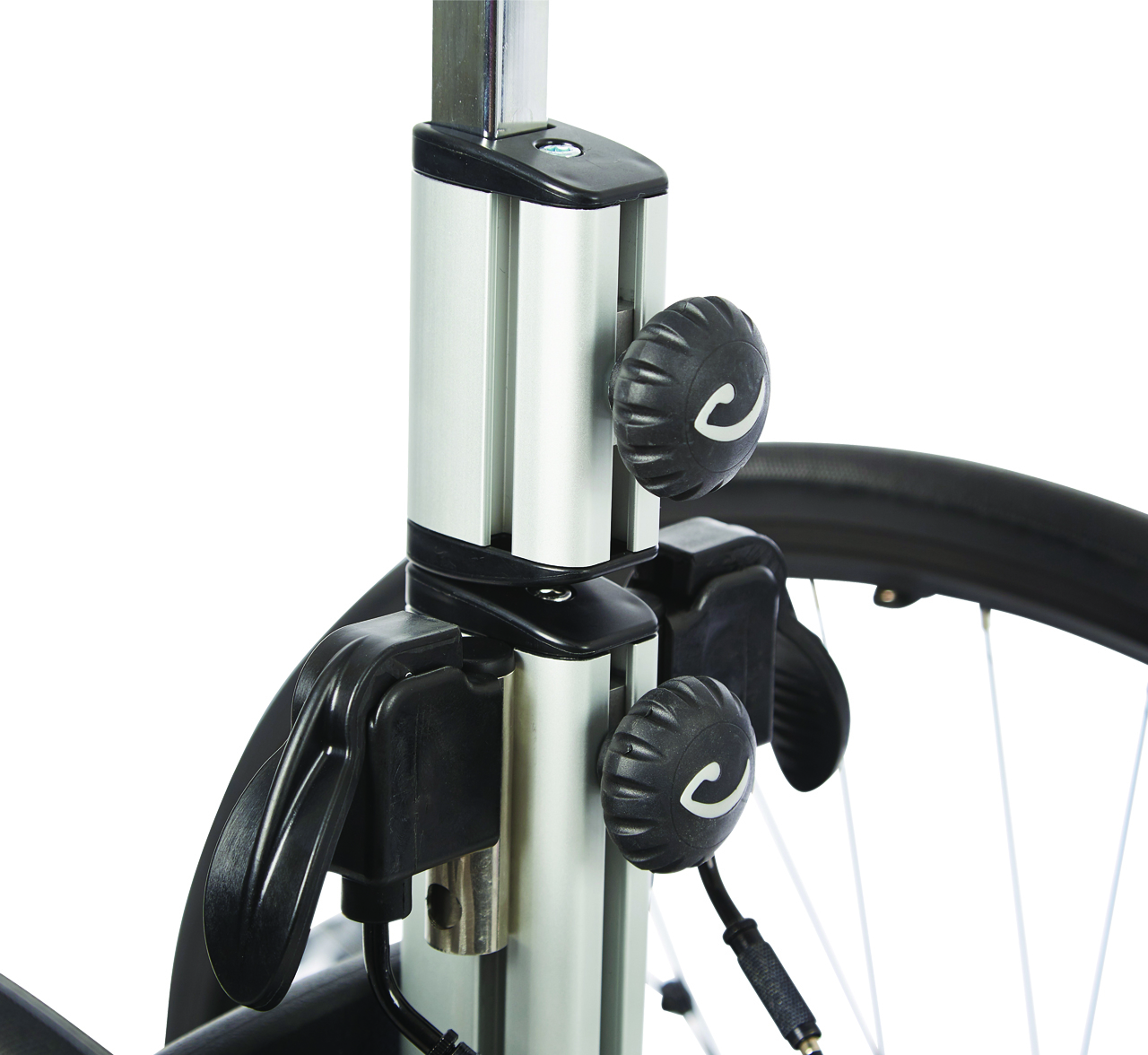

Angle adjustable center bar
Quick release wheels
Camber angling
Variants and details
| Size 1 | Size 1 without driving wheels | Size 2 | Size 2 Without driving wheels | Size 3 | Size 3 without driving wheels | Size 4 | Size 4 without driving wheels | |
|---|---|---|---|---|---|---|---|---|
| Item number | 86212xx-00 | 86212XX-00 | 8622xx-00 | 86222XX-00 | 8632xx-00 | 86232XX-00 | 8642xx-00 | 86242XX-00 |
| Angle of the centre bar (°) | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 | 0-30 |
| Camber angle (°) | 8 | - | 6 | - | 6 | - | 4 | - |
| Floor to foot plate (mm) | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Height, vertical (mm) | 620 | 700 | 750 | 796 | 800 | 796 | 900 | 926 |
| Inside width (mm) | 325 | 325 | 375 | 375 | 425 | 425 | 425 | 425 |
| Length (mm) | 500 | 500 | 700 | 700 | 800 | 800 | 1000 | 1000 |
| Mass device (kg) | 13.5 | 9 | 15.5 | 10.5 | 16 | 11 | 18.5 | 13.5 |
| Mass device (lbs) | 29.75 | 19.8 | 34.1 | 23.1 | 35.25 | 24.2 | 40.75 | 29.3 |
| Maximum rated load (kg) | 55.5 | 51 | 67.5 | 62.5 | 78 | 73 | 90.5 | 85.5 |
| Maximum user mass (kg) | 40 | 40 | 50 | 50 | 60 | 60 | 70 | 70 |
| Maximum user weight (kg) | 40 | 40 | 50 | 50 | 60 | 60 | 70 | 70 |
| Minimum turning diameter (mm) | 850 | 850 | 950 | 950 | 980 | 980 | 1085 | 1085 |
| Overall height (mm) | 670-1000 | 670-1000 | 850-1180 | 850-1180 | 990-13110 | 990-13110 | 1200-1530 | 1200-1530 |
| Overall width (mm) | 635 | 515 | 680 | 550 | 730 | 600 | 720 | 600 |
| Static stability downhill (°) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Static stability sideways (°) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Static stability uphill (°) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| User height: floor to axil (mm) | 500-740 | 550-740 | 750-1080 | 750-1080 | 830-1190 | 830-1190 | 960-1420 | 960-1420 |
Options
Camber angle for driving wheels
Standard camber angle: Size 1: 8°, Size 2+3: 6°, Size 4: 4°
Available to choose standard camber angle +3°, +6°, -3°, -6°
Camber angling
Stander or Mobile stander

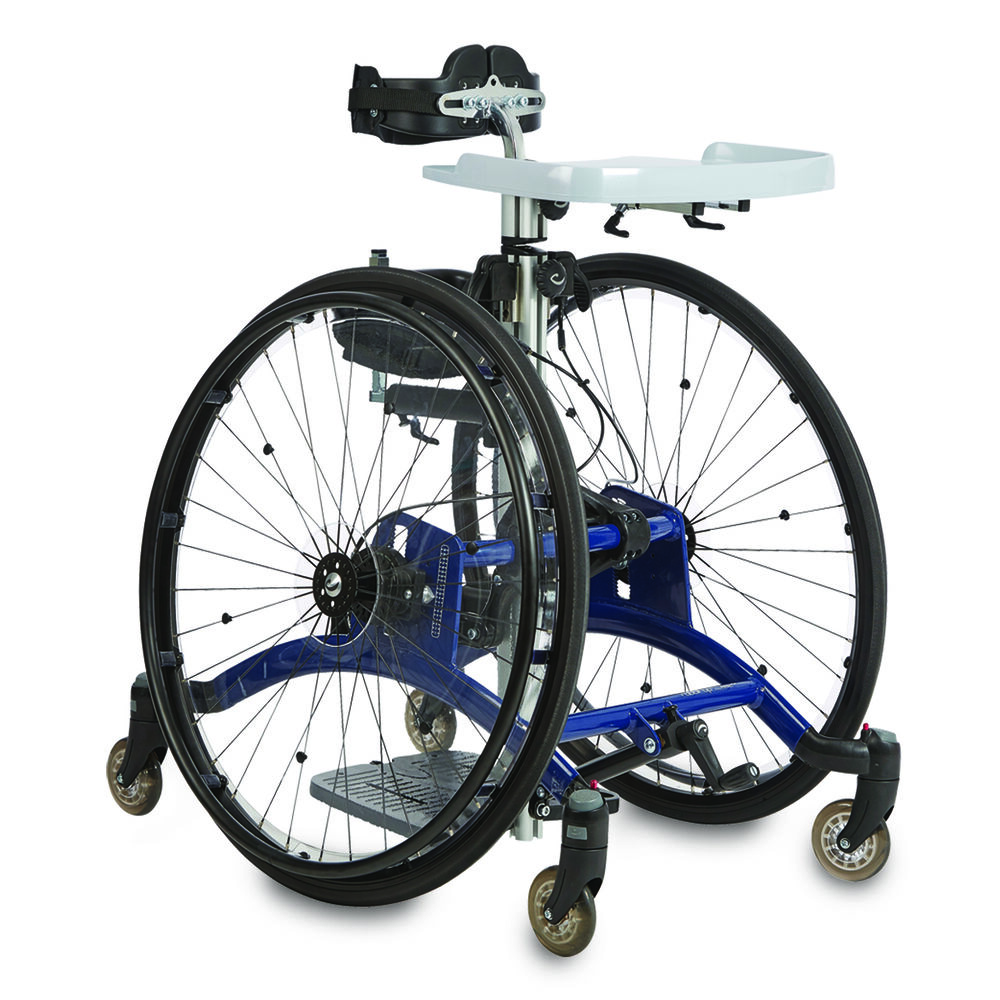

Choose between a stander or mobile stander with big driving wheels.
Stander

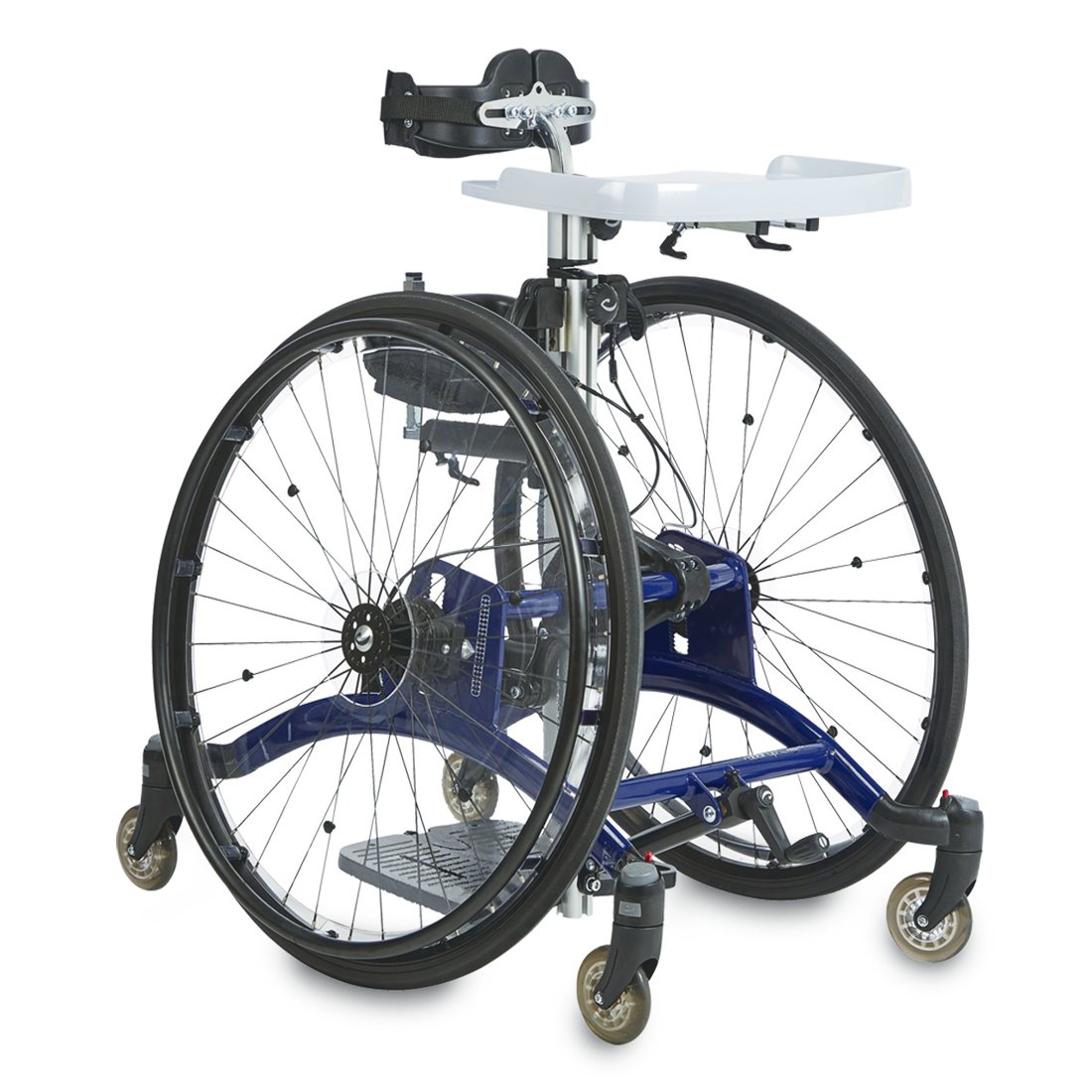

Mobile stander
Sizes and frame colour
Rabbit Up is available in 4 sizes with 4 different frame colours.
Size 1: Yellow
Size 2: Blue
Size 3: Anthracite grey
Size 4: Silver
Castors
Two choices of castors are available
Castors with brakes
Castors with no brakes
Angling
Two choices of angle adjustment are available
Fixed positions
Spindle
Driving wheel
Available in 22”, 24”, 26”, 29”, 32”, 36”
Pushrims
Two choices of pushrims are available

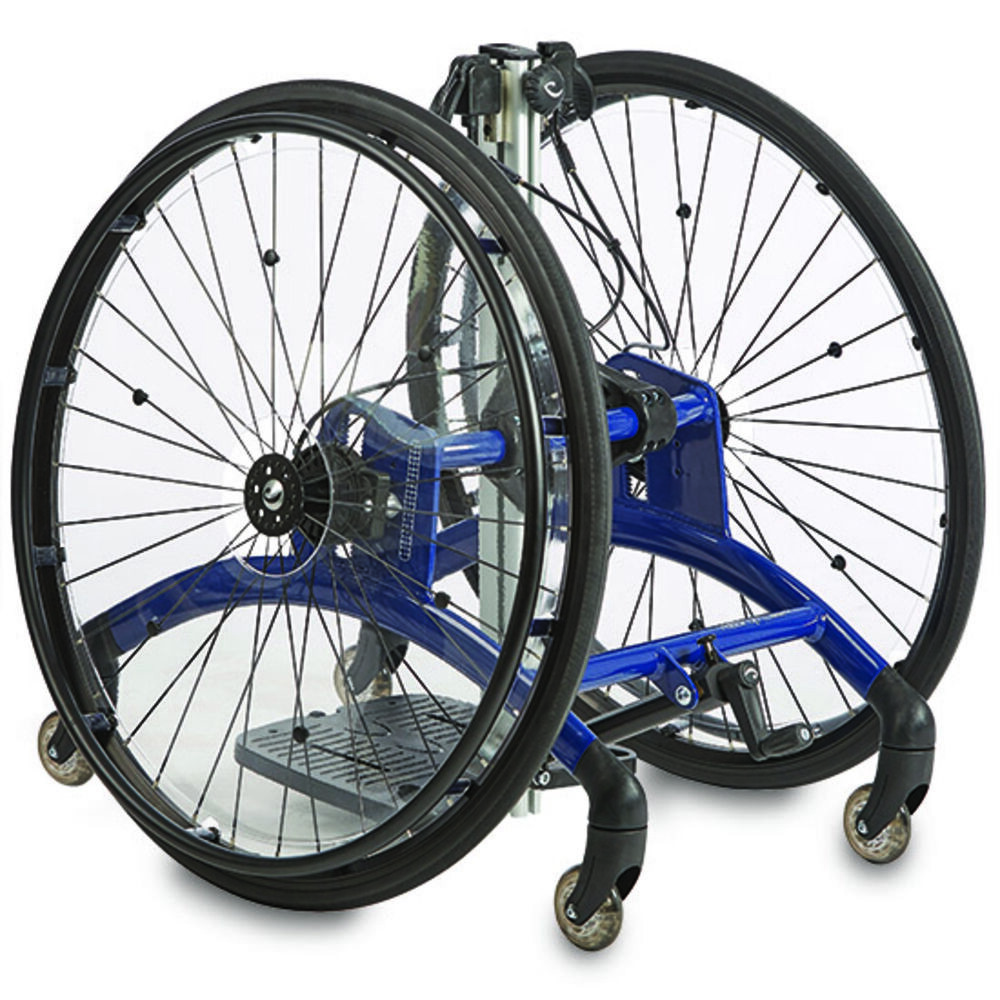

Open pushrims
Closed pushrims

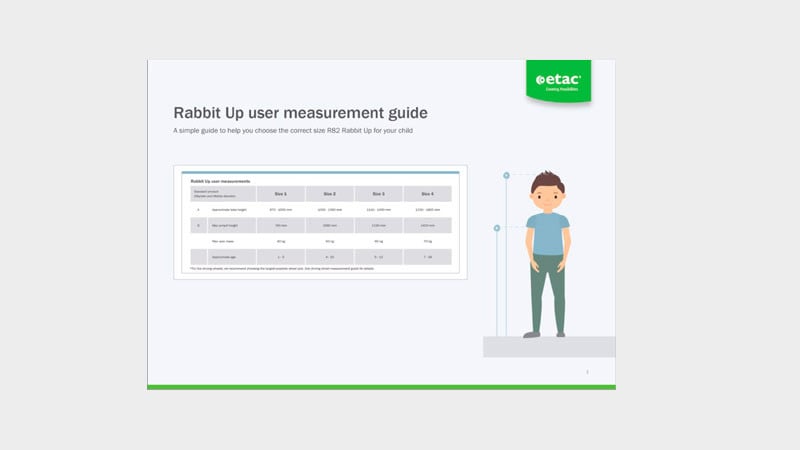

Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
Camber angling adjustment

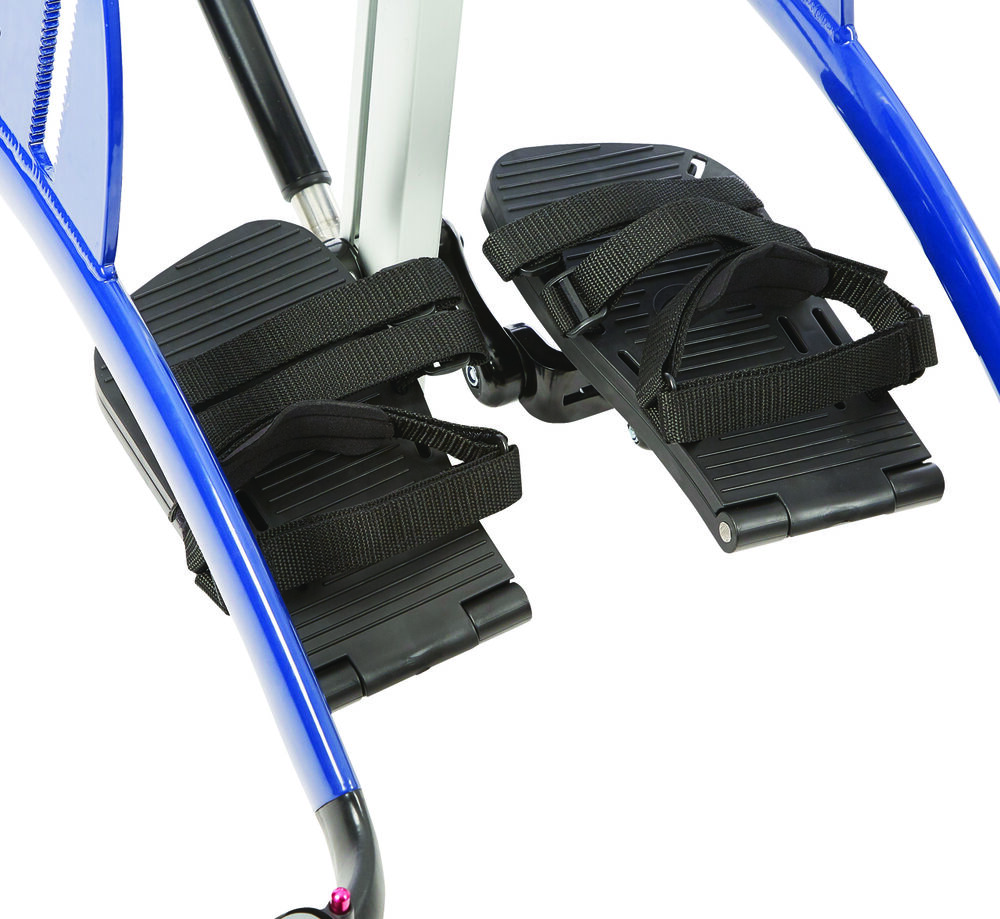

How to mount the foot plate on Rabbit Up
How to mount the central brakes
