R82 Stingray
Stingray is a superbly stylish buggy with tool free adjustment of postural support and unique swivel action for forward/rearward facing options.
The carbon frame with its trendsetting design encourages any family to go out together. The Stingray is in a league of its own.
Adjustments, comfort and lightness of steering are keywords for this buggy. The Stingray makes it possible to change from forward to rearward facing with its 180° turnable seat when a child is seated. The child is always comfortably seated, whilst the various angle adjustments makes it easy to find exactly the position they need. The Stingray has supreme driving properties, fantastic suspension and with the safe and stable brakes, security always has pride of place.
The Stingray is available in 2 sizes.
Discover
Stingray video
Features

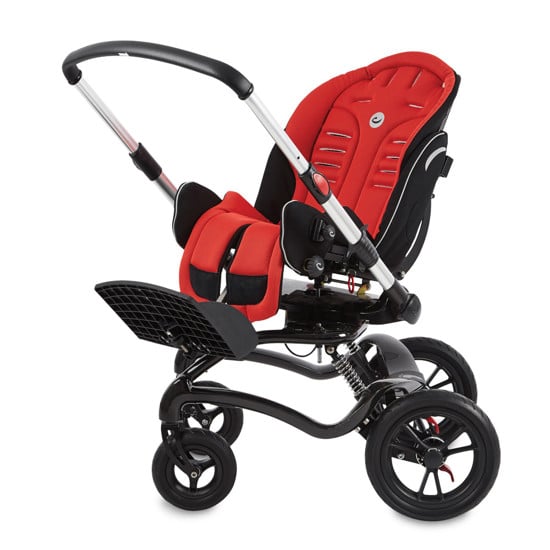

180° turnable seat

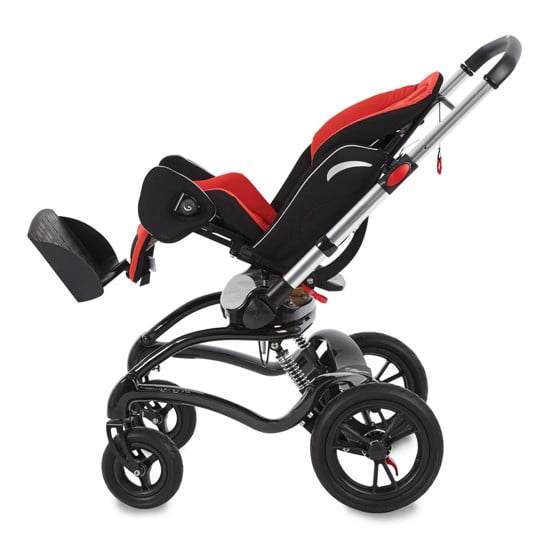

Tilt in space and back recline

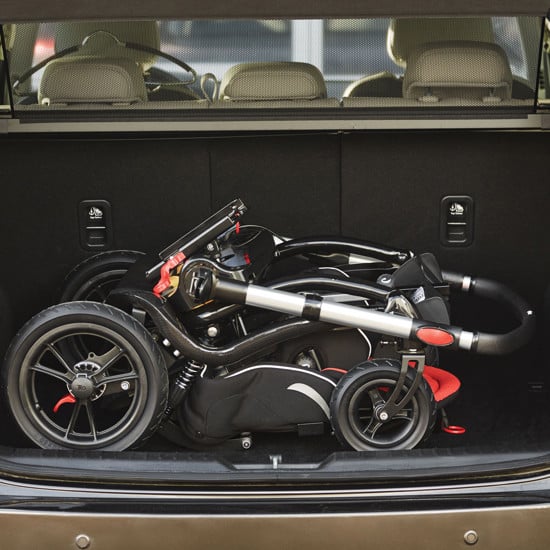

Foldable
Safe transportation in vehicles
Variants and details
| Stingray seat Size 1 | Stingray seat Size 2 | Stingray Frame one size | |
|---|---|---|---|
| Item number | 8711x20 | 8712x20 | 872xxxx |
| Back height at shoulders (mm) | 270-410 | 360-510 | - |
| Back width (mm) | 450 | 520 | - |
| Backrest angle (°) | 170 | 170 | - |
| Backrest height (mm) | 410-550 | 500-650 | - |
| Effective back width (mm) | 300 | 300 | - |
| Effective seat depth (mm) | 180-300 | 250-400 | - |
| Effective seat width (mm) | 300 | 350 | - |
| Folded height (mm) | 285 | 305 | 490 |
| Folded length (mm) | 575 | 575 | 900 |
| Folded width (mm) | 420 | 475 | - |
| Foot plate (width & depth) (mm) | - | - | 310x200 |
| Footrest to seat distance (mm) | 140-450 | 140-450 | 140-450 |
| Leg to seat surface angle (°) | (-30)-30 | (-30)-30 | (-30) - 30 |
| Length with large front wheels (mm) | - | - | 840 |
| Length with turnable front wheels (mm) | - | - | 740 |
| Mass device (kg) | 5.5 | 6.5 | 13.5 |
| Maximum rated load (kg) | 47.5 | 48.5 | 55.5 |
| Maximum user mass (kg) | 40 | 40 | 40 |
| Maximum user mass in transportation (kg) | 40 | 40 | 40 |
| Minimum turning radius (mm) | - | - | 1020 |
| Overall height, push brace 15° (mm) | - | - | 1000, 1030, 1060 |
| Overall width (mm) | - | - | 590 |
| Seat plane angle (°) | - | - | 45 |
| Seat surface height at front edge (mm) | - | - | 520 |
| Static stability downhill (°) | - | - | 10 |
| Static stability sideways (°) | - | - | 10 |
| Static stability uphill (°) | - | - | 10 |
Options

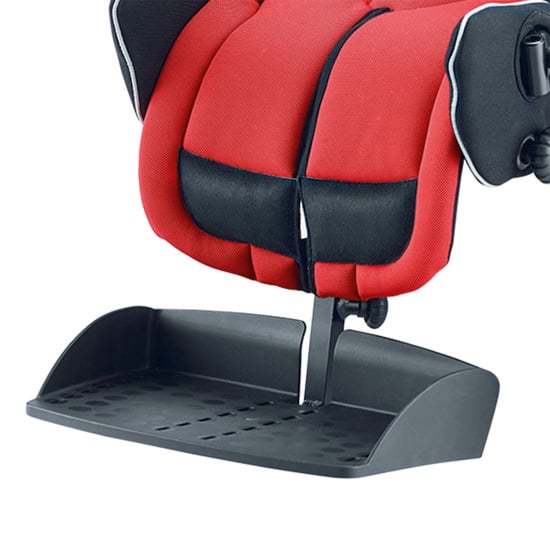

Foot rest
Available with either short or long foot rest bar.
Foot rest, short rod 18 cm
Foot rest, long rod 31 cm
Front wheels
Available as solid or air wheels.

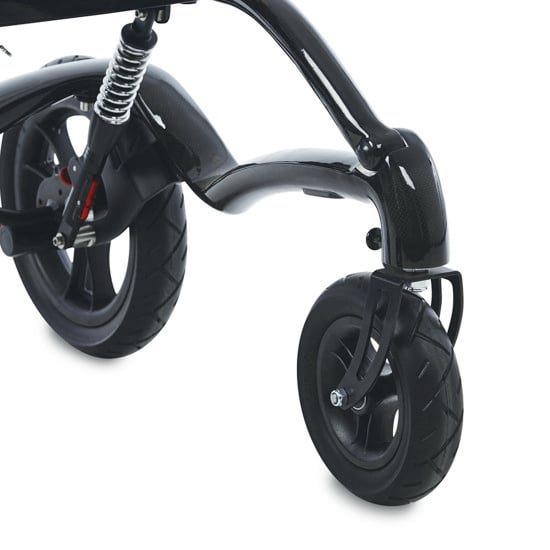

7" turnable front wheels, with directional stabiliser.

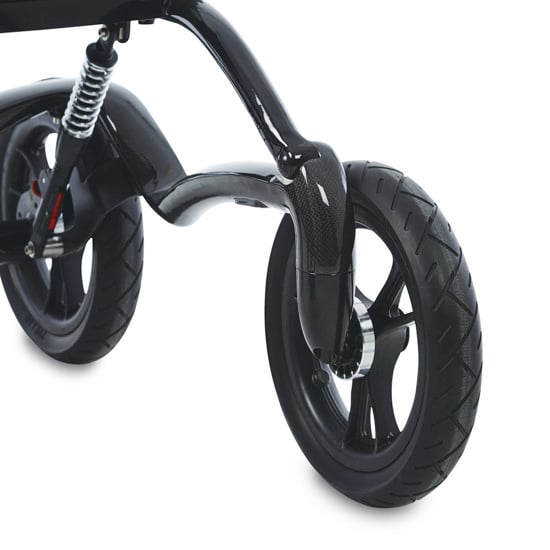

12” No swivel option.

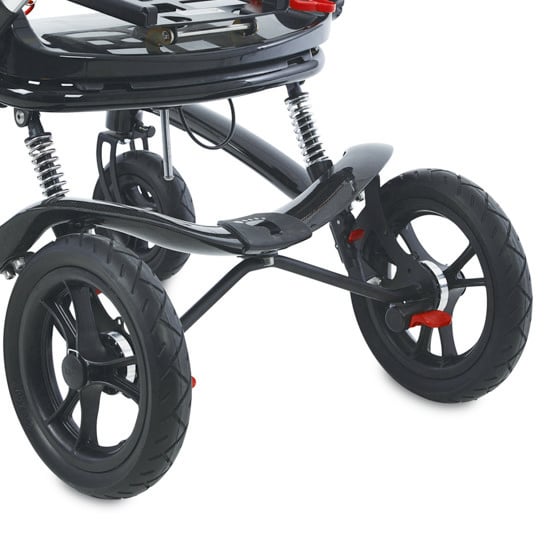

Foot brake
Available with individual or central foot brake.
Individual
Hand brake
Available with or without handbrake.
With hand brakes

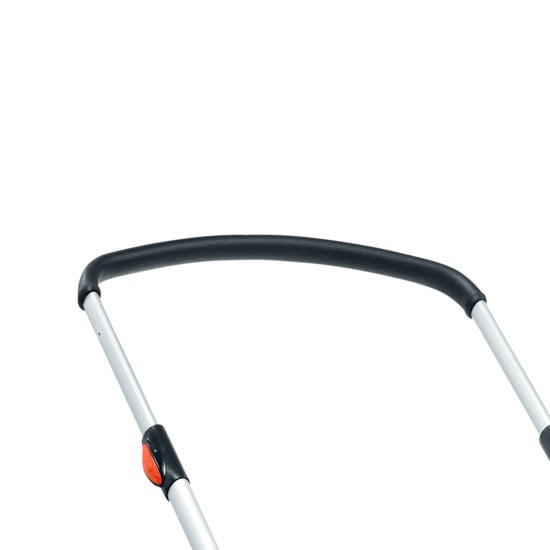

Without hand brakes

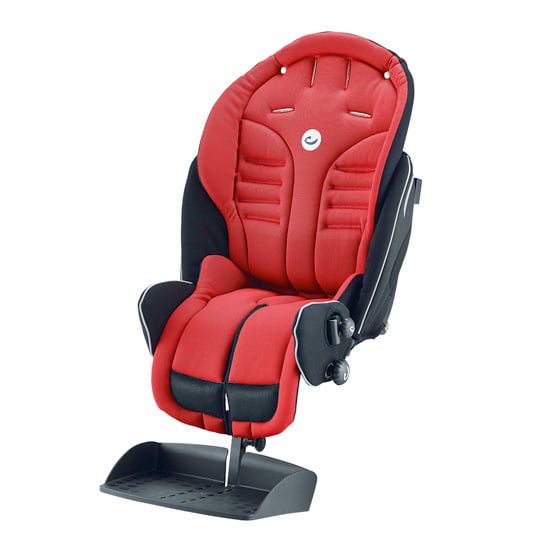

Seat
Available in 2 sizes.
Size 1
Size 2
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
180° turnable seat unit
