Convaid EZRider
The Convaid EZRider is a 10° fixed-tilt buggy that provides upright posture to enhance functional positioning.
The Convaid EZRider is a popular upright pediatric buggy that is convenient, lightweight, and compact folding. The EZRider is made to order to meet each individual requirements. It comes equipped with Convaid’s proprietary self-tensioning seating system, Self-Tensio®, which provides increased seating tolerance and can help promote neutral pelvic positioning. It provides growth capability through its seat depth extension system.
The EZRider comes in either Textilene (not available in EU or AU) or Convaid standard upholstery that is removable, washable, and comes in a wide selection of colours. The EZRider is easy to fold for maximal portability, available in 4 width sizes for users that weigh up to 113 kilograms. Made in the USA.
Features
Upholstery with built-in back zippers
Upholstery with built-in seat zippers
Tension adjustable back upholstery
Self-Tensio®
Variants and details
| EZ12 | EZ14 | EZ16 | EZ18 | |
|---|---|---|---|---|
| Folded height (mm) | 445 | 457 | 432 | 394 |
| Folded length (mm) | 1130 | 1168 | 1219 | 1130 |
| Folded width (mm) | 356 | 343 | 356 | 368 |
| Footrest to seat distance (mm) | 76-508 | 76-533 | 76-559 | 76-559 |
| Overall height (mm) | 965 | 978 | 1016 | 940 |
| Overall length (mm) | 914 | 953 | 1105 | 1219 |
| Overall width (mm) | 546 | 584 | 660 | 660 |
| Push handle adjustments (mm) | 749-1182 | 737-1194 | 711-1143 | - |
| Seat back height (mm) | 533C | 610C | 660C | 686C |
| Seat depth (mm) | 229-356 | 279-406 | 305-432 | 368-495 |
| Seat to floor (mm) | 483 | 508 | 508 | 546 |
| Seat to footplate (mm) | 76-508 | 76-533 | 76-559 | 76-559 |
| Seat width (mm) | 305 | 356 | 406 | 457 |
| Shoulder strap height (mm) | 279.4-431.8 | 356-508 | 381-533 | 406-559 |
| Tilt in space tilt angle (°) | 10 | 10 | 10 | 10 |
| Total weight (kg) | 11 | 14 | 14 | 13 |
| Weight capacity (kg) | 34 | 45 | 77 | 113 |
| Weight capacity transit (kg) | 30 | 45 | 77 | 77 |
Options
Frame options
Push handle options
One-piece, height-adjustable push handle
Two-piece push handle
Upholstery options
The Convaid EZ Rider comes standard with Convaid upholstery that is removable and washable. The Convaid upholstery standard colour is panther black but available in a wide selection of colours for an upcharge.
Convaid Standard Upholstery
Front tyres
7.5” X 2” Front air tyres
Rear tyres
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to adjust the back tensioning straps
Convaid EZ Rider - How to attach the armrest

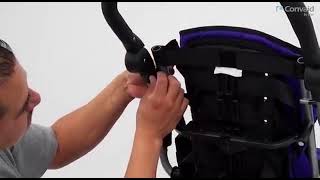

Convaid EZ Rider - How to attach the upholstery
