Convaid Cruiser
The Convaid Cruiser is a 30° fixed-tilt buggy that improves postural control through upper body positioning.
The Convaid Cruiser is a popular 30° fixed-tilt pediatric buggy that is convenient, lightweight, and compact folding. The Cruiser is made to order to meet each individual requirement. It comes equipped with Convaid’s proprietary self-tensioning seating system, Self-Tensio®, which provides increased seating tolerance and can help promote neutral pelvic positioning. It provides growth capability through its seat depth extension system.
The Cruiser comes in either Convaid standard upholstery or Textilene (not available in EU or AU) that is removable, washable, and comes in a wide selection of colours. The Cruiser is easy to fold for maximal portability, available in 4 width sizes, and for users that weigh up to 113 kilograms. Made in the USA.
Discover
Cruiser video
Features
Tension adjustable back upholstery
Self-Tensio®
One-piece, height-adjustable push handle
Tool-less seat depth adjustment
Variants and details
| CX10 | CX12 | CX14 | CX16 | CX18 | |
|---|---|---|---|---|---|
| Folded height (mm) | 432 | 432 | 432 | 432 | 432 |
| Folded length (mm) | 1194 | 1219 | 1194 | 1346 | 1270 |
| Folded width (mm) | 381 | 381 | 406 | 406 | 381 |
| Foot plate angle (°) | -180 - +180 | -180 - +180 | -180 - +180 | -180 - +180 | -180 - +180 |
| Footrest to seat distance (mm) | 127-533 | 127-635 | 102-559 | 102-559 | 203-584 |
| Overall height (mm) | 940 | 965 | 940 | 1016 | 965 |
| Overall length (mm) | 1219 | 1118 | 1245 | 1321 | 1397 |
| Overall width (mm) | 559 | 597 | 648 | 699 | 724 |
| Push handle adjustments (mm) | 711-1219 | 737-1168 | 711-1143 | 787-1219 | - |
| Seat back height (mm) | 533C | 559C | 635C | 686C | 635C |
| Seat depth (mm) | 152-279 | 203-330 | 254-381 | 279-406 | 356-533 |
| Seat to floor (mm) | 584 | 635 | 533 | 584 | 660 |
| Seat to footplate (mm) | 127-533 | 127-635 | 102-559 | 102-559 | 203-584 |
| Seat width (mm) | 254 | 305 | 356 | 406 | 457 |
| Shoulder strap height (mm) | 279-483 | 305-508 | 381-584 | 432-635 | 406-559 |
| Tilt in space tilt angle (°) | 30 | 30 | 30 | 30 | 30 |
| Total weight (kg) | 12 | 12 | 13 | 15 | 14 |
| Weight capacity (kg) | 34 | 34 | 45 | 77 | 113 |
| Weight capacity transit (kg) | 30 | 30 | 45 | 77 | 77 |
Options
Frame options
Cruiser Scout frame
Push handle options
One-piece, height adjustable push handle
Two-piece push handle
Upholstery options
The Convaid Cruiser comes standard with removable and washable Convaid standard upholstery. The standard colour is panther black, but it is available in a selection of colours for an upcharge.
Convaid Standard Upholstery
Front tyres
7.5” X 2” Front air tyres
Rear tyres
Accessories
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
How to adjust push handle height
How to adjust back tension

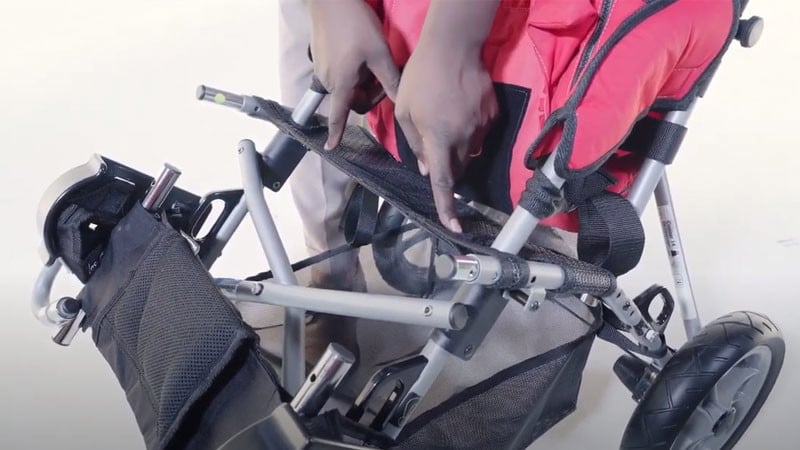

Self tensio design explained
