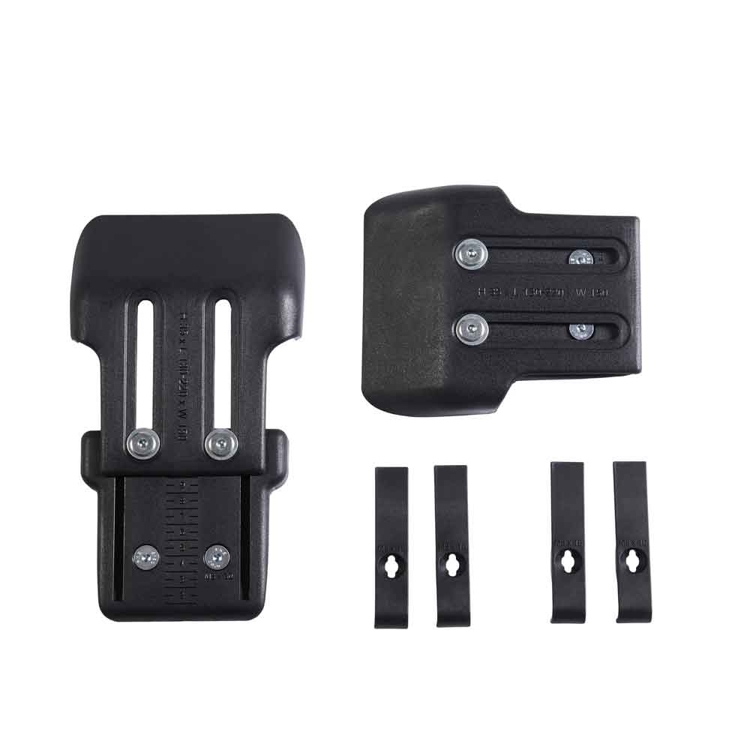

Wedges for seat pit, set
Seat wedges create a gentle contour in the seat and enhance function and pressure distribution by accommodating the ischial tuberosities. The wedges increase the contact area between the user and the cushion, providing pelvis stability and control through optimal positioning, and preventing the pelvis from rolling backwards. The wedges are adjustable in length to accommodate the needs of a growing child. Only for advanced seating.
Variants and details
| Size 1, short | Size 1, medium | Size 1, long | Size 2, medium | Size 2, long | Size 3, medium** | Size 3 | |
|---|---|---|---|---|---|---|---|
| Item number | 905052 | 905053 | 905054 | 905055 | 905056 | 905057 | 905058 |
| Compatible with | R82 x:panda shape and x:panda shape TS, size 1 | R82 x:panda shape and x:panda shape TS, size 1 | R82 x:panda shape and x:panda shape TS, size 1 | R82 x:panda shape and x:panda shape TS, size 2* | R82 x:panda shape and x:panda shape TS, size 2* | R82 x:panda shape and x:panda shape TS, size 3** | R82 x:panda shape and x:panda shape TS, size 3** |
| Height (mm) | 20 | 30 | 45 | 35 | 50 | 40 | 55 |
| Length (mm) | 70-110 | 110-175 | 120-200 | 130-220 | 140-240 | 150-260 | 170-300 |
| Width (mm) | 115 | 135 | 135 | 150 | 150 | 200 | 200 |
*also usable on size 1 seat plates for advanced seating, width 300 mm. **also usable on size 2 seat plates for advanced seating, width 400mm.
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
Videos
