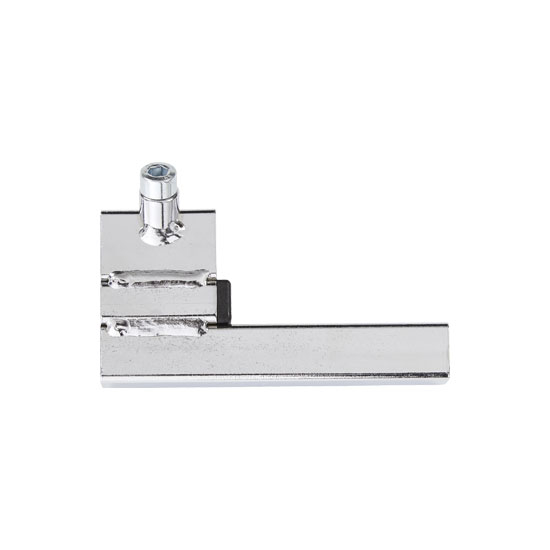

Single rod for foot support
The single rod for foot support is needed to mount the foot support on the frame. The extended version allows for positioning of the foot support further in front of the frame and therefore accommodate larger seat depths.
Variants and details
| Size 1 | Size 2 | Size 3 | Size 1 (extended holders) | Size 2 (extended holders) | Size 3 (extended holders) | |
|---|---|---|---|---|---|---|
| Item number | 8910820-1 | 8910820-2 | 8910820-3 | 8910821-1 | 8910821-2 | 8910821-3 |
| Compatible with | R82 High-low:xo, R82 Floor frame, R82 Strong base, R82 x:panda shape TS | R82 High-low:xo, R82 Strong base, R82 x:panda shape TS | R82 High-low:xo, R82 Strong base, R82 x:panda shape TS | R82 High-low:xo, R82 Strong base, R82 x:panda shape TS | R82 High-low:xo, R82 Strong base, R82 x:panda shape TS | R82 High-low:xo, R82 Strong base, R82 x:panda shape TS |
| Length (mm) | 155 | 290 | 350 | 155 | 290 | 350 |
Documents
Download of user manuals are intended for expedient purpose only. The products in reference may be subject to change without prior notice and reader’s discretion is advised to ensure coherence with product version and article number as well as the appropriate translation.
