Anatomic head support
Anatomic head support

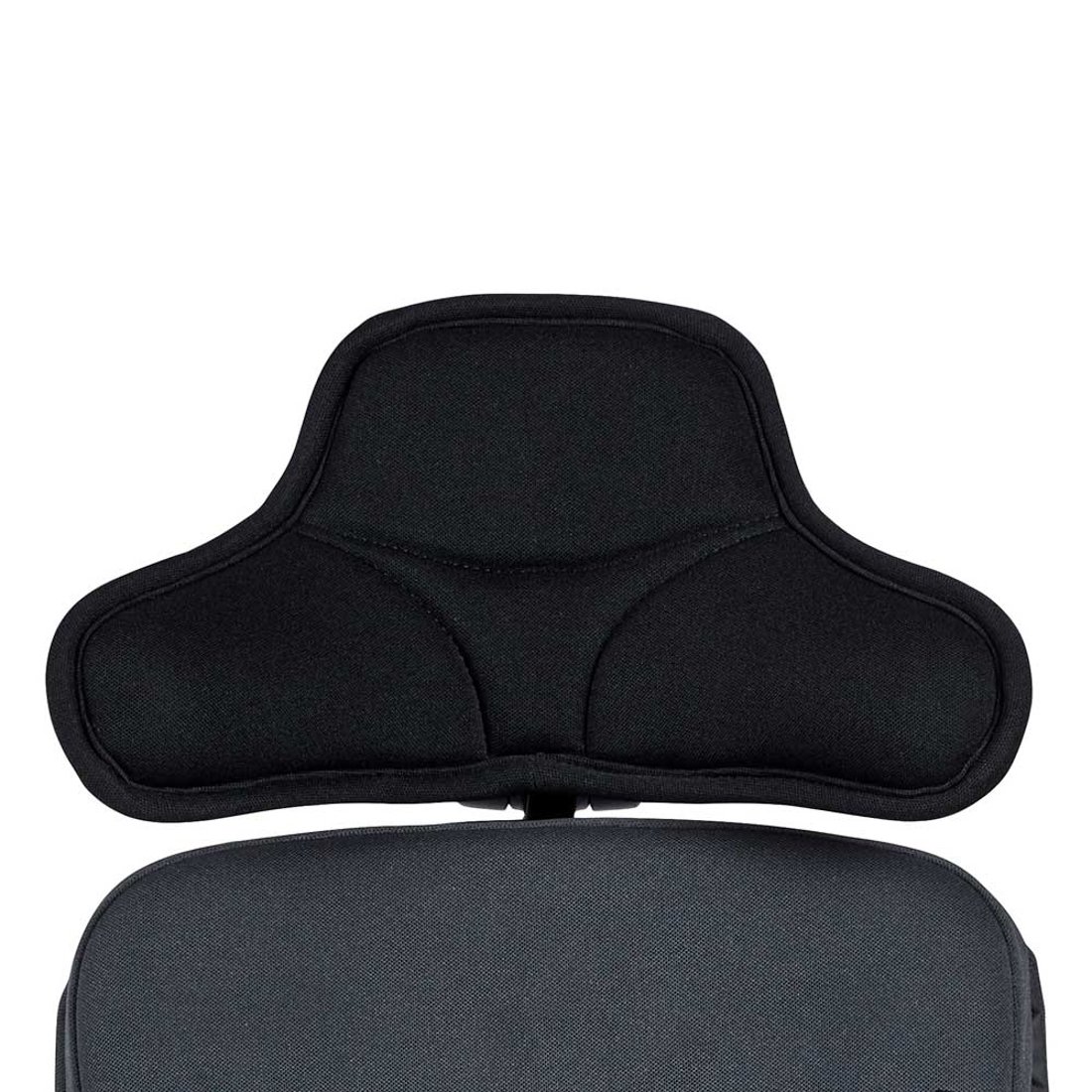

The anatomic head support is contoured and has two fingers at the sides. The contour fits the back of the head, and the two fingers provide support at the edge of skull, thereby helping maintain the head in midline and an upright position. It is suitable for users who need constant support. A supported and aligned position of the head can enable the user to participate in many daily activities such as eating and communication.
- This is a configurable product. Contact your local dealer for finding the head support that fits your child's needs.
Variants and details
| Small | Medium | Large | |
|---|---|---|---|
| Compatible with | R82 x:panda shape, x:panda, Panda Futura, Panda Futura 5, Wombat Living, Wombat Solo, Stingray, Kudu, Cougar, Combi Frame:x, Mustang, Gazelle, Caribou, Rabbit Up, Toucan | R82 x:panda shape, x:panda, Panda Futura, Panda Futura 5, Wombat Living, Wombat Solo, Stingray, Kudu, Cougar, Combi Frame:x, Mustang, Gazelle, Caribou, Rabbit Up, Toucan | R82 x:panda shape, x:panda, Panda Futura, Panda Futura 5, Wombat Living, Wombat Solo, Stingray, Kudu, Cougar, Combi Frame:x, Mustang, Gazelle, Caribou, Rabbit Up, Toucan |
| Measurements (drawing) | A:145 x B:140 x C:240 mm | A:155 x B:140 x C:260 mm | A:170 x B:140 x C:320 mm |
Options
Bar system
Standard bar system
Allows 140 mm of forward/backward adjustment.

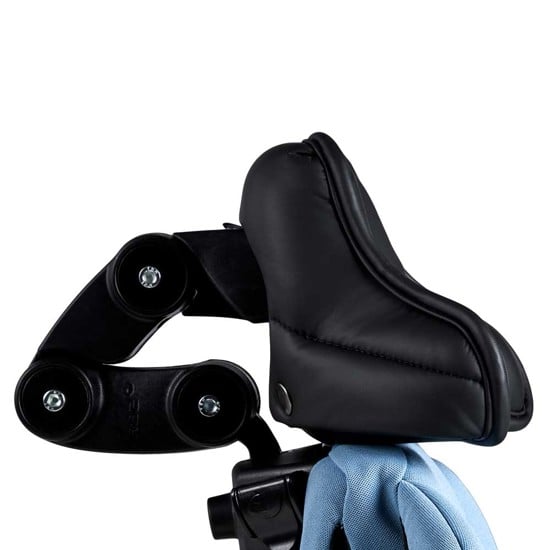

Extended bar system
Allows 220 mm of forward/backward adjustment.

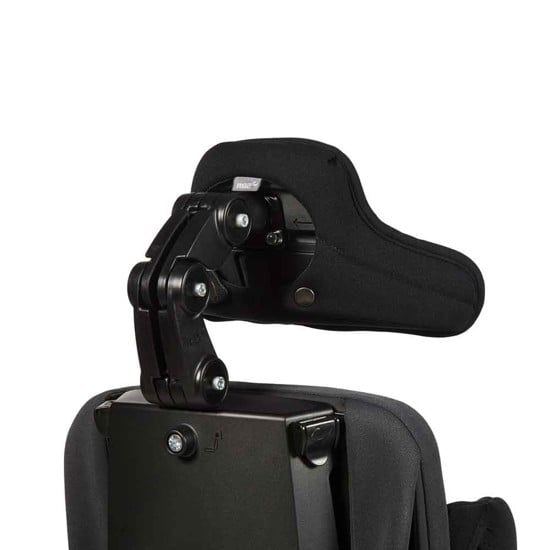

3D bar system
Available with both standard and extended bar system

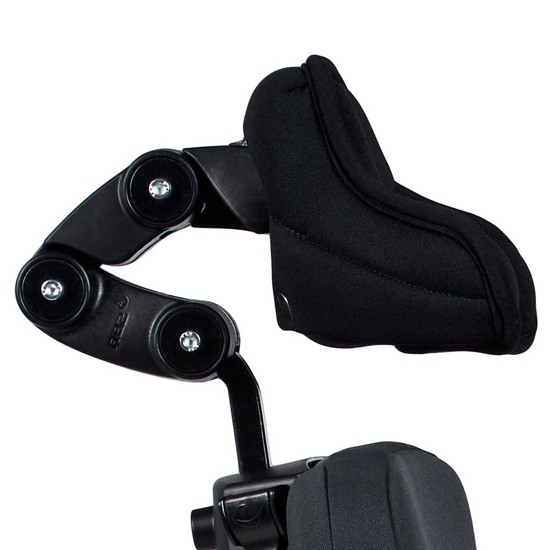

Length of rod
Length of rod
Available in short (80 mm height adjustability) - suitable for all upper back heights
Medium (120 mm height adjustability) - suitable for upper back heights of 180, 220, 270 and 340 mm
Long (160 mm height adjustability) - suitable for upper back heights of 270 and 340 mm
Cover and colour
Black, colour code = 80
Black wipeable, colour code = 70
